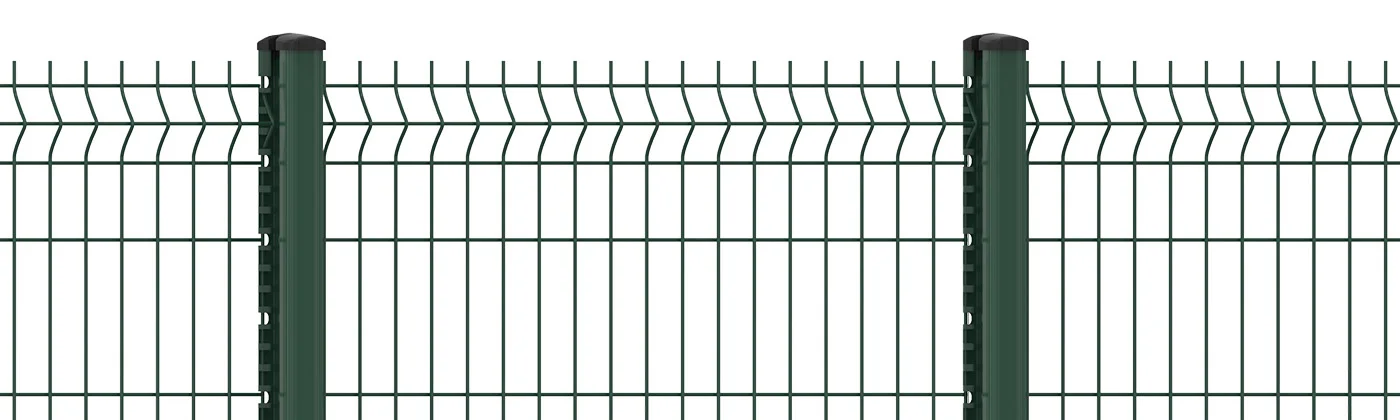

3D Fence – Strong, Stylish, and Secure

3D Fence is a welded mesh fencing system reinforced with distinctive V-shaped bends for enhanced strength and visual appeal. Made of high-tensile steel wires and treated with galvanized, powder-coated, or PVC-coated finishes, it offers excellent corrosion resistance and long-lasting durability. Its sleek design and easy installation make it a cost-effective choice for a wide range of perimeter protection needs in both private and public settings.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

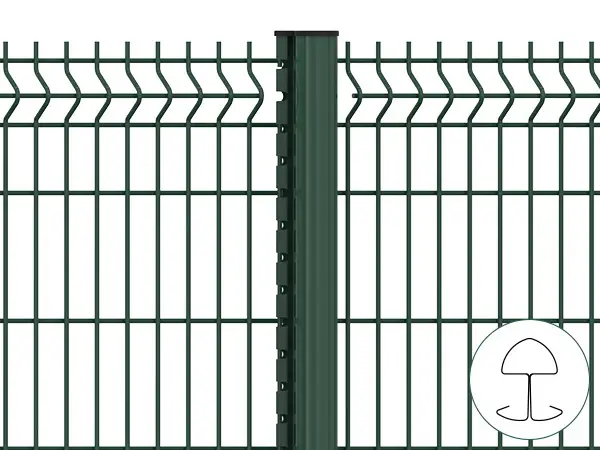

Two pieces of 3D fences are connected with peach post.

GR11 – Peach Post

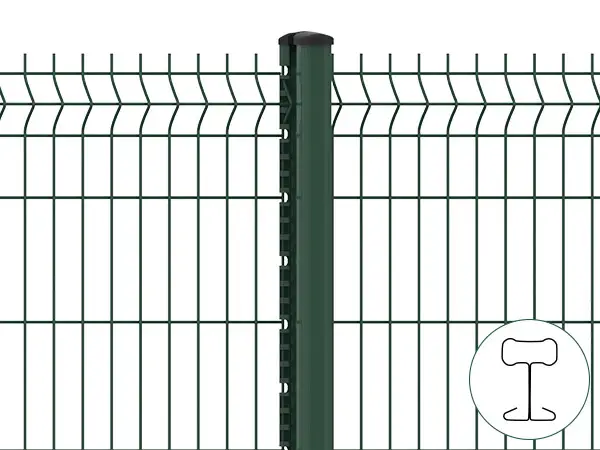

Two pieces of 3D fences are connected with BD post.

GR12 – BD Post

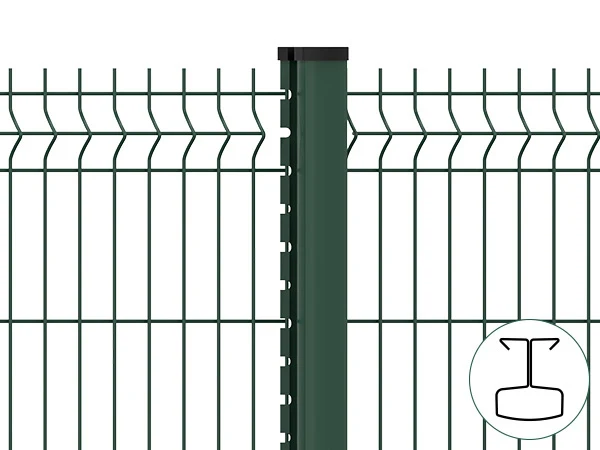

Two pieces of 3D fences are connected with CM post.

GR13 – CM Post

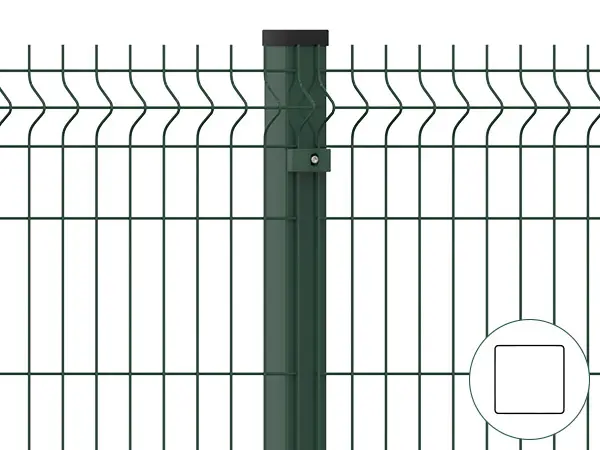

Two pieces of 3D fences are connected with square post.

GR14 – Square Post

Two pieces of 3D fences are connected with rectangle post.

GR15 – Rectangle Post

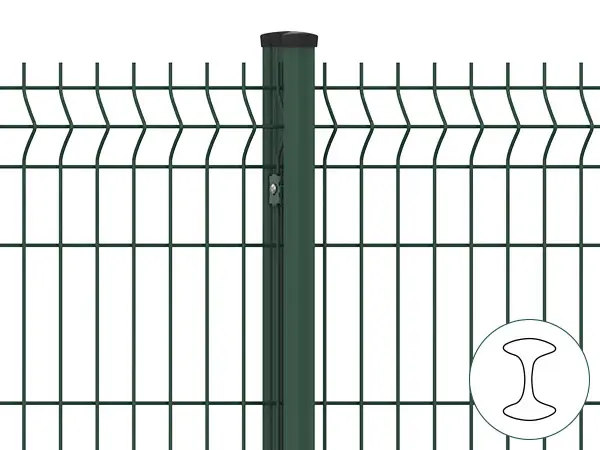

Two pieces of 3D fences are connected with I post.

GR16 – I Post

GR11

GR12

GR13

GR14

GR15

GR16

V bends increase panel rigidity and stable in heavy duty environments.
Various posts and fittings for quick assembly and reduced labor.
Robust structure and firm connection ensures excellent wind resistance.
Galvanized / PE Coating / powder coating for anti-rust and corrosion resisting.
Modern appearance make it unique, aesthetic and stylish.
Available in a variety of sizes, colors, configurations for different use.
Customized solutions and installations to adapt to complex environments.

A Height: 830 mm / 1030 mm / 1230 mm / 1530 mm / 1830 mm / 2030 mm / 2230 mm / 2430 mm
B Width: 2.0 m / 2.2 m / 2.5 m / 3.0 m
C Line Wire: 4.0 mm / 4.5 mm / 5.0 mm / 6.0 mm
D Cross Wire: 4.0 mm / 4.5 mm / 5.0 mm / 6.0 mm
E Mesh Opening: 50 × 100 mm, 50 × 200 mm, 55 × 200 mm, 75 × 150 mm, 100 × 300 mm
F
Post:
- Peach: 50 × 70 mm, 70 × 100 mm
- Square: 40 × 40 mm, 50 × 50 mm, 60 × 60 mm
- Rectangular: 30 × 50 mm, 40 × 60 mm, 60 × 80 mm
- Round: 48 mm / 60 mm / 75 mm
- I Shape: 44 × 70 mm, 50 × 100 mm
- CM post: 55 × 65 mm, 65 × 95 mm
- BD post: 60 × 80 mm
G Post Cap: Metal & Plastic Caps

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

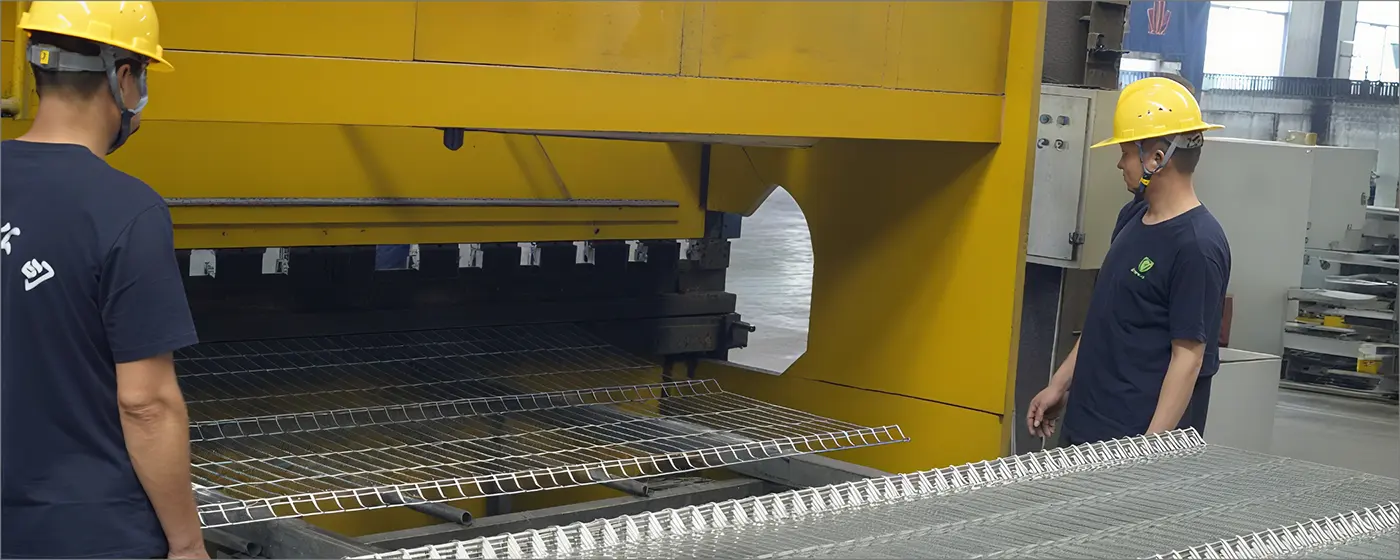

Two workers are standing and operating the bending machine of 3D security fence.

Production Process

Raw Material – Steel Wires
Straighten & Cutting
Panel Welding
Panel Bending
Post Production
Surface Treatment (Hot Dipped Galvanized / PE Coating / Powder Coating)
Package
Loading
Shipping

3D Fences Production Process

PE Coating Process

Hot Dipped Galvanized Process

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

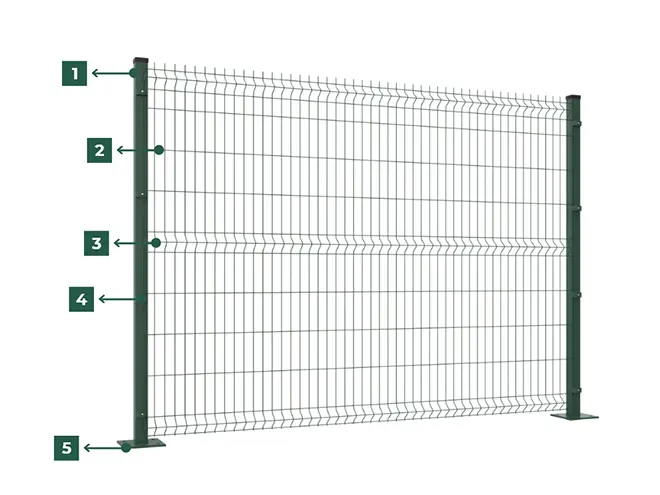

Structure

Fence Post
Fence Panel

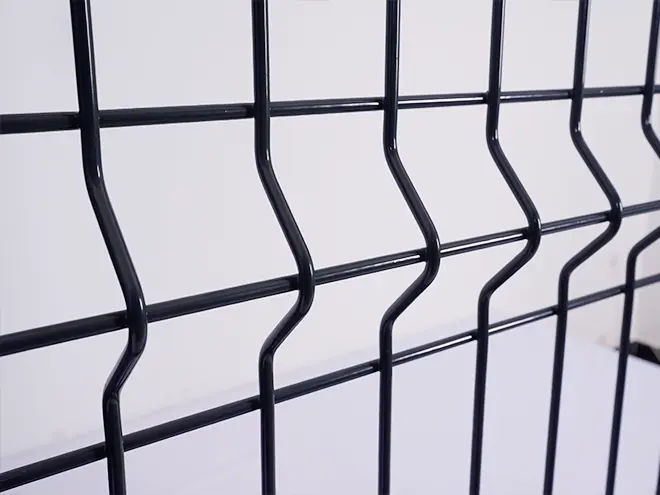

Curve
Installation Fitting

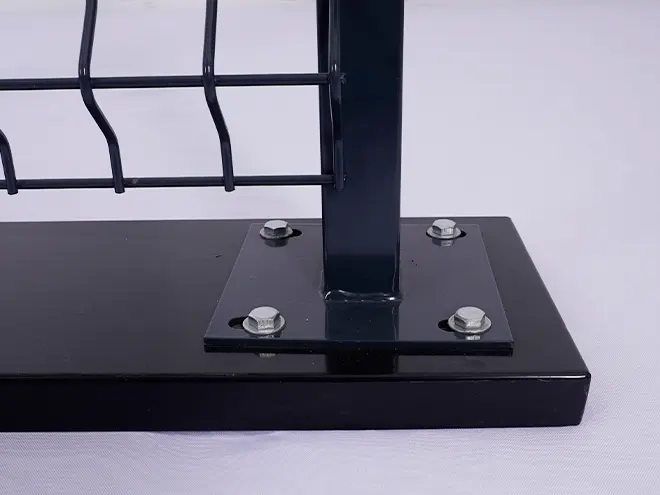

Base

Overview
Fence Post

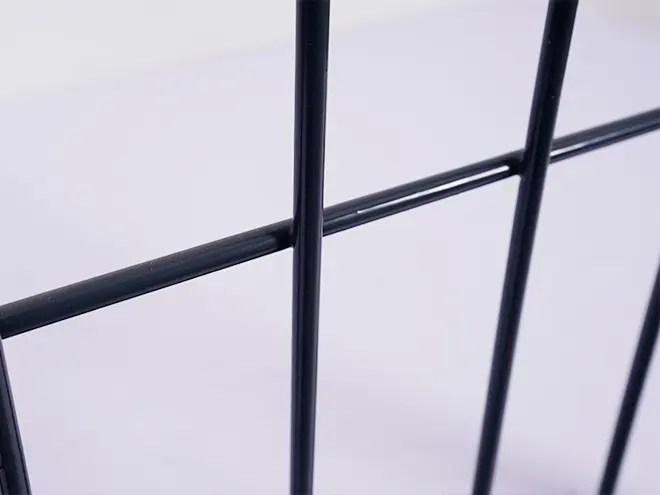

Fence Panel
Curve
Installation Fitting
Base

QC & Package

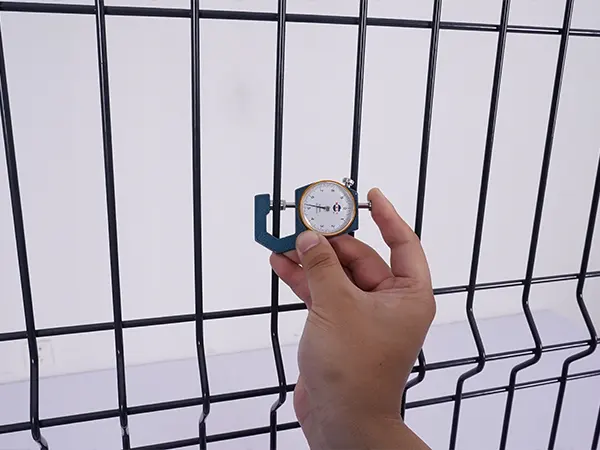

A QC worker is measuring the cross wire diameter of 3D fence.

Cross Wire Diameter Measuring

A QC worker is measuring the mesh size of 3D fence.

Mesh size measuring

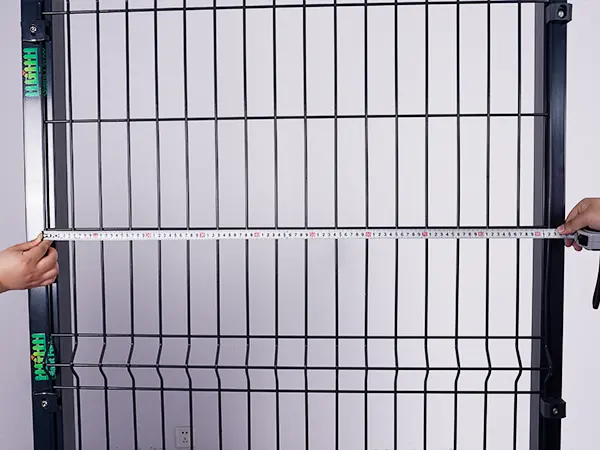

A QC worker is measuring the width of 3D fence.

Width measuring

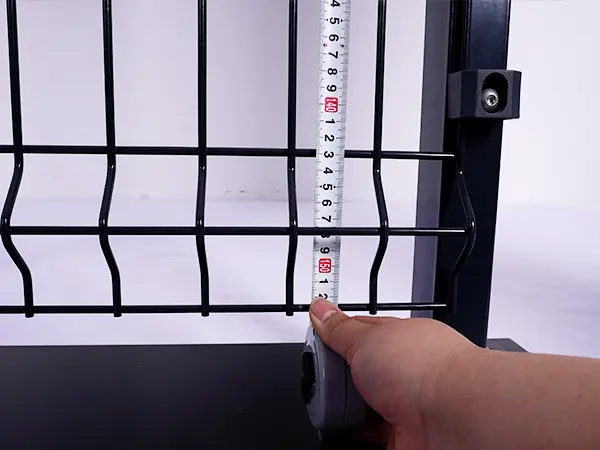

A QC worker is measuring the height of 3D fence.

Height Measuring

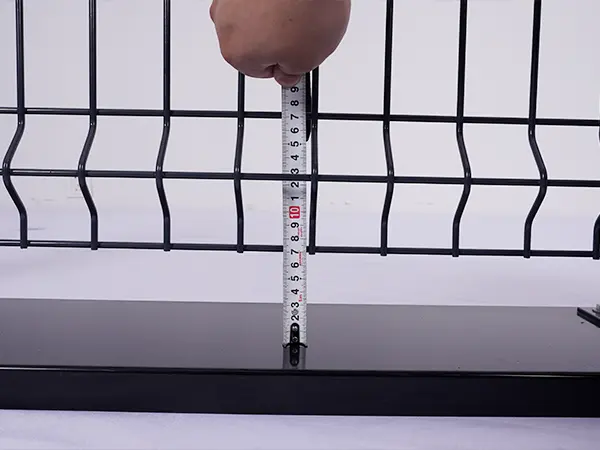

A QC worker is measuring the distance between fence panel and ground.

Ground Distance Measuring

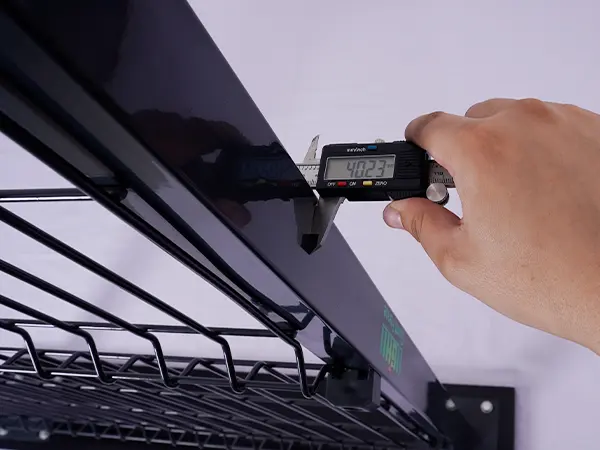

A QC worker is measuring the post size of 3D fence.

Post Size Measuring

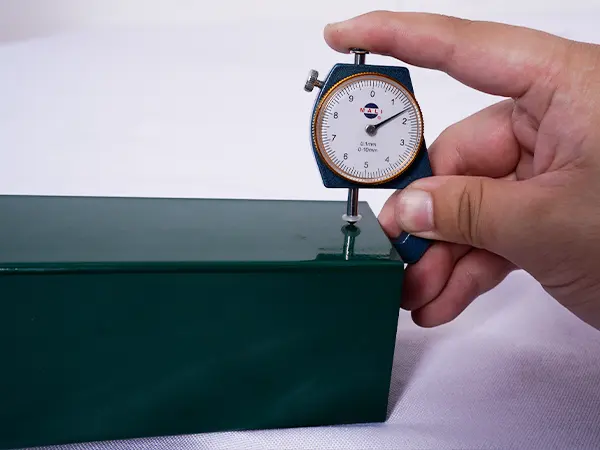

A QC worker is measuring the thickness of 3D fence post.

Post Thickness Measuring

Several wooden pallets of green 3D fences.

Fence – Wooden Pallets

Green 3D fences are packed with metal pallet and plastic film.

Fence – Metal Pallets

Several pieces of green 3D fences on the ground.

Fence – Bulk Package

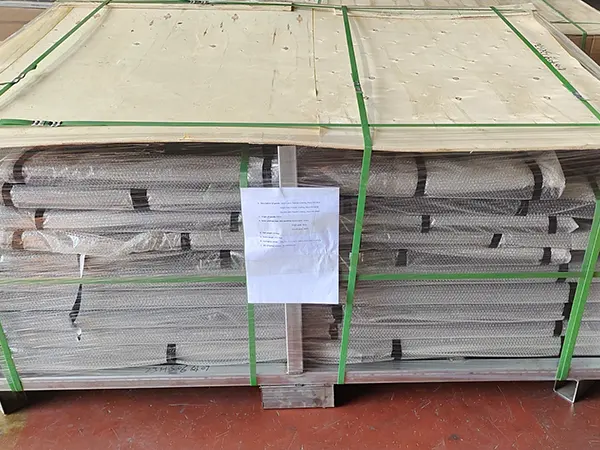

Fence posts are packed with metal pallet and plastic film.

Post – Metal Pallets

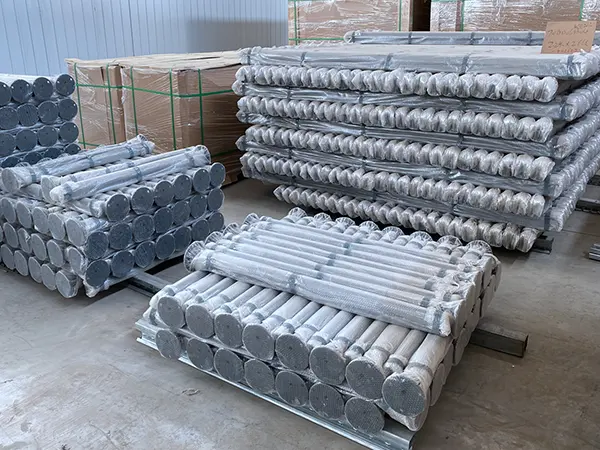

Several fence posts are placed on the ground.

Post – Bulk Package

A QC worker is measuring the line wire diameter of 3D fence.

Line Wire Diameter Measuring

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

Residential Perimeter Security – Blends privacy, safety, and aesthetic appeal for housing estates.
Schools and Sports Facilities – Keeps areas secure while ensuring visibility and air circulation.

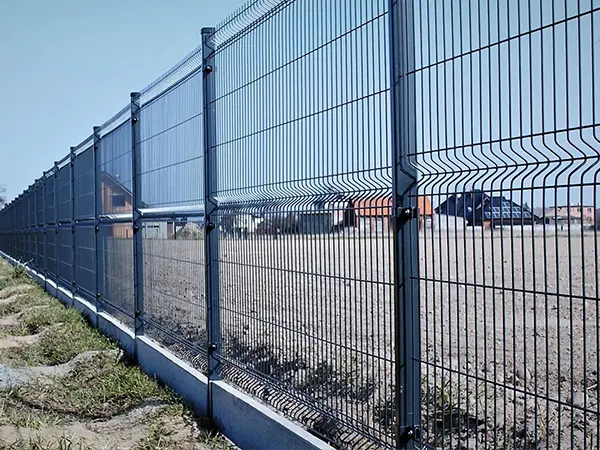

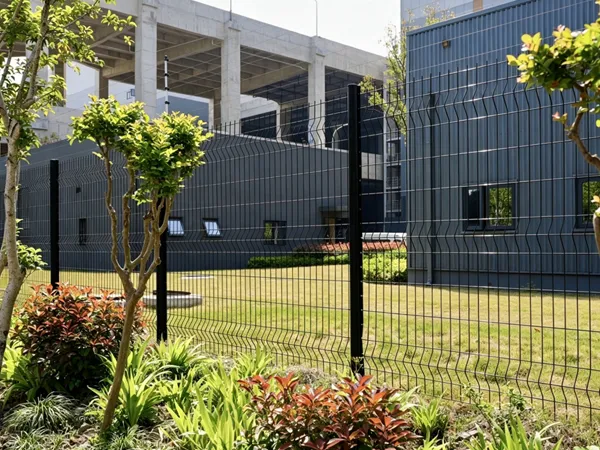

Industrial Parks and Warehouses – Prevents unauthorized access and protects valuable assets.
Urban Roads and Public Parks – Serves as pedestrian barriers and decorative zoning.

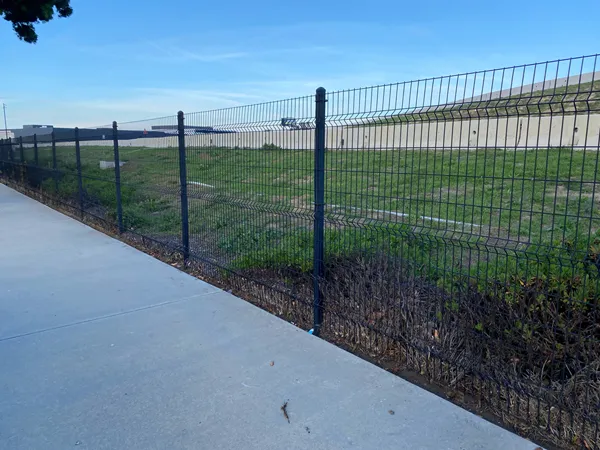

Airports, Stations, and Public Infrastructures – Ensures controlled access and streamlined crowd management.

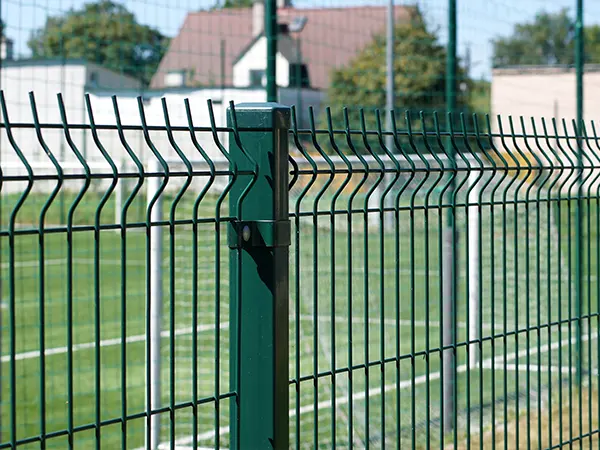

The green 3D security fences are surrounding the football court.

The 3D fences are installed at the steps of residence.

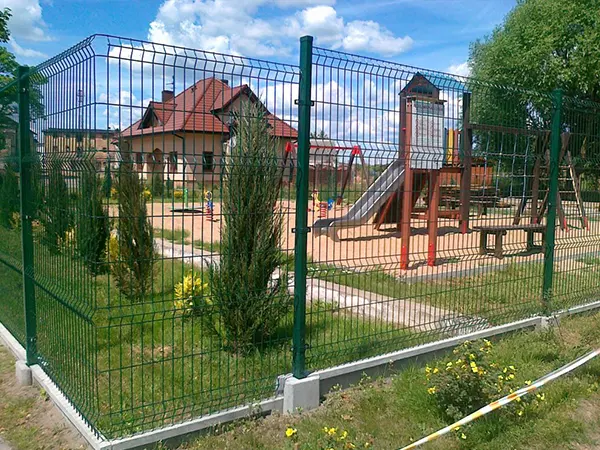

The green 3D security fences are protecting the backyard and a sliding in the yard.

The green 3D security fences are surrounding the grassland and a dog is running.

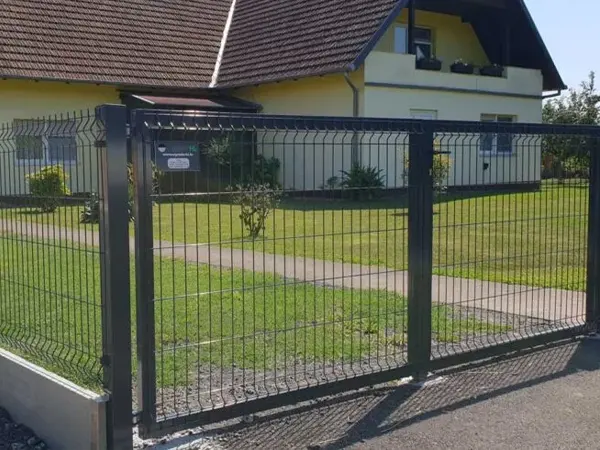

The green 3D security fences are surrounding the villa.

The black 3D fences are protecting the village.

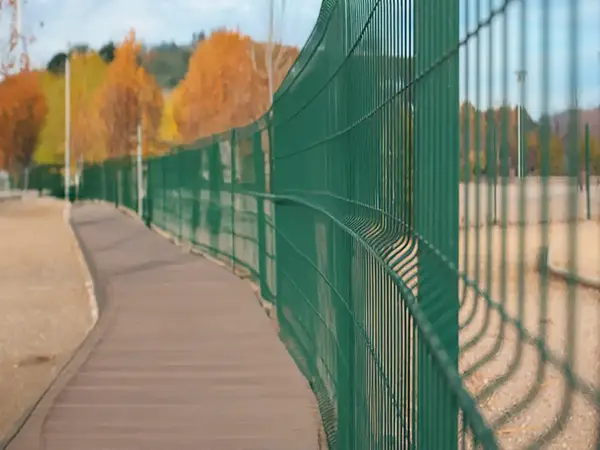

The green 3D security fences are surrounding the park.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

We provide tailored installation solutions based on the structural design of each 3D fence panel. Different posts and fittings can satisfy your diverse and complex installation environments. All for your easy and fast installation and guarantee the smooth process of projects.

Square Post & Plastic Clamp

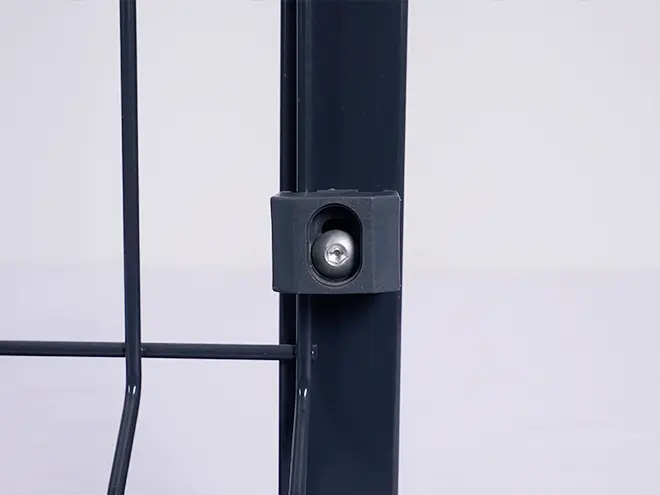

Square Post & M Clip

Rectangular Post & Plastic Clamp

Peach Post – Buried

Peach Post – Concrete

BD Post

Dutch Post
