800 Sets 3D Fence with PVC Slats for Residential Gardens in France

Location

France

Date

May 28, 2026

Products

3D Fence

Application

For Residential Gardens in France

The Giant fence mascot Gion.
Project Background

A French engineering contractor secured a residential fencing project covering multiple home gardens across several communities. The end clients required a fence system that could provide security, privacy, and a clean garden appearance.

To meet these requirements, the contractor selected our 3D fence system with three bending lines, combined with PVC privacy slats. This solution enhanced panel rigidity while effectively blocking outside views, creating a modern and comfortable outdoor space for residential users.

Our Solution

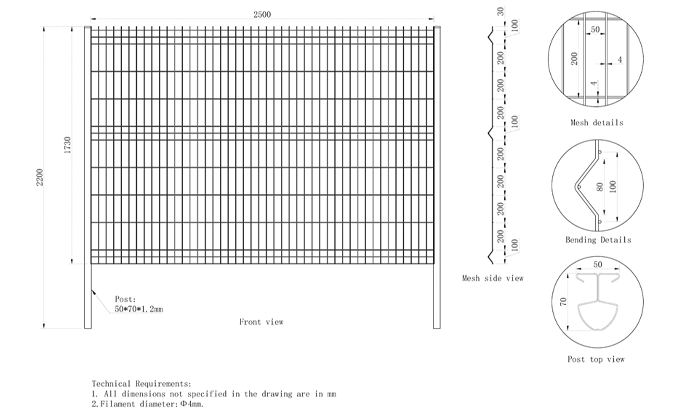

Drawings of 3D Fence
Product Specifications
  • Product: 3D Fence Panels (Total: 800 sets)
    • Panel Size (H × W): 1.73 m × 2.5 m
    • Number of Bending Lines: 3 (enhanced strength)
    • Wire Diameter: 4 mm
    • Mesh Aperture: 50 mm × 200 mm
  • Supporting Posts:
    • Peach Post: 50 mm × 70 mm
    • Wall Thickness: 1.2 mm
  • Privacy Infill:
    • PVC Slats (inserted into mesh openings)
    • Color matched to fencing system
  • Surface Treatment:
    • Powder-coated finish
    • Color: Green RAL 6005
    • Applied uniformly on both panels and posts for seamless visual integration
Quality Control

Strict quality inspection was implemented at each stage to meet French market standards.

  • Raw Material Check: Verified 4 mm steel wire, 50 × 70 × 1.2 mm peach posts, and PVC slat quality.
  • Welding & Bending Test: Checked three bending lines, consistent angles, and weld strength.
  • Dimensional Inspection: Measured panel size 1.73 m × 2.5 m and checked post height and slot alignment.
  • Coating Inspection: Tested coating thickness and adhesion; confirmed RAL 6005 color consistency.
  • Pre-shipment Audit: Conducted assembly test and checked packaging for safe transportation.

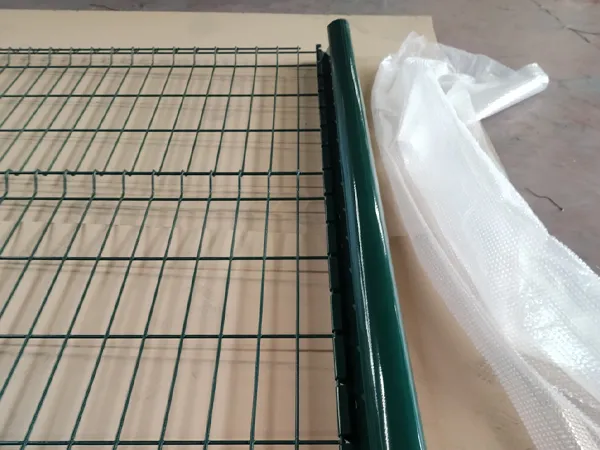

Detailed display of 3D Fence

Detailed display

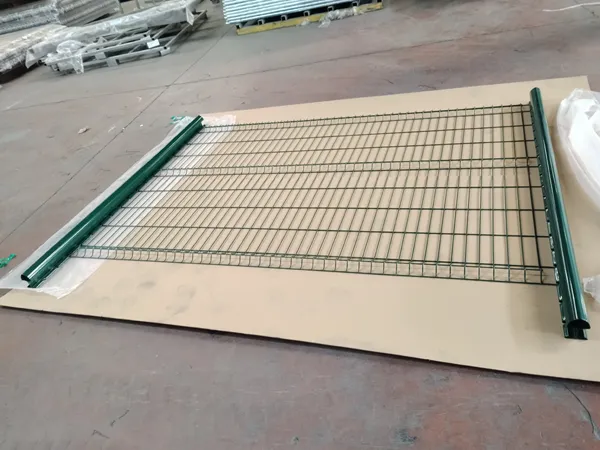

3D Fence overall display

Trail Installation

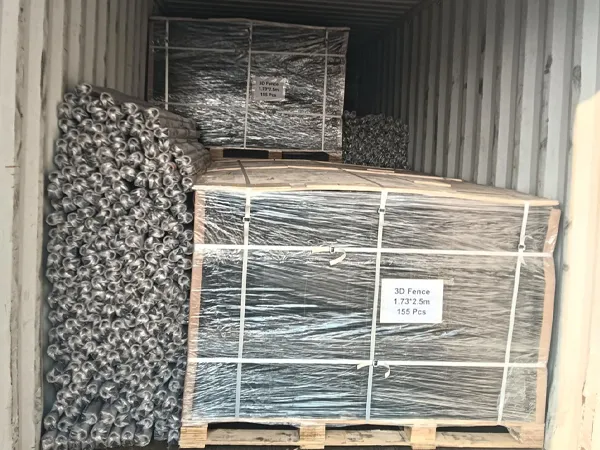

3D Fence loaded onto truck for shipment

Container loading

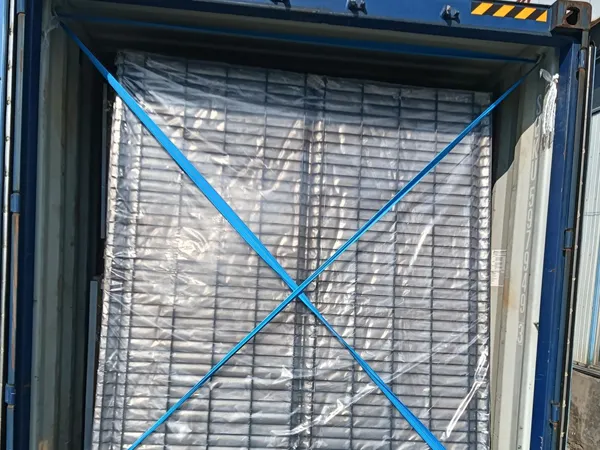

3D Fence packed and loaded for transport

Preparing for shipment

Giantfence logo
Project Execution Highlights
  • Privacy & Security: PVC slats create a semi-private barrier, ideal for home gardens.
  • Modern Appearance: Curved peach posts and RAL 6005 green coating deliver a clean garden look.
  • Enhanced Rigidity: Three bending lines strengthen panels and reduce impact deflection.
  • Easy Installation: Pre-assembled parts and slat-ready mesh reduce on-site labor.
  • Corrosion Protection: Full powder coating on panels and posts ensures long outdoor service life.
Post-Installation Showcase

After installation, the 3D fence with PVC slats created a private yet open garden space. The RAL 6005 green finish blended naturally with the landscape, while the three bending lines softened the mesh appearance. PVC slats blocked direct outside views but still allowed airflow and light. The peach posts stood clean and stable, giving homeowners a solid, modern, and comfortable fencing solution.

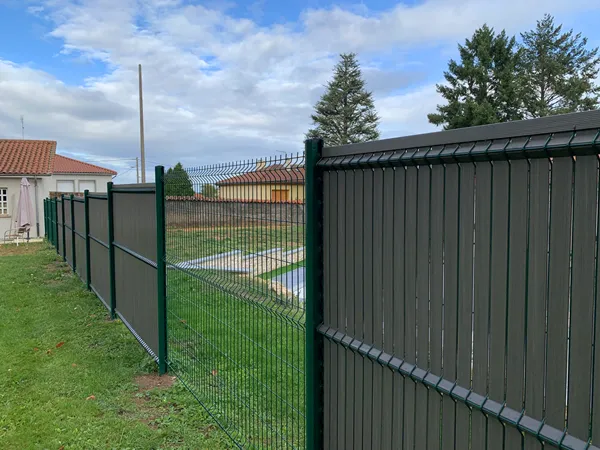

Customer installation feedback on 3D fence with PVC slats

Installation effect

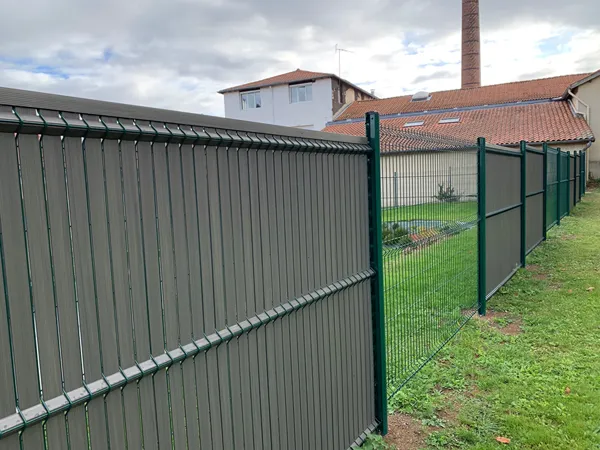

Customer installation feedback on 3D fence with PVC slats

Installation effect

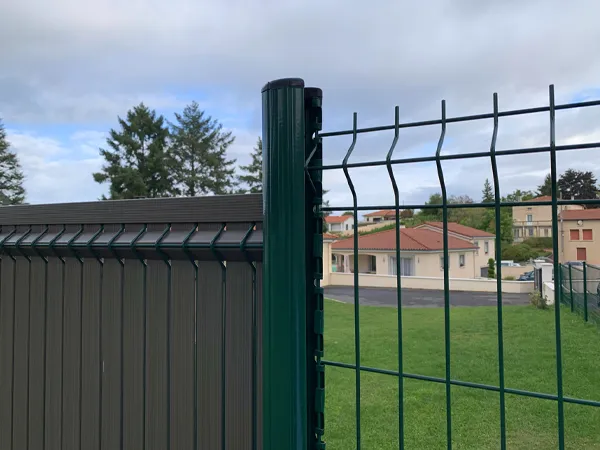

Customer installation feedback on 3D fence with PVC slats

Installation effect

Customer Feedback

"The 3D fence with PVC slats performed very well in this residential garden project. The 800 panels showed consistent quality, the RAL 6005 green blended naturally with the landscape, and the peach posts created a cleaner look. Installation was smooth, and our clients were very satisfied with the privacy and modern appearance." – Project Manager, French Engineering Contractor.
