Defensive Barriers, also known as Gabion Defense Walls, are modular protective systems widely used in military defense, flood control, and perimeter security. They consist of a collapsible wire mesh container lined with heavy-duty geotextile fabric and filled with sand, soil, or gravel to form a strong, blast-resistant wall. These barriers can be quickly deployed, stacked for extra height, and reused multiple times.
Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.
GS3 – Defensive Barriers
GS3

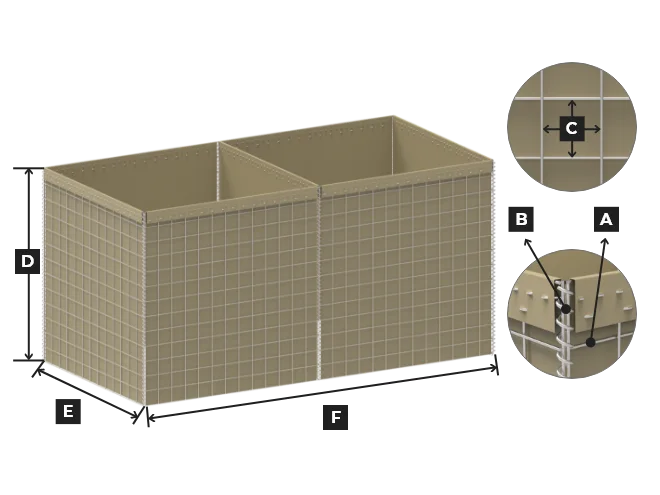

| Unit | D (Height) | E (Width) | F (Length) |
| Mil 12B Mil 12G |
7' | 5' | 95' |
| 2.13m | 1.52 m | 28.94 m | |
| Mil 11B Mil 11G |
3'3" | 2'6" | 30' |
| 1.0 m | 0.76 m | 9.14 m | |
| Mil 10B Mil 10G |
4'6" | 2' | 32' |
| 1.37 m | 0.61 m | 10 m | |
| Mil 9B Mil 9G |
7'3" | 7' | 90' |
| 2.21 m | 2.13 m | 27.74 m | |
| Mil 8B Mil 8G |
5'6" | 2' | 10' |
| 1.68 m | 0.61 m | 3.05 m | |
| Mil 7B Mil 7G |
2' | 2' | 10' |
| 0.61 m | 0.61 m | 3.05 m | |
| Mil 6B Mil 6G |
2' | 5' | 32' |
| 0.61 m | 1.52 m | 10 m | |
| Mil 5B Mil 5G |
3'3" | 3'3" | 32' |
| 1.0 m | 1.0 m | 10 m | |
| Mil 4B Mil 4G |
2' | 2' | 4' |
| 0.61 m | 0.61 m | 1.21 m | |
| Mil 3B Mil 3G |
2' | 2' | 10' |
| 0.61 m | 0.61 m | 3.05 m | |
| Mil 2B Mil 2G |
4'6" | 3'6" | 32' |
| 1.37 m | 1.06 m | 10 m | |
| Mil 1B Mil 1G |
7' | 3'6" | 18' |
| 2.13 m | 1.06 m | 5.5 m |

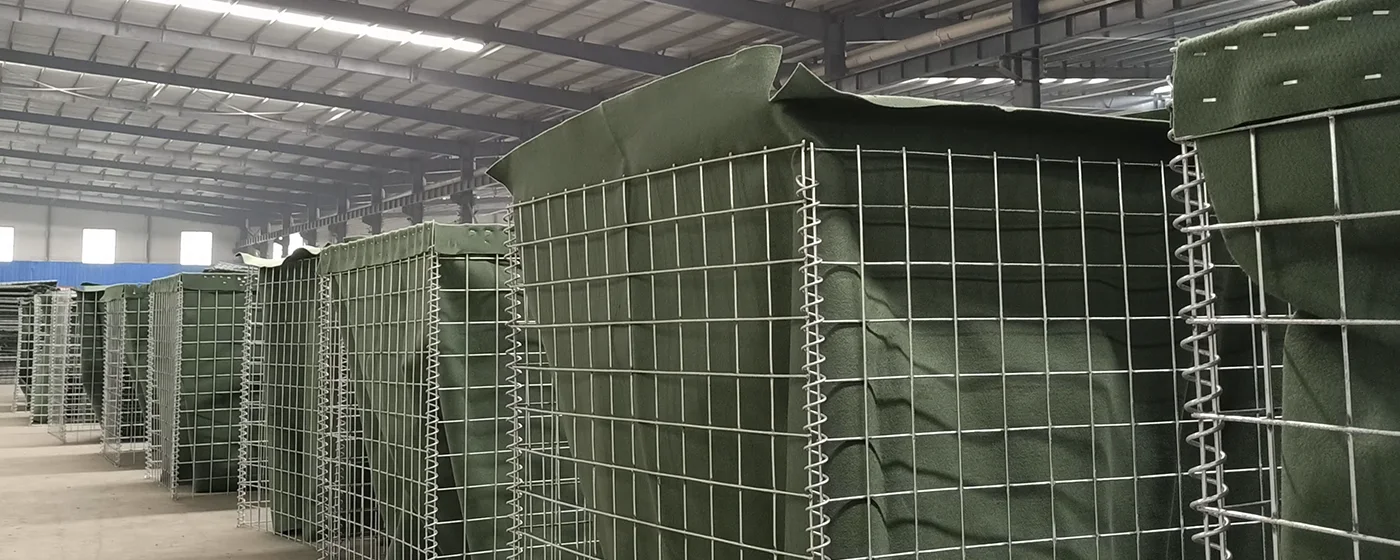

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.
Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

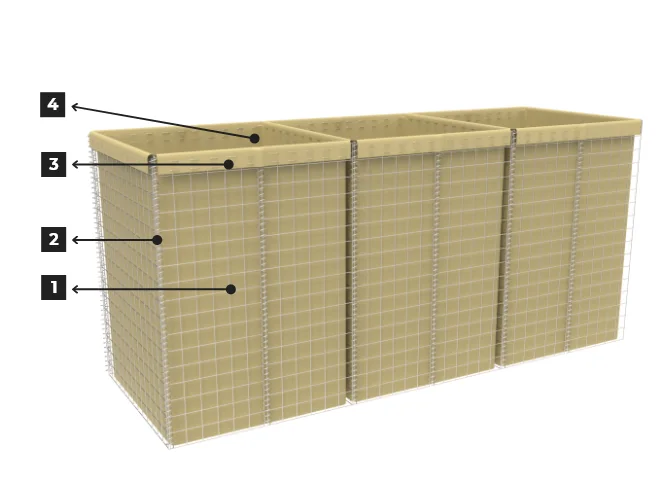

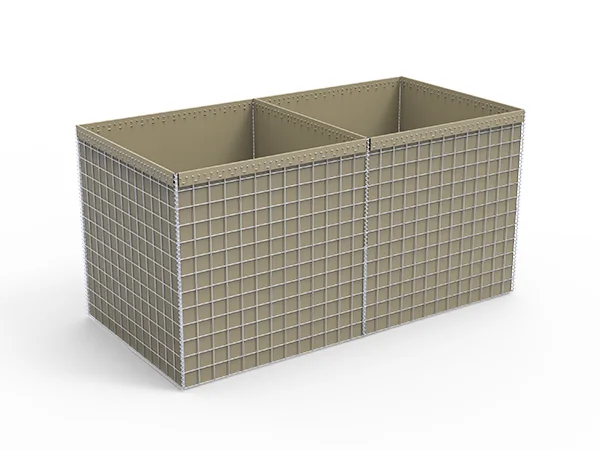

Overall

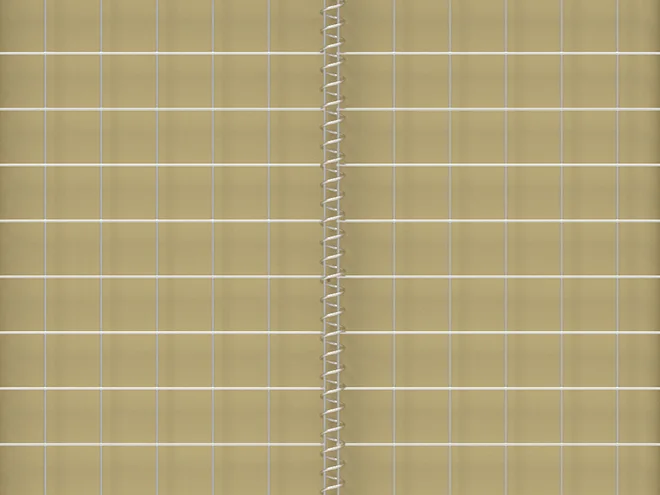

Panel
Spring

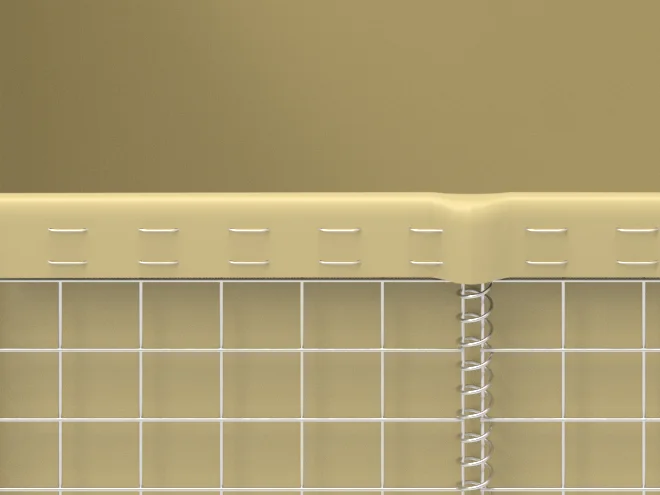

Nails

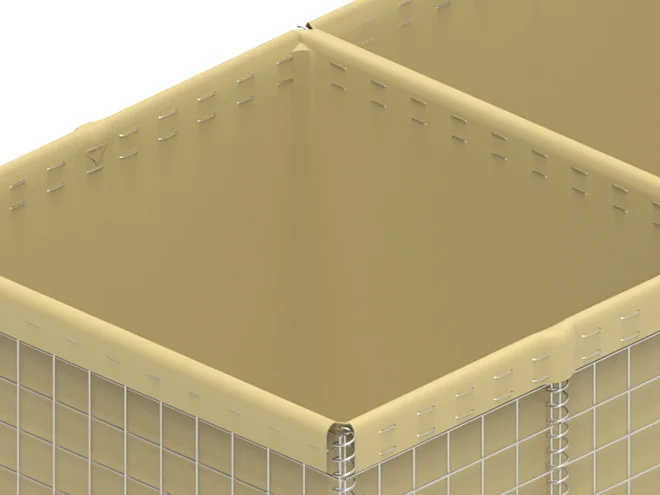

Geotextile

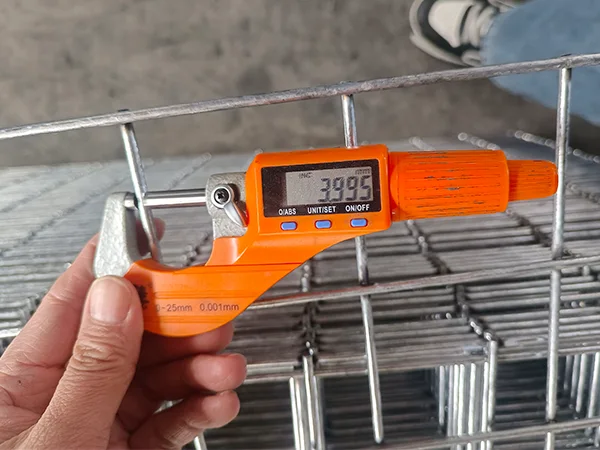

Wire Diameter Measurement

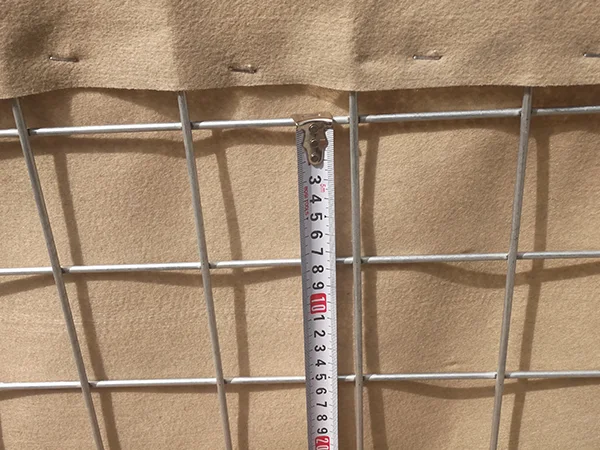

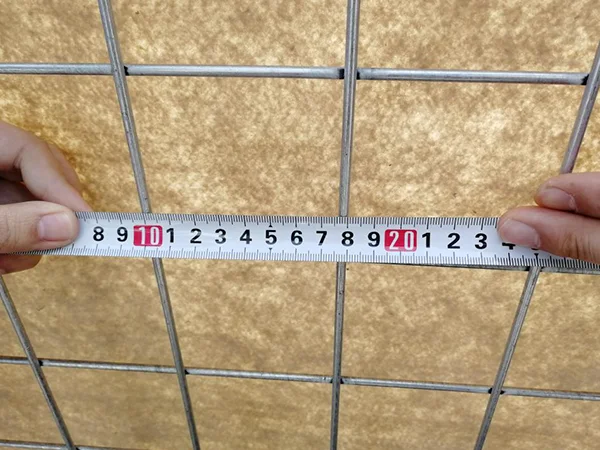

Mesh Size Measurement
Mesh Size Measurement

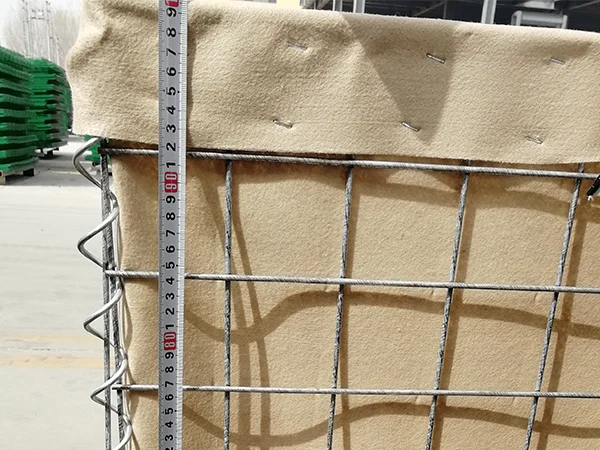

Height Measurement

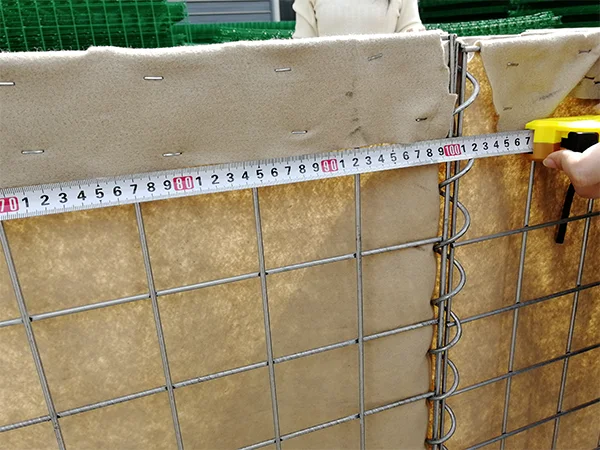

Diaphragm Width Measurement

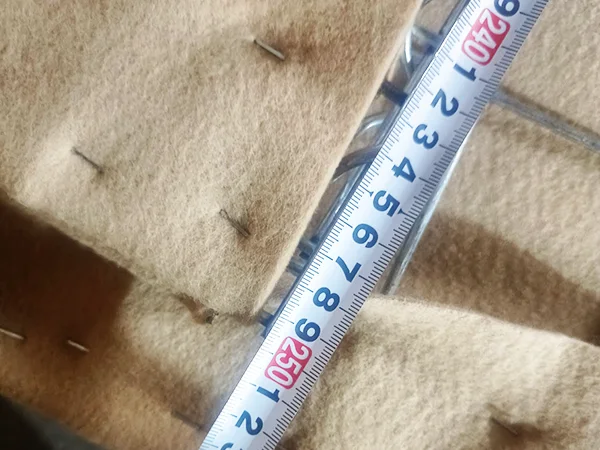

Overall Width Measurement

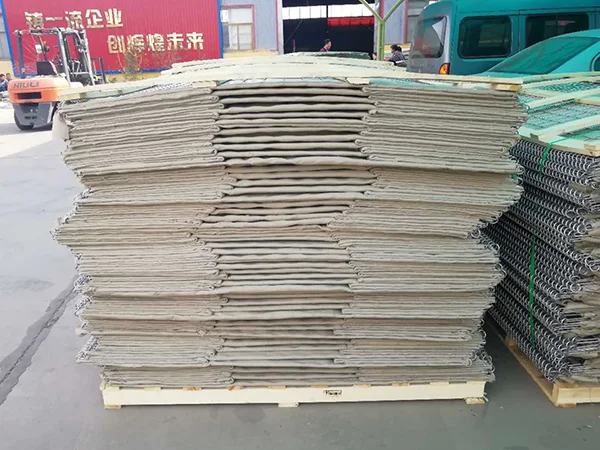

Wooden Pallet Package

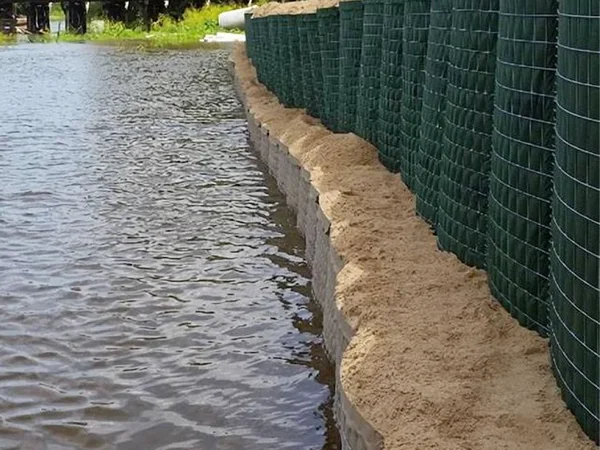

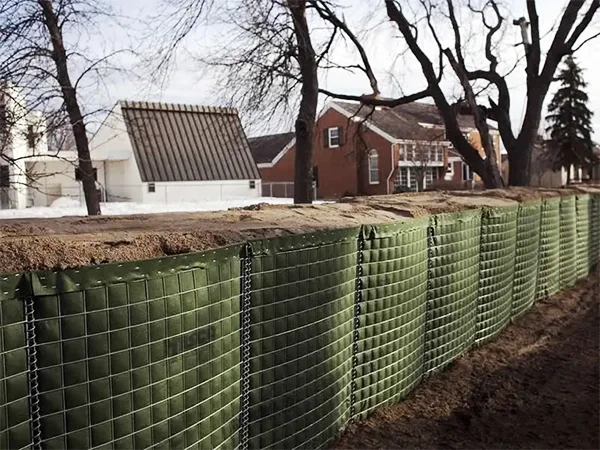

See how our fences are used in actual projects across the globe—your assurance of proven performance.
Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

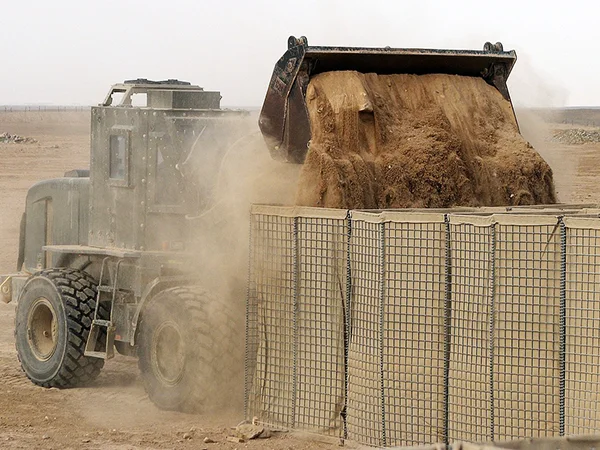

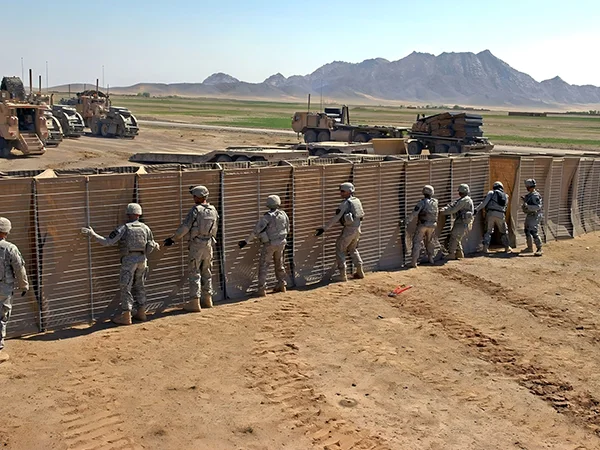

Defensive barriers arrive folded and stacked for efficient transport. During installation, they are unfolded, positioned, and connected with joining pins. The geotextile-lined cells are then filled with sand, soil, or gravel using loaders or excavators. For added height or strength, units can be stacked and secured together.
Defensive Barrier Installation Process
