Secure the Skies — Airport Perimeter Fencing You Can Trust

The Airport Fence is a specialized perimeter security system designed to meet the strict requirements of aviation facilities. Combining high-strength welded mesh or chain link panels with Y-shaped posts and razor wire, it prevents unauthorized access while allowing clear visibility for monitoring. The system is corrosion-resistant, durable, and suitable for all climate conditions.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

GS21 – 3D Panel Type

A line of chain link fence type airport fence.

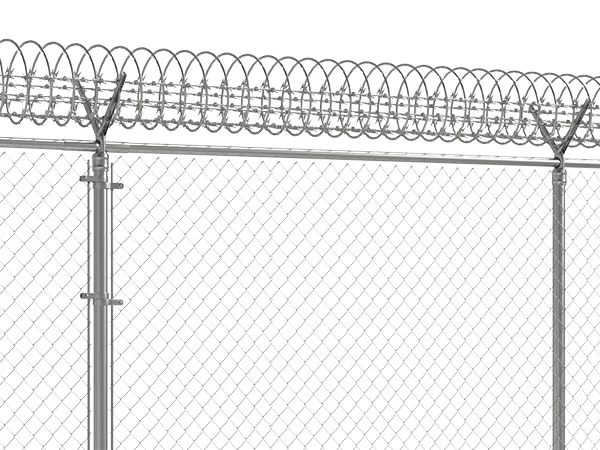

GS22 – Chain Link Fence Type

A line of 358 security fence type airport fence.

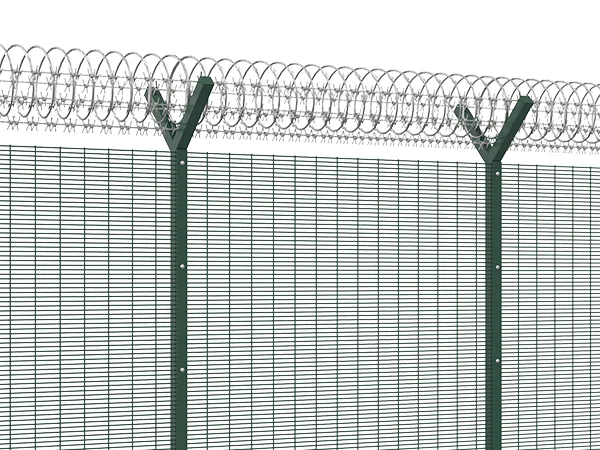

GS23 – 358 High Security Fence Type

GS21

GS22

GS23

High Security – Y-post design with razor wire deters climbing.
High Visibility – Ensures clear monitoring by surveillance systems.
Weather-Resistant – Hot-dip galvanized and powder-coated.
Flexible Design – Mesh type, height, and colors customizable.
ICAO Compliant – Meets international aviation safety standards.

3D Panel Type
Chain Link Fence Type
358 High Security Type

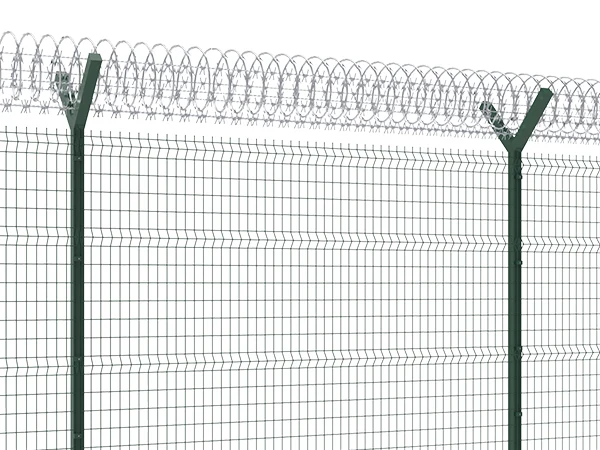

3D Panel Type

A Height: 1830 mm / 2030 mm / 2230 mm / 2430 mm
B Width: 2.0 m / 2.2 m / 2.5 m / 2.8 m / 3.0 m
C Line Wire: 4.5 mm / 5.0 mm / 6.0 mm
D Cross Wire: 4.0 mm / 4.5 mm / 5.0 mm
E Mesh Opening: 50 × 100 mm, 50 × 75 mm, 50 × 50 mm
F Square Post: 60 × 60 × 1.5 mm / 2.0 mm, 80 × 80 × 1.5 mm / 2.0 mm
G Double Arm Support: Welded / Bolted to post
H Mesh Panel: Sizes are same as main mesh panel
I Razor Wire

Chain Link Fence Type

A Wire Diameter: 2.5 mm / 3.0 mm / 3.5 mm / 4.0 mm / 4.5 mm
B Mesh Size: 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 75 × 75 mm, 100 × 100 mm
C Roll Height: 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.4 m / 2.8 m / 3.0 m
D Roll Length: 9 m / 10 m / 15 m / 18 m / 20 m / 25 m / 30 m
E
Post:
- Round post size: ɸ40 mm, ɸ48 mm, ɸ60 mm, ɸ75 mm
- Round post thickness: 1.5 mm / 1.8 mm / 2.0 mm / 2.5 mm
F Rails: round pipes, ɸ32 mm, ɸ40 mm, ɸ48 mm
G Accessories: Barb arms, razor wires, barbed wires

358 High Security Type

A Height: 1.8 m / 2.0 m / 2.2 m / 2.4 m / 2.8 m / 3.0 m
B Width: 2.0 m / 2.2 m / 2.4 m / 3.0 m
C Line Wire: 4.0 mm
D Cross Wire: 4.0 mm
E Mesh Opening: 3" × 0.5" (76.2 × 12.7 mm)
F
Post:
- Square: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm
- H Beam: 100 × 55 mm, 150 × 150 mm
G Double Arm Support: Bolts & Nuts, Welded
H Razor Wire

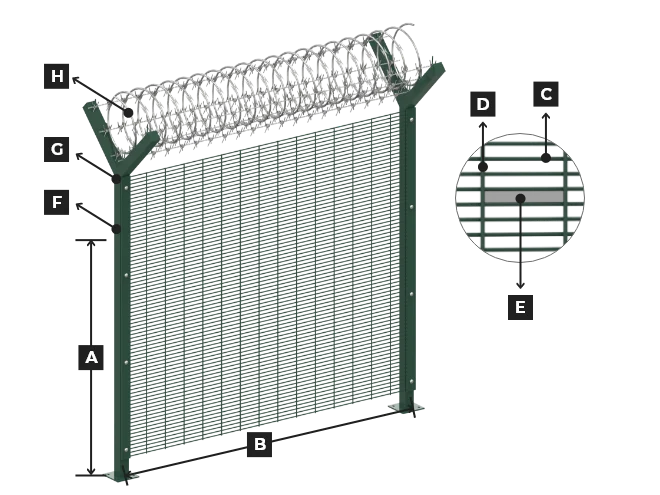

A 358 high security fence type airport fence drawing.

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

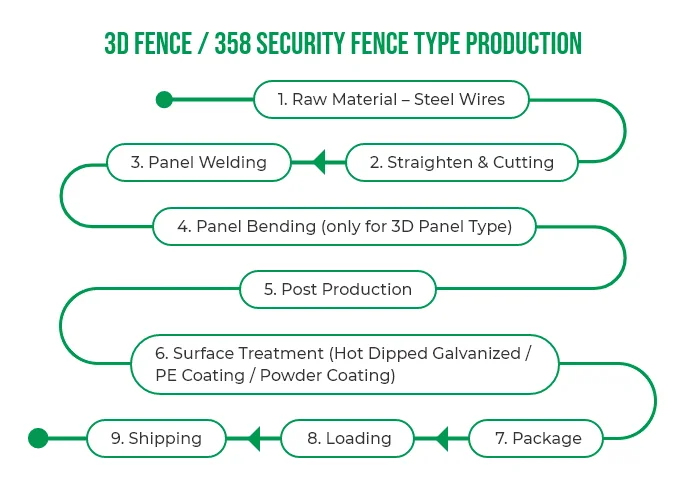

3D Fence / 358 Security Fence Type Production

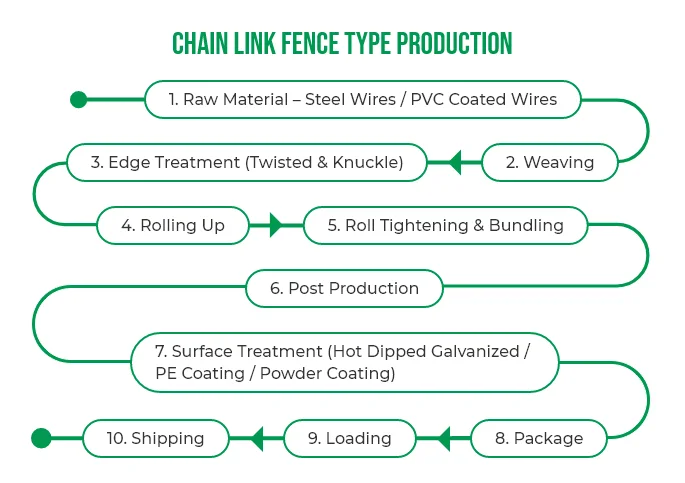

The production process of chain link fence type airport fence.

Chain Link Fence Type Production

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

3D Panel Type
Chain Link Fence Type
358 High Security Type

Structure

Fence Panel
Fence Post
Post & Panel Connection Fittings
Y Arm Post
Razor Wire & Top Panel
Panel & Y Arm Connection
Base

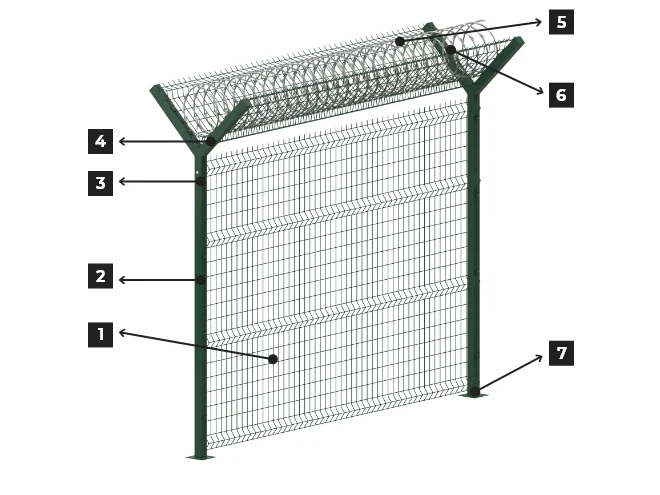

Overview

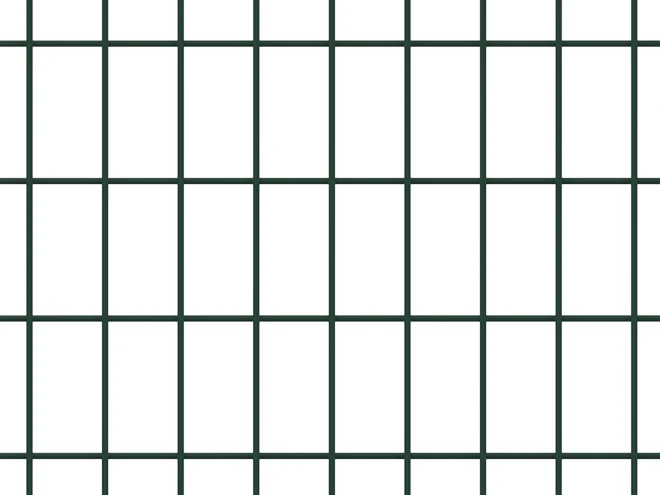

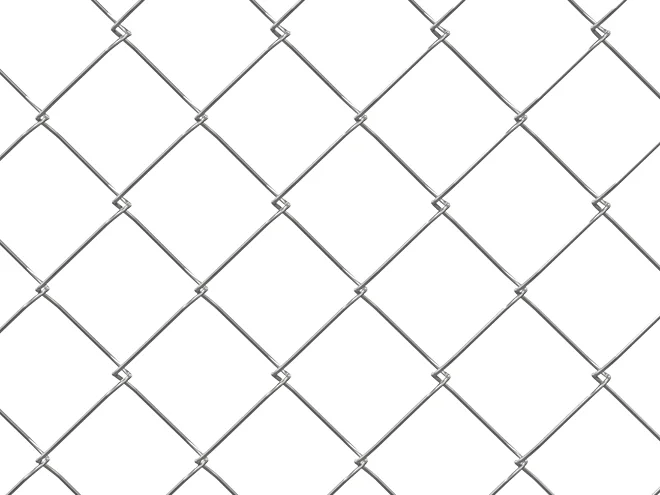

Fence Panel

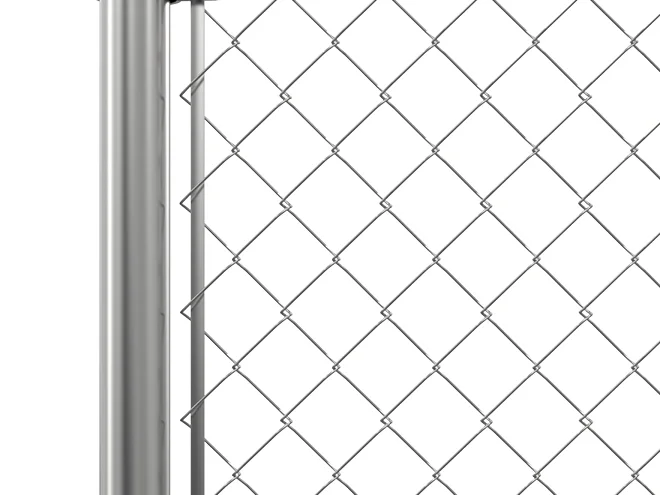

Fence Post

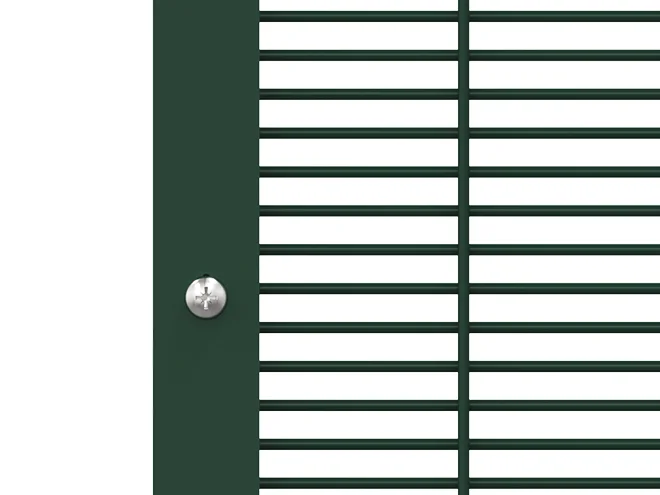

M Clip
Spider Clip

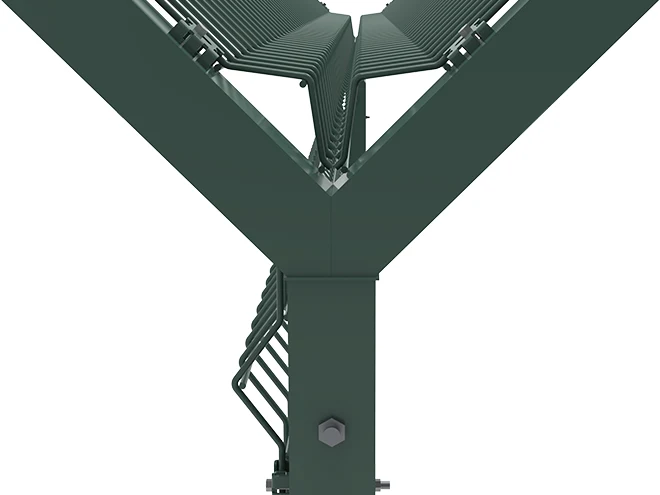

Y Arm & Post Connection – Bolts & Nuts
Y Arm & Post Connection – Welded

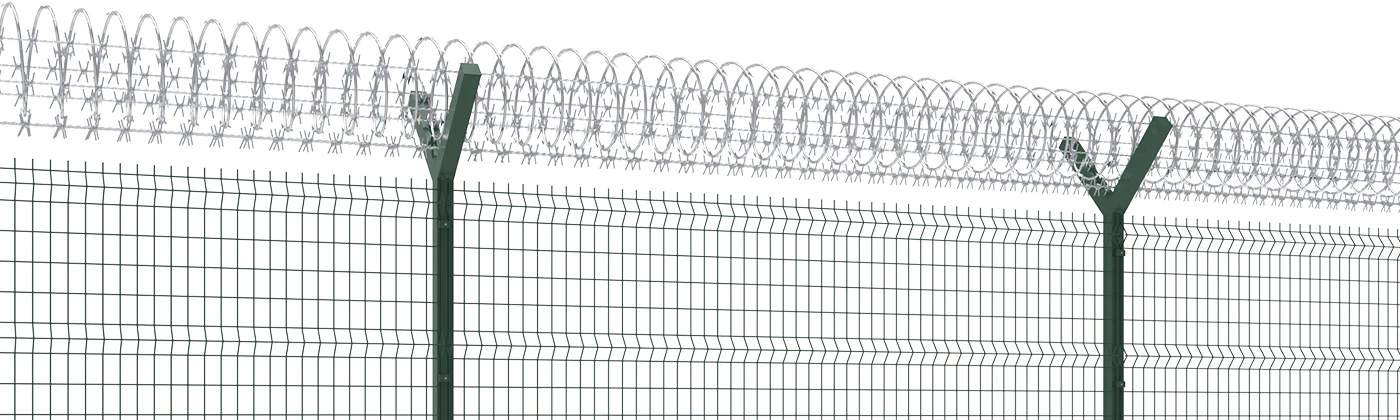

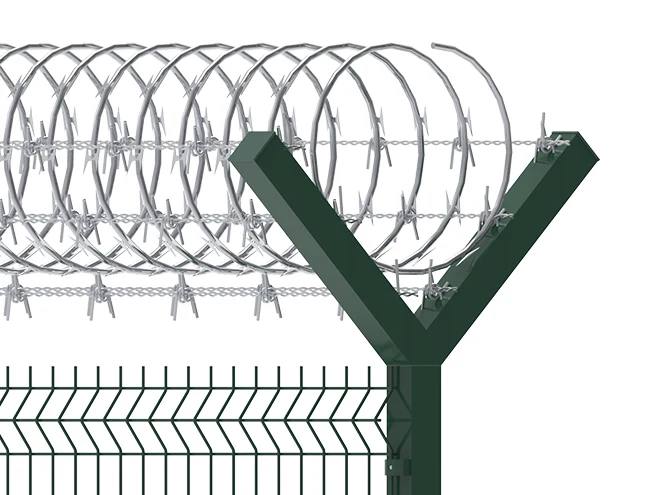

Razor Wire & Barbed Wire

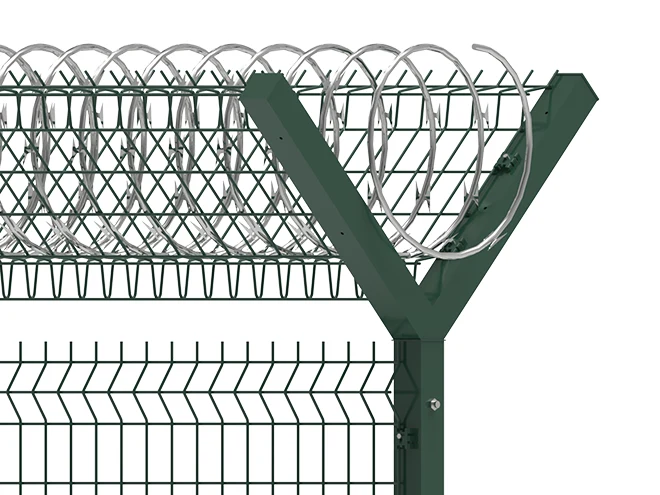

Razor Wire & Mesh Panel

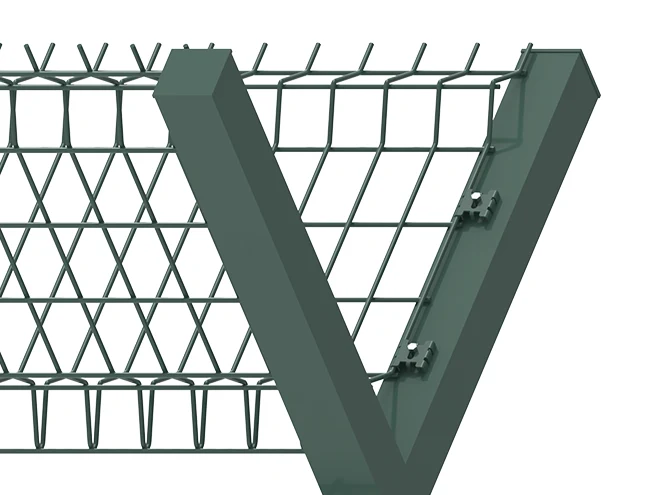

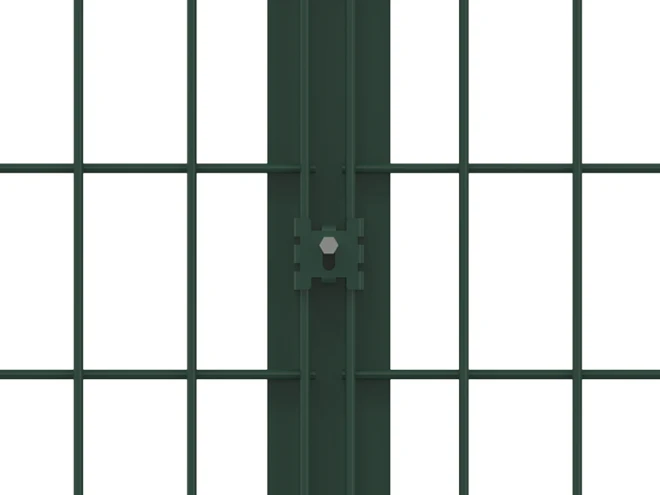

Panel & Y Arm Connection – Spider Clip

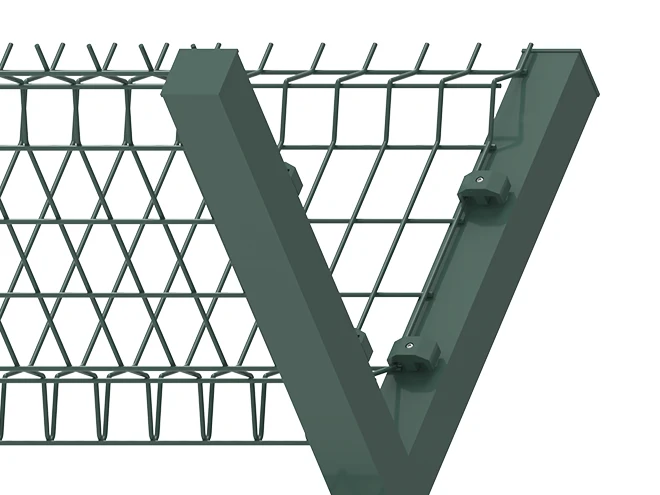

Panel & Y Arm Connection – M Clip

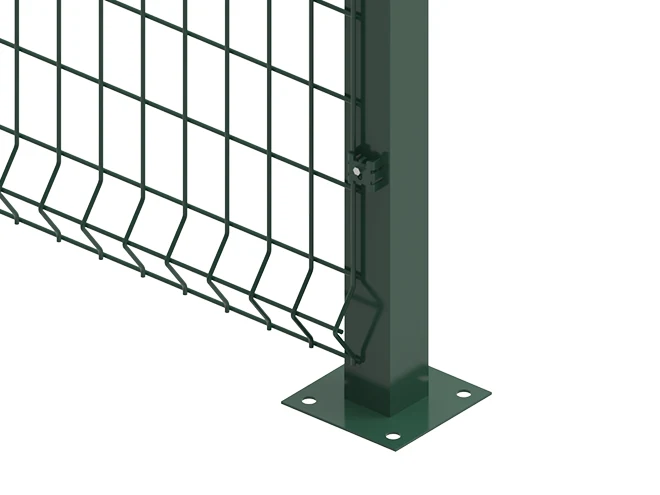

Base

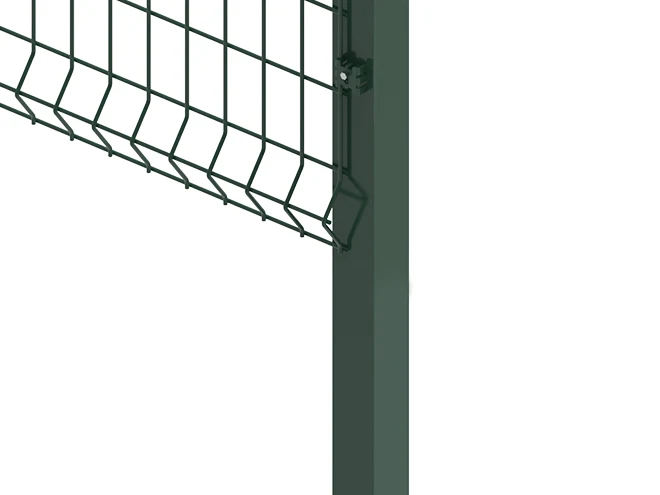

Buried

Structure

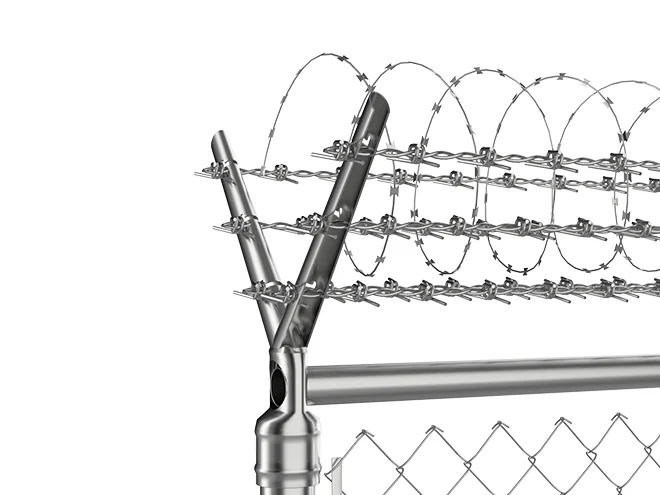

Barbed Arm

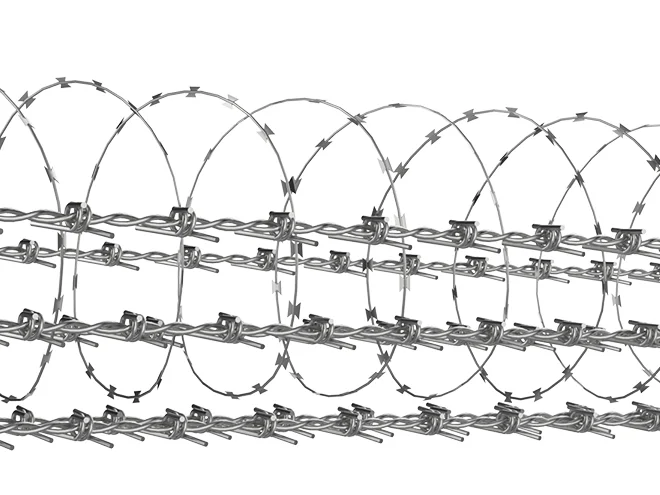

Razor Wire & Barbed Wire
Rail
Post
Connection Fittings
Fence Panel

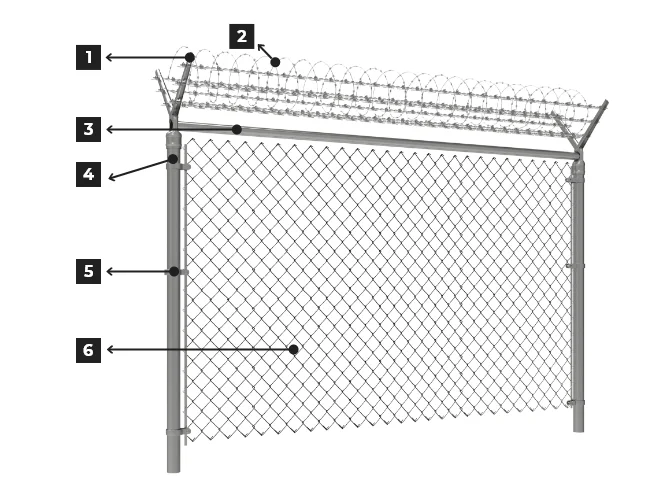

Overview
Barbed Arm
Razor Wire & Barbed Wire

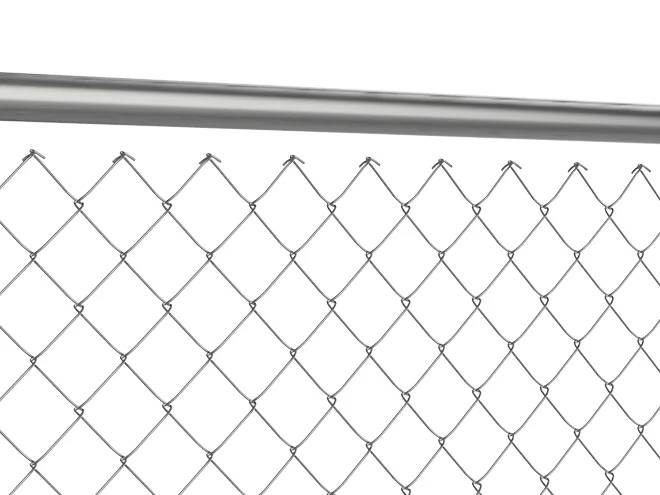

Rail
Post

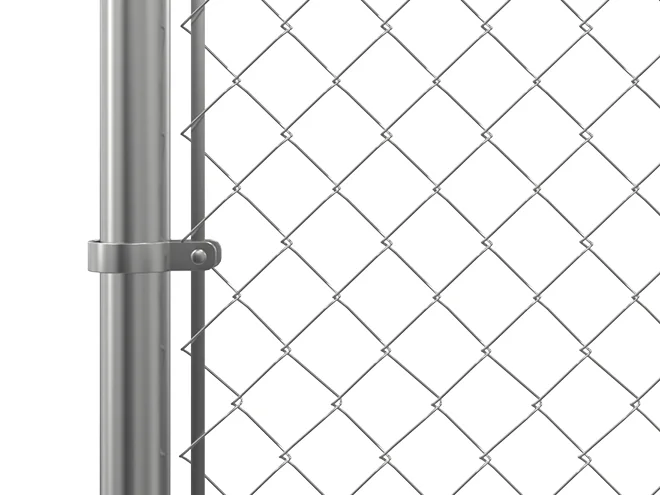

Connection Fittings
Fence Panel

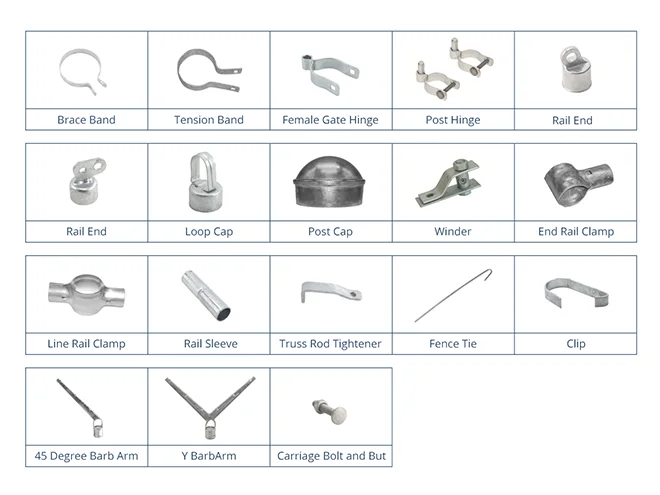

Galvanized Chain Link Fence Fittings
Powder Coating Chain Link Fence Fittings

Structure

Fence Panel
Fence Post
Post & Panel Connection Fittings
Y Arm Post
Razor Wire & Barbed Wire
Base

Overview

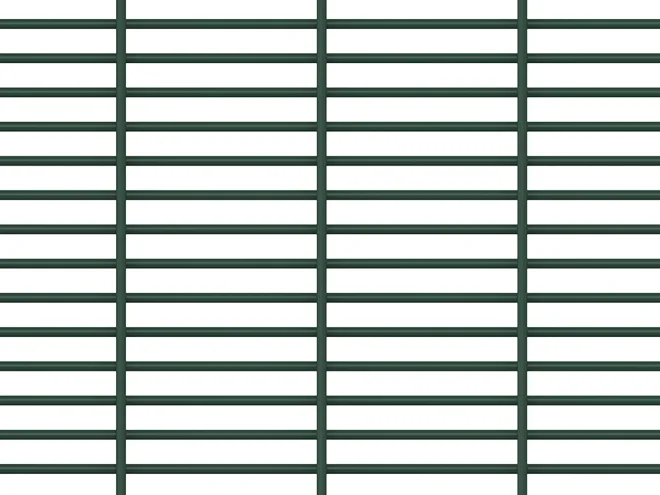

Fence Panel

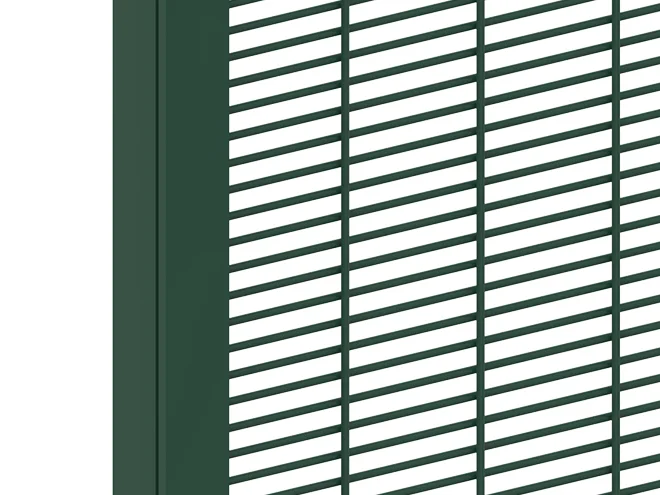

Fence Post
Flat Bar

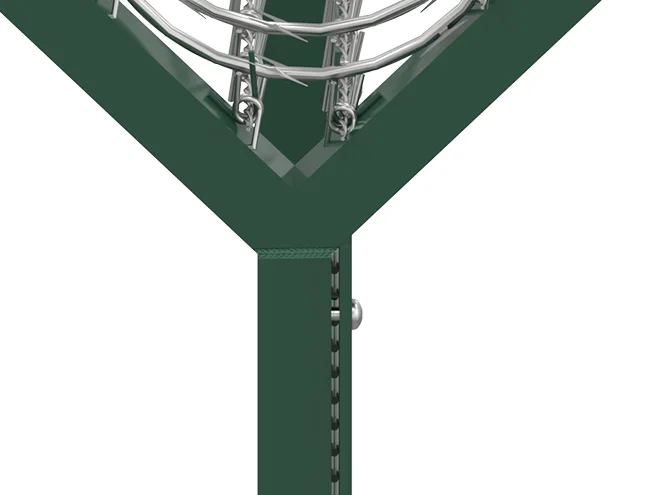

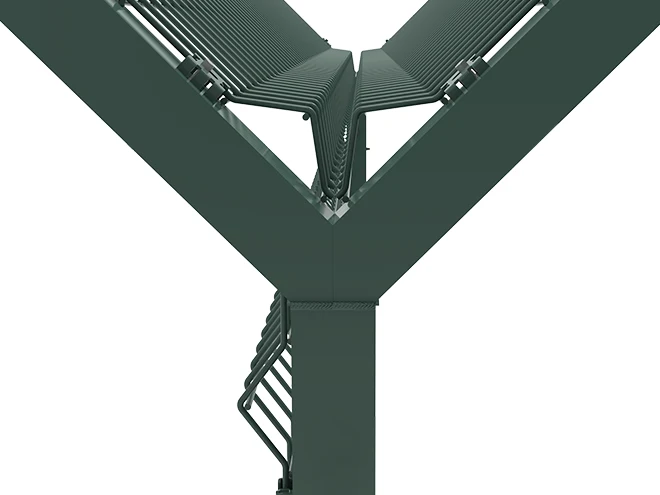

Y Arm & Post Connection – Welded

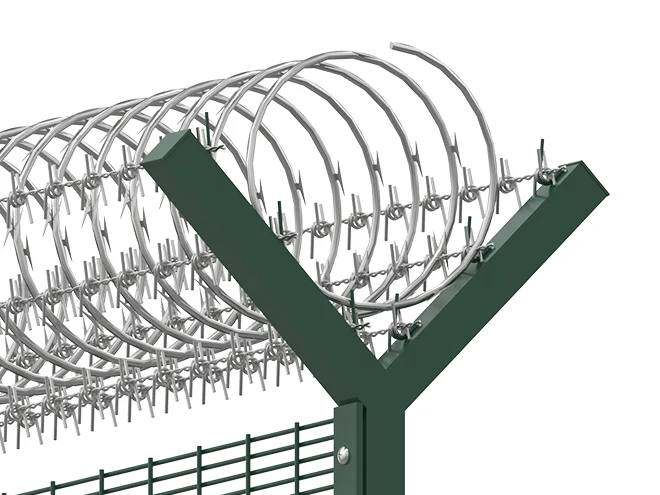

Razor Wire & Barbed Wire

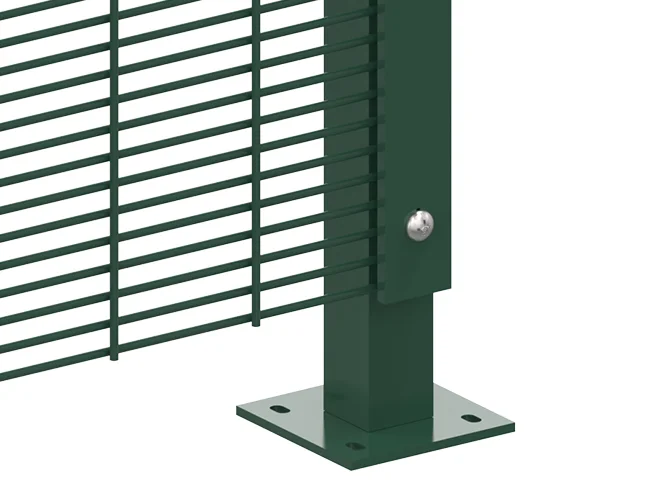

Base

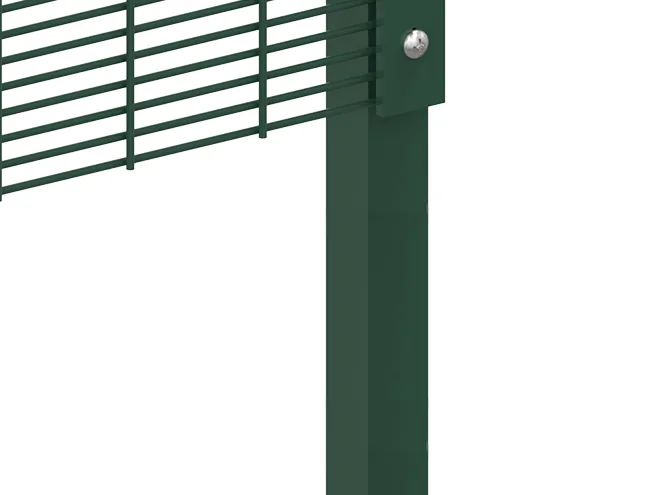

Buried

QC & Package

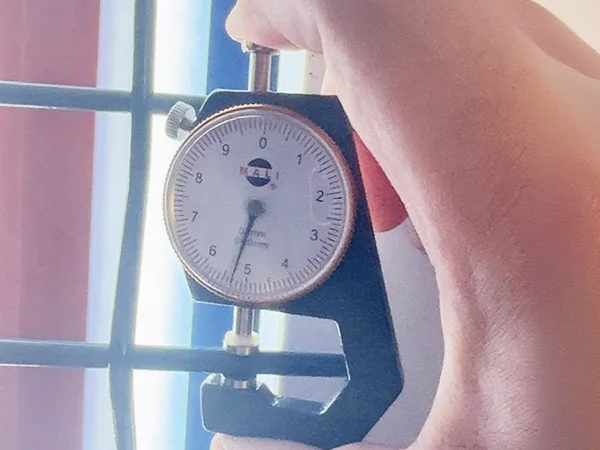

A QC worker is measuring the wire diameter of 3D panel type airport fence.

Wire Diameter Measurement

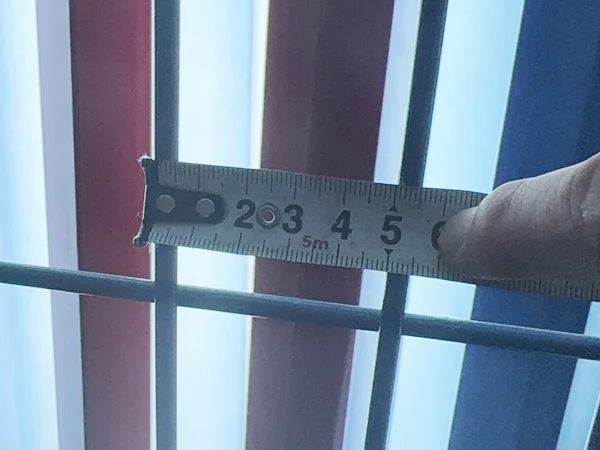

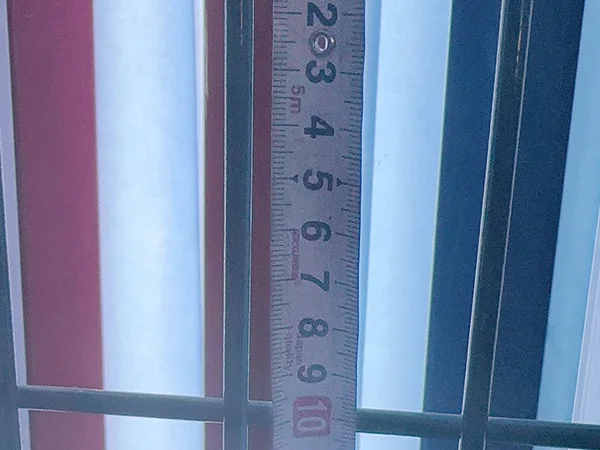

A QC worker is measuring the mesh size of 3D panel type airport fence.

Mesh size Measurement

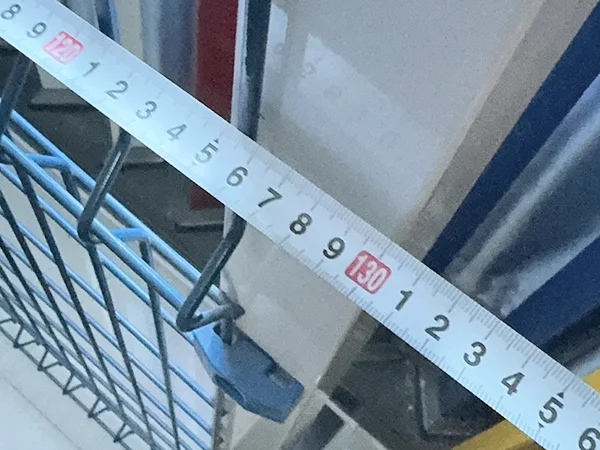

A QC worker is measuring the fence width of 3D panel type airport fence.

Fence Width Measurement

A QC worker is measuring the fence height of 3D panel type airport fence.

Fence Height Measurement

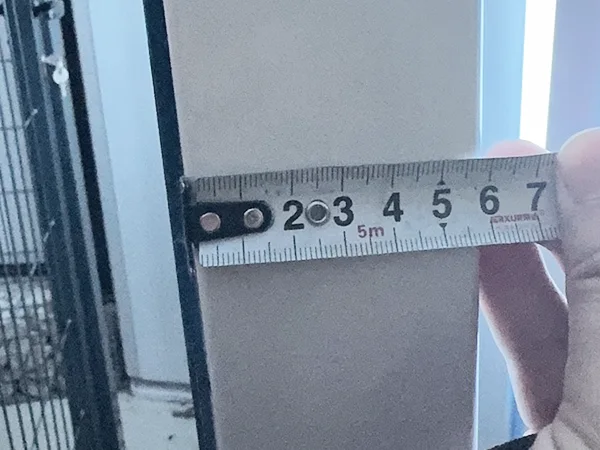

A QC worker is measuring the post size of 3D panel type airport fence.

Post Size Measurement

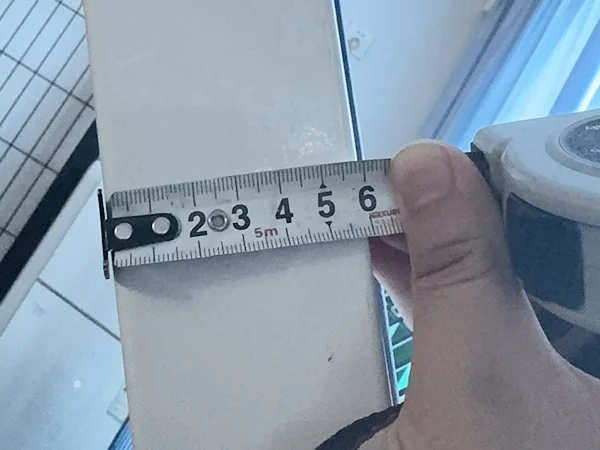

A QC worker is measuring the Y arm size of 3D panel type airport fence.

Y Arm Size Measurement

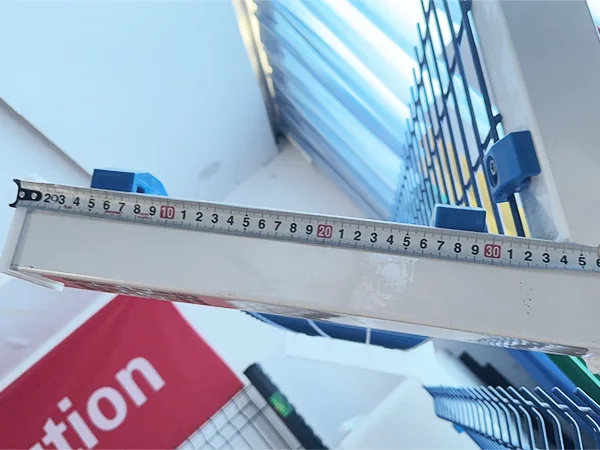

A QC worker is measuring the Y Arm length of 3D panel type airport fence.

Y Arm Size Measurement

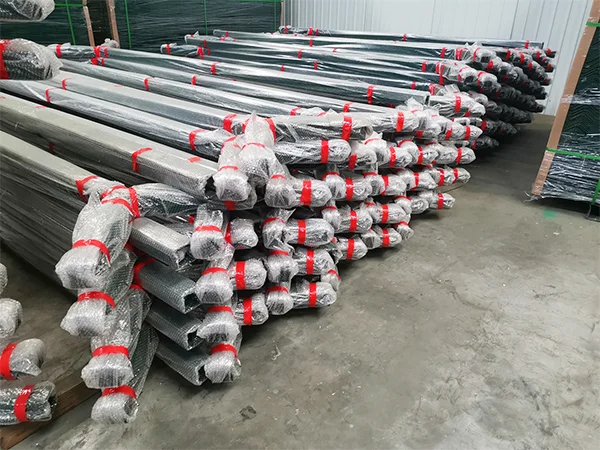

Several Y arm posts are packed with films on the ground.

Post Package – Bulk

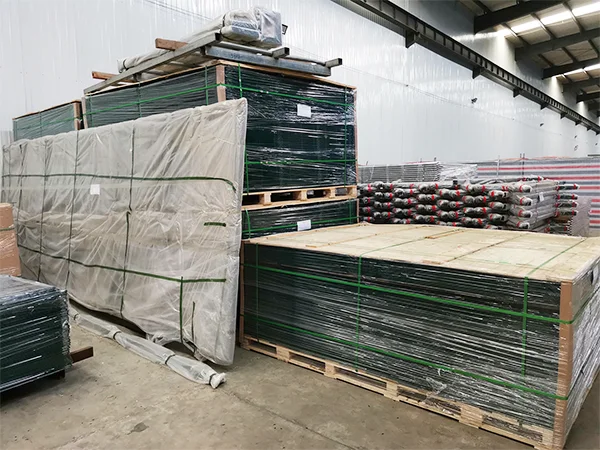

Several wooden pallets of airport fences in the warehouse.

Panel Package – Wooden Pallet

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

International and domestic airports
Military airbases
Private airfields
Heliports
Aviation storage areas

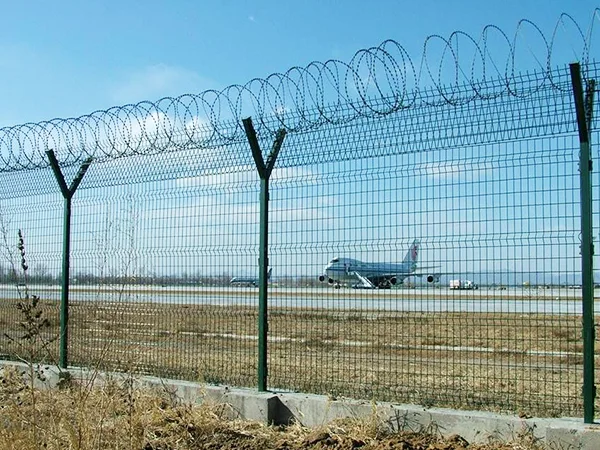

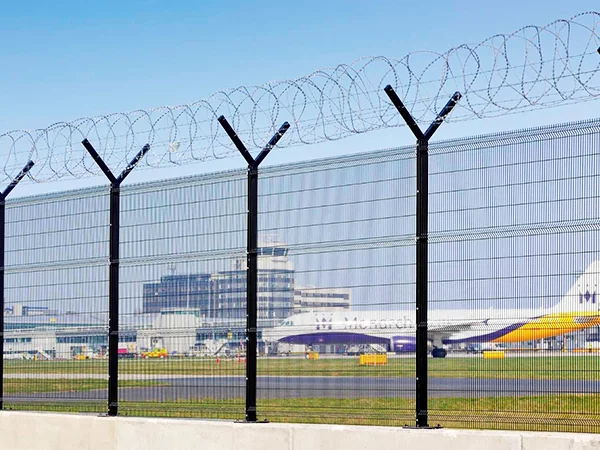

The 3D fence type airport fences are installed in the international airport.

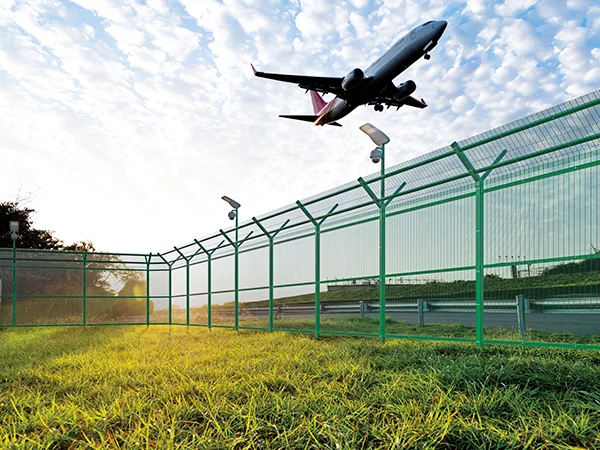

The 358 high security fence type airport fences are installed in the international airport.

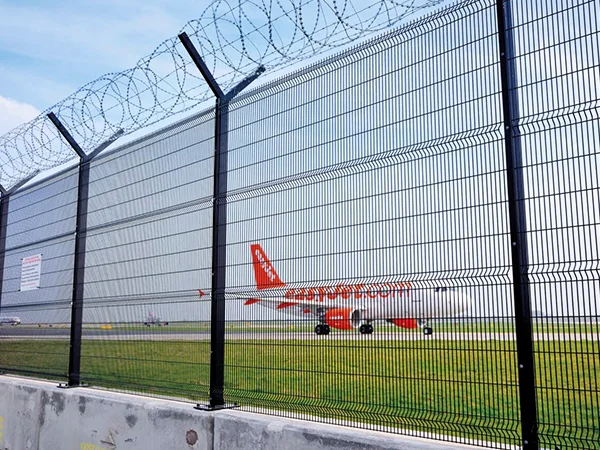

The 3D fence type airport fences are installed in the domestic airport.

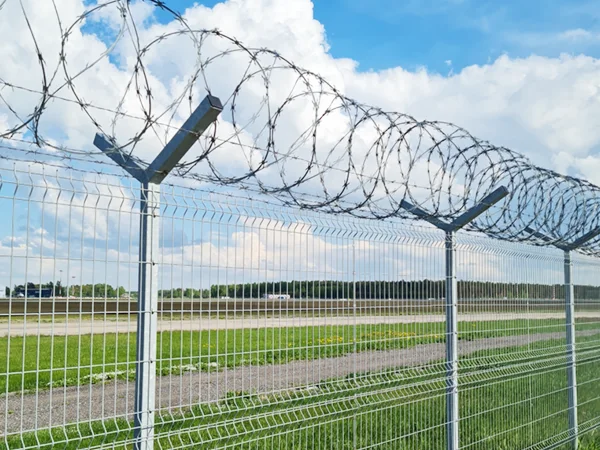

The 3D fence type airport fences are installed in the private airport.

The chain link fence type airport fences are installed in the domestic airport.

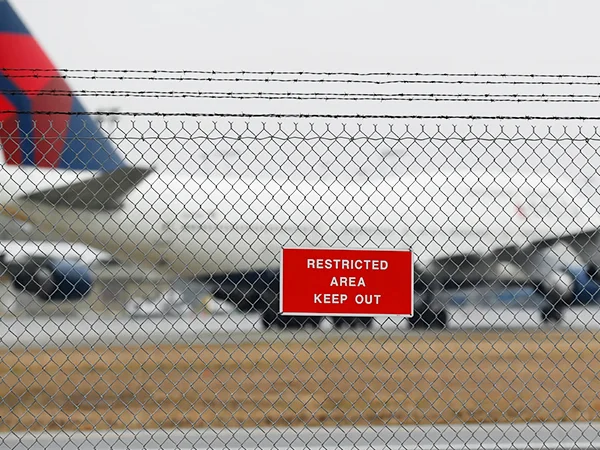

The chain link fence type airport fences are installed in the international airport.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

Airport fence panels are mounted to Y-shaped steel posts using heavy-duty clamps and anti-tamper bolts. Razor wire or concertina coils are fixed to the top arms for added security. Posts are set into concrete foundations, and the system can be installed on flat or sloped terrain.
