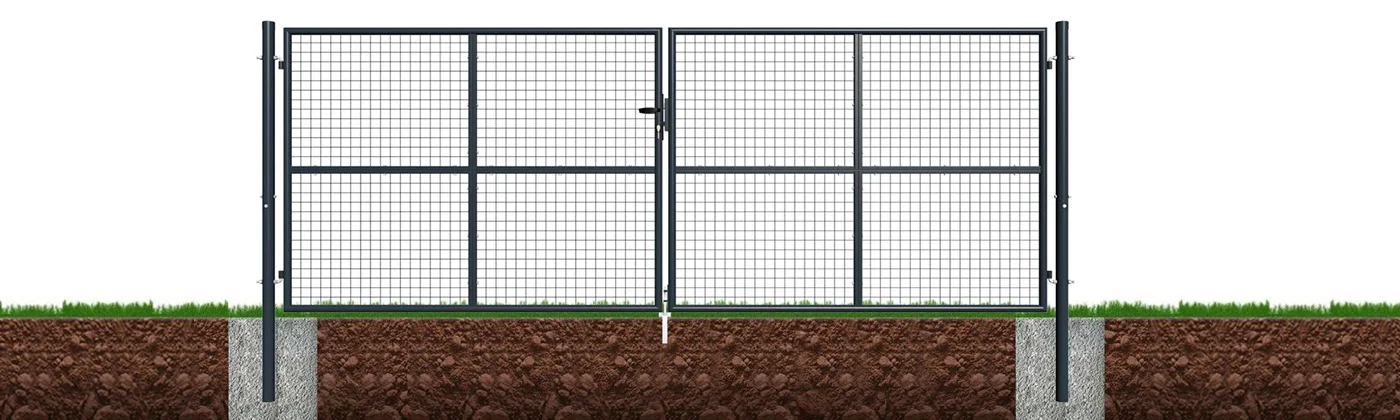

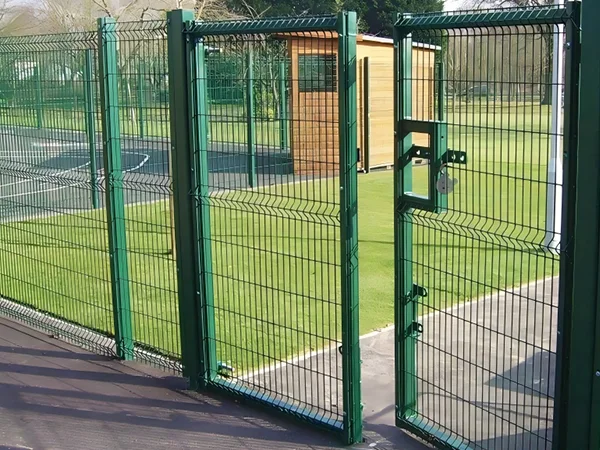

A set of double swing gate with welded mesh infills.

Fence Gates for Secure and Functional Access Control

Our fence gates are engineered to provide safe, secure, and convenient access in fencing systems. Available in single leaf, double leaf, and sliding designs, these gates are built with either welded wire mesh or tubular infill, offering versatility for various applications including residential perimeters, industrial sites, construction zones, and commercial properties.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

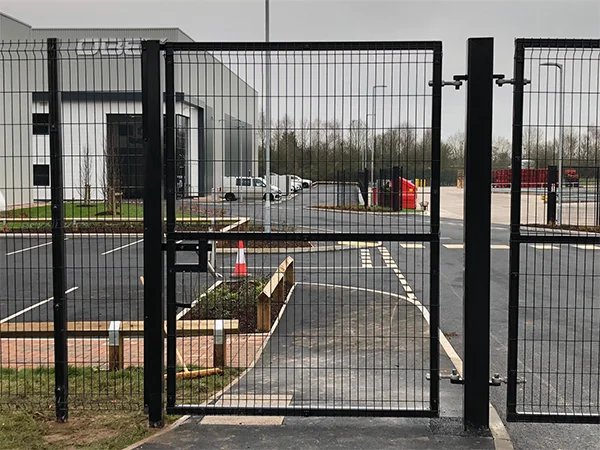

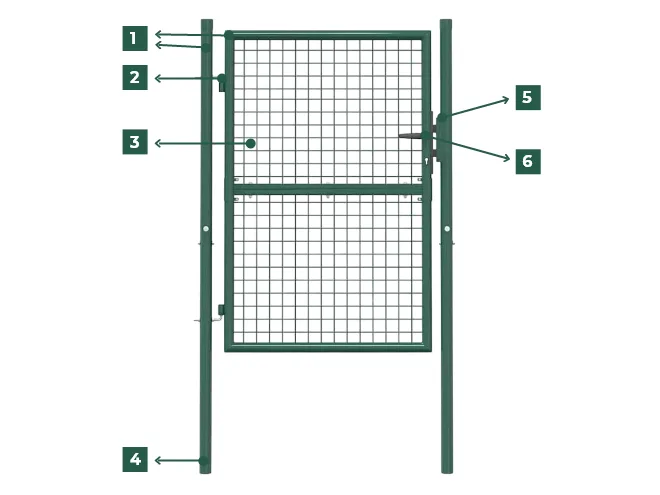

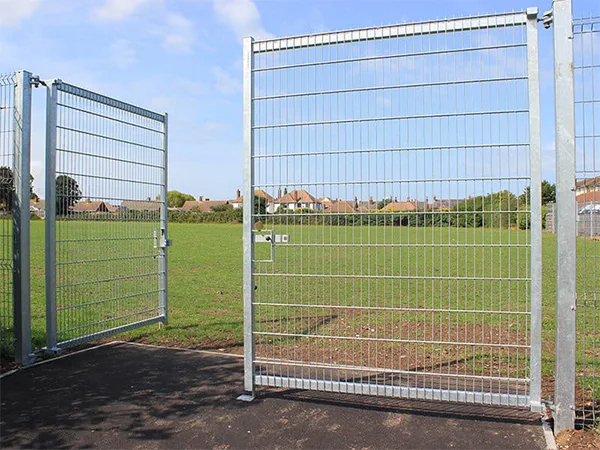

A set of single swing gate with round post and frame and welded mesh infill.

GR311 Single Gate – Round Tube + Wire Mesh

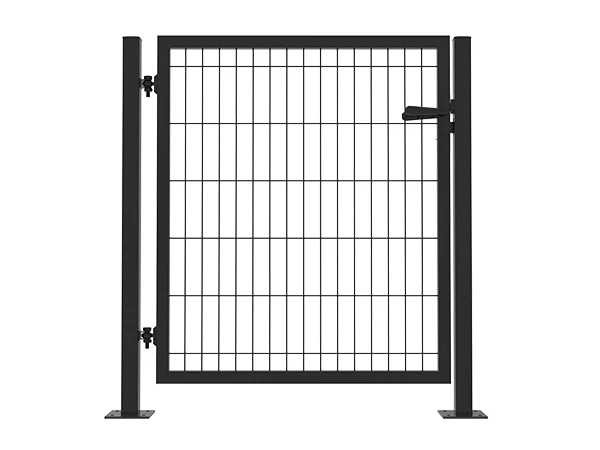

A set of single swing gate with square post and frame and welded mesh infill.

GR312 Single Gate – Square Tube + Wire Mesh

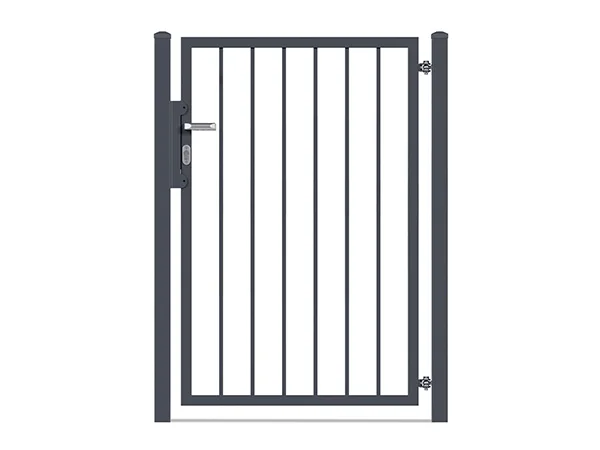

A set of single swing gate with tubular mesh infill.

GR313 Single Gate – Tubular

A set of double swing gate with round post and frame and welded mesh infill.

GR321 Double Gate – Round Tube + Wire Mesh

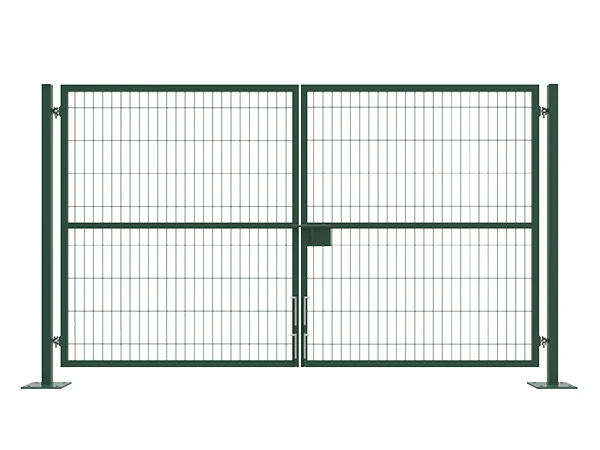

A set of double swing gate with square post and frame and welded mesh infill.

GR322 Double Gate – Square Tube + Wire Mesh

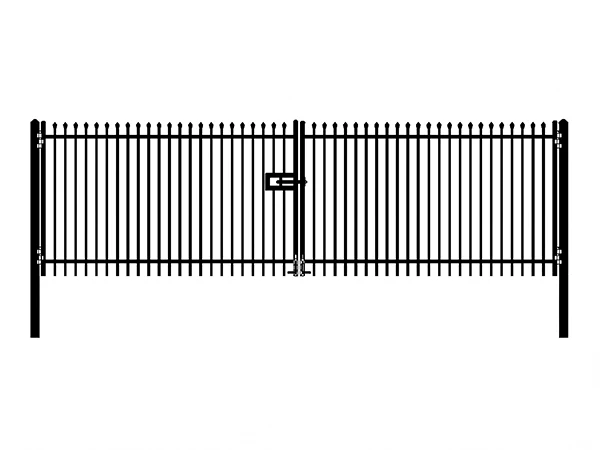

A set of double swing gate with tubular mesh infill.

GR323 Double Gate – Tubular

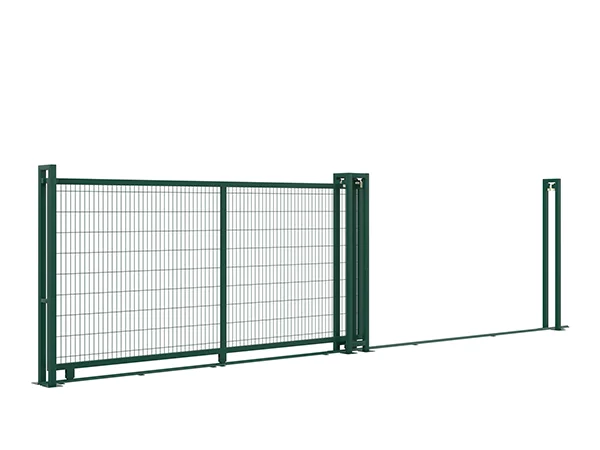

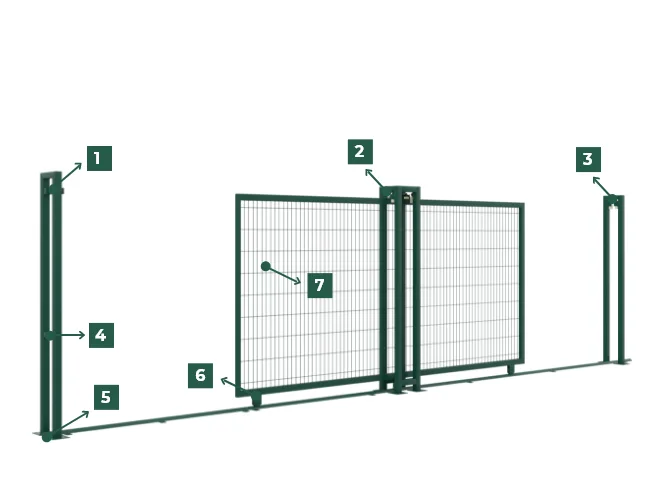

A set of sliding swing gate with square post and frame and welded mesh infill.

GR332 Sliding Gate – Square Tube + Wire Mesh Infill

A set of sliding swing gate with tubular mesh infill.

GR333 Sliding Gate – Tubular Infill

GR311

GR312

GR313

GR321

GR322

GR323

GR332

GR333l

Durable construction with recycled steel structure
Secure locking mechanisms for safety
Customizable sizes for varied applications
Multiple opening styles to suit space and function
Rust and corrosion resistant finishes for longevity

Single – Welded Type
Single – Tubular Type
Double – Welded Type
Double – Tubular Type
Sliding – Welded Type
Sliding – Tubular Type

Single – Welded Type

A
Post:
- Round Post: ɸ60 × 2.0 mm, ɸ75 × 3.0 mm
- Square Post: 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm
B
Frame:
- Round Pipe: ɸ40 × 2.0 mm
- Rectangular Pipe: 40 × 60 × 1.5 / 2.0 mm, 50 × 50 × 1.5 / 2.0 mm
C1 Mesh Size: 50 × 100 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm, 100 × 200 mm
C2 Wire Diameter: 4 mm / 5 mm / 6 mm
D Width: 0.9 m / 1.0 m / 1.2 m / 1.5 m / 1.8 m
E Height: 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m

A weld mesh single gate dimension drawing.

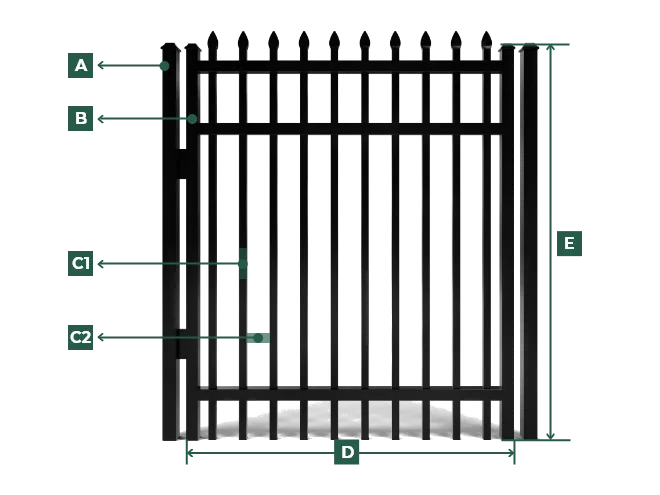

Single – Tubular Type

A Post: 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm
B Frame: 40 × 60 × 1.5 / 2.0 mm, 50 × 50 × 1.5 / 2.0 mm
C1 Pipe Size: 16 × 16 mm, 20 × 20 mm, 25 × 25 mm
C2 Pipe Distance: 100 mm / 120 mm
D Width: 0.9 m / 1.0 m / 1.2 m / 1.5 m / 1.8 m
E Height: 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m

A tubular infill single gate dimension drawing.

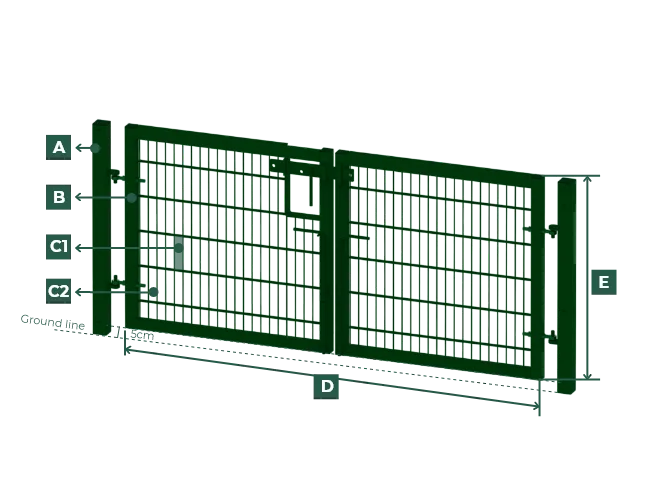

Double – Welded Type

A
Post:
- Round Post: ɸ60 × 2.0 mm, ɸ75 × 3.0 mm
- Square Post: 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm
B
Frame:
- Round Pipe: ɸ40 × 2.0 mm
- Rectangular Pipe: 40 × 60 × 1.5 / 2.0 mm, 50 × 50 × 1.5 / 2.0 mmm
C1 Mesh Size: 50 × 100 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm, 100 × 200 mm
C2 Wire Diameter: 4 mm / 5 mm / 6 mm
D Width: 2.0 m / 3.0 m / 4.0 m / 6.0 m / 8.0 m
E Height: 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m

A weld mesh double gate dimension drawing.

Double – Tubular Type

A Post: 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm
B Fram: 40 × 60 × 1.5 / 2.0 mm, 50 × 50 × 1.5 / 2.0 mm
C1 Pipe Size: 16 × 16 mm, 20 × 20 mm, 25 × 25 mm
C2 Pipe Distance: 100 mm / 120 mm
D Width: 2.0 m / 3.0 m / 4.0 m / 6.0 m / 8.0 m
E Height: 1.0 m / 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m

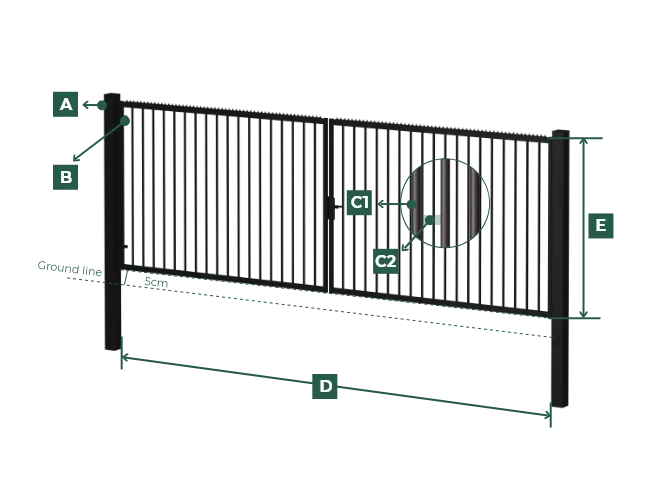

A tubular infill double gate dimension drawing.

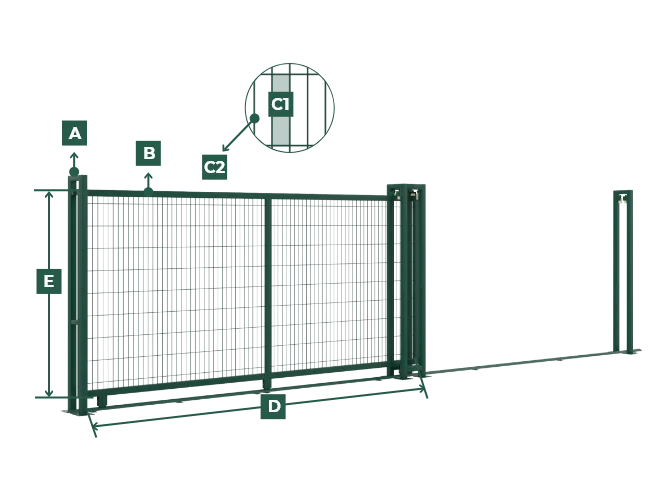

Sliding – Welded Type

A Post: Square Post: 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm
B Frame: Rectangular Pipe: 40 × 60 × 1.5 / 2.0 mm, 50 × 50 × 1.5 / 2.0 mm
C1 Mesh Size: 50 × 100 mm, 50 × 200 mm, 75 × 150 mm, 75 × 200 mm, 100 × 200 mm
C2 Wire Diameter: 4 mm / 5 mm / 6 mm
D Width: 4.0 m / 4.5 m / 5.0 m / 6.0 m
E Height: 1.8 m / 2.0 m / 2.2 m / 2.4 m

A weld mesh sliding gate dimension drawing.

Double – Tubular Type

A Post: 60 × 60 × 2.0 mm; 80 × 80 × 2.0 mm; 100 × 100 × 2.0 / 3.0 mm
B Frame: 40 × 60 × 1.5 / 2.0 mm, 50 × 50 × 1.5 / 2.0 mm
C3 Pipe Size: 16 × 16 mm, 20 × 20 mm, 25 × 25 mm
C4 Pipe Distance: 100 mm / 120 mm
D Width: 4.0 m / 4.5 m / 5.0 m / 6.0 m
E Height: 1.8 m / 2.0 m / 2.2 m / 2.4 m

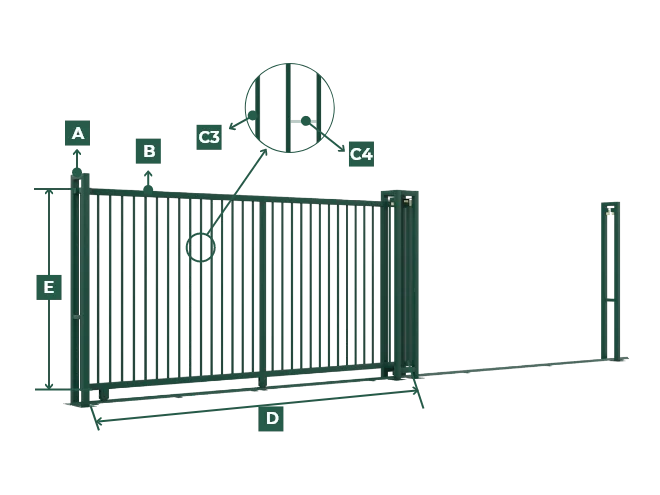

A tubular infill sliding gate dimension drawing.

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

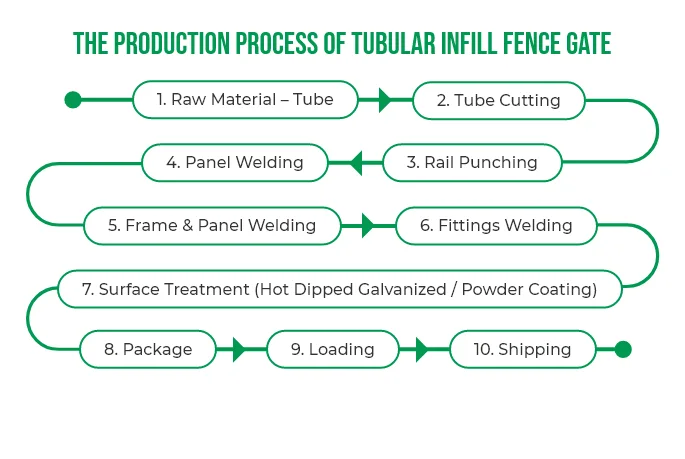

Production Process

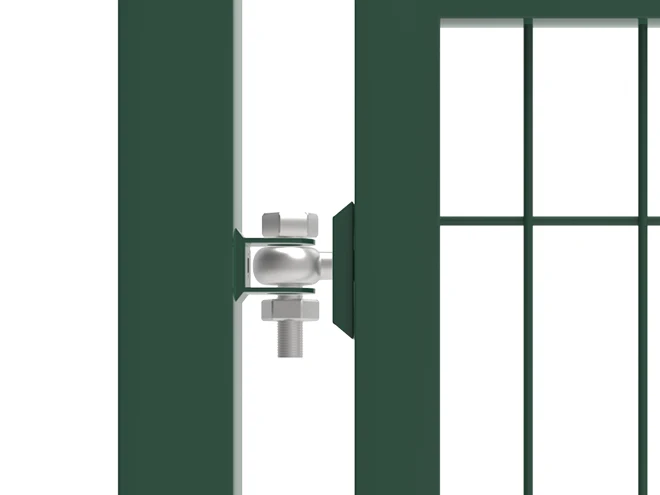

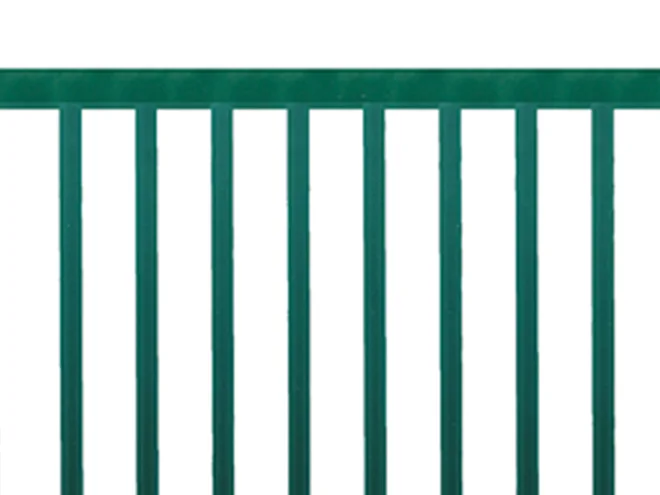

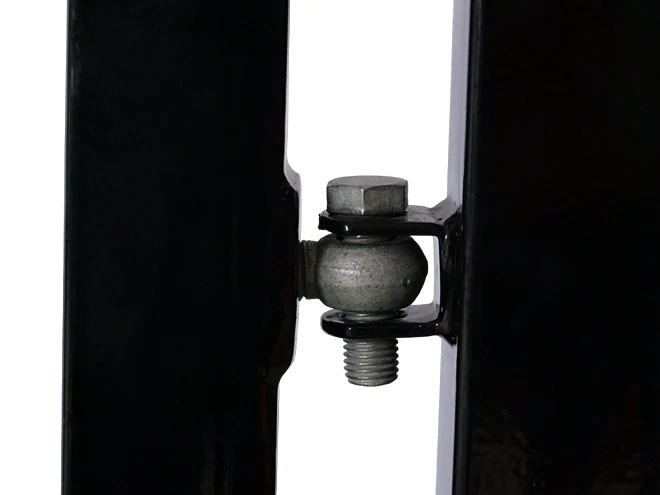

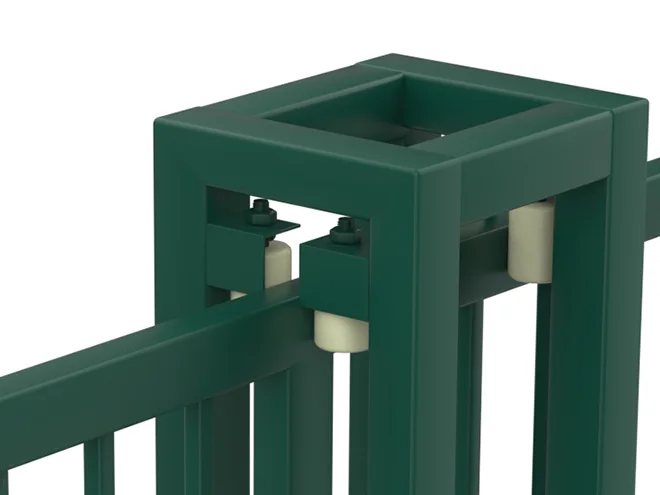

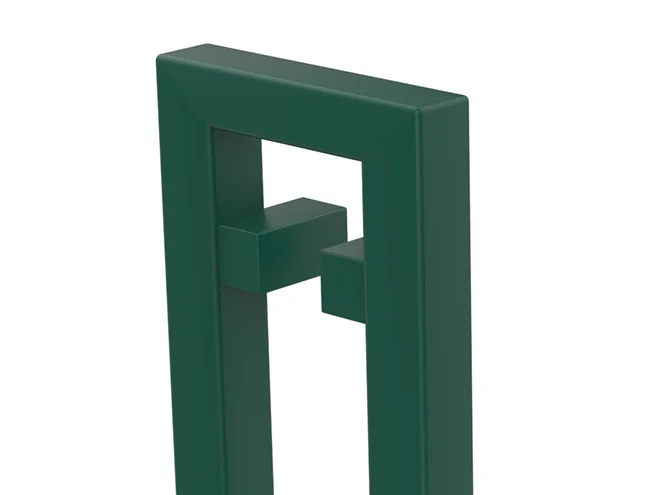

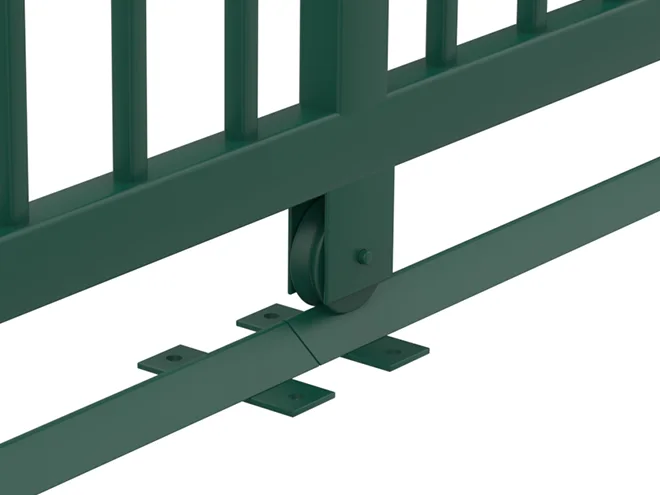

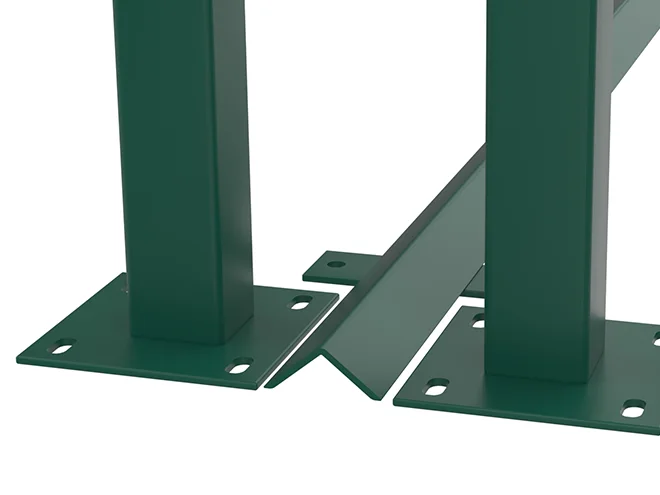

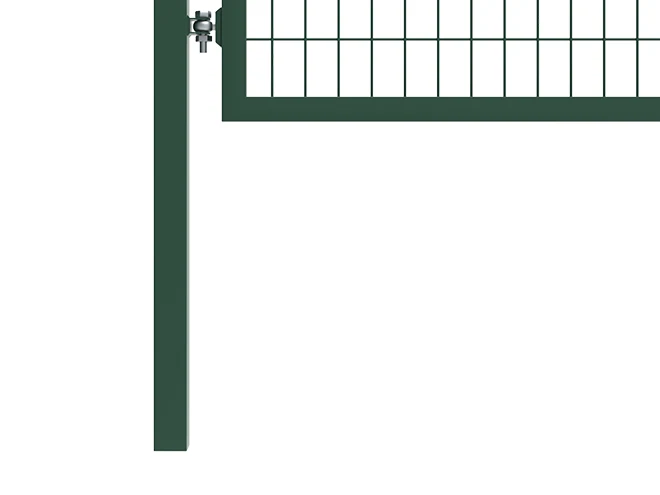

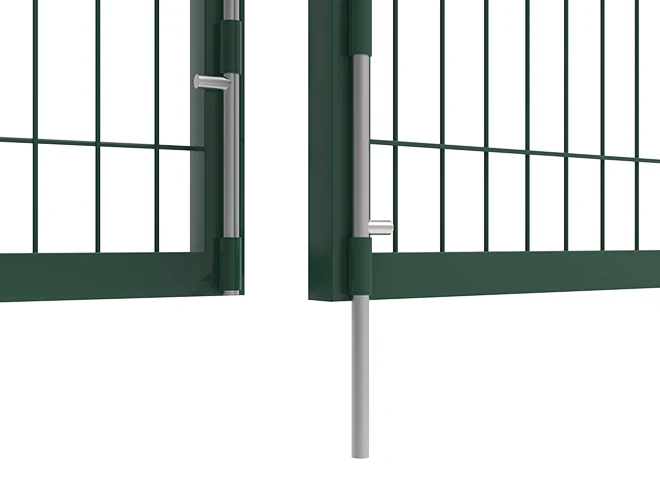

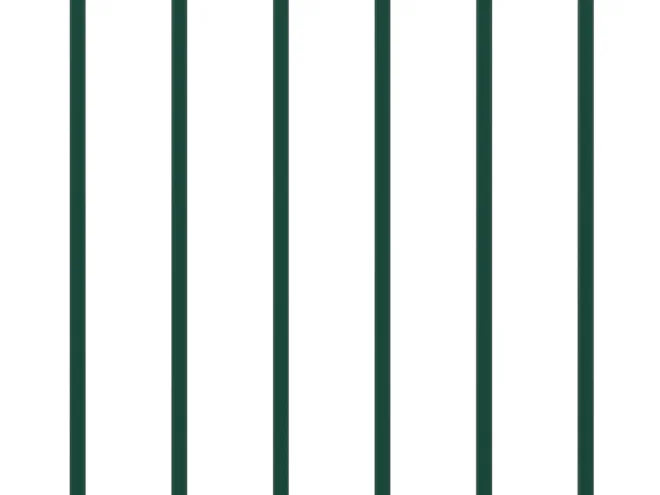

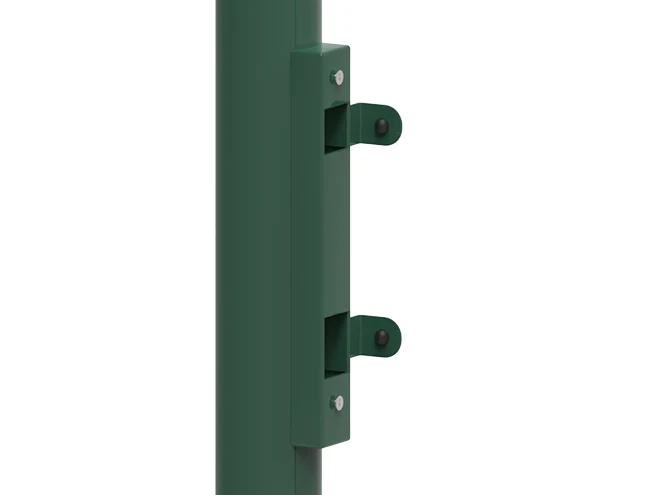

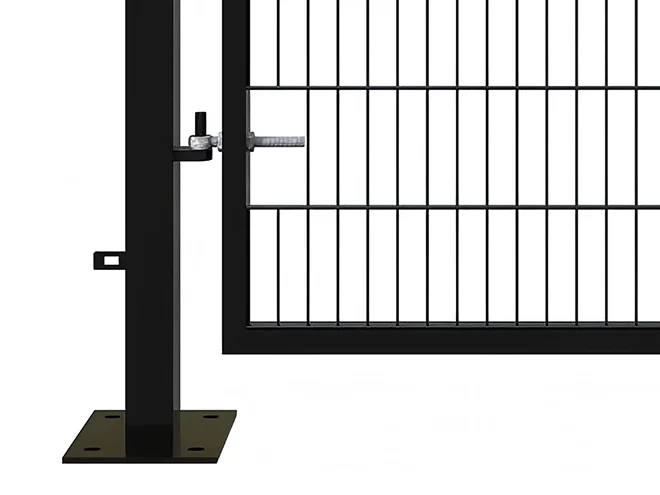

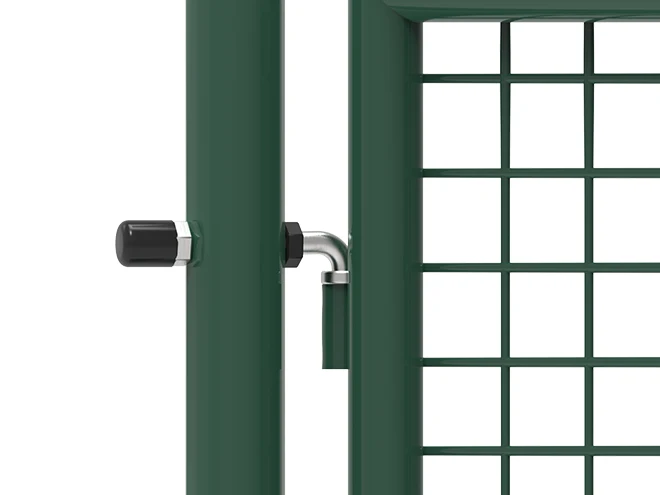

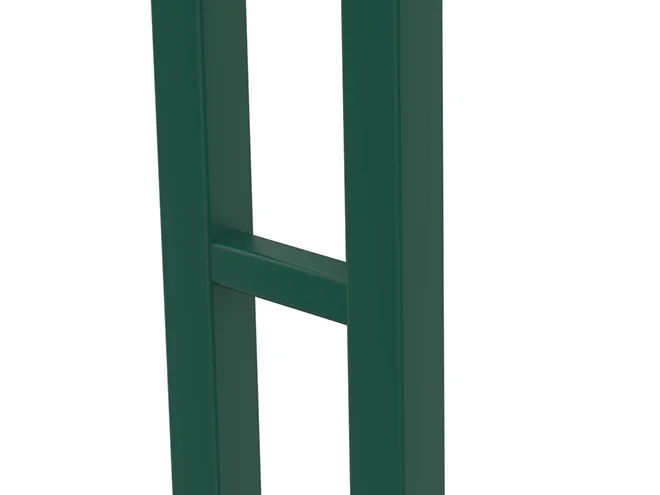

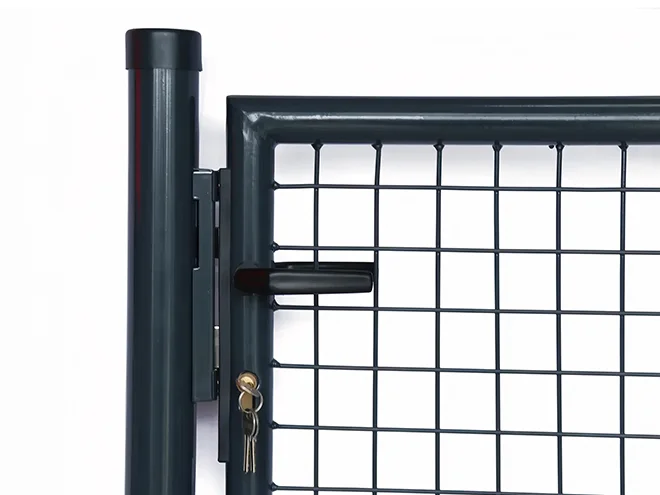

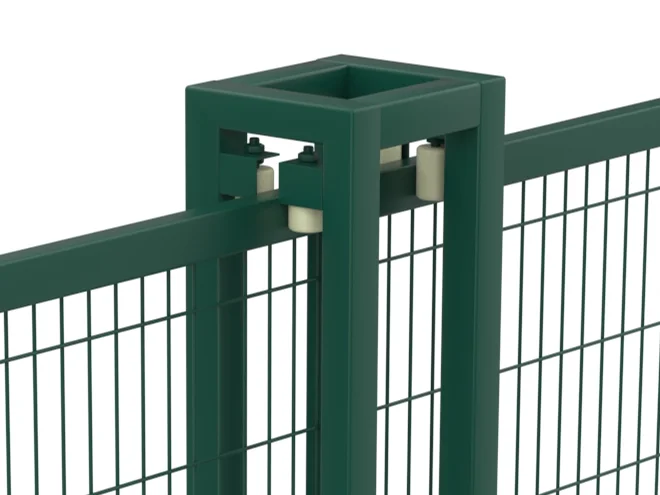

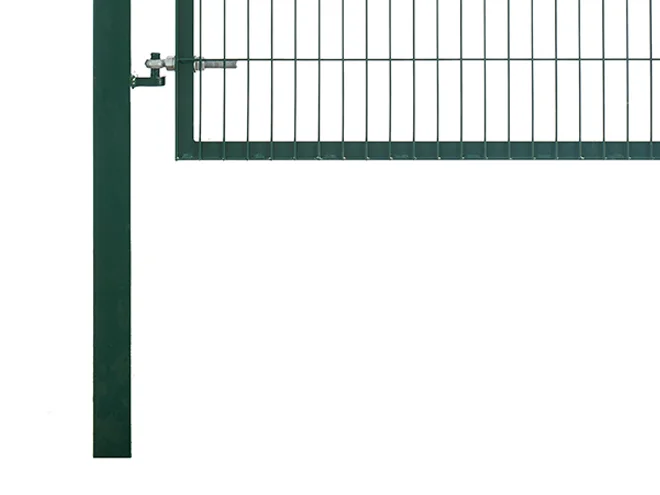

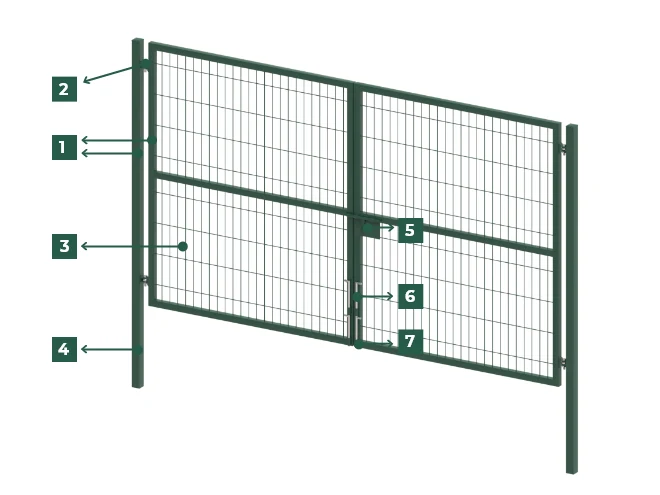

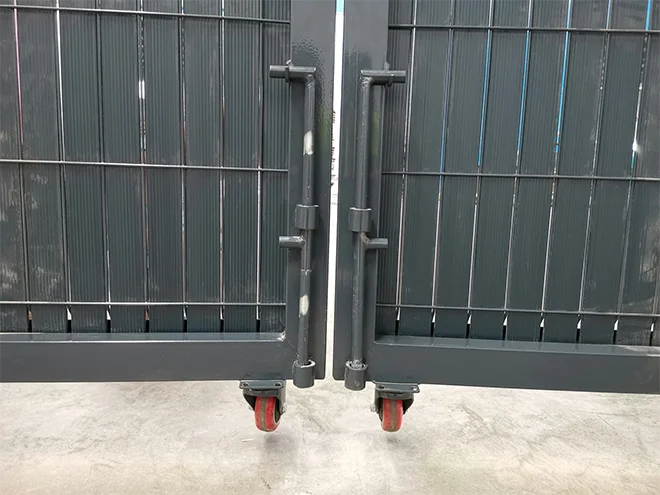

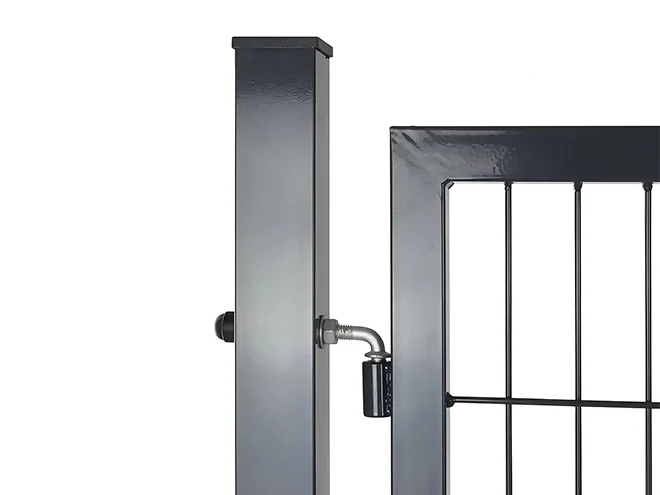

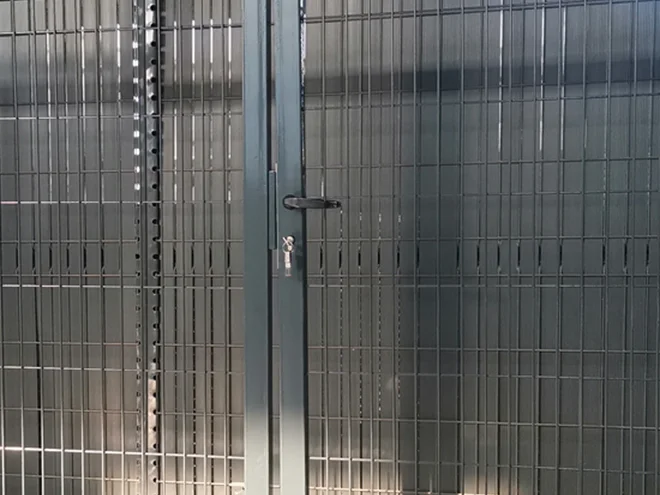

STRUCTURE & DETAILS

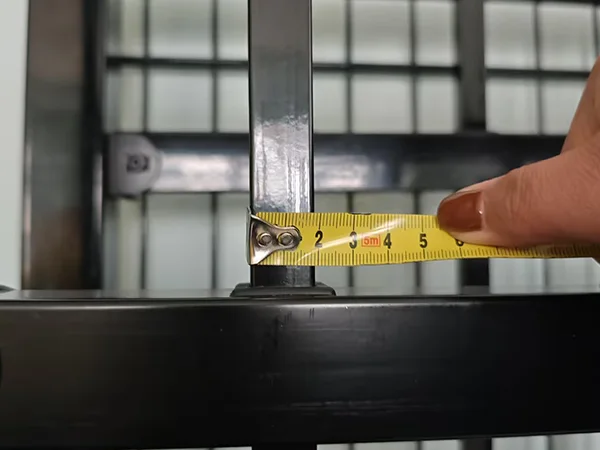

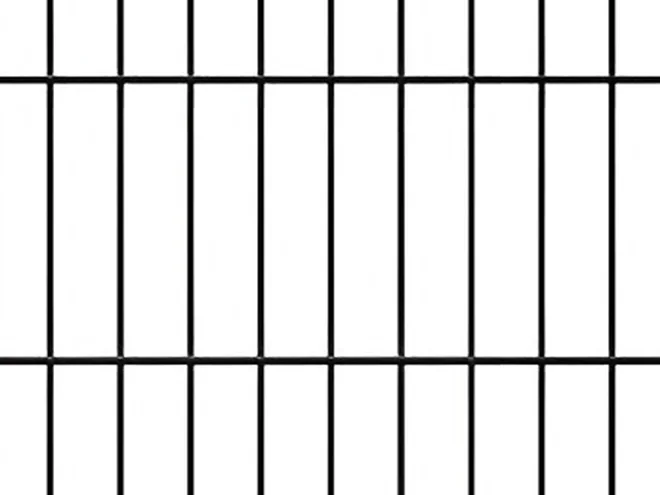

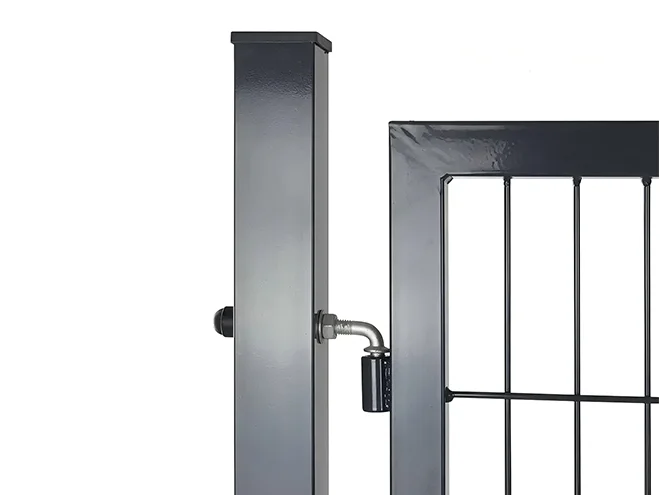

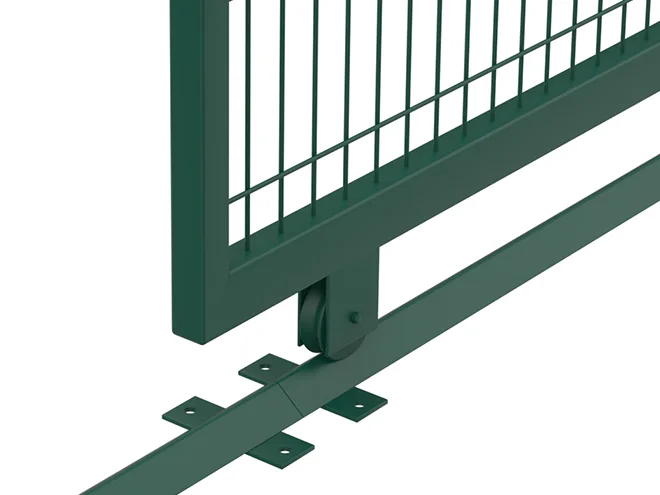

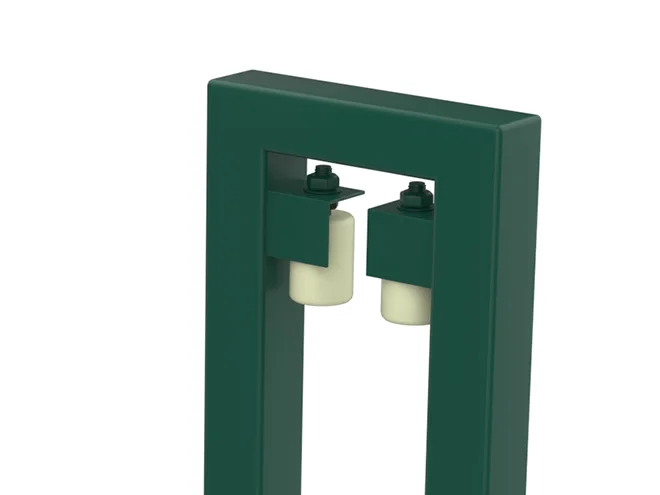

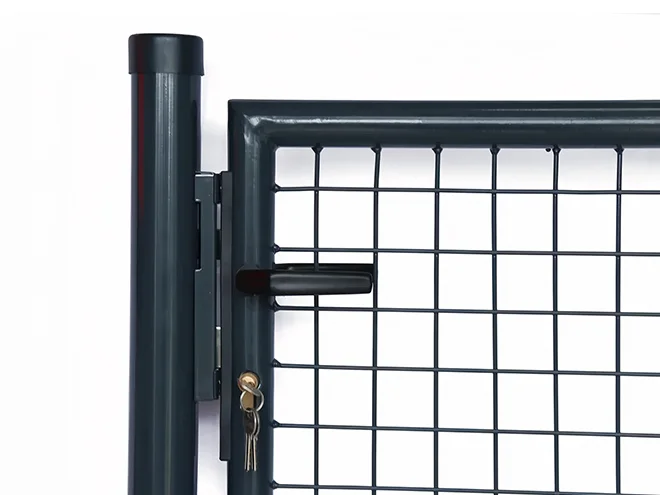

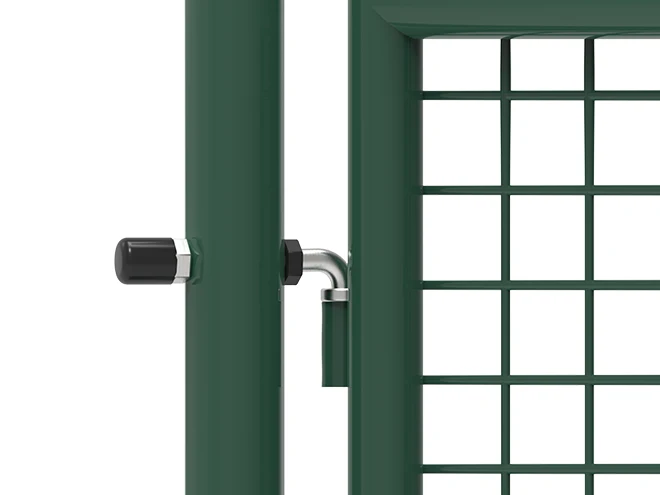

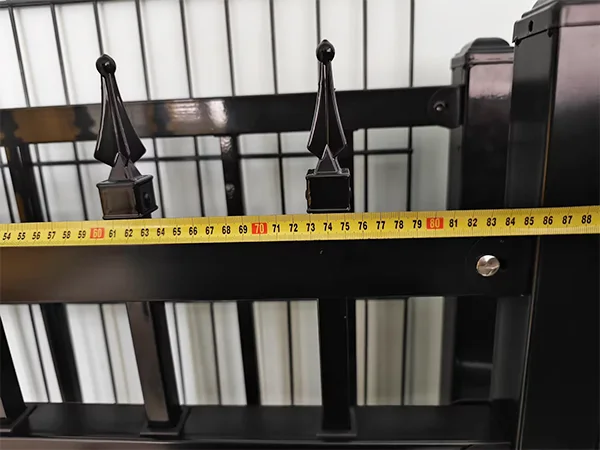

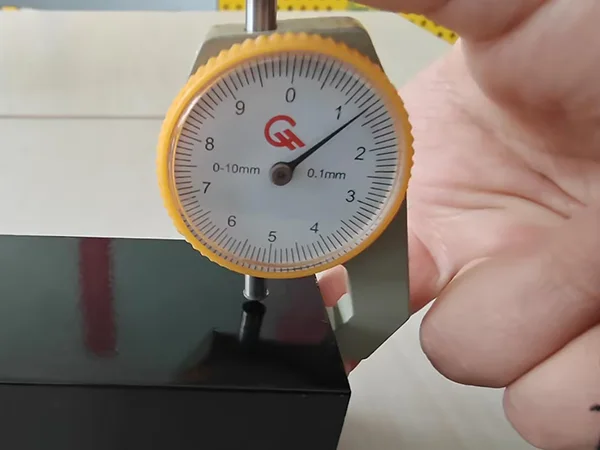

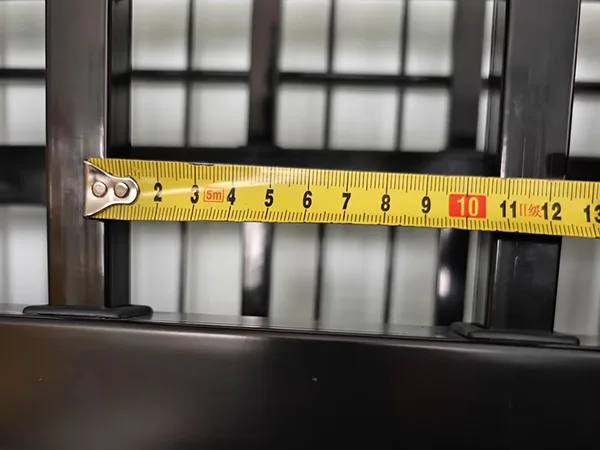

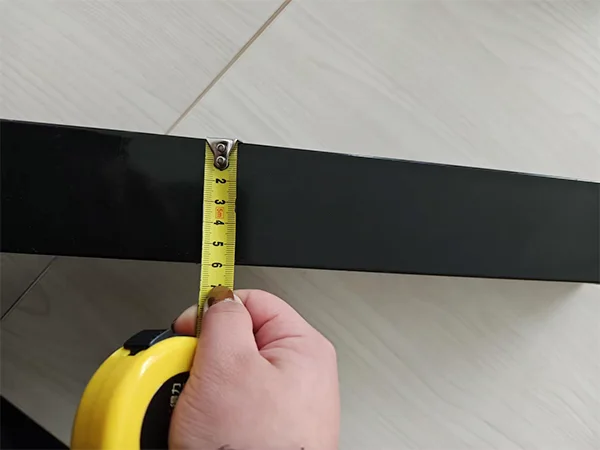

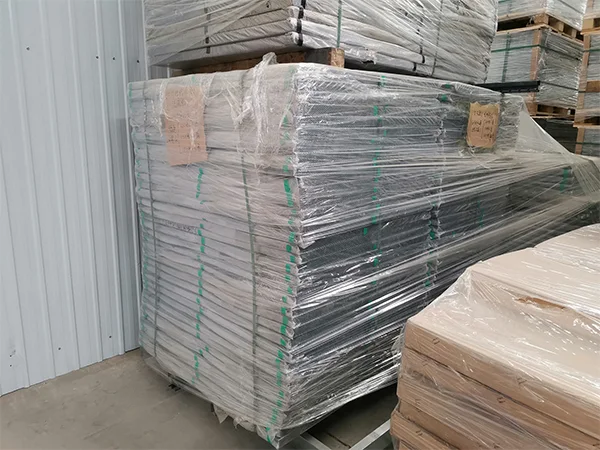

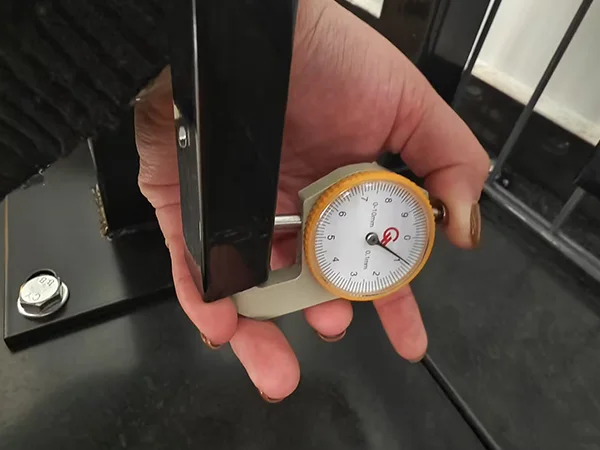

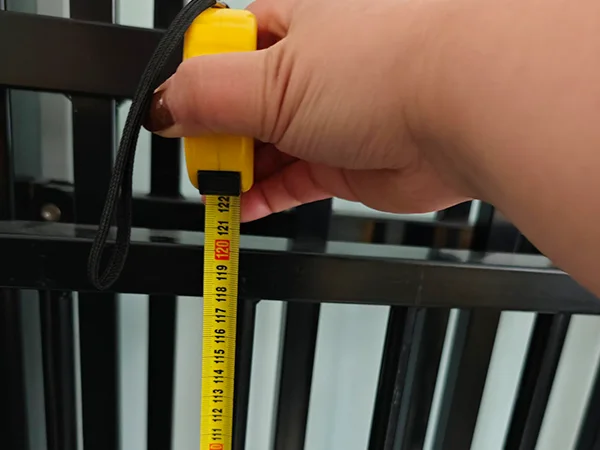

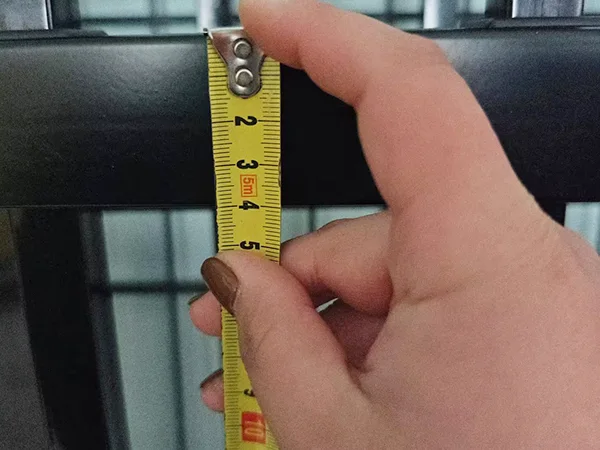

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.
