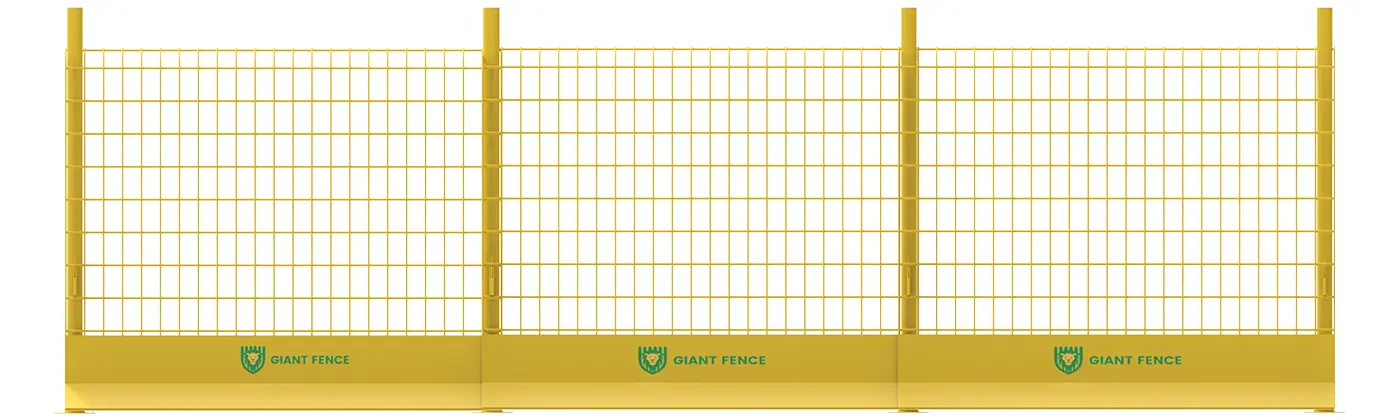

A piece of yellow edge protection fence.

Edge Protection Fence – Ultimate Safety for High-Rise Construction

Edge Protection Fence is a temporary safety system designed to prevent falls from heights, commonly used on construction sites, infrastructure projects, and multi-story building operations. With its high visibility design, strong structure, and compliance with EN 13374 and other safety standards, it provides a reliable line of defense for workers and the public alike.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

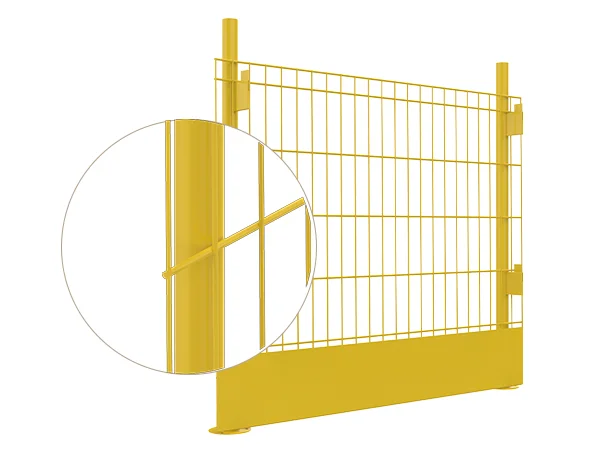

A piece of single wire edge protection fence and the detail of double wire.

GC21 – Single Wire Type

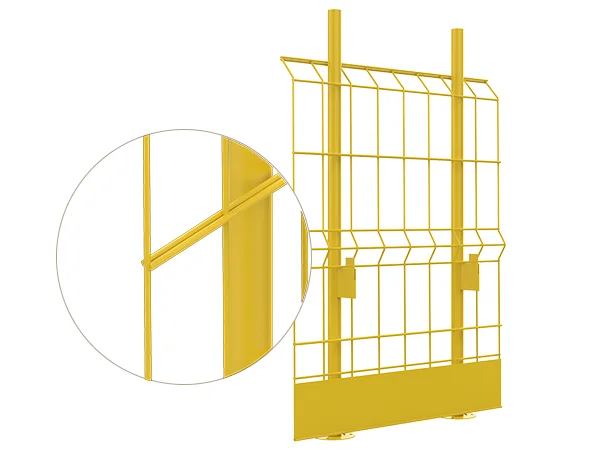

A piece of double wire edge protection fence and the detail of double wire.

GC22 – Double Wire Type

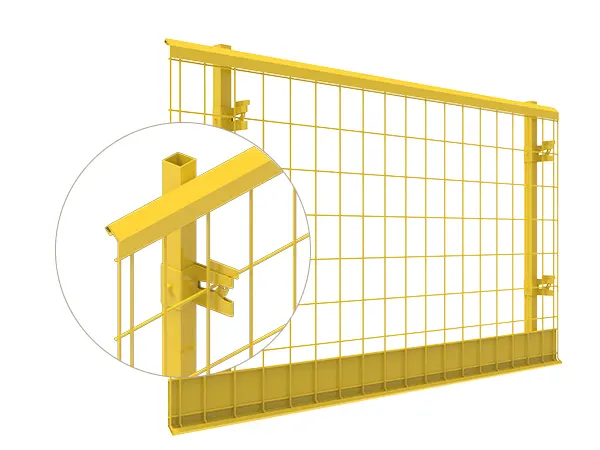

A piece of framed edge protection fence and its detail of frame.

GC23 – Framed Type

GC21

GC22

GC23

In accordance with EN 13374, OSHA 1926 and AS/NZS 4994
Made of 100% carbon steel material for recycling.
Robust structure and firm connection ensures excellent wind resistance.
Powder coating for rust and corrosion resisting.
Toe plates prevent tiny tools or particles falling.
Modular structure for faster installation, dismantle, carrying and maintaining.
Shorten project time limit and enhance safety grade.
Available in various colors (yellow, red, orange, etc.) to improve visibility on site.
Safety signs can be added to enhance hazard awareness and site management.

A Panel Width: 1.5 m / 2.0 m / 2.5 m
B Panel Height: 1.05 m / 1.2 m / 1.3 m / 1.4 m / 1.5 m
C
Wire Diameter:
- Single Wire Type: 5.0 × 4.0 mm, 6.0 × 5.0 mm, 8.0 × 6.0 mm
- Double Wire Type: 5/4/5 mm, 6/5/6 mm, 8/6/8 mm
D Hole Size: 75 × 75 mm, 50 × 100 mm, 50 × 200 mm, 75 × 150 mm
E Post: ɸ48 × 2 mm, ɸ60 × 2 mm
F Bending Degree: 60°, 90°

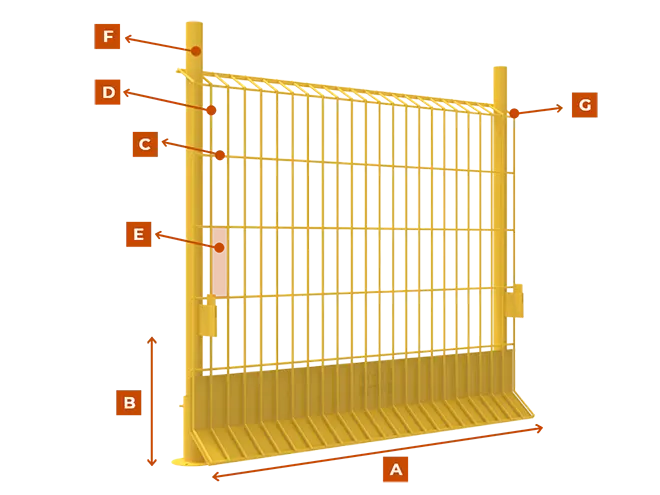

An edge protection fence dimension drawing.

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

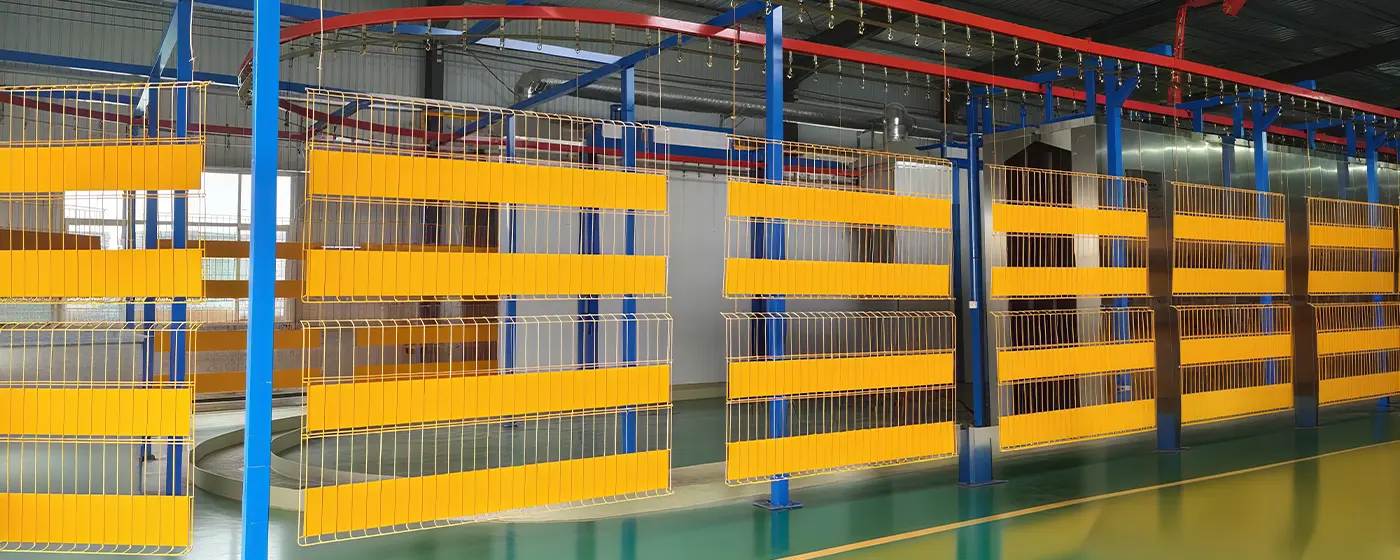

The yellow edge protection fences are hanging on the powder coating line.

Production Process

Raw Material – Steel Wires
Raw Material – Steel Plates
Straighten & Cutting
Panel Welding
Panel Bending
Steel Plate Laser Cutting
Steel Plate Bending
Steel Plate and Panel Welding
Post Cutting
Post Base Welding
Post Latches Welding
Surface Treatment (Powder Coating)
Package
Loading
Shipping

Edge Protection Fence Panel Production Process

Edge Protection Fence Post Production Process

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

Single & Double Wire Type
Framed Type

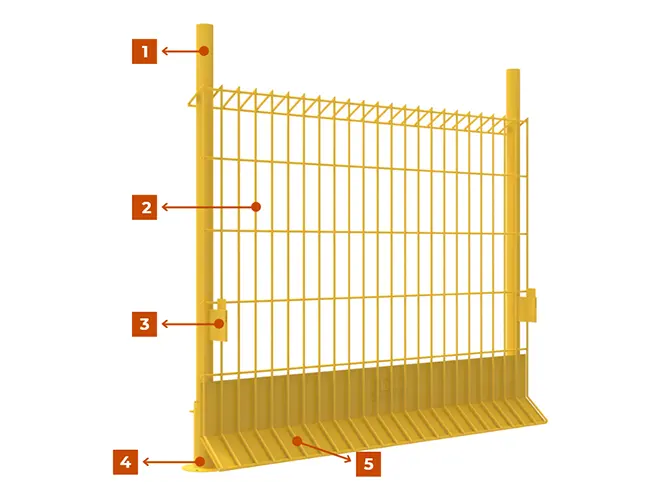

Structure

Round Post

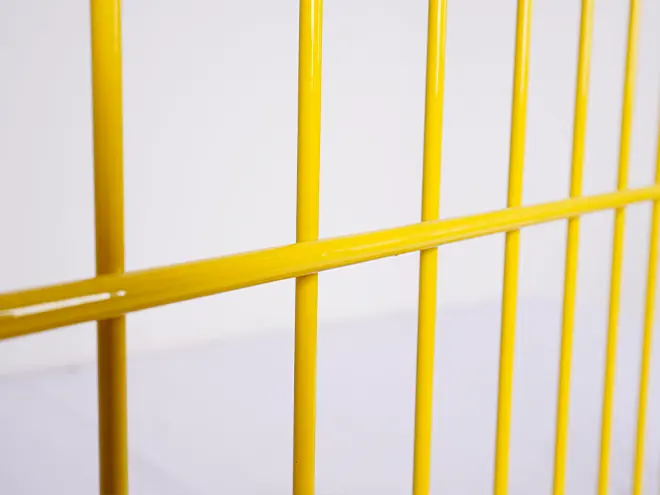

Fence Panel
Latches
Base

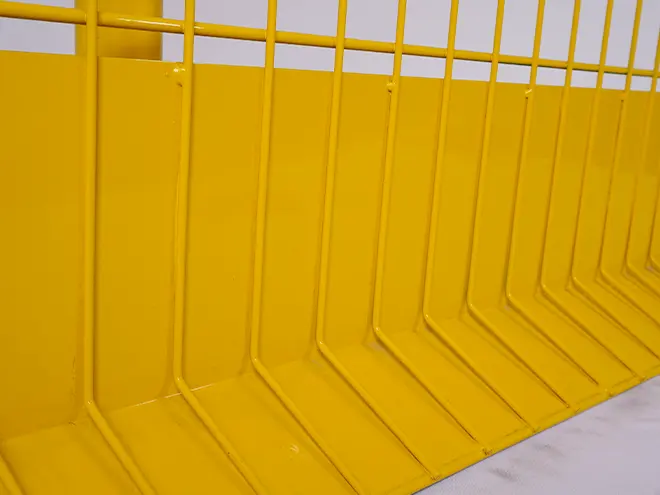

Toe Plate

Overview

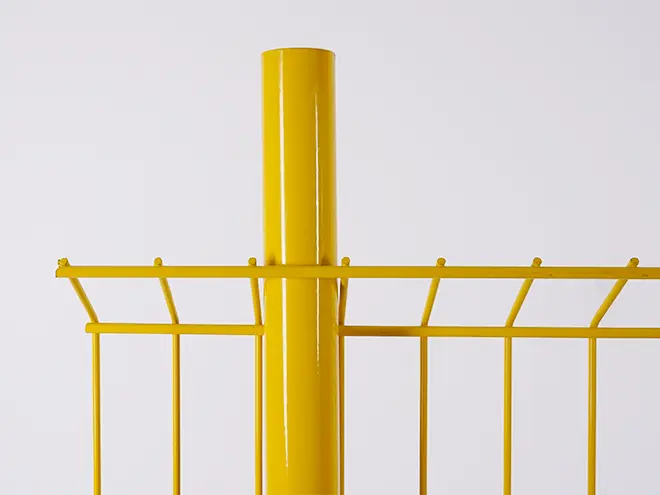

Fence Post
Fence Panel

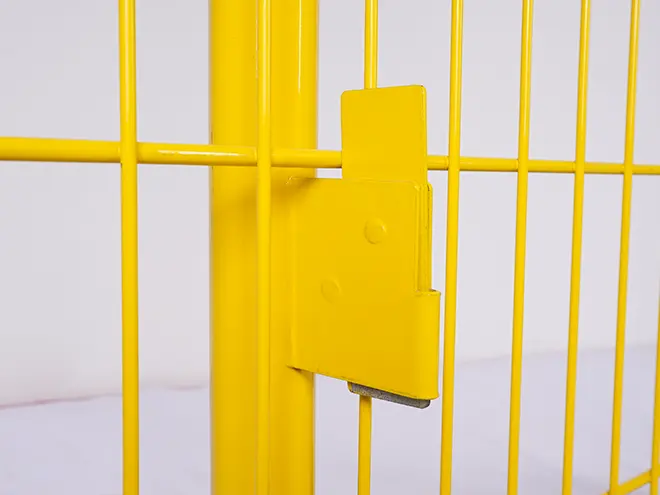

Latch

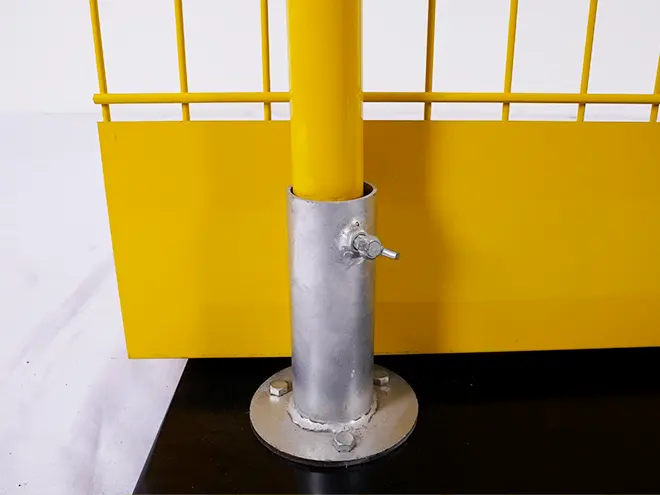

Sleeve Base
Toe Plate

Structure

Fence Post
Fence Panel
Latch
Base
Toe Plate

Overview
Fence Post
Fence Panel
Latch
Base
Toe Plate

QC & Package

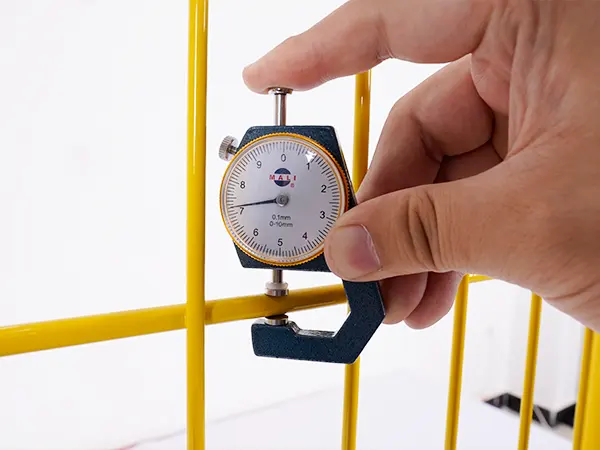

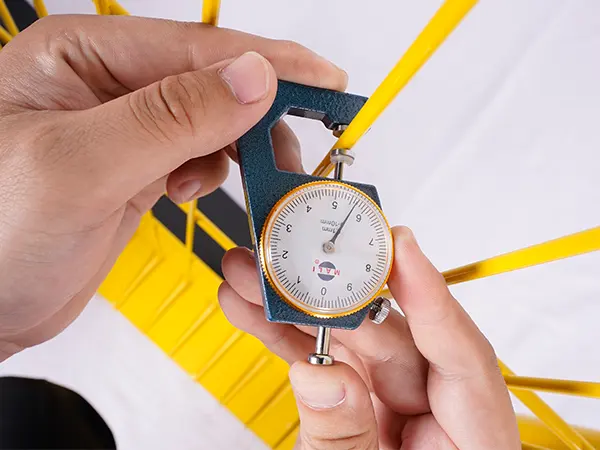

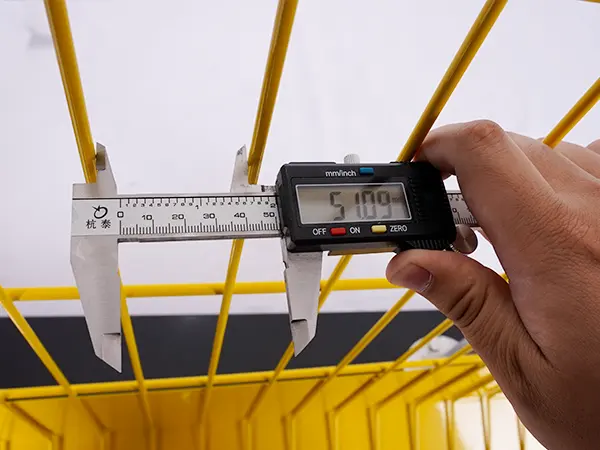

A QC worker is measuring the wire diameter of edge protection fence.

Line Wire Diameter Measuring

A QC worker is measuring the cross wire diameter of edge protection fence.

Cross Wire Diameter Measuring

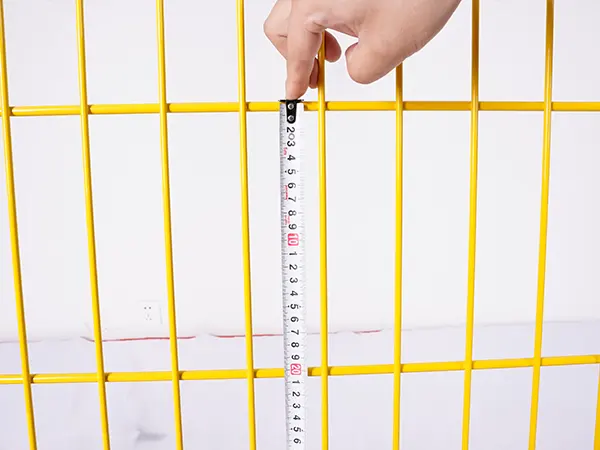

A QC worker is measuring the mesh size of edge protection fence.

Mesh size measuring

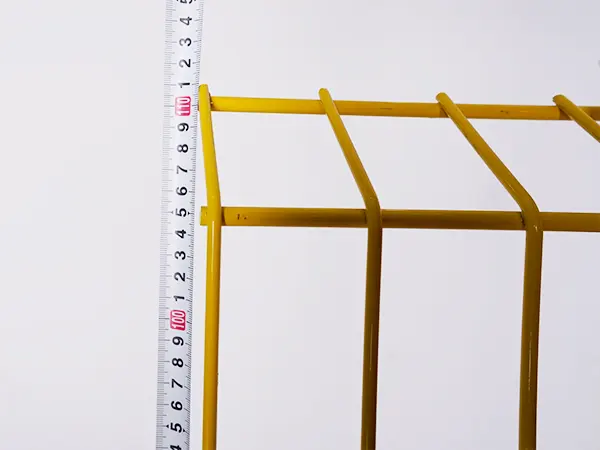

A QC worker is measuring the height of edge protection fence.

Height measuring

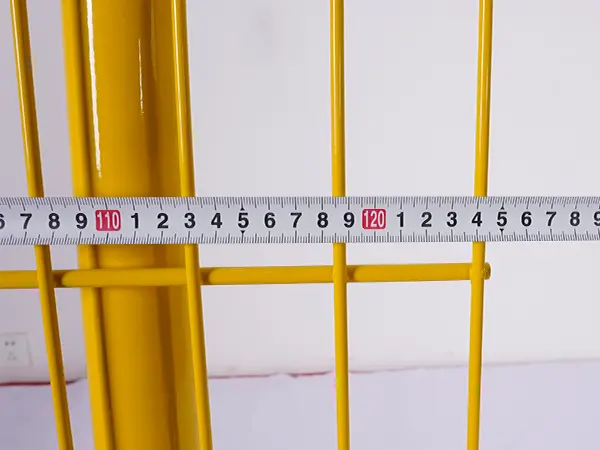

A QC worker is measuring the width of edge protection fence.

Width measuring

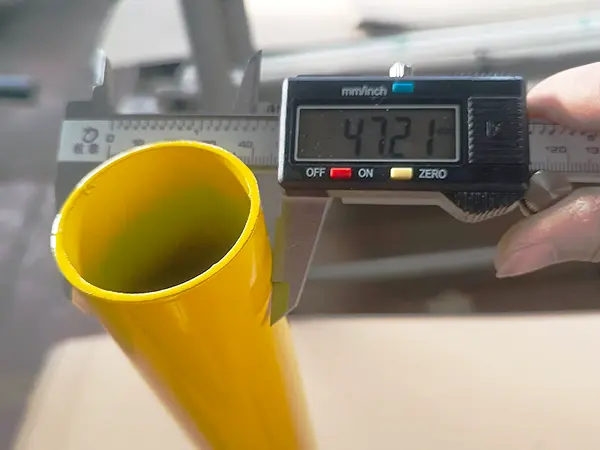

A QC worker is measuring the diameter of edge protection fence post.

Post Size Measuring

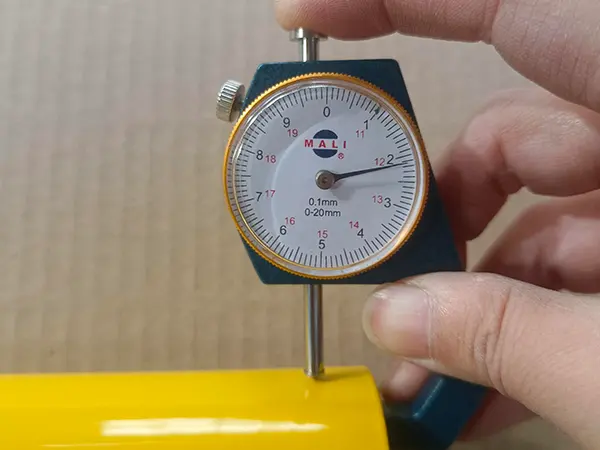

A QC worker is measuring the thickness of edge protection fence post.

Post Thickness Measuring

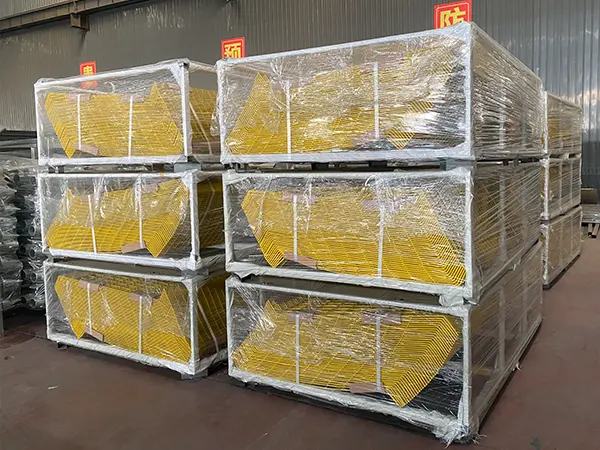

Several metal pallets of edge protection fence panels.

Panel – Metal Pallets

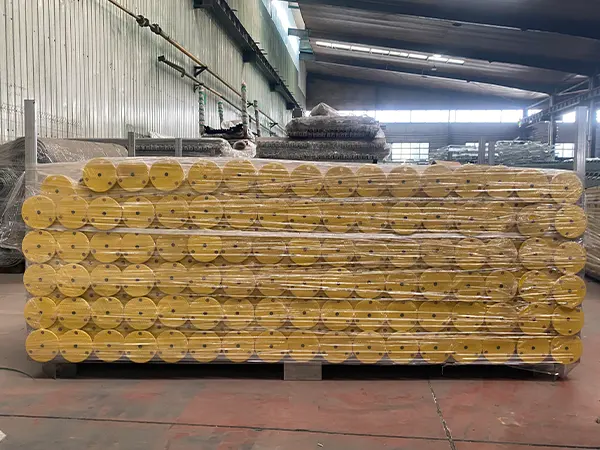

Several edge protection fence posts are packed with plastic films and metal pallets.

Posts – Metal Pallets

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

High-Rise Building Construction Protection
Bridge Construction Protection
Roadbed Construction Safety Protection
Steel Structure Construction Protection
Deep Excavation Pit Protection
Dock and Elevated Platform Protection

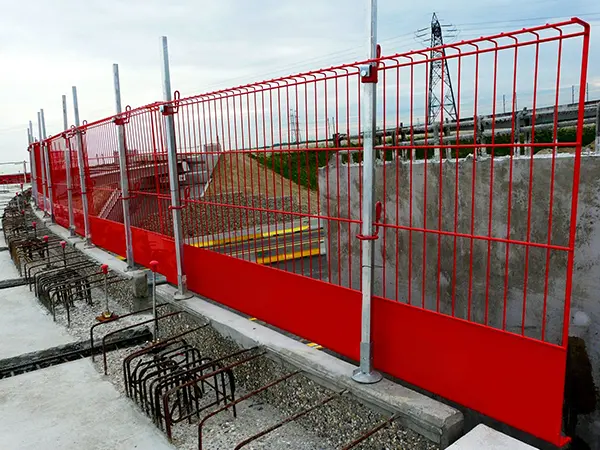

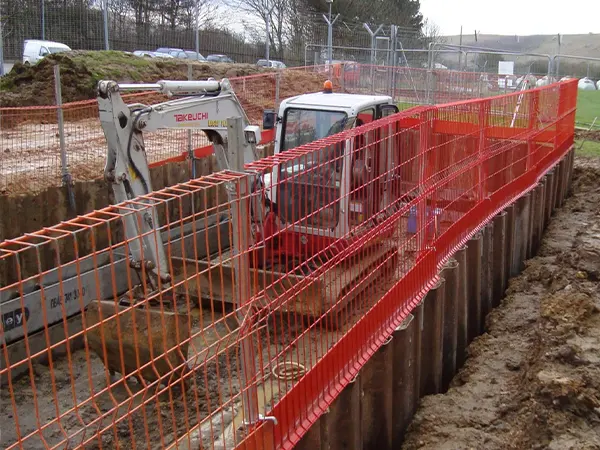

The red edge protection fences are surrounding the construction site and a forklift is working in it.

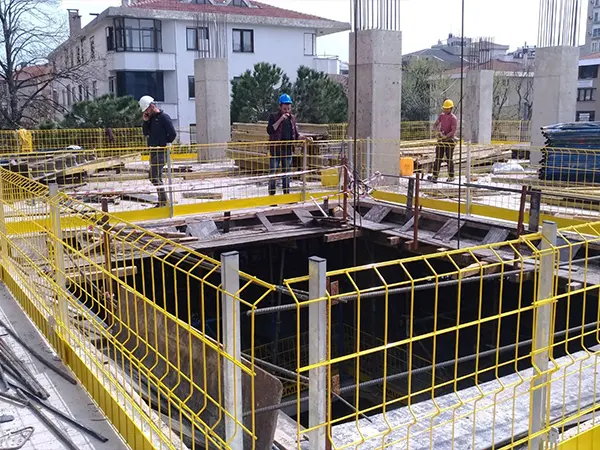

The yellow edge protection barriers are surrounding the deep excavation pit and workers are working.

The red edge protection fences are installed at the top of building.

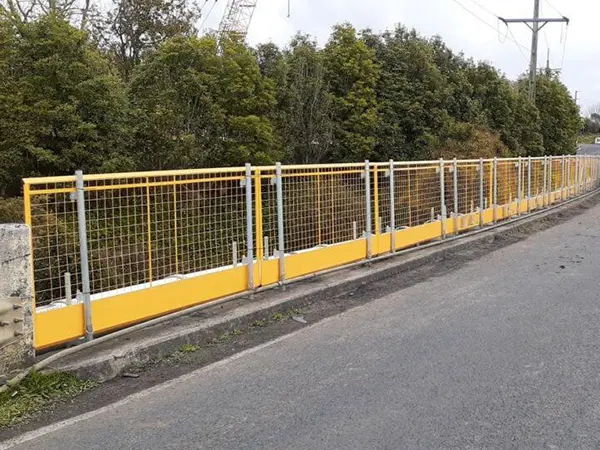

The yellow edge protection fences are installed at the roadside.

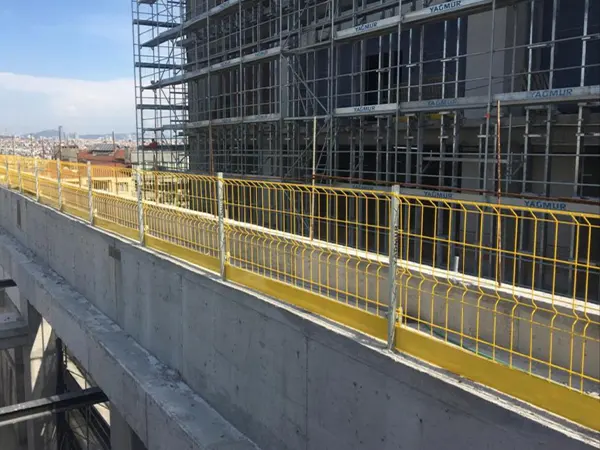

The yellow edge protection fences are installed of the edge of high-rise building floor.

The yellow edge protection fences are surrounding the dock platform.

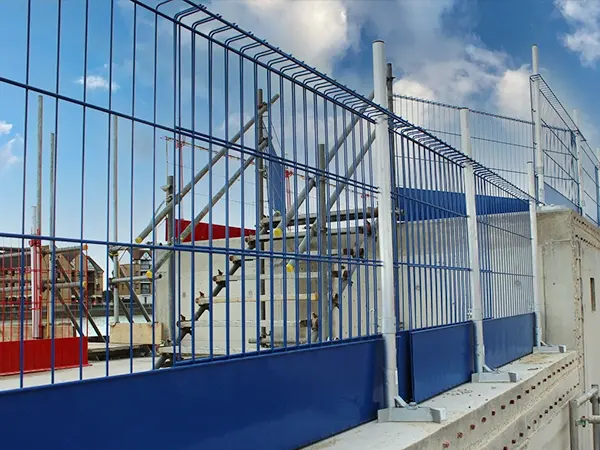

The blue edge protection fences are installed at the rooftop.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

We provide tailored installation solutions based on the structural design of each edge protection panel. From hooks and latches to integrated locking systems, every component is optimized for quick setup and removal. Whether it's for straight runs or corners, our connection methods ensure stability, efficiency, and tool-free assembly on site.

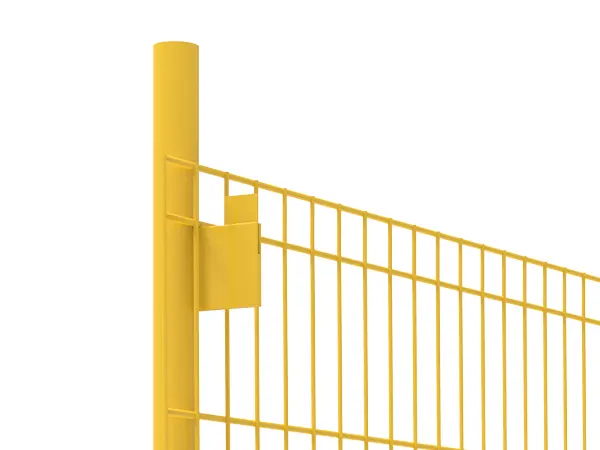

Latch

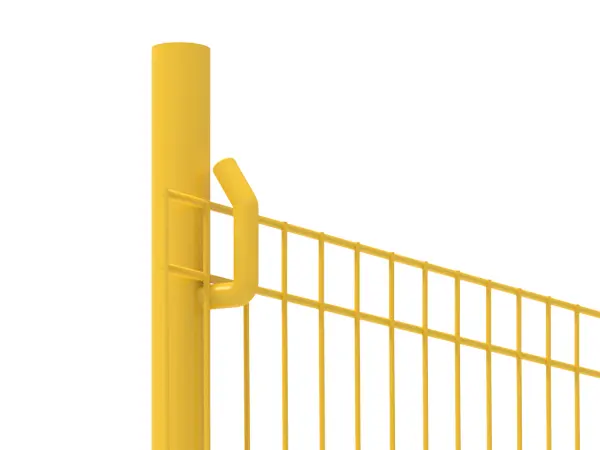

Hook

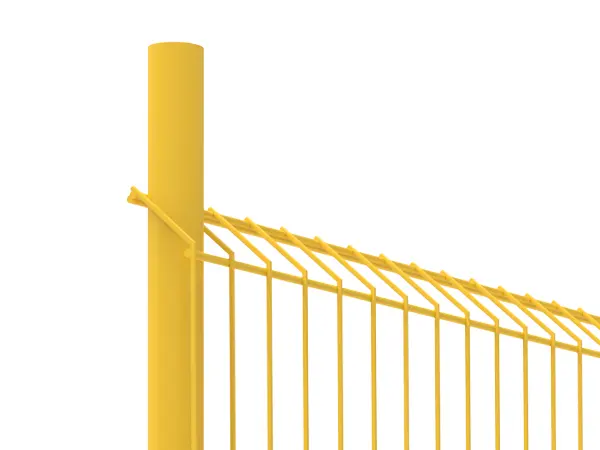

Insert

Top & Bottom Latch Installation

Top Insert & Bottom Latch Installation
