Safe, Neat, Efficient — Workshop Partition Safety Fences for Industrial Spaces

Workshop Safety Fence is designed to create safe, clear, and efficient zones in industrial environments such as factories, warehouses, and workshops. It prevents unauthorized access to machinery, protects workers from hazards, and organizes space for better workflow. Depending on safety requirements and visibility needs, it comes in different panel types and designs for different partition and safety requirements applications.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

A yellow all welded workshop safety fence.

GS41 – All Welded Type

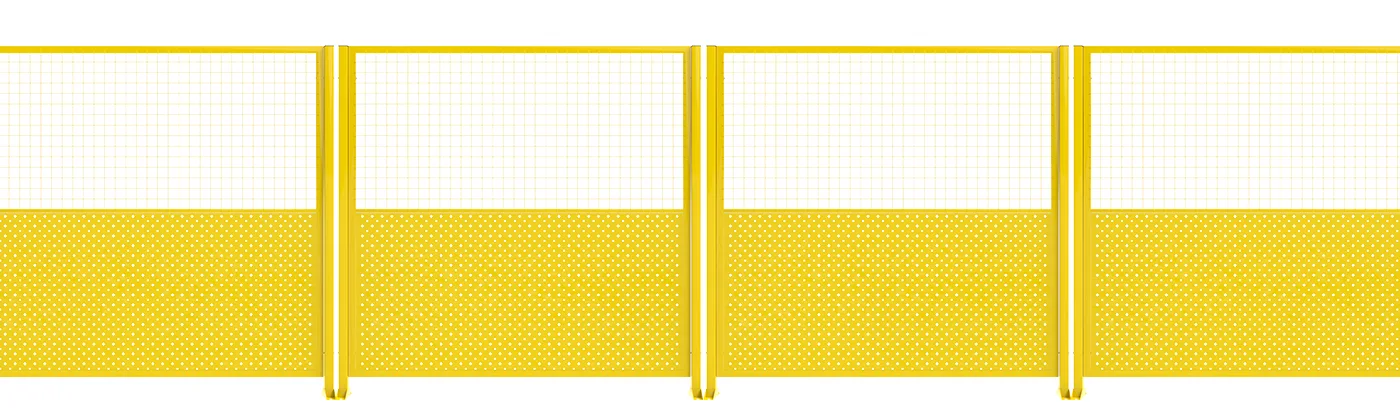

A yellow top welded and bottom perforated type workshop safety fence.

GS42 – Welded & Perforated Type

A yellow all perforated workshop safety fence.

GS43 – All Perforated Type

A yellow aisle type workshop safety fence.

GS44 – Aisle Type

Workshop safety fence with yellow cultural guardrail.

GS45 – Cultural Guardrail

Workshop safety fence with acrylic panel and welded mesh.

GS46 – Acrylic & Welded Type

Workshop safety fence with all welded mesh panel.

GS47 – All Welded Type (Aluminum Alloy)

Workshop safety fence with aluminum alloy arc light panel.

GS48 – Arc Light Panel (Aluminum Alloy)

GS41

GS42

GS43

GS44

GS45

GS46

GS47

GS48

High-strength steel frame with durable powder coating
Modular design for quick installation and relocation
Optional sliding or swing doors for easy access
Customizable sizes, colors, and panel types
Smooth edges and secure fasteners for worker safety.

All Welded Type
Welded & Perforated Type
All Perforated Type
Aisle Type
Cultural Guardrail
Acrylic & Welded Type
All Welded Type (Aluminum Alloy)
Arc Light Panel (Aluminum Alloy)

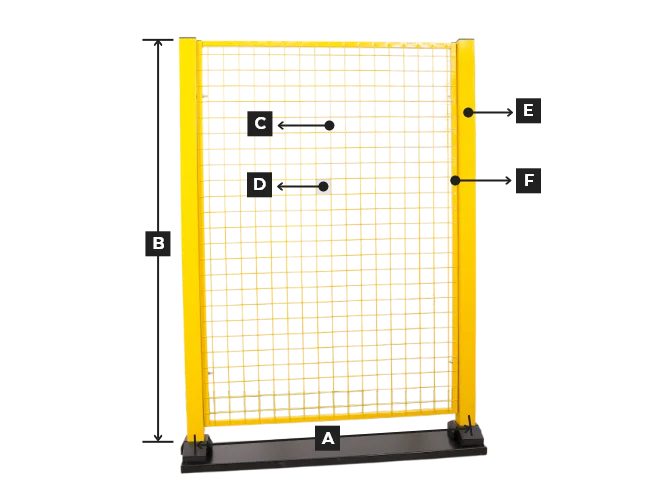

All Welded Type

A Panel Widt: 1.0 m – 3.0 m
B Panel Height: 1.5 m / 1.8 m / 2.0 m / 2.5 m
C Wire Diameter: 4.0 mm
D Hole Size: 60 × 60 mm
E Post: 50 × 50 × 2 mm
F Frame: 19 × 19 mm

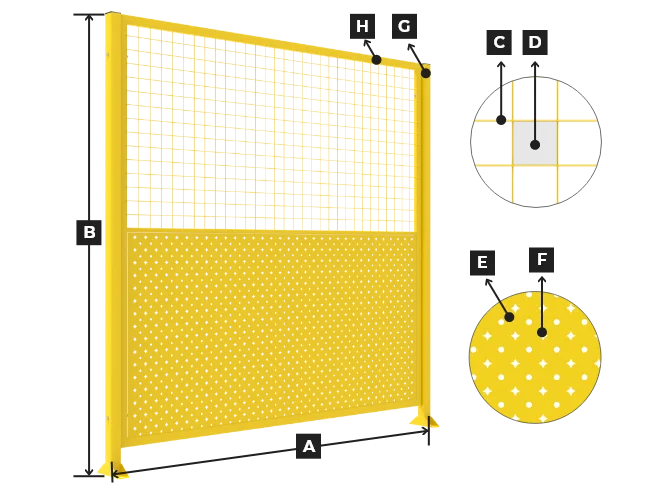

Welded & Perforated Type

A Panel Widt: 1.0 m – 2.0 m
B Panel Height: 1.0 m / 1.5 m / 2.0 m
C Wire Diameter: 4.0 mm
D Hole Size: 60 × 60 mm
E Plate Thickness: 1.0 mm
F Hole Pattern: Round or star shape
G Post: 50 × 50 mm
H Frame: 20 × 40 mm

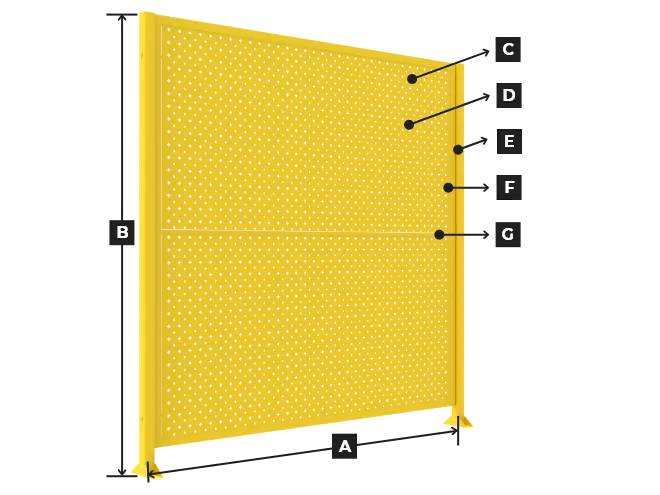

All Perforated Type

A Panel Width: 1.0 m – 2.0 m
B Panel Height: 1.0 m / 1.5 m / 2.0 m
C Plate Thickness: 1.0 mm
D Hole Pattern: Round or star shape
E Post: 50 × 50 mm
F Frame: 20 × 40 mm
G Rail: 20 × 20 mm

Aisle Type

A Panel Width: 1.0 m – 2.0 m
B Panel Height:1.2 m
C Plate Thickness: 1.0 mm
D Hole Pattern: Round or star shape
E Post: 50 × 50 mm
F Frame: 20 × 30 mm
G Handrail: ɸ32 mm

Cultural Guardrail

A Panel Height: 1.0–2.0 m
B Panel Width: 1.0 m, 1.5 m, 2.0 m
C Plate Thickness: 1.0 mm
D Hole Pattern: Round or Star Shape
E Post Size: 50 × 50 mm
F Frame Size: 20 × 40 mm
G
Bottom Rail:
- Square Pipe: 40 × 40 mm
- Round Pipe: Ø32 mm

Acrylic & Welded Type

A Panel Height: 1.5 m, 1.8 m, 2.0 m, 2.5 m
B Panel Width: 0.5 m, 0.7 m, 1.0 m, 1.5 m, 2.0 m
C Mesh Size: 50 × 50 mm, 60 × 60 mm
D Wire Diameter: 4.0 mm
E Acrylic Panel Thickness: 3.0 mm
F
Frame:
- Frame Size: 50 × 50 mm, 60 × 60 mm
- Frame Thickness: 1.2 mm, 1.5 mm, 1.8 mm, 2.0 mm, 2.5 mm

A structure drawing of workshop safety fence acrylic and welded type.

All Welded Type (Aluminum Alloy)

A Panel Height: 1200 mm, 1500 mm, 1800 mm, 2000 mm
B Panel Width: 500 mm, 700 mm, 1065 mm, 1545 mm
C Mesh Size: 20 × 80 mm, 55 × 55 mm
D Wire Diameter: 3.0 mm / 4.0 mm
E Frame Size: 40 × 40 × 1.2 mm
F Base Size: 40 × 40 mm, 40 × 80 mm

Arc Light Panel (Aluminum Alloy)

A Panel Height: 1200 mm, 1500 mm, 1800 mm, 2000 mm
B Panel Width: 500 mm, 700 mm, 1065 mm, 1545 mm
C Mesh Size: 20 × 80 mm, 55 × 55 mm
D Wire Diameter: 3.0 mm / 4.0 mm
E Arc Light Panel Thickness: 3.0 mm
F Frame Size: 40 × 40 × 1.2 mm
G Base Size: 40 × 40 mm, 40 × 80 mm

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

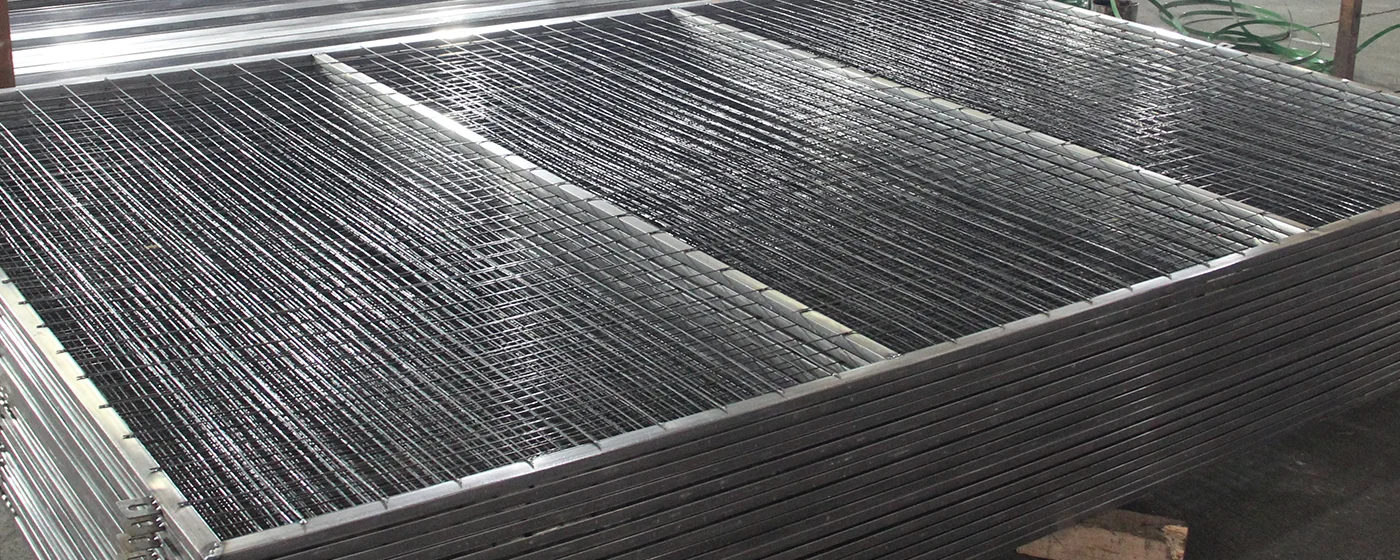

A welding workshop is producing all welded workshop safety fence.

Production Process

Raw Material – Steel Wires & Tubes & Plates
Straighten & Cutting
Panel Welding Or Plate Punching
Frame Welding
Panel & Frame Welding (All Welded or Welded & Perforated Type)
Surface Treatment (Powder Coating)
Package
Loading
Shipping

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

All Welded Type
Welded & Perforated Type
All Perforated Type
Aisle Type
Cultural Guardrail
Acrylic & Welded Type
All Welded Type (Aluminum Alloy)
Arc Light Panel (Aluminum Alloy)

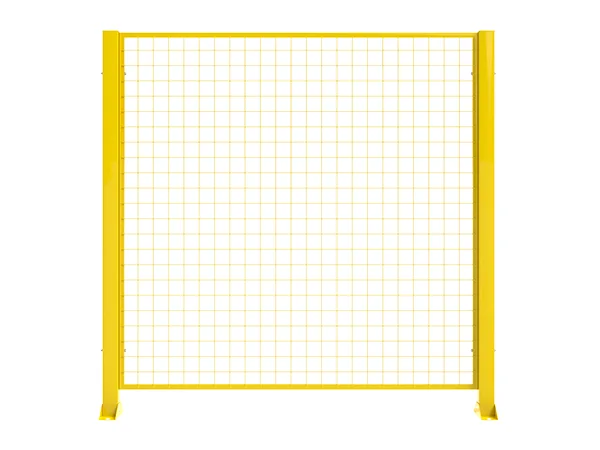

Structure

Post
Frame
Fence Panel

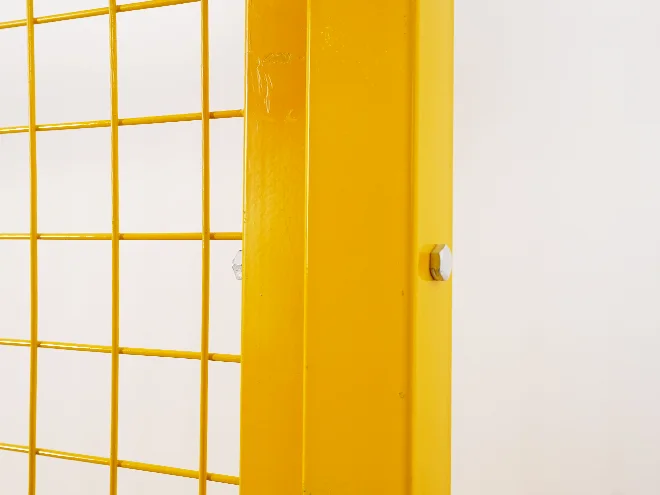

Post & Frame Connection

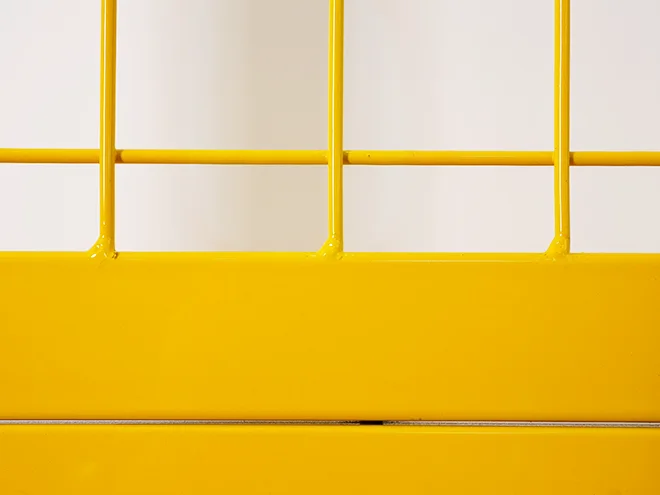

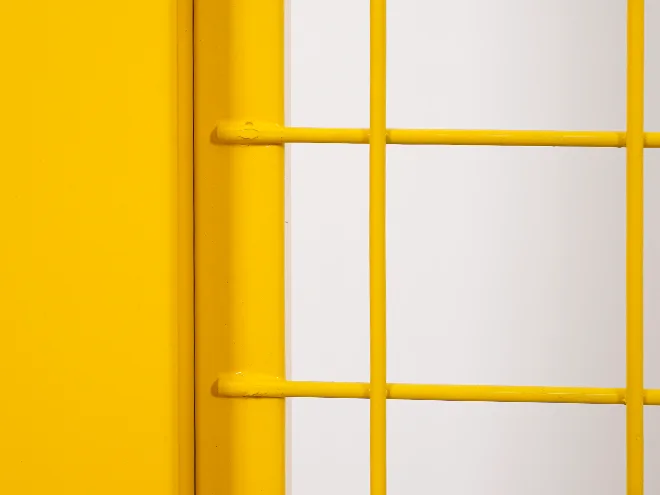

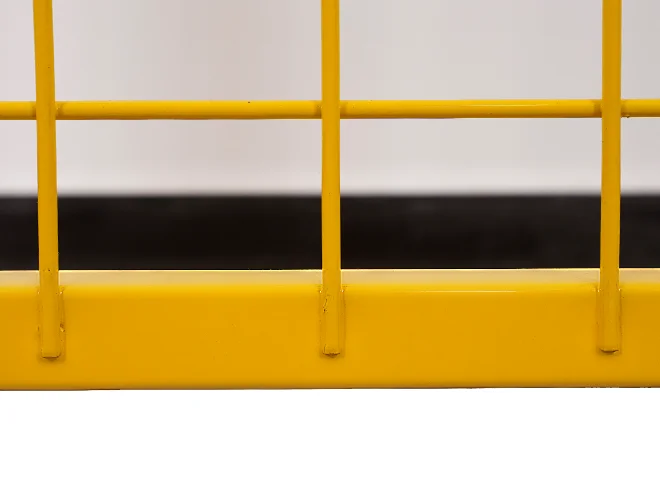

Panel & Frame Detail

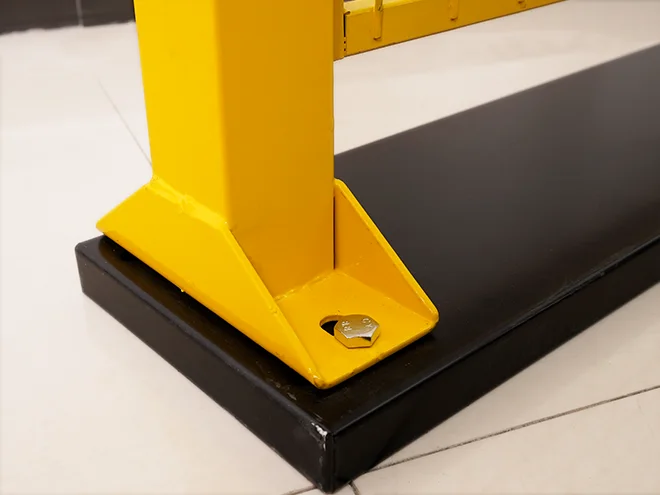

Base
Base Cover

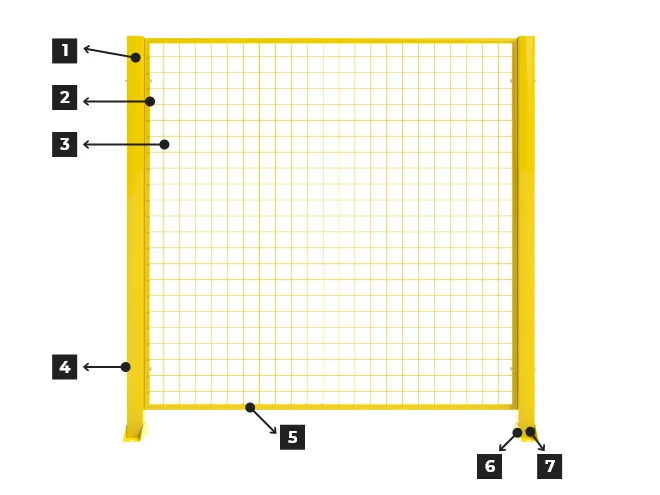

Overview
Post
Frame
Fence Panel
Post & Frame Connection
Panel & Frame Detail
Base

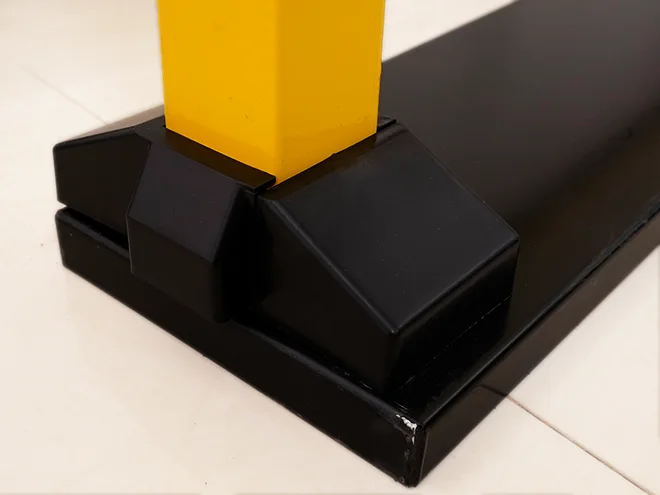

Base Cover

Structure

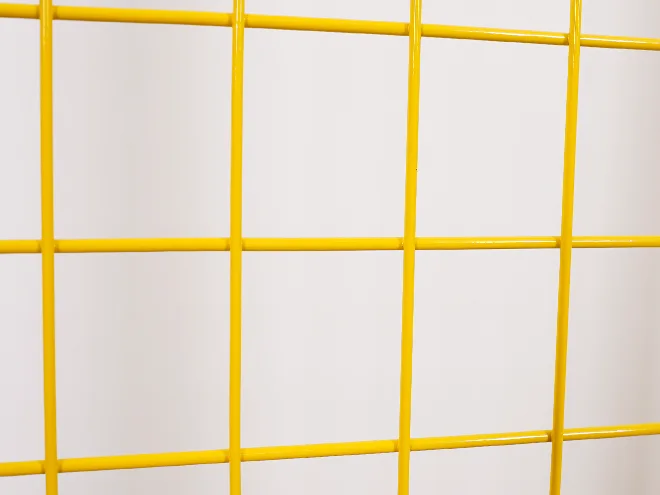

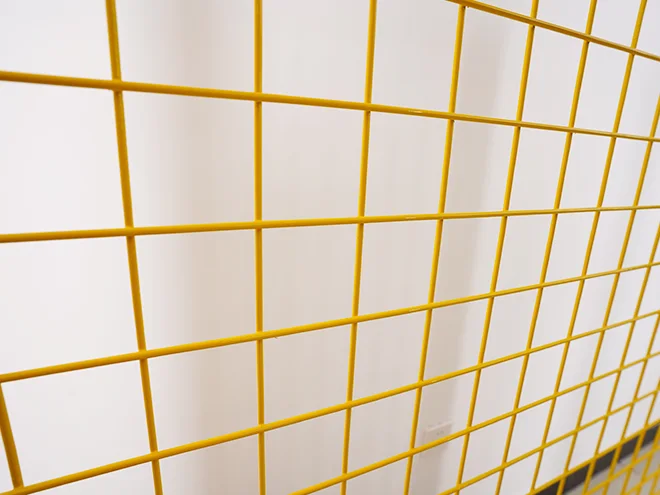

Welded Mesh

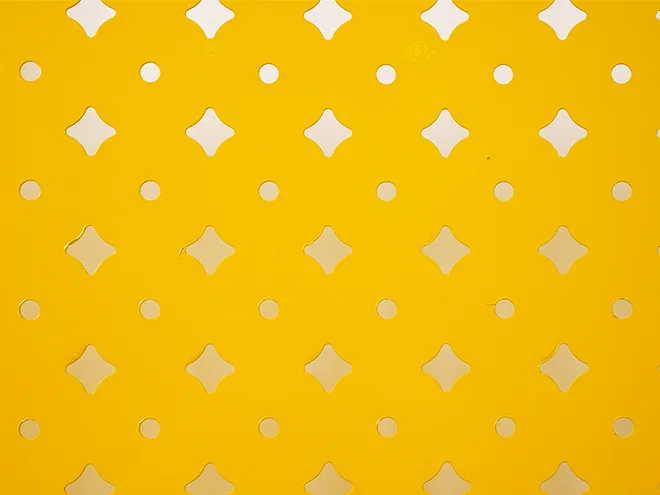

Perforated Mesh
Frame
Post

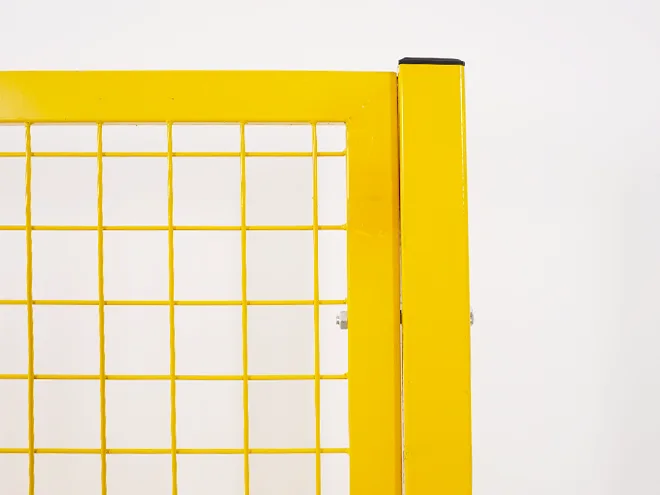

Post & Frame Detail
Base

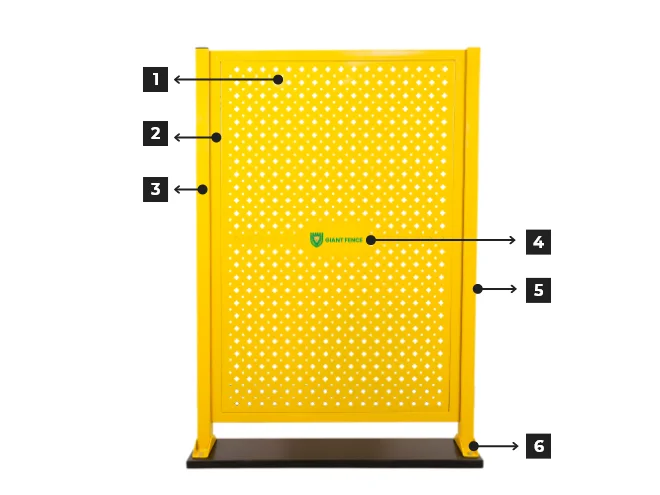

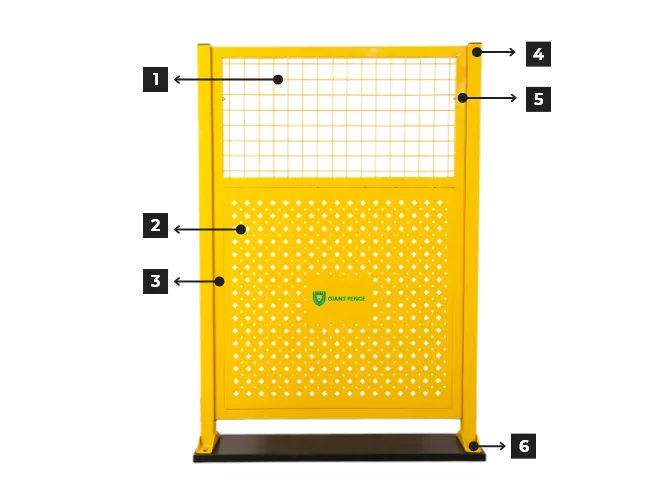

Overview
Fence Panel
Perforated Mesh
Frame

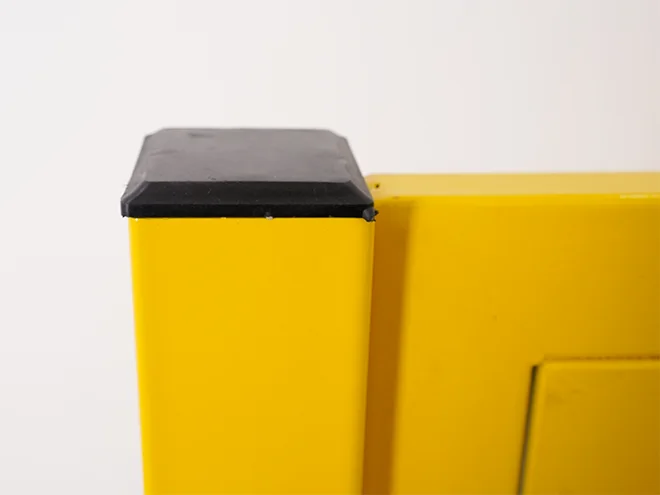

Post
Post & Frame Connection
Base

Structure

Fence Panel
Frame
Post
Rail
Post & Frame Detail
Base

Overview

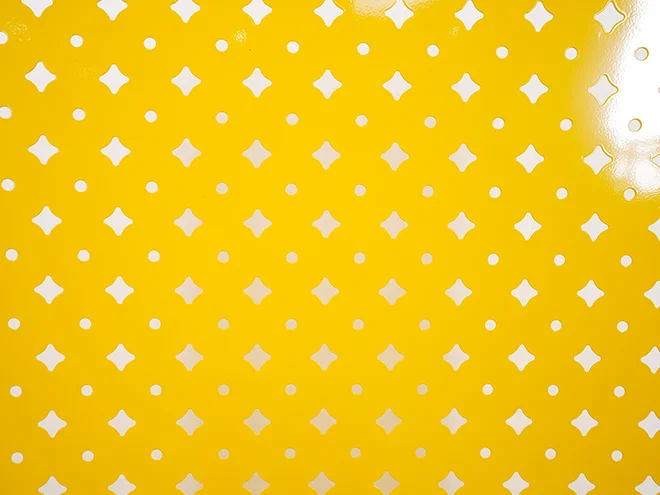

Perforated Mesh

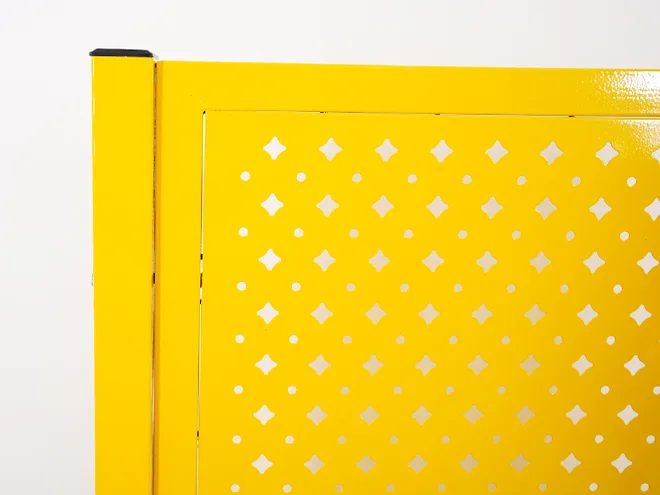

Frame
Post
Rail

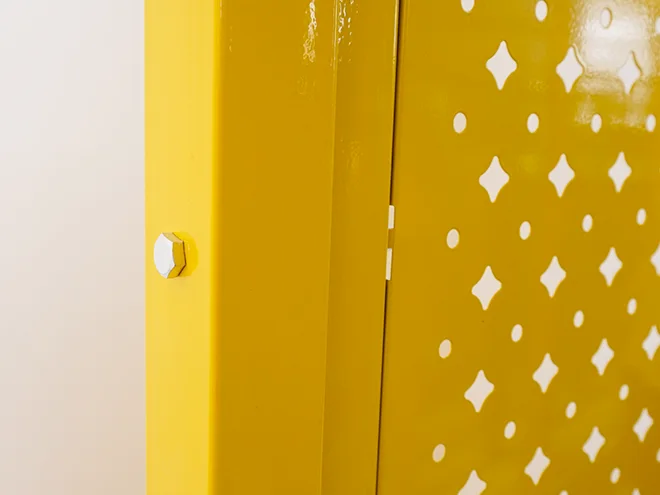

Post & Frame Connection

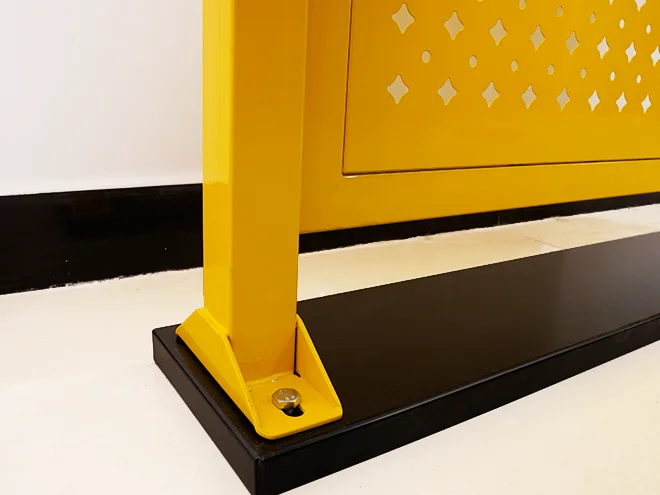

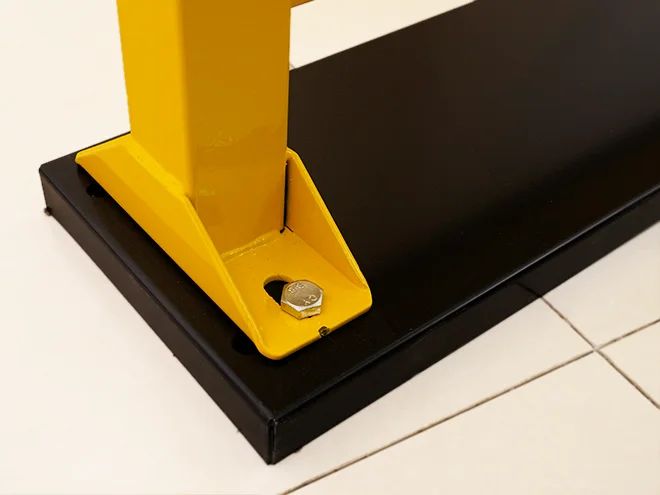

Base

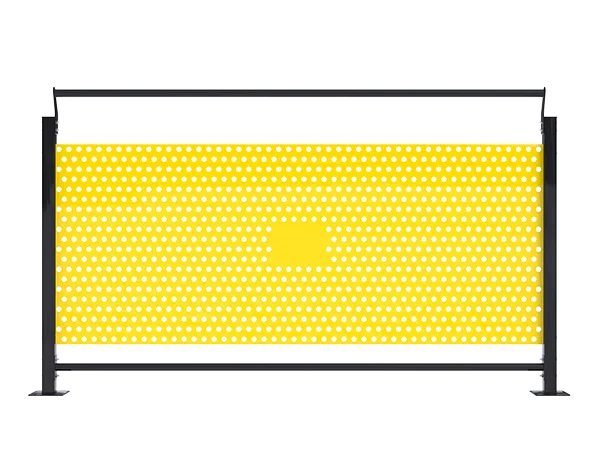

Structure

Perforated Metal
Post
Handrail
Post & Panel Connection

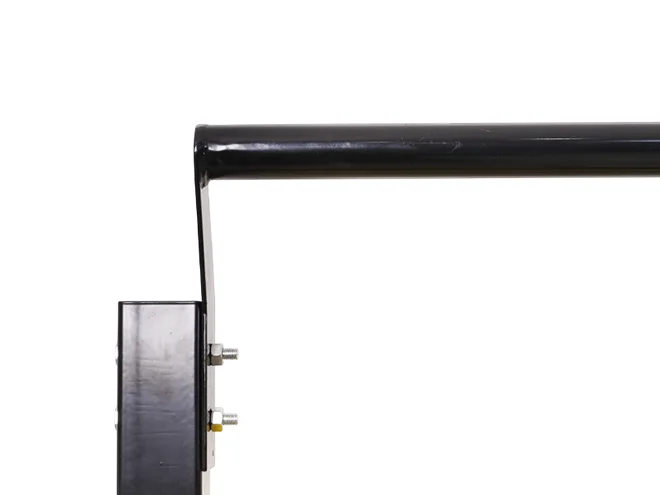

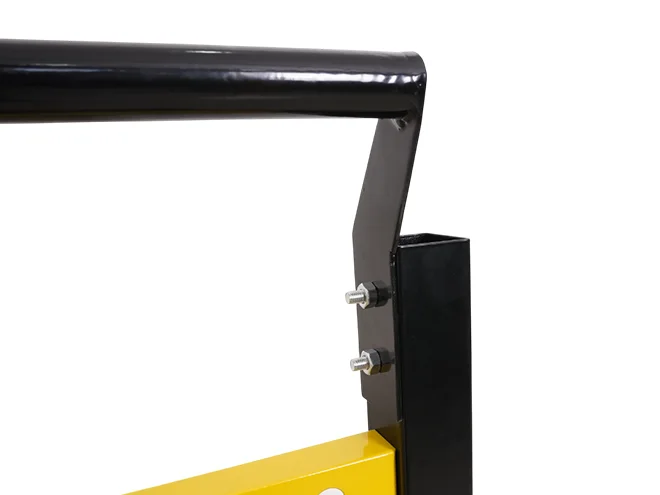

Post & Handrail Connection
Base

Overview

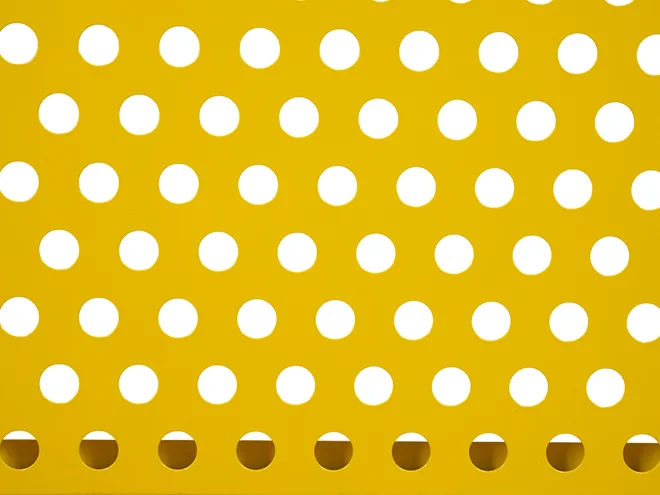

Perforated Metal

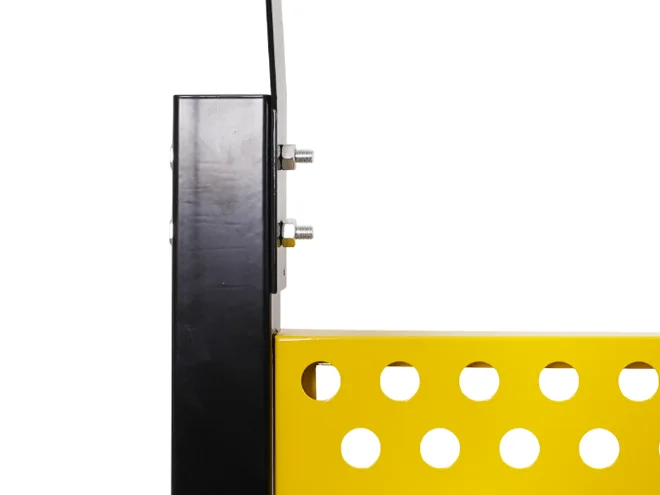

Post
Handrail

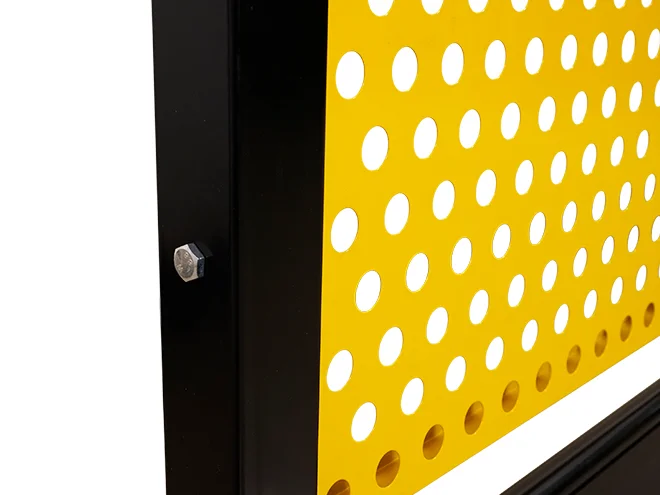

Post & Panel Connection
Post & Handrail Connection
Base

Structure

Post
Frame
Perforated Panel
Post & Mesh Panel Connection
Base
Perforated Panel Connection
Screw Fixing

Overview
Post
Frame
Perforated Panel
Post & Mesh Panel Connection
Base
Perforated Panel Connection
Screw Fixing

Structure

Frame
Frame & Acrylic Panel Connection
Acrylic Panel
Mesh Panel
Rail
Base
Mesh Panel & Frame Connection

Overview
Frame
Frame & Acrylic Panel Connection
Acrylic Panel
Mesh Panel
Rail
Base
Mesh Panel & Frame Connection

Structure

Frame
Mesh Panel
Rail
Mesh Panel & Frame Connection
Mesh Panel & Rail Connection
Base

Overview
Frame
Side View
Mesh Panel
Rail
Mesh Panel & Frame Connection
Mesh Panel & Rail Connection
Inner Corner
Base

Structure

Frame
Arc Light Panel
Mesh Panel
Rail
Mesh Panel & Frame Connection
Frame Connection
Arc Light Panel & Rail Connection
Base

Overview
Frame
Side View

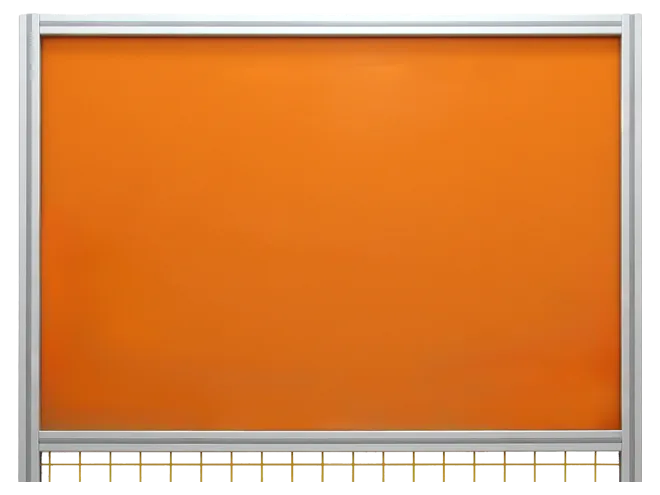

Arc Light Panel
Mesh Panel
Rail
Mesh Panel & Frame Connection
Frame Connection
Arc Light Panel & Rail Connection
Base

QC & Package

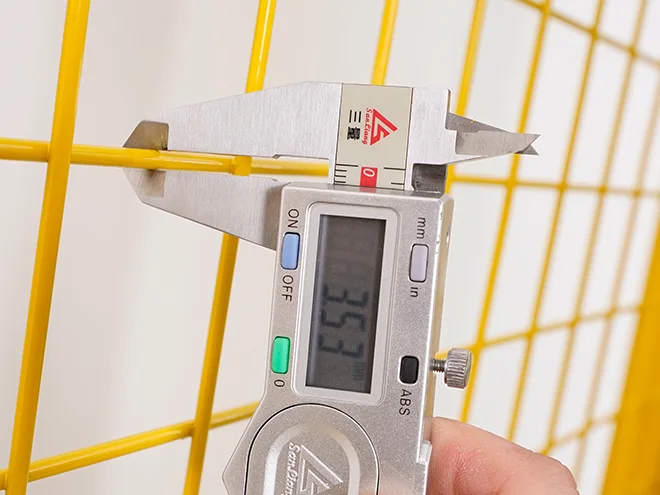

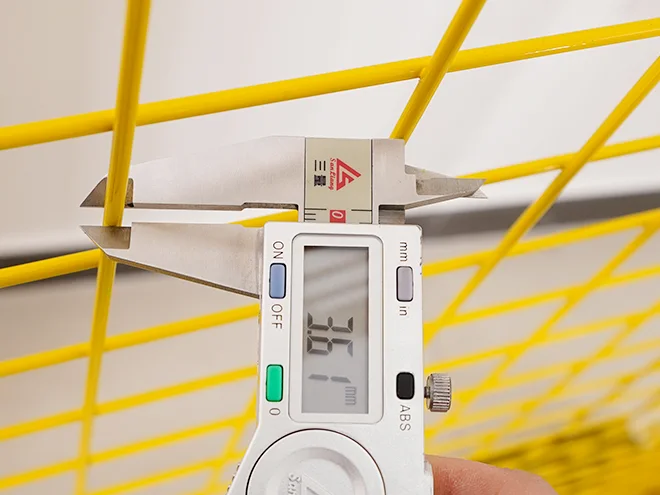

A QC worker is measuring the wire diameter of all welded workshop safety fence.

Wire Diameter Measurement

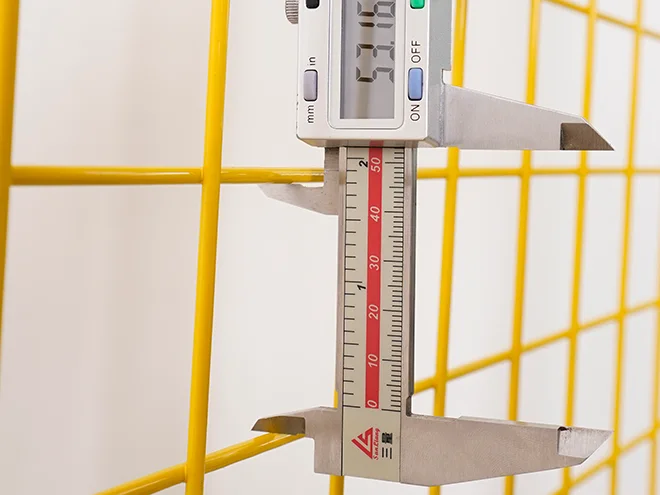

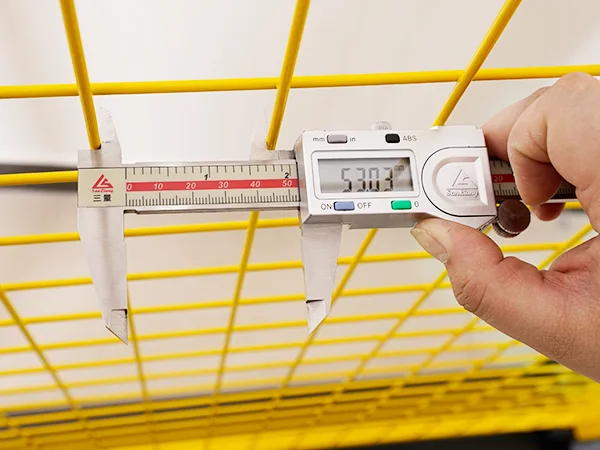

A QC worker is measuring the mesh size of all welded workshop safety fence.

Mesh Size Measurement

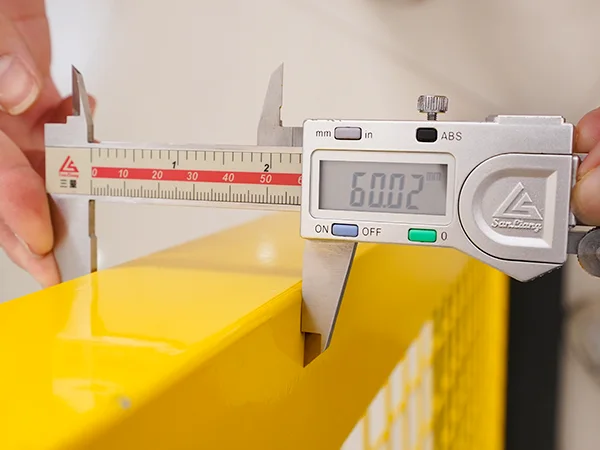

A QC worker is measuring the post sizer of all welded workshop safety fence.

Post Size Measurement

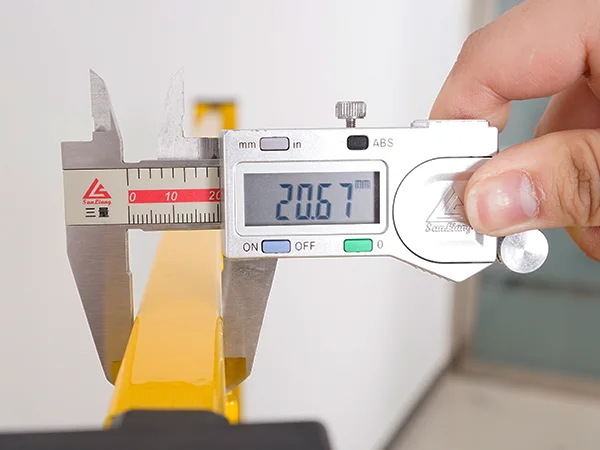

A QC worker is measuring the frame size of all welded workshop safety fence.

Frame Size Measurement

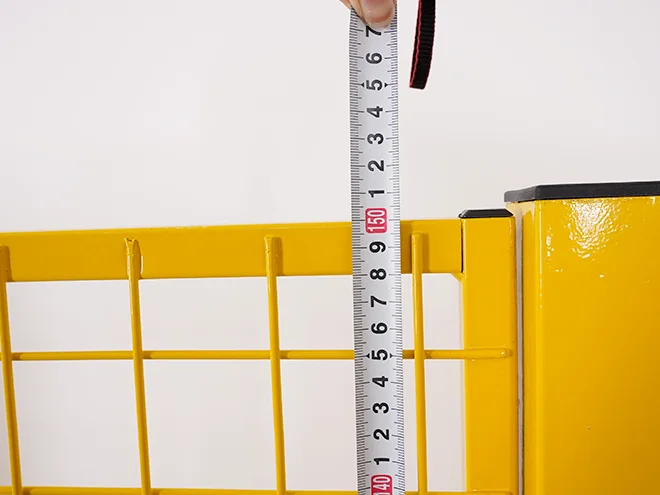

A QC worker is measuring the panel height of all welded workshop safety fence.

Height Measurement

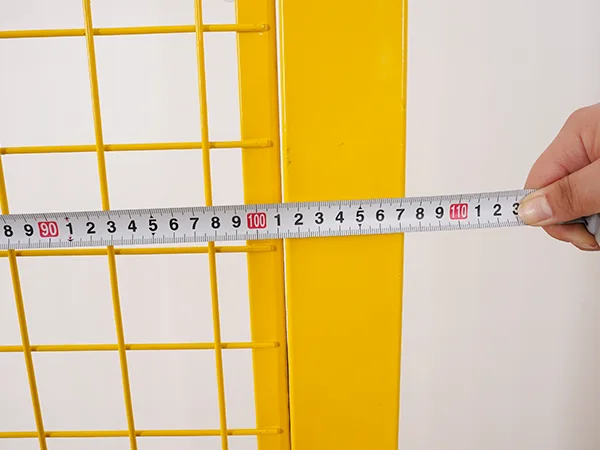

A QC worker is measuring the panel width of all welded workshop safety fence.

Panel Width Measurement

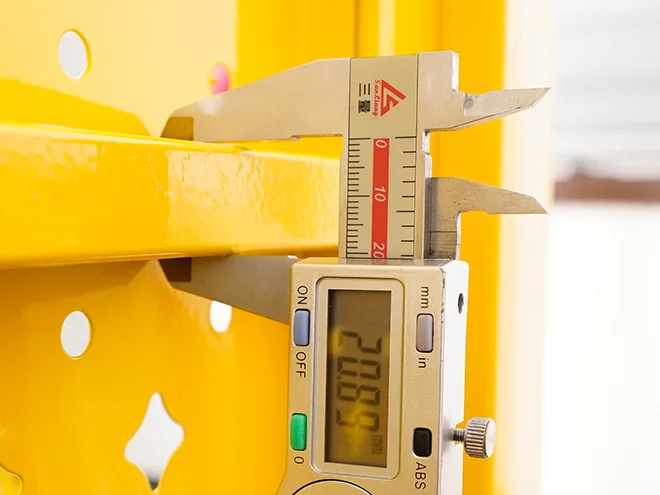

A QC worker is measuring the rail size of all welded workshop safety fence.

Rail Size Measurement

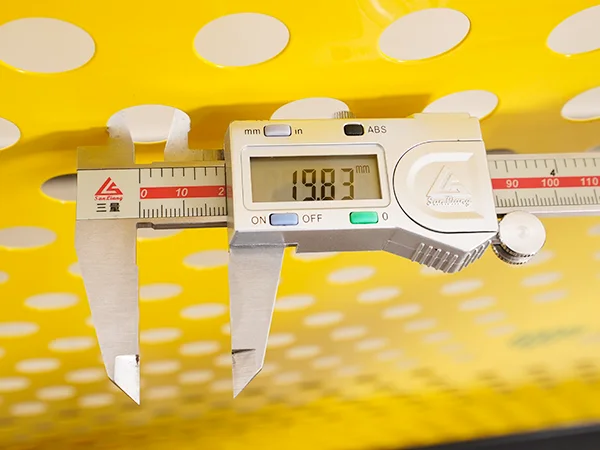

A QC worker is measuring the hole size of all welded workshop safety fence.

Hole Size Measurement

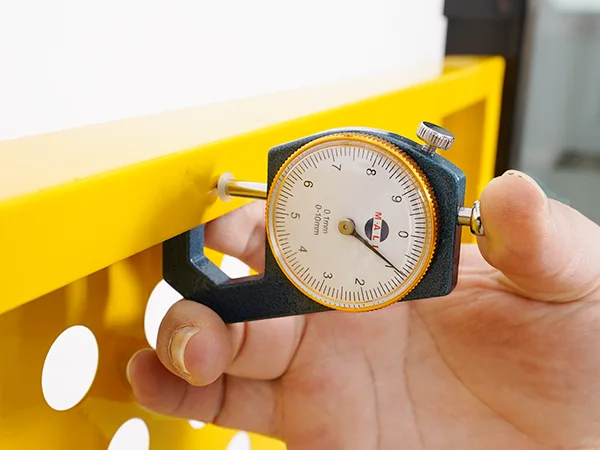

A QC worker is measuring the plate thickness of all welded workshop safety fence.

Plate Thickness Measurement

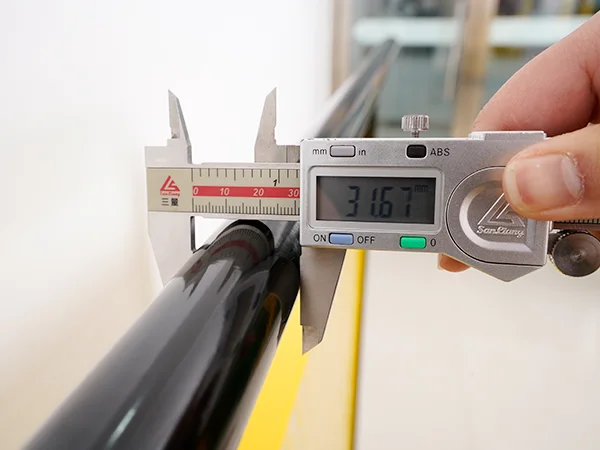

A QC worker is measuring the handrail size of all welded workshop safety fence.

Handrail Size Measurement

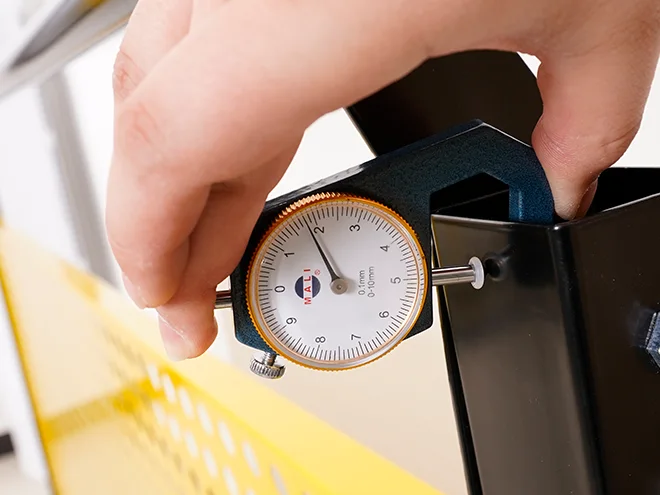

A QC worker is measuring the post thickness of all welded workshop safety fence.

Post Thickness Measurement

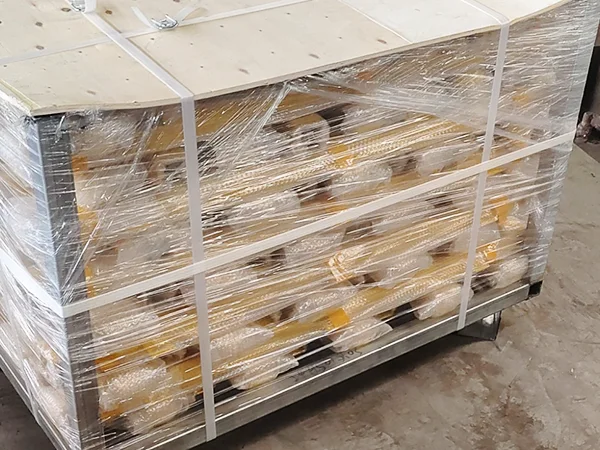

A metal pallets of workshop safety fence posts.

Post Package – Metal Pallet

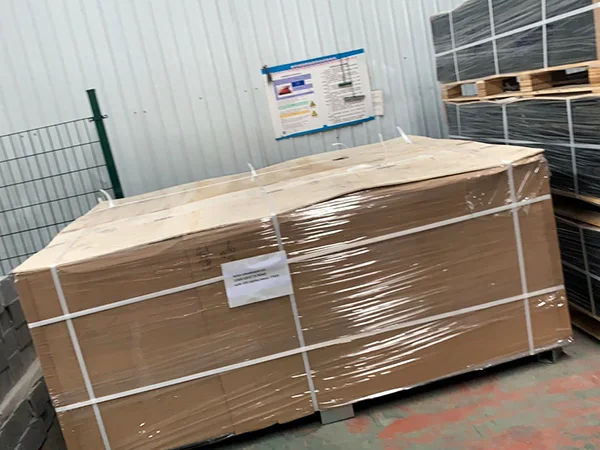

A metal pallets of workshop safety fence panel.

Panel Package – Metal Pallet

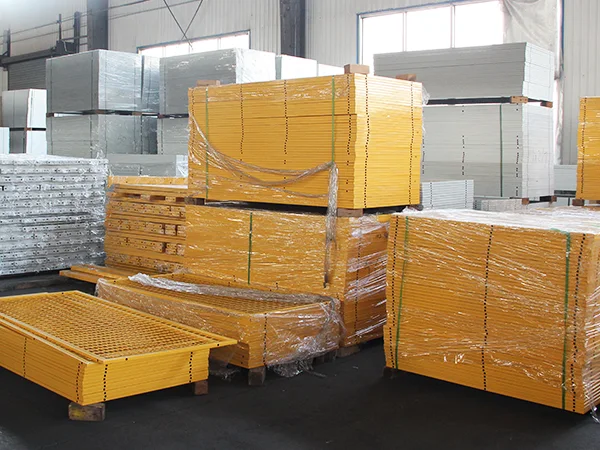

Several pieces of workshop safety fence panel.

Panel Package – Bulk

Hole Size Measurement

Wire Diameter Measurement

Metal Pallet

Wooden Pallet

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

Warehouse zoning and storage segregation
Robot working area isolation
Hazardous material containment
Production line separation

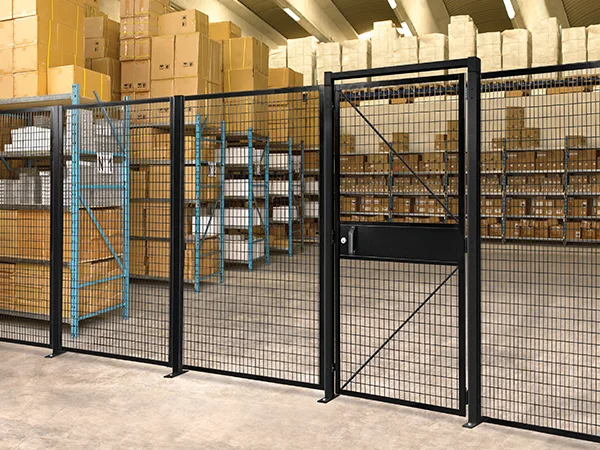

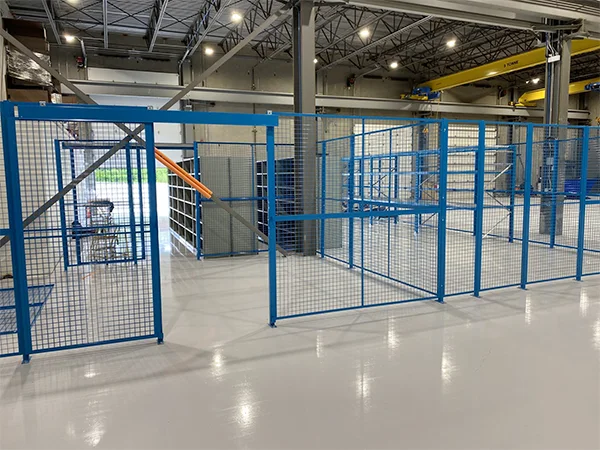

The workshop safety fence is installed in the warehouse.

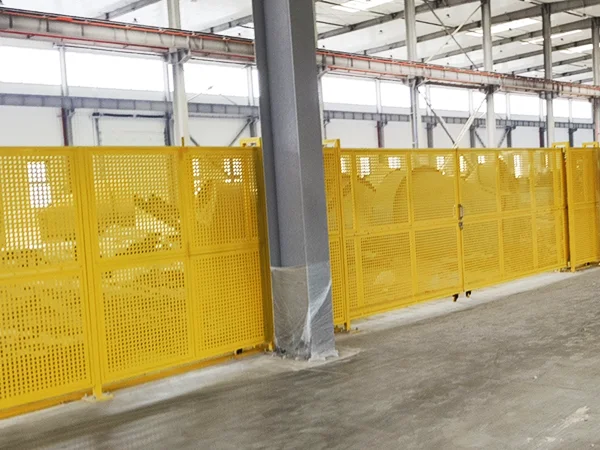

The workshop safety fences are installed in the workshop and separating the equipment.

The workshop safety fences are installed to separate different function zone.

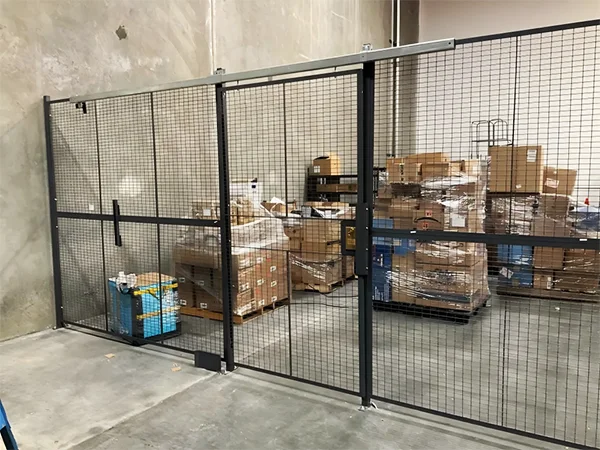

There are several goods in the workshop safety fences.

The workshop safety fences are installed in the warehouse.

Workshop safety fence cultural guardrail installed along a factory production line.

Workshop safety fence cultural guardrail protecting a warehouse work area.

Workshop safety fence acrylic and welded type enclosing a pallet storage area.

Workshop safety fence acrylic and welded type installed along a factory aisle.

Workshop safety fence acrylic and welded type protecting a workshop passage.

Workshop safety fence all welded type aluminum alloy installed in a factory area.

Workshop safety fence all welded type aluminum alloy enclosing industrial machinery.

Workshop safety fence arc light panel aluminum alloy protecting a machine area.

Workshop safety fence arc light panel aluminum alloy used as a workshop barrier.

Workshop safety fence arc light panel aluminum alloy installed around a production area.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

Panels and posts are pre-fabricated for easy assembly on-site. They are connected using brackets and bolts, fixed to the floor with expansion bolts. Depending on requirements, panels can be replaced or reconfigured without dismantling the entire system.
