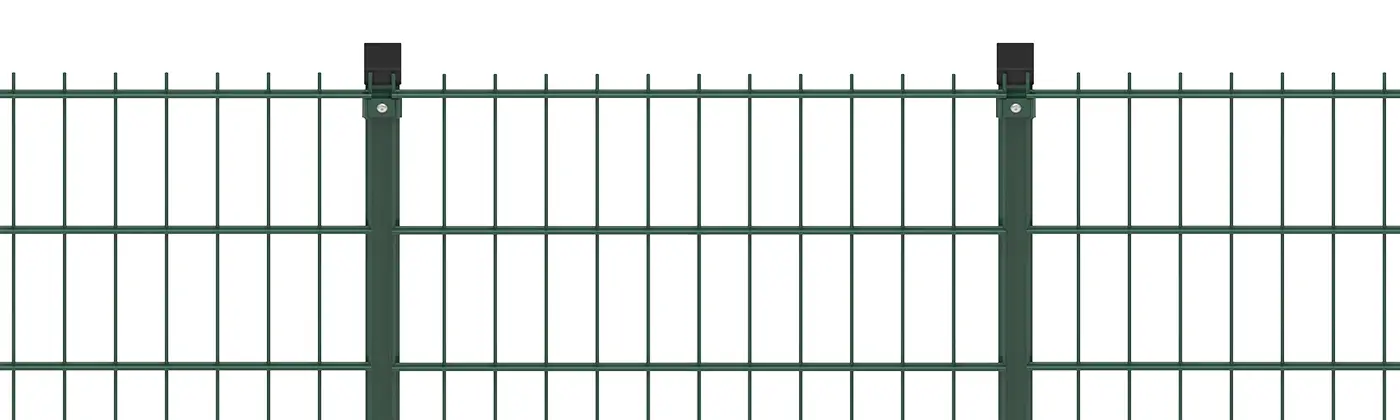

The Double Wire Fence — also known as the 2D Fence — is a rigid and high-strength welded mesh fencing system, designed with one vertical wire and two horizontal wires to enhance structural integrity. This configuration resists deformation and impacts, making it a popular choice for schools, factories, sports facilities, and other high-traffic areas.

Available with galvanized or powder coating finishes in custom colors (e.g., green, black, grey), the fence balances modern appearance with reliable security.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

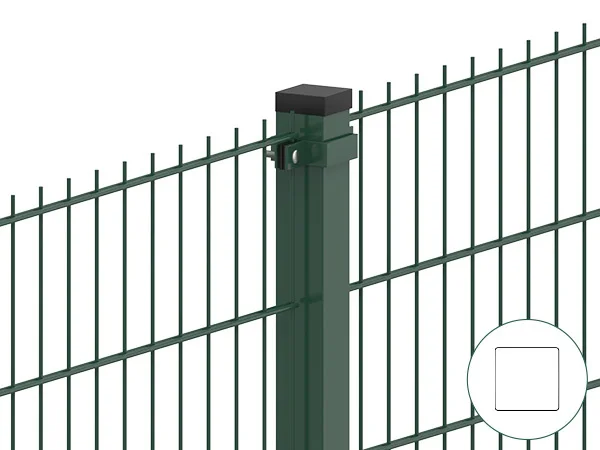

Two pieces of 2D fences are connected with square post and metal clamp.

GR211 – Square Post & Metal Clamp

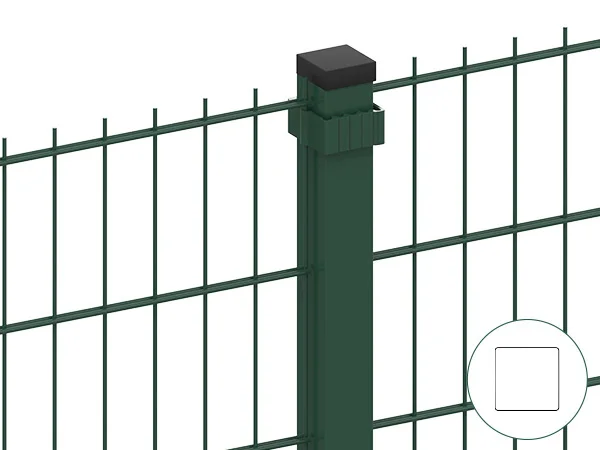

Two pieces of 2D fences are connected with square post and plastic clamp.

GR212 – Square Post & Plastic Clamp

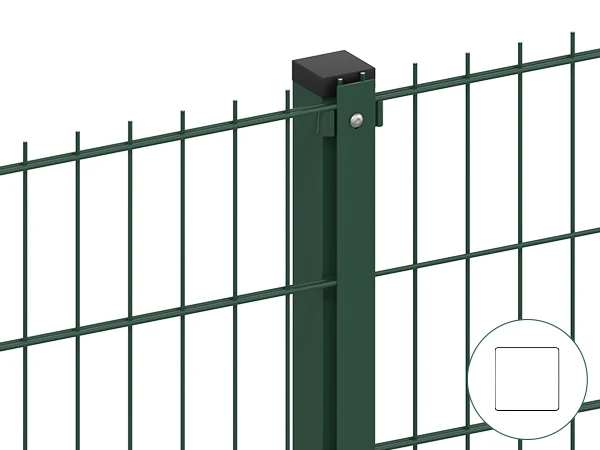

Two pieces of 2D fences are connected with square post and flat bar.

GR213 – Square Post & Flat Bar

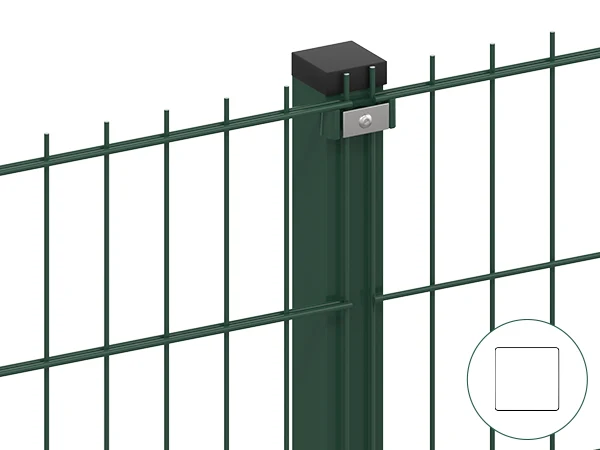

Two pieces of 2D fences are connected with square post and metal clip.

GR214 – Square Post & Metal Clip

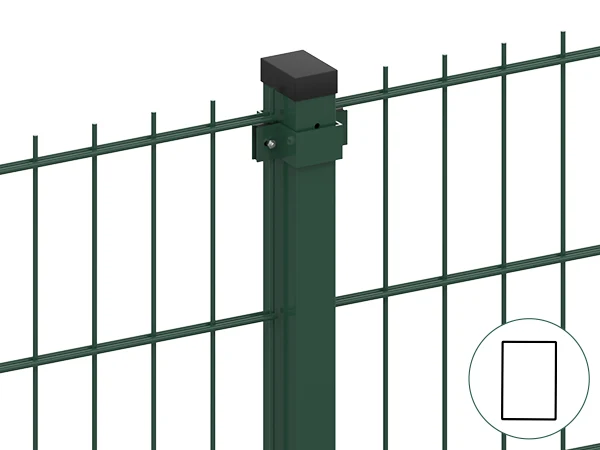

Two pieces of 2D fences are connected with rectangular post and metal clamp.

GR221 – Rectangular Post & Metal Clamp

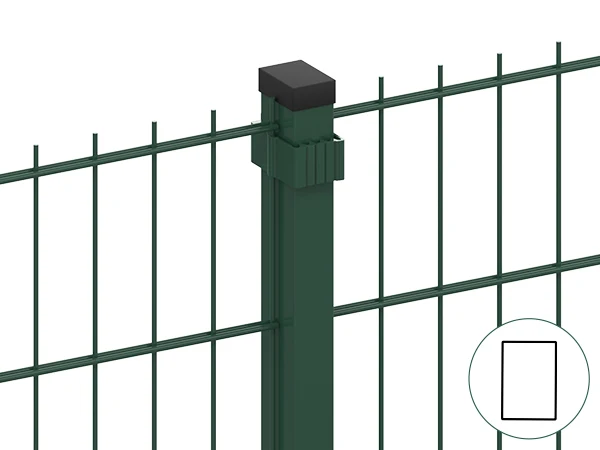

Two pieces of 2D fences are connected with rectangular post and plastic clamp.

GR222 – Rectangular Post & Plastic Clamp

Two pieces of 2D fences are connected with rectangular post and flat bar.

GR223 – Rectangular Post & Flat Bar

Two pieces of 2D fences are connected with rectangular post and metal clip.

GR224 – Rectangular Post & Metal Clip

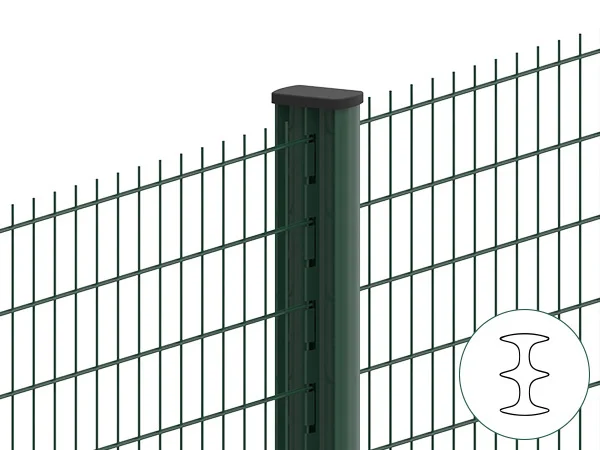

Two pieces of 2D fences are connected with double post.

GR23 – Double Post

The privacy tapes are installed on the 2d fence.

GR24 – Privacy Tape

GR211

GR212

GR213

GR214

GR221

GR222

GR223

GR224

GR23

GR24

Twin horizontal wire design offers reinforced resistance to bending and cutting.
Hot-dip galvanized or powder-coating surface ensures long-term outdoor durability.
Clean mesh lines and optional color finishes enhance landscape integration.
Modular design with pre-welded panels and matching post systems simplify on-site setup.
Ideal for medium to high-security perimeter use in both private and public settings.

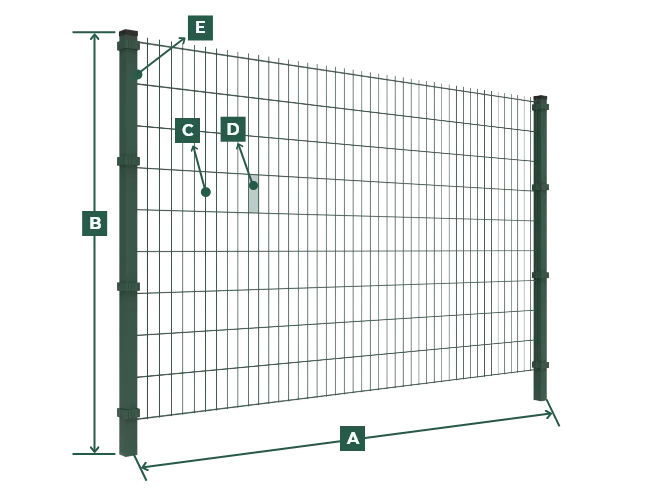

A Panel Width: 2.0 m / 2.2 m / 2.5 m / 3.0 m
B Panel Height: 1.5 m / 1.8 m / 2.0 m / 2.2 m / 2.4 m / 2.8 m
C
Wire Diameter:
- Vertical: 4 mm / Horizontal: 5+5 mm;
- Vertical: 5 mm / Horizontal: 6+6 mm;
- Vertical: 6 mm / Horizontal: 8+8 mm
D Mesh Size: 50×200 mm, 75×150 mm, 100×200 mm
E
Post:
- Square Post: size: 40 × 40 mm, 50 × 50 mm, 60 × 60 mm; Thickness: 1.0 mm / 1.1 mm / 1.2 mm / 1.5 mm / 1.8 mm / 2.0 mm / 2.5 mm
- Rectangular Post: Size: 40 × 60 mm; Thickness: 1.0 mm / 1.1 mm / 1.2 mm / 1.5 mm / 1.8 mm / 2.0 mm / 2.5 mm
- Double Post: Size: 55 × 100 mm; Thickness: 1.5 mm

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

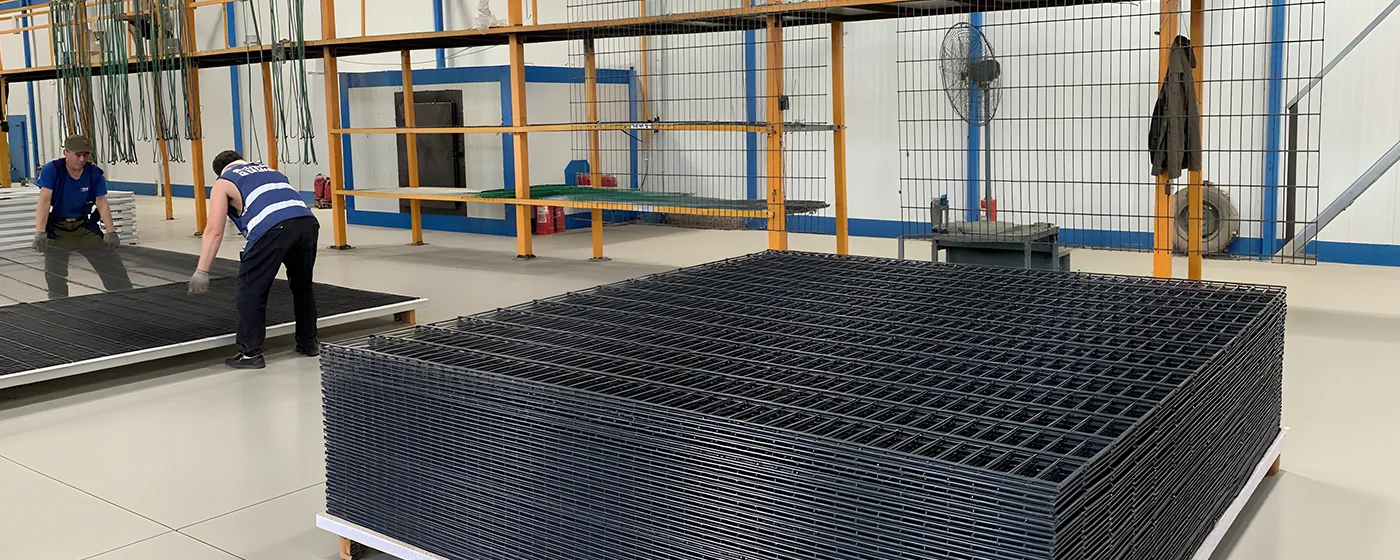

Two workers are unloading the powder coated 2D security fence on the pallet.

Production Process

Raw Material – Steel Wires
Raw Material – Tubes
Straighten & Cutting
Panel Welding
Post Production
Surface Treatment (Hot Dipped Galvanized / Powder Coating)
Package
Loading
Shipping

2D Fences Production Process

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

Structure

Installation Fitting
Fence Post

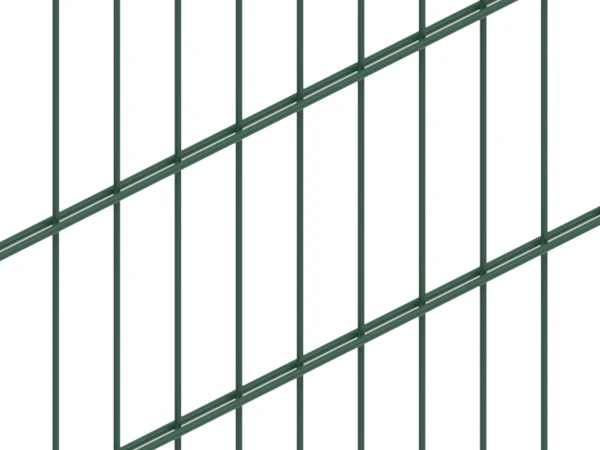

Fence Panel

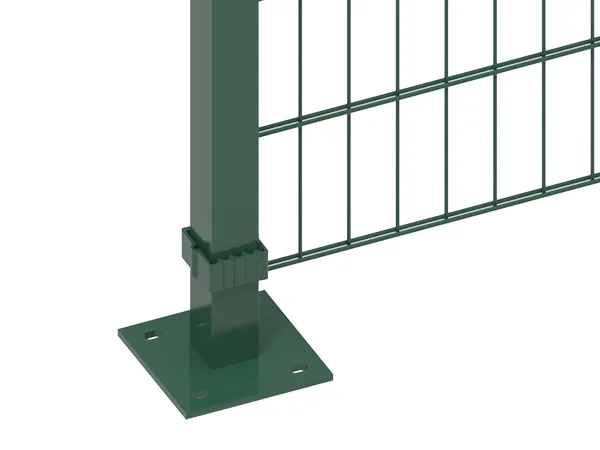

Base
Post Cap

Overview

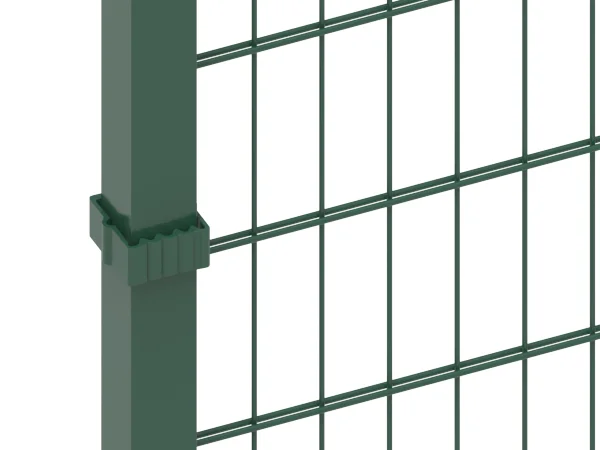

Connection Fitting – Plastic Clamp
Post
Fence Panel
Base
Post Cap

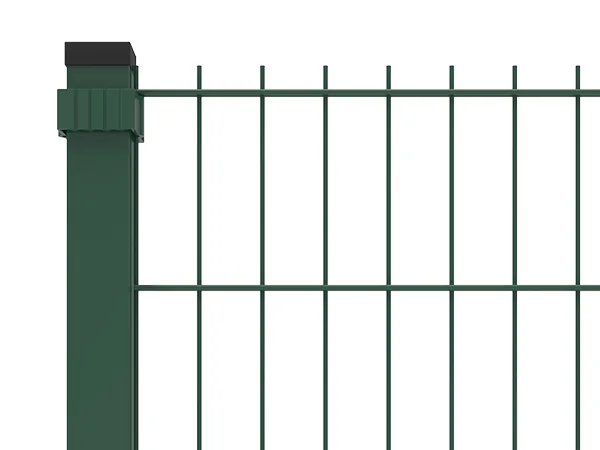

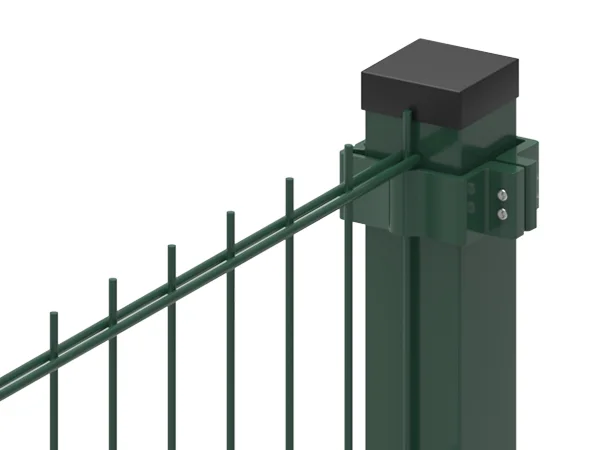

Connection Detail

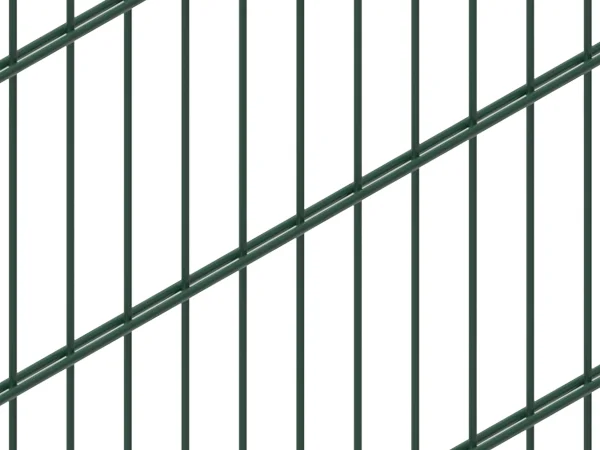

Welding Detail

QC & Package

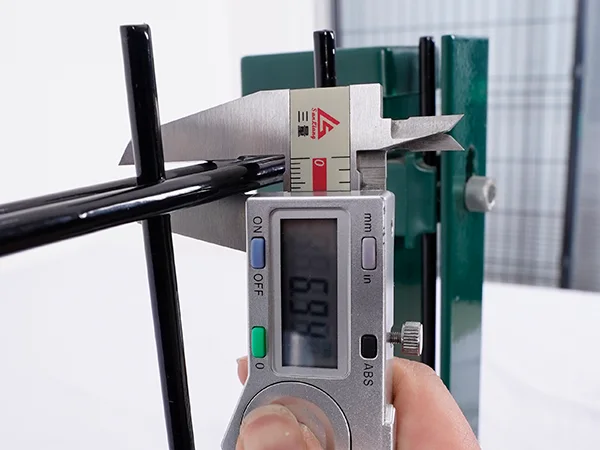

A QC worker is measuring the horizontal wire diameter of 2D fence.

Horizontal Wire Diameter Measurement

A QC worker is measuring the vertical wire diameter of 2D fence.

Horizontal Wire Measurement

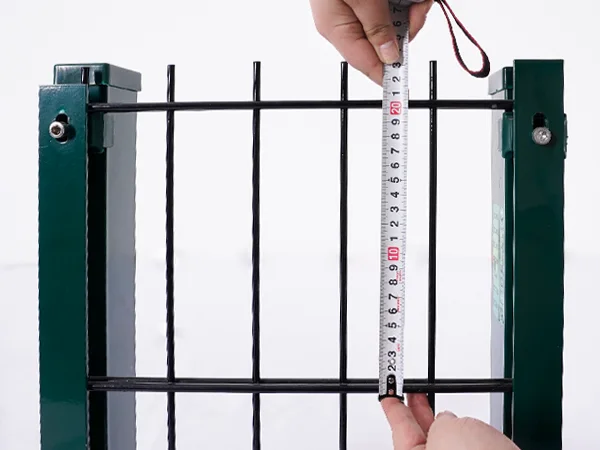

A QC worker is measuring the mesh size of 2D fence.

Vertical Mesh Size Measurement

A QC worker is measuring the horizontal mesh size of 2D fence.

Horizontal Mesh Size Measurement

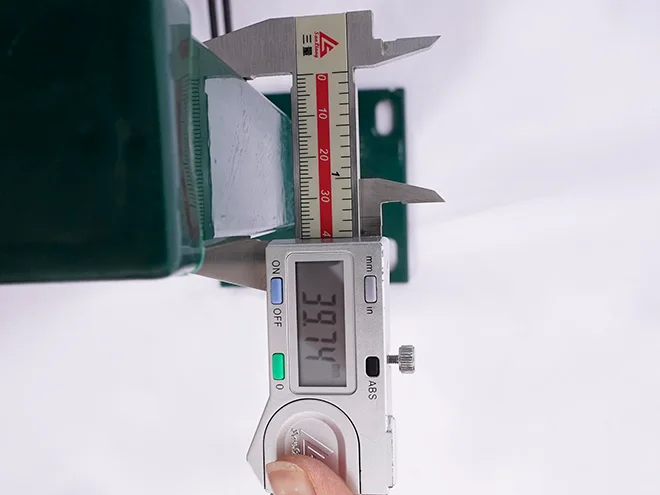

A QC worker is measuring the post size of 2D fence.

Post Size Measurement

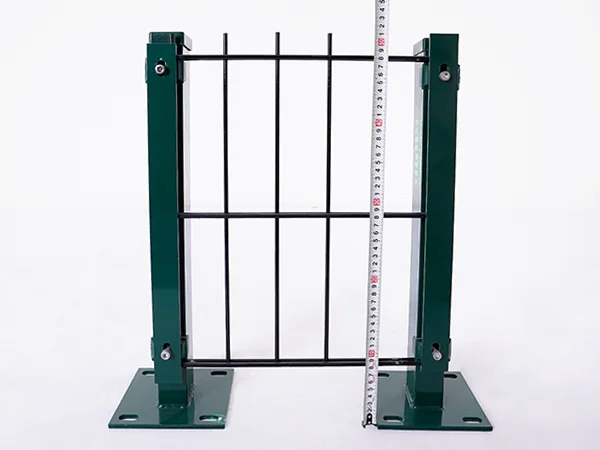

A QC worker is measuring the height of 2D fence.

Height Measurement

A QC worker is measuring the width of 2D fence.

Width Measurement

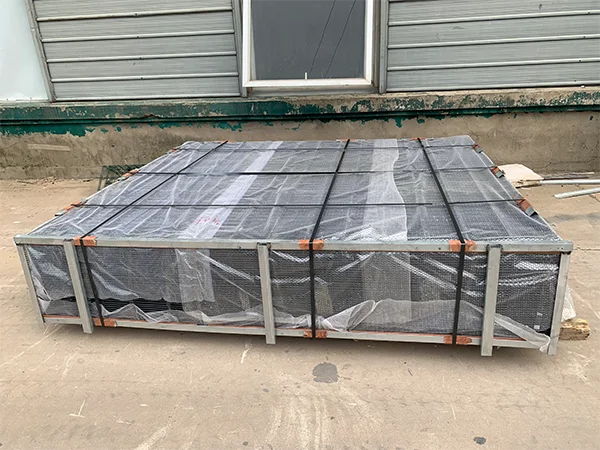

Several metal pallets of 2D fence in the warehouse.

Metal Pallet Package

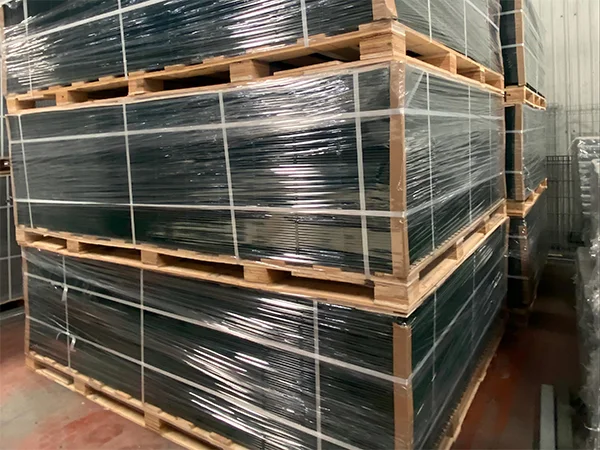

Several wooden pallets of 2D fence in the warehouse.

Wooden Pallet Package

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

Residential communities and gardens
Industrial zones and logistics parks
Public buildings and schools
Sports courts and stadiums
Parking lots and warehouses
Commercial zones and shopping malls

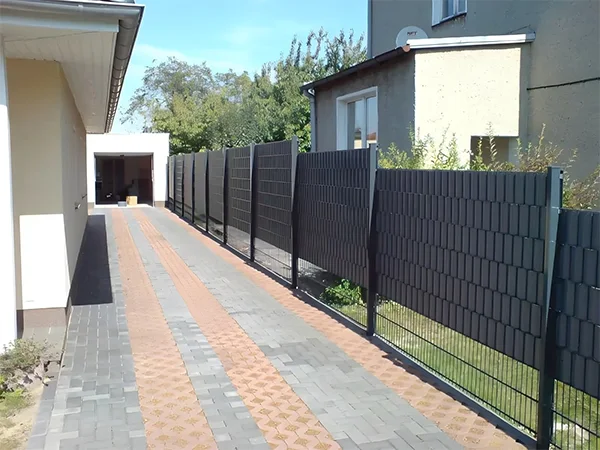

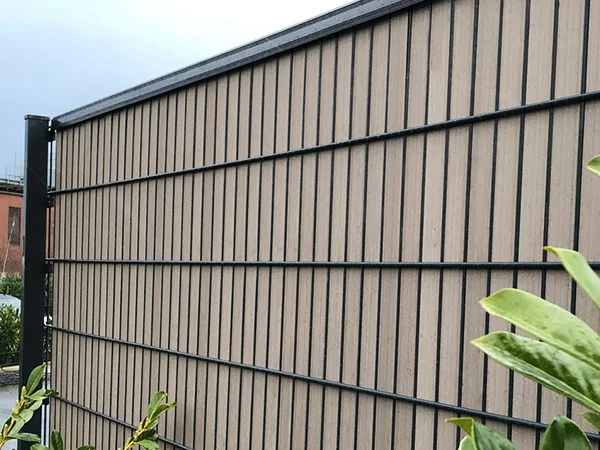

The 2D fences with privacy slats are installed in the residence.

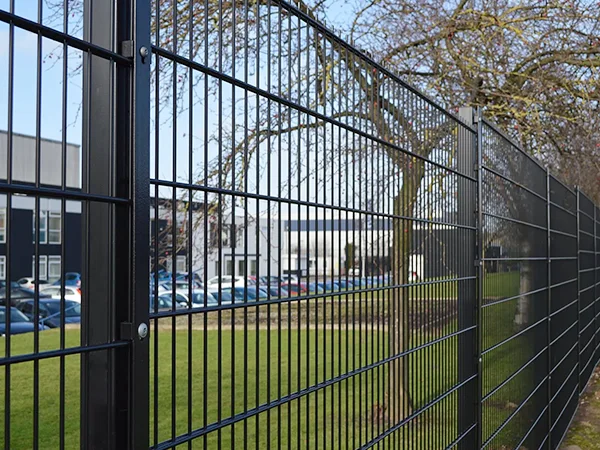

The 2D fences are installed in the car factory.

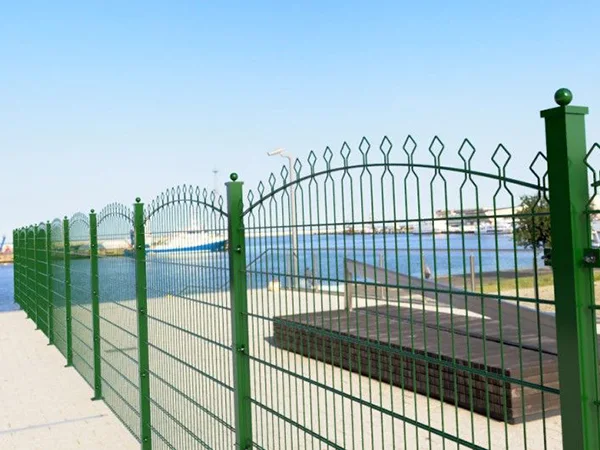

The 2D fences with decorative top are installed at the seaside.

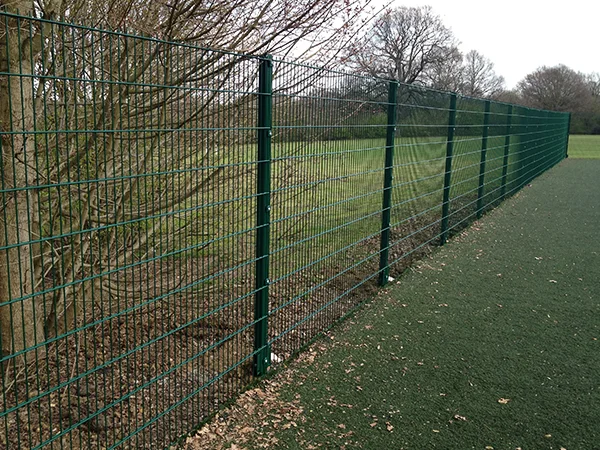

The 2D fences are installed in the park.

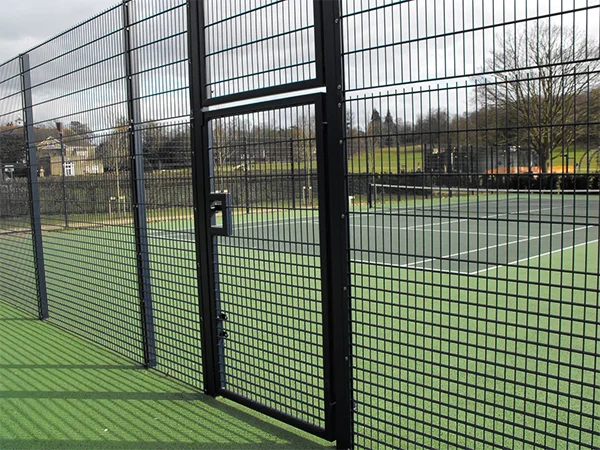

The 2D fences are installed surrounding the sport ground.

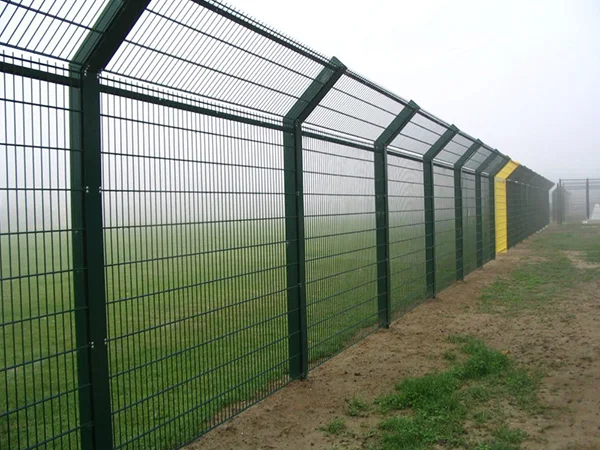

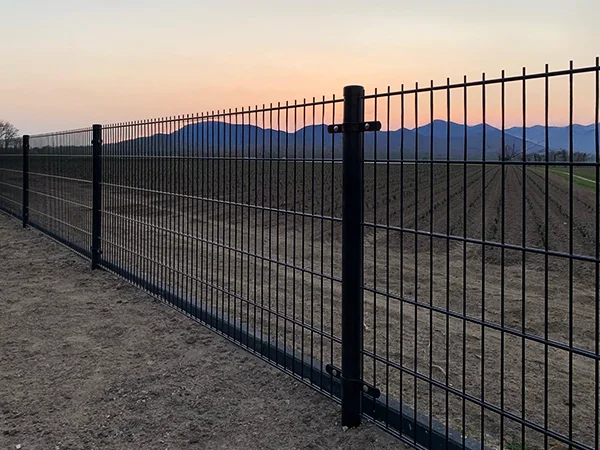

The 2D fences are installed in the farm.

The 2D fences are installed in the construction site.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

We provide square post, rectangular post and double post with different installation fittings to satisfy our customers different installation requirements. We also have the ability to develop new posts for better effect for your specific projects.

Square Post & Metal Clamp

Square Post & Plastic Clamp

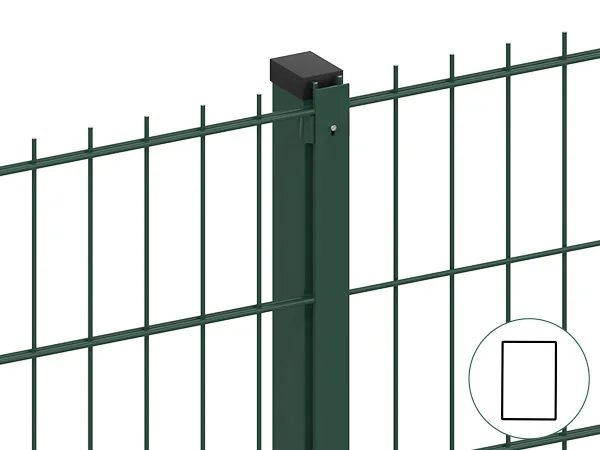

Rectangular Post & Flat Bar

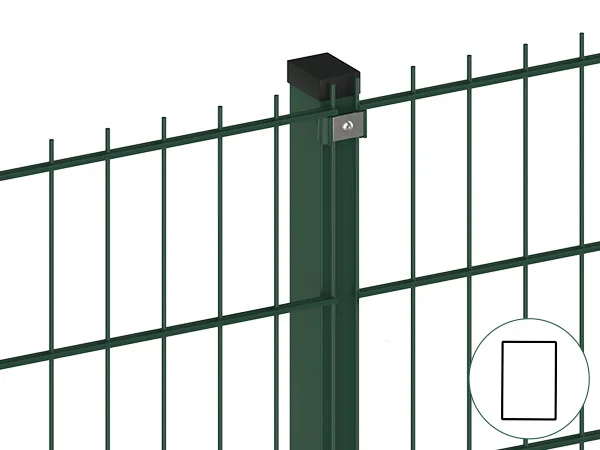

Rectangular Post & Metal Clip
