Supplying 1,525 Panels of Customized 2D Fence System to the U.S.

Location

United States

Date

October 1, 2025

Products

2D fences

Application

Residential perimeter security

A leading U.S. wholesale distributor requested a complete 2D fence system for a large residential or light commercial project. The order included standard panels, single and double pedestrian gates, and heavy-duty sliding gates for vehicle access. Key challenges were accurate dimensions, structural consistency, and a uniform RAL 6005 green powder-coated finish, requiring close coordination among production, quality control, and logistics to meet schedule and quality requirements.

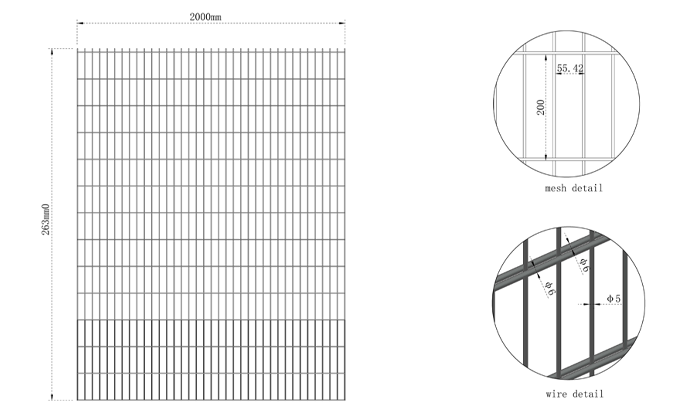

• Product: 2D Fence Panels (Total: 1,525 pcs)
  • Size A (H × W): 2.63 m × 2 m – 935 pcs
  • Size B (H × W): 2.03 m × 2 m – 115 pcs
  • Size C (H × W): 1.03 m × 2 m – 475 pcs
  • Wire Diameter: 6 mm / 5 mm / 6 mm
  • Mesh Aperture: 50 mm × 200 mm
• Product: Sliding Gates (Total: 4 sets)
  • 2 sets: 3.3 m × 10 m (H × W)
  • 2 sets: 3.3 m × 8.5 m (H × W)
  • Heavy-duty construction for driveways/vehicle access
• Product: Pedestrian Gates
  • Double Gate (W × H): 1 set, 3 m × 1 m
  • Single Gates (W × H): 3 sets, 1 m × 2 m
• Product: Supporting Structure
  • Rectangle Posts: 40 mm × 60 mm, thickness 2 mm
• Product: Surface Treatment

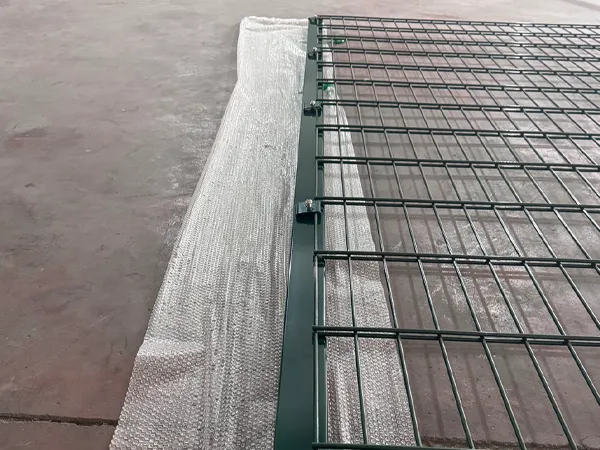

  • Powder-coated, green RAL 6005 for uniform appearance and corrosion resistance.

Strict quality inspection protocols were implemented throughout production:

• Raw Material Check: Verified steel wire diameter (6 / 5 / 6 mm) and post dimensions (40 × 60 × 2 mm).
• Dimensional Accuracy: All panels and gates were measured to ensure conformity with specified sizes.
• Welding Integrity: Mesh welding points and gate frame welds were tested for strength and consistency.
• Coating Inspection: Powder coating thickness, adhesion (cross-cut test), and color match to RAL 6005 were confirmed.
• Assembly & Fit-check: Random gates and posts were trial-assembled to ensure compatibility and smooth operation.
• Pre-shipment Audit: Final overall inspection included packaging, labeling, and documentation accuracy.

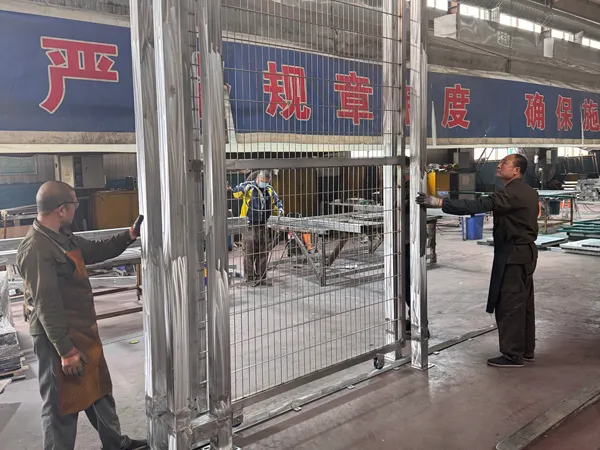

Sliding gate

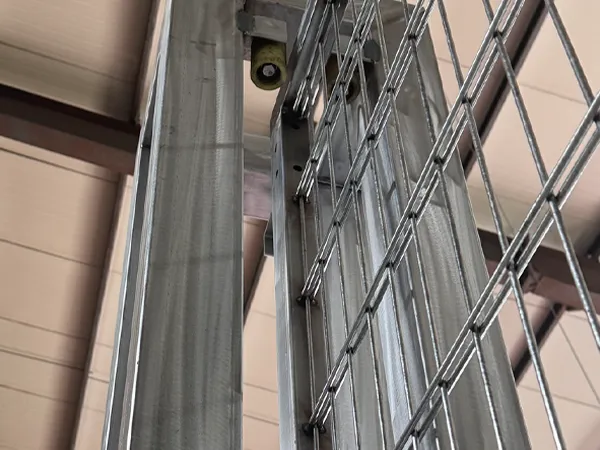

Sliding gate detail

Square post & metal clip

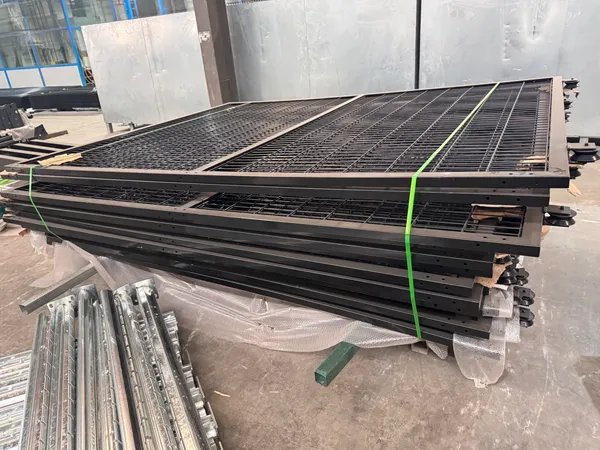

Packing

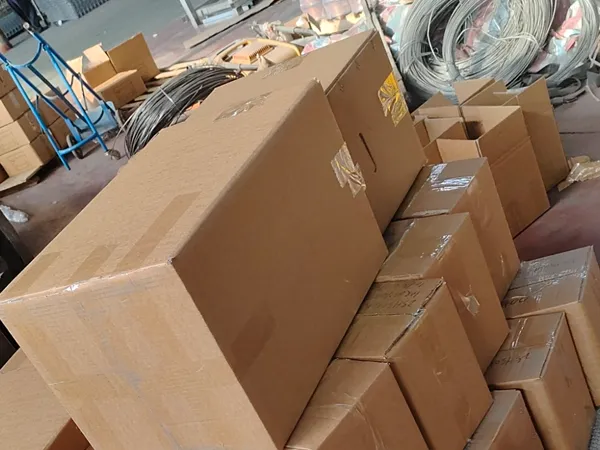

Carton-packed accessories

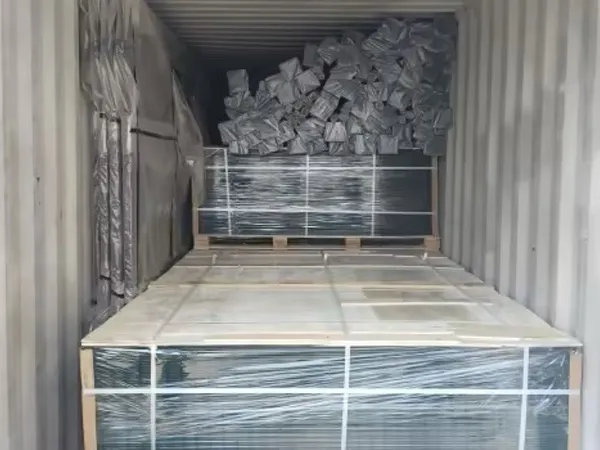

Container loading

Preparing for shipment

• Full System Supply: Delivered a complete fencing solution – panels, posts, and multiple gate types – for seamless compatibility.
• Custom Gate Configurations: Supplied heavy-duty sliding gates up to 10 m wide, plus standard pedestrian gates.
• Consistent Aesthetics: Applied uniform RAL 6005 green powder coating for a cohesive appearance.
• On-time Delivery: Produced, inspected, and shipped 1,525 panels and 8 gate sets as scheduled.
• Clear Documentation: Provided packing lists, installation guides, and quality certificates for smooth import and installation.

"We were impressed by the complete product range and strong attention to manufacturing and quality control. The panels and gates fit perfectly on site, with a consistent, durable powder-coated finish. The sliding gates operated smoothly and were well built. Delivery was on time, packaging was secure, and logistics were seamless. A reliable supplier for large, complex fencing projects."
