Durable Gabion Retaining Walls for Erosion Control & Structural Stability

Gabion retaining walls are engineered for earth retention, erosion control, and hydraulic stability in civil and infrastructure projects. Constructed by filling durable steel wire cages with rocks or stones, they allow natural drainage while offering structural strength and long-term reliability.

We offer both woven (double twisted) and welded gabion solutions to meet diverse project needs — whether you're reinforcing slopes, controlling riverbanks, or stabilizing embankments.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

GC41 Woven Gabion

GC42 Welded Gabion

GC41

GC42

Woven type is highly adaptable to uneven terrains and ground movement.
Welded type offers rigid, aesthetic structure with excellent load resistance.
Galfan or hot-dip galvanized wire ensures long-term performance in harsh environments.
Encourages vegetation growth and natural integration with the environment.
Available in various lengths, heights, and mesh sizes
Porous structure allows water to pass through, reducing hydrostatic pressure and preventing wall failure.

Woven Type
Welded Type

Woven Type

A Height: 0.15 m / 0.3 m / 0.5 m / 1.0 m
B Width: 1.0 m
C Length: 1.0 m / 2.0 m / 3.0 m / 4.0 m
D Mesh Wire: 2.0 mm / 2.2 mm / 2.4 mm / 2.7 mm / 3.0 mm
E Selvadge Wire: 2.4 mm / 2.7 mm / 3.0 mm / 3.4 mm / 3.9 mm
F
Tie Wire:
- 2.0 mm (for 2.0/2.2/2.4 mm mesh wire)
- 2.2 mm (for 2.7 mm mesh wire)
- 2.4 mm (for 3.0 mm mesh wire)
G Mesh Size: 60 × 80 mm, 80 × 100 mm, 100 × 120 mm
H
Diaphragm:
- 1.0 m/pc (standard)
- 1.5 m/pc (only for 3.0 m)

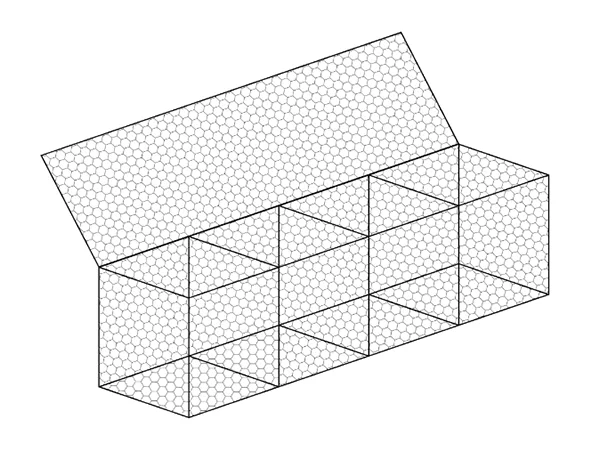

A dimension drawing of woven gabion retaining wall.

Welded Type

A Height: 0.3 m / 0.5 m / 1.0 m / 1.5 m
B Width: 0.5 m / 1.0 m / 1.5 m
C Length: 1.0 m / 1.5 m / 2.0 m / 3.0 m / 4.0 m / 5.0 m
D Mesh Wire: 4.0 mm / 4.5 mm / 5.0 mm / 6.0 mm
E Spring Wire: 4.0 mm / 4.5 mm
F Mesh Size: 30 × 50 mm, 30 × 100 mm, 50 × 100 mm, 75 × 75 mm, 75 × 150 mm
G
Diaphragm:
- 1.0 m/pc (standard)
- 1.5 m/pc (only for 3.0 m)

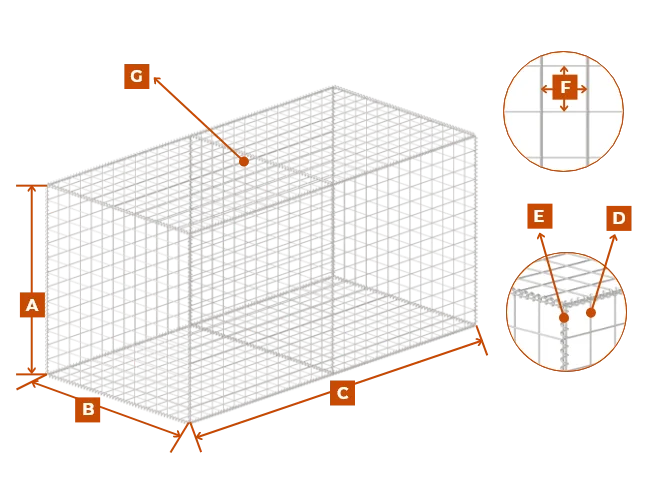

A dimension drawing of welded gabion retaining wall.

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

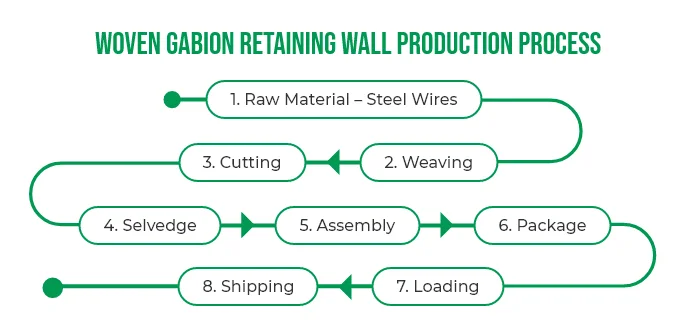

Woven Gabion Retaining Wall Production Process

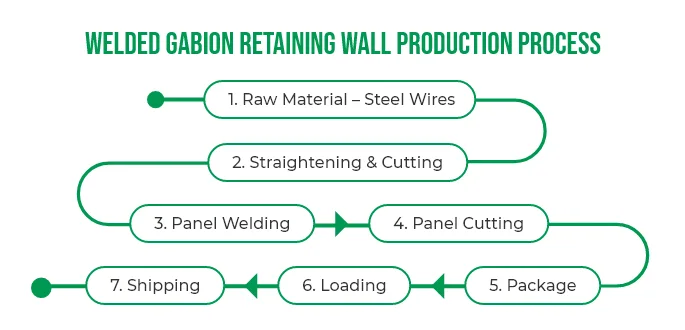

A production process of welded gabion retaining wall.

Welded Gabion Retaining Wall Production Process

Woven Gabion Production Process

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

Woven
Welded

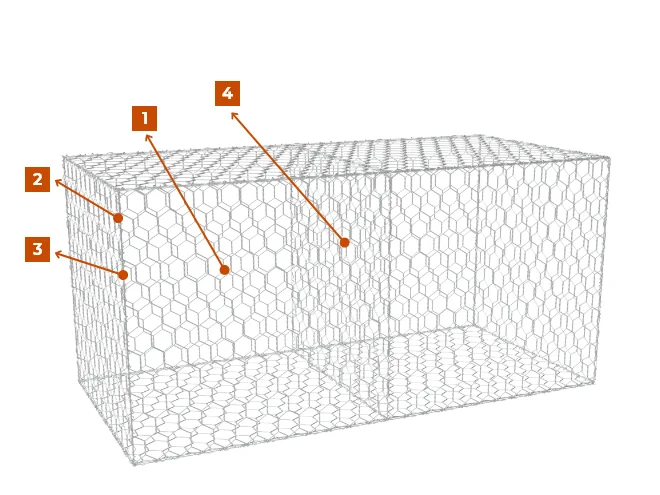

Structure

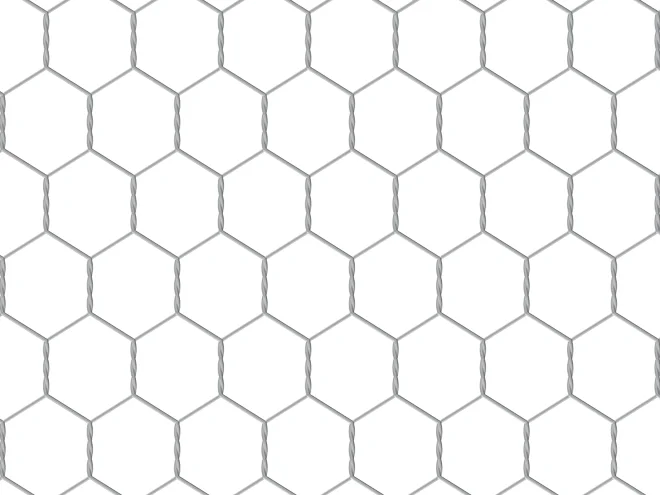

Mesh & Mesh Wire

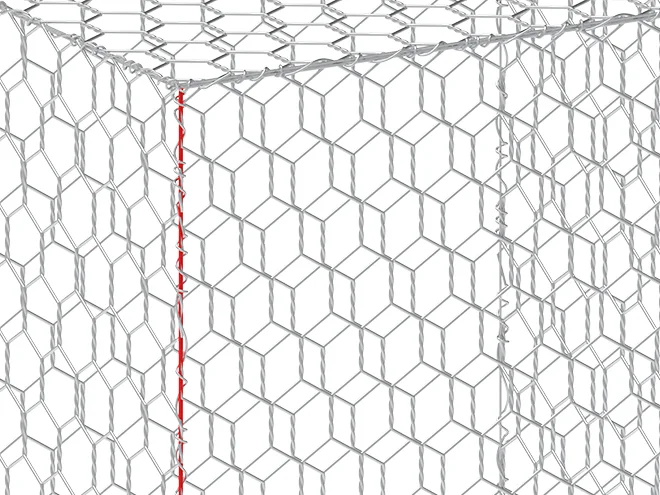

Selvedge Wire

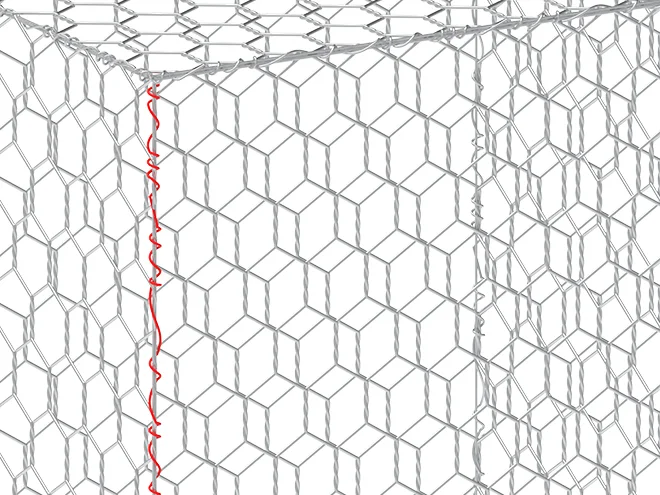

Lacing Wire

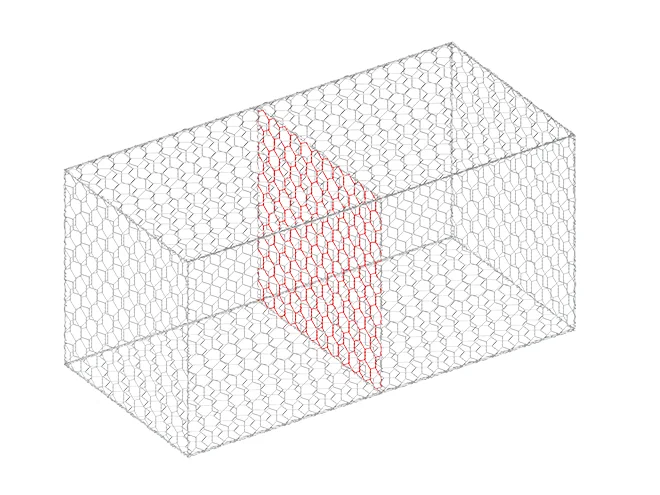

Diaphragm

Overview
Mesh & Mesh Wire
Selvedge Wire
Lacing Wire
Diaphragm

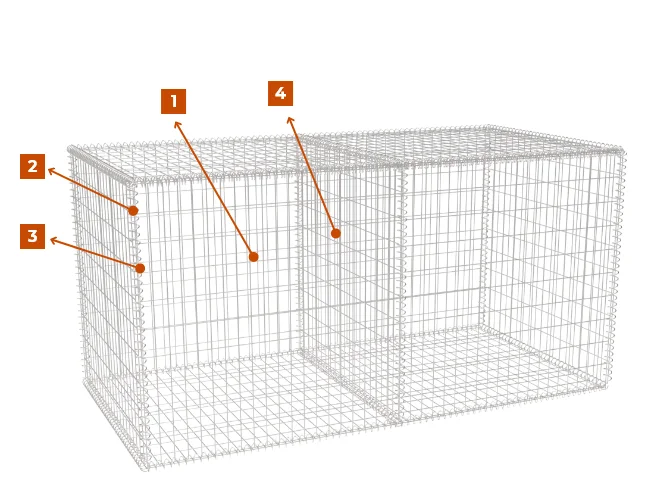

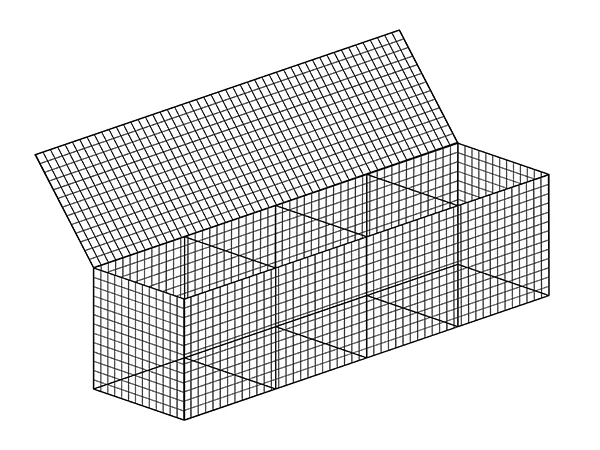

Structure

Fence Panel

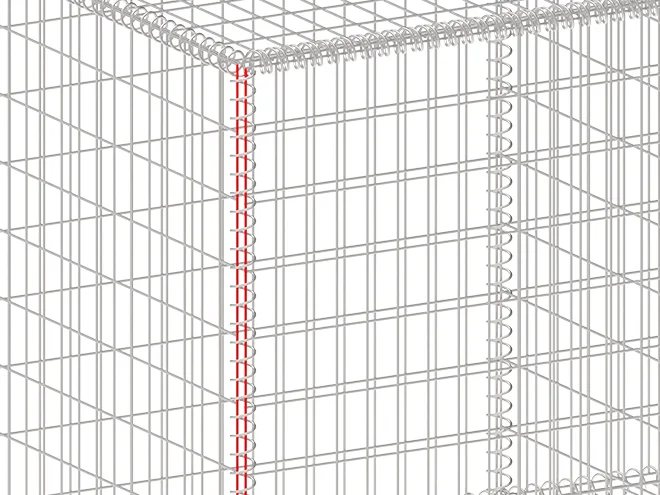

Selvedge Wire

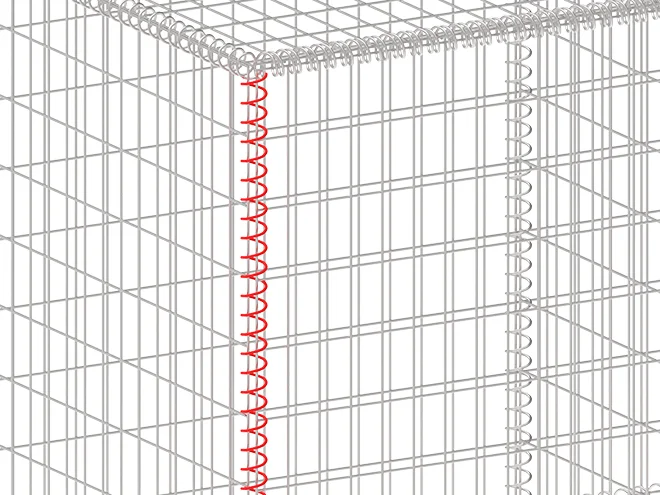

Spring Wire

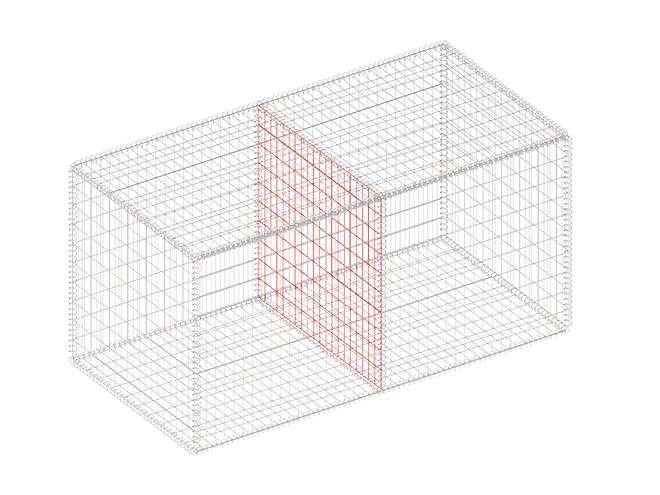

Diaphragm

Overview
Mesh & Mesh Wire
Selvedge Wire
Spring Wire
Diaphragm

QC & Package

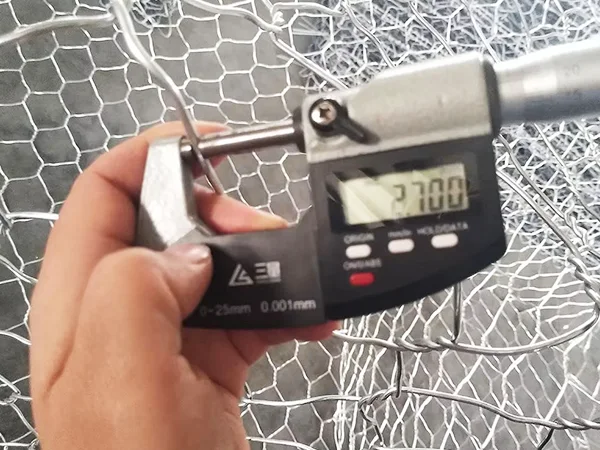

A QC worker is measuring the mesh wire diameter of woven gabion retaining wall.

Mesh Wire Measurement – Woven Type

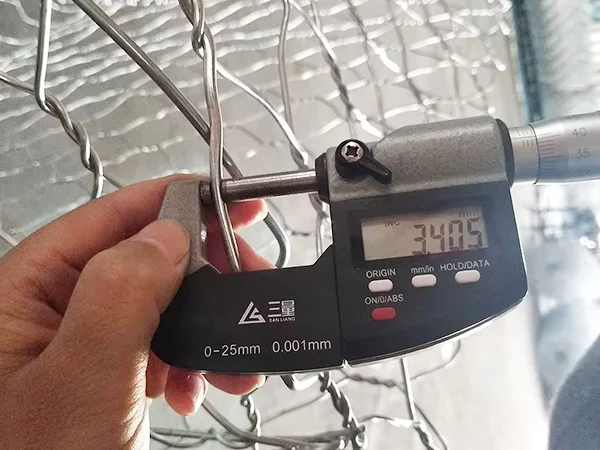

A QC worker is measuring the selvedge wire diameter of woven gabion retaining wall.

Selvedge Wire Measurement – Woven Type

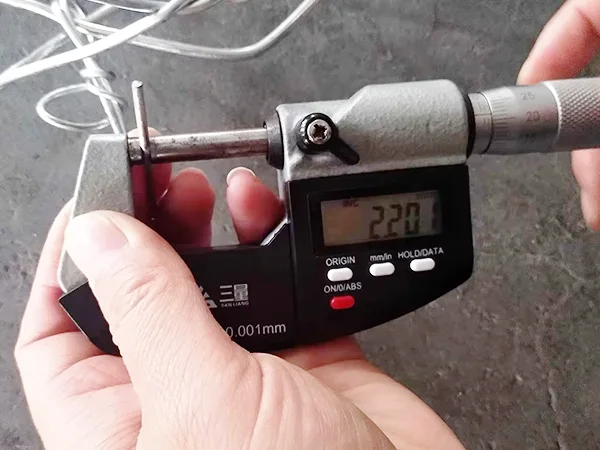

A QC worker is measuring the lacing wire diameter of woven gabion retaining wall.

Lacing Wire Measurement – Woven Type

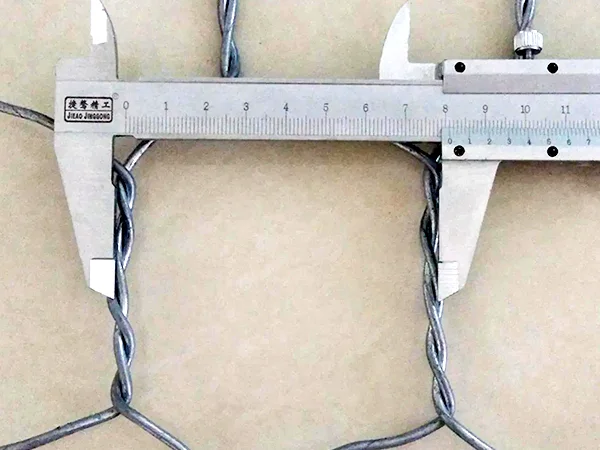

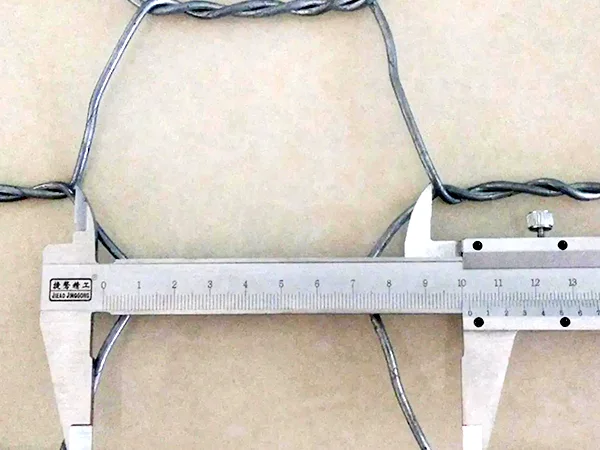

A QC worker is measuring the mesh size of woven gabion retaining wall.

Mesh size Measurement – Woven Type

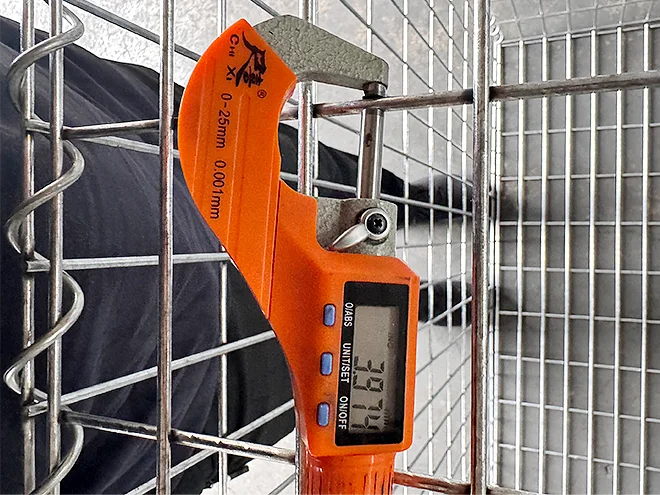

A QC worker is measuring the line wire diameter of welded gabion retaining wall.

Line Wire Measurement – Welded Type

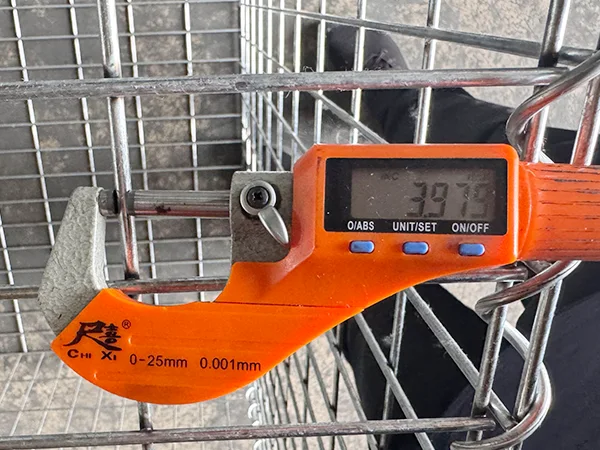

A QC worker is measuring the cross wire diameter of welded gabion retaining wall.

Cross Wire Measurement – Welded Type

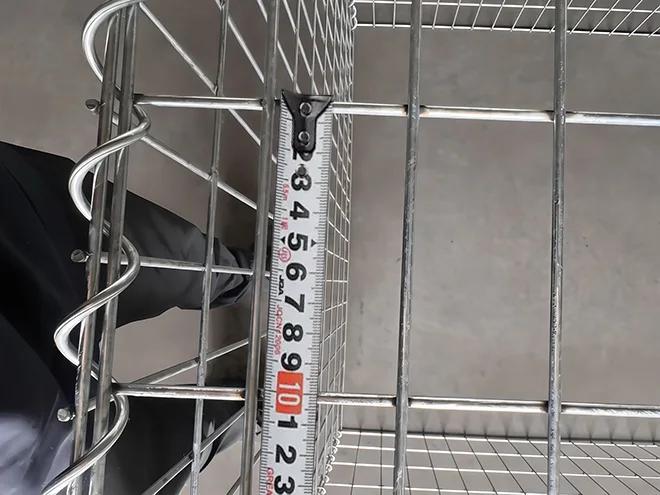

A QC worker is measuring the mesh size of welded gabion retaining wall.

Mesh size Measurement – Welded Type

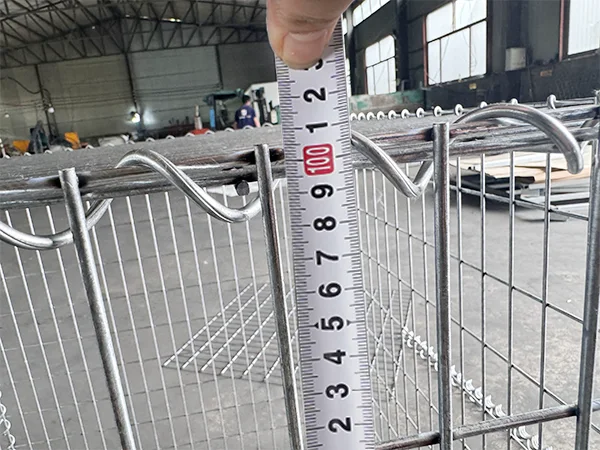

A QC worker is measuring the height of welded gabion retaining wall.

Height Measurement – Welded Type

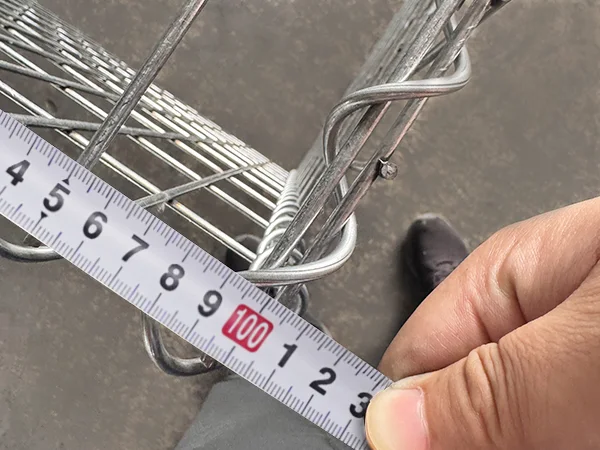

A QC worker is measuring the width of welded gabion retaining wall.

Width Measurement – Welded Type

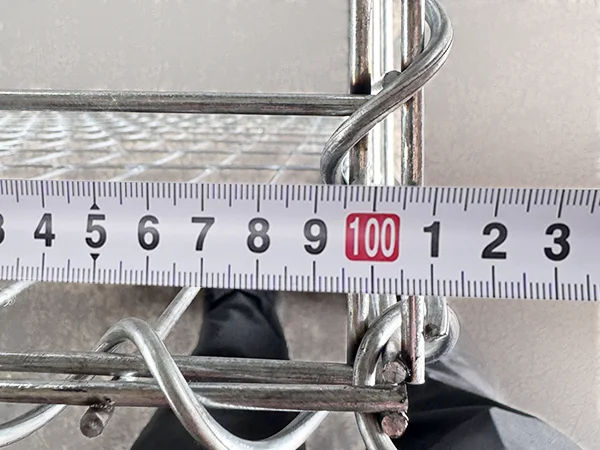

A QC worker is measuring the length of welded gabion retaining wall.

Length Measurement – Welded Type

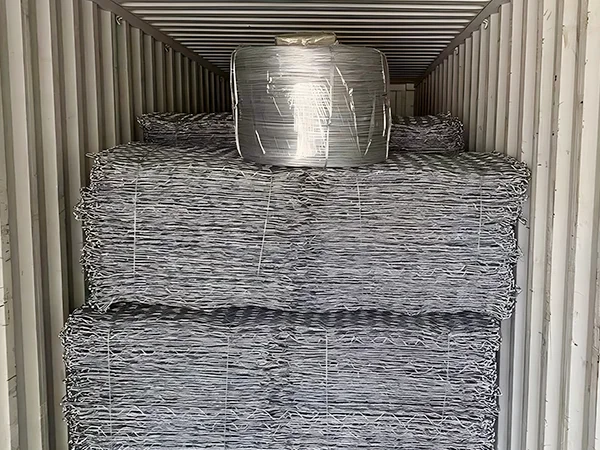

Several bundles of woven gabion retaining walls in the container.

Bundle Package

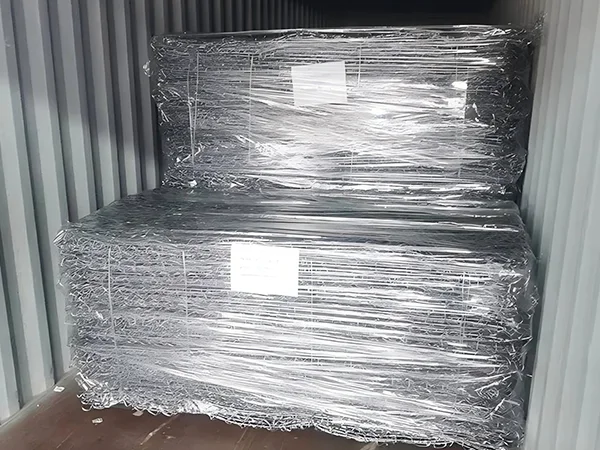

Several bundles of woven gabion retaining walls with plastic film wrapping in the container.

Bundle & Plastic Film Package

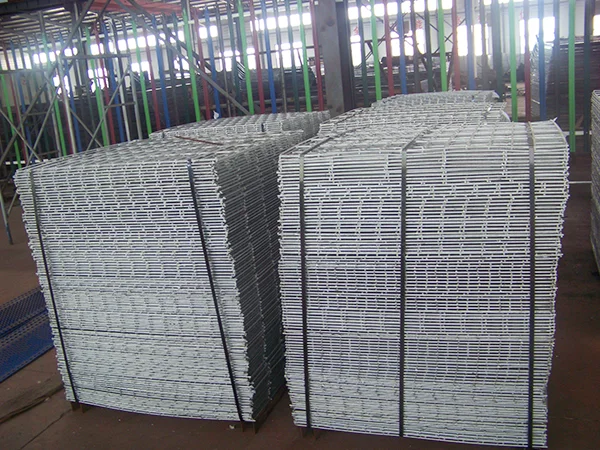

Two metal pallets of welded gabion retaining wall panels in the warehouse.

Metal Pallet Package – Panel

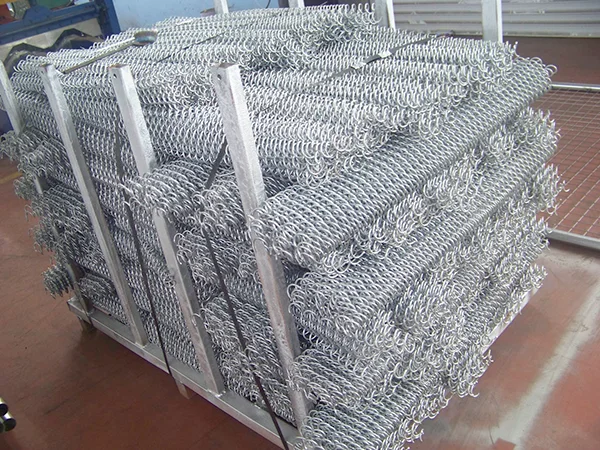

A metal pallet of welded gabion retaining wall spring wires in the warehouse.

Metal Pallet Package – Spring Wires

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

Riverbank erosion protection
Slope and hillside reinforcement
Bridge abutment backfill walls
Reservoirs and dams
Highway embankment stabilization
Coastal or flood-prone areas

The woven gabion retaining walls are installed at the bottom of the slope.

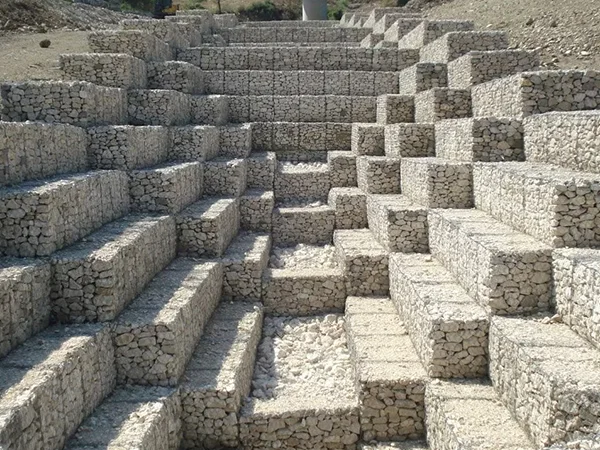

The woven gabion retaining walls are installed under the bridge.

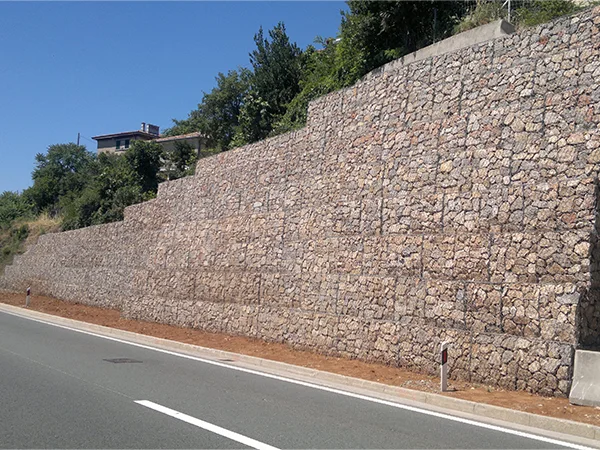

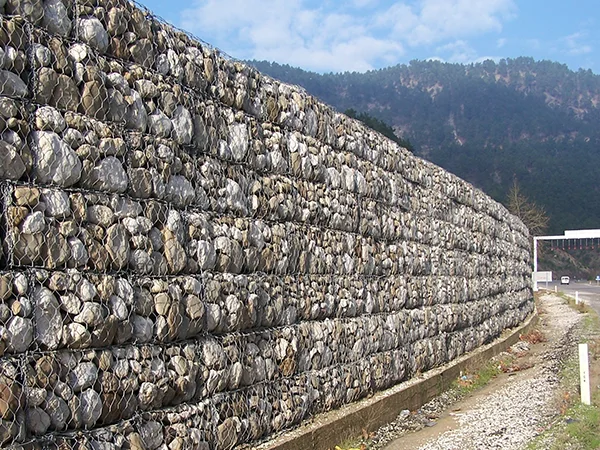

The woven gabion retaining walls are installed at the roadside.

The woven gabion retaining walls are installed at the foot of the mountain.

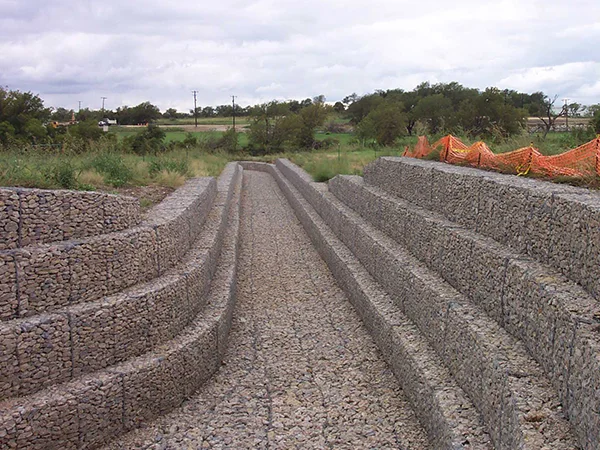

The woven gabion retaining walls are installed at the both side of the reservoirs.

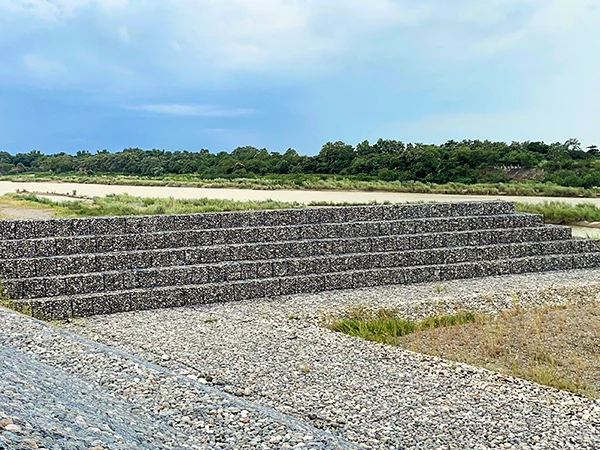

The woven gabion retaining walls are installed as a dam.

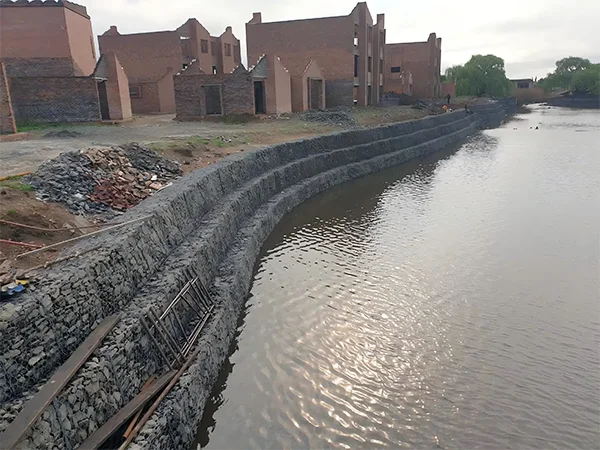

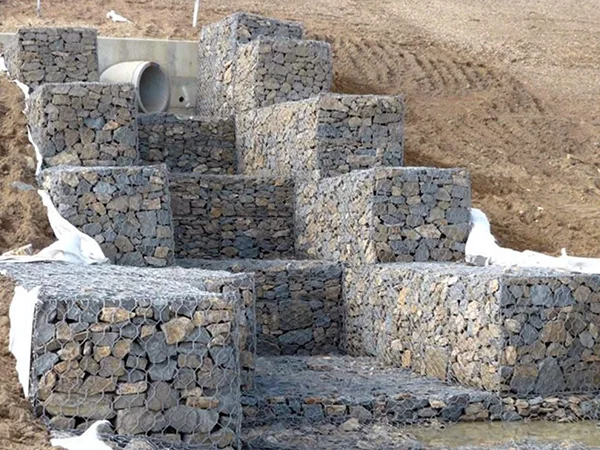

The gabion retaining walls are installed at the riverbank.

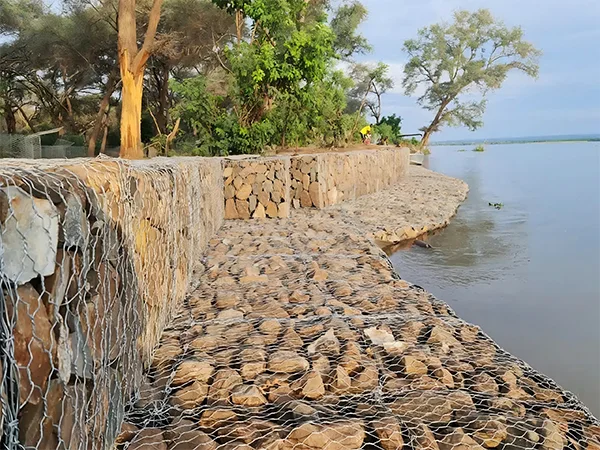

The gabion retaining walls are installed at the coastal.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

Both woven and welded gabion retaining walls are assembled by unfolding the flat-packed cages, connecting adjacent panels with lacing wires, spiral wires or fasteners, and filling them with natural stone or approved infill material. Woven gabions can be laced on-site for flexibility, while welded gabions require a level base and precise alignment. Installation is typically done without concrete foundations and conforms to the natural terrain.

Installation Guide of Welded Gabion
