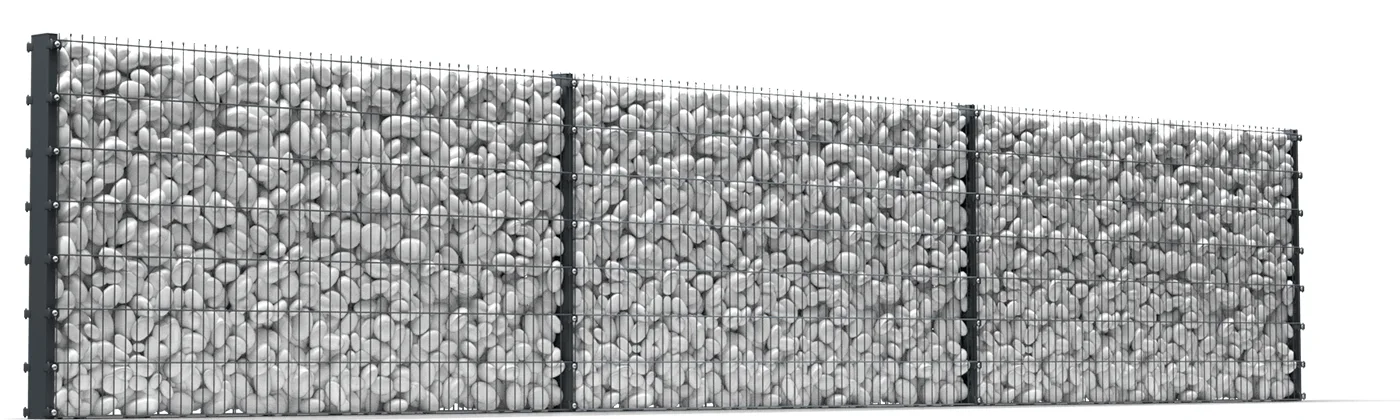

Welded Gabion Walls – A Strong and Stylish Retaining Solution

Our Gabion Wall System is a modern and durable solution for both functional and decorative wall structures. Constructed using welded wire mesh panels and paired with square or H-shaped steel posts, these gabion units are filled with stones or similar materials to form strong, stable, and visually striking walls.

This modular structure provides flexibility in design, easy assembly, and excellent performance in retaining and architectural landscaping.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

A gabion wall with natural stones in it.

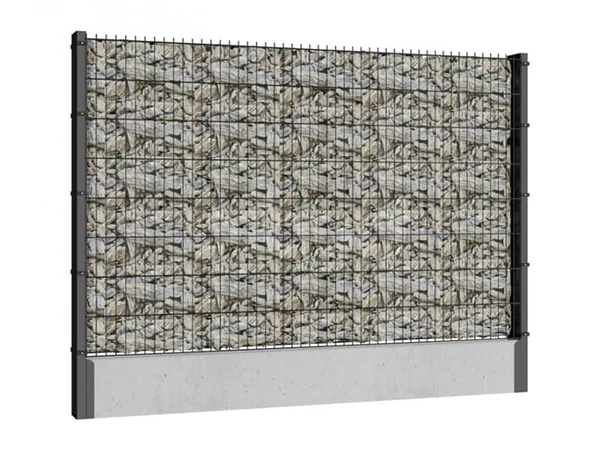

GR4 – Gabion Wall

GR4

Strong & Long-Lasting – Welded mesh with robust steel posts ensures structural stability.
Weather & Rust Resistant – Galvanized or Galfan coating protects in all climates.
Modern Aesthetics – Clean lines and natural stone infill blend into contemporary landscapes.
Easy Assembly – Modular design enables fast installation on-site.
Eco-Friendly Option – Can be filled with recycled or local stone for sustainability.

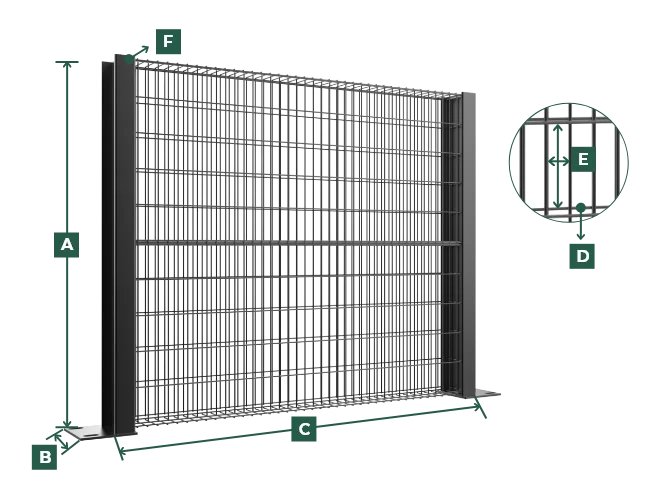

A Height: 0.5 m / 1.0 m / 1.5 m / 1.8 m / 2.0 m
B Width: 0.1 m / 0.2 m / 0.3 m
C Length: 1.0 m / 1.5 m / 2.0 m
D Mesh Wire: 4.0 mm / 5.0 mm / 6.0 mm
E Mesh Size: 30 × 50 mm, 30 × 100 mm, 50 × 100 mm, 75 × 75 mm, 75 × 150 mm
F
H/U Post:
- Post Size: 100 × 50 mm, 120 × 74 mm
- Thickness: 3 mm / 4 mm / 5 mm / 6 mm

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

Two workers are welding the weld mesh onto frame of the fence gate.

Production Process

Raw Material – Steel Wires
Straightening & Cutting

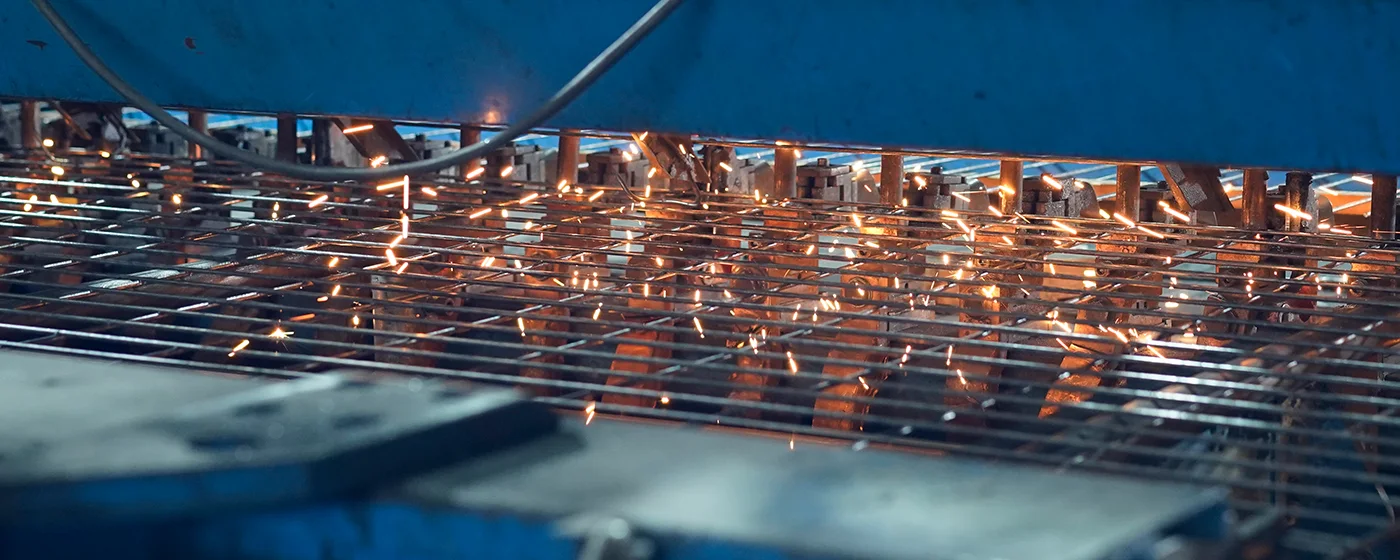

Panel Welding
Panel Cutting
Surface Treatment (Powder Coating)
Package
Loading
Shipping

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

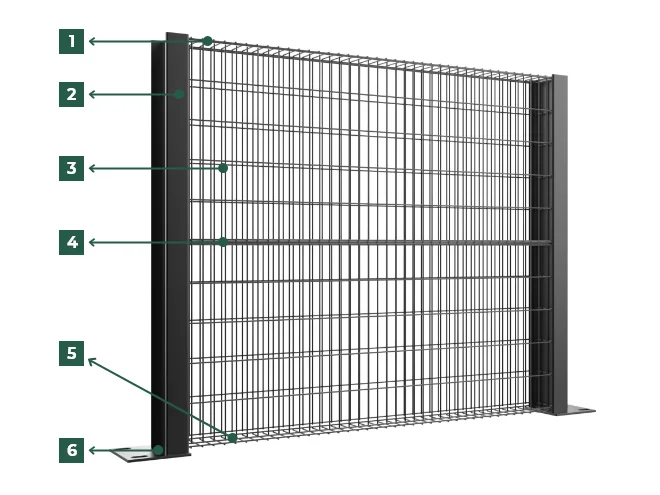

Structure

Cover
Post
Gabion Panel
Metal Clip
C Rings
Base

Overview

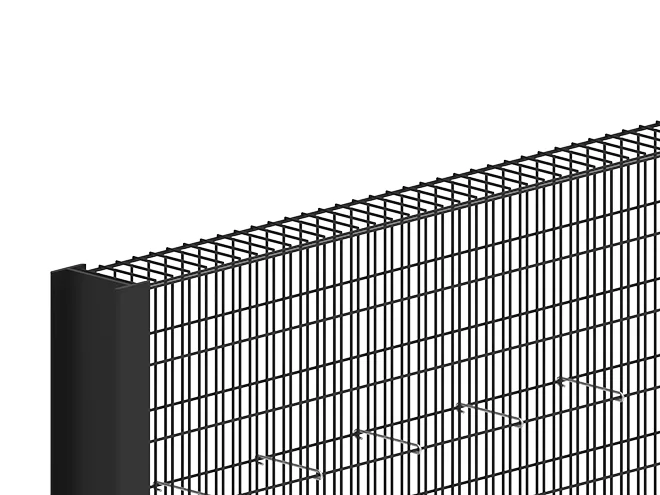

Cover

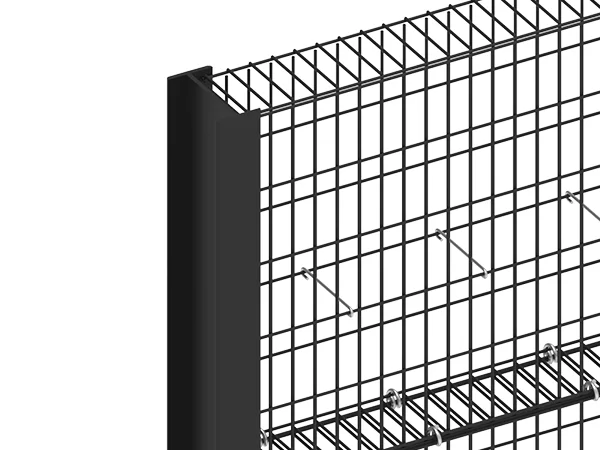

H Post

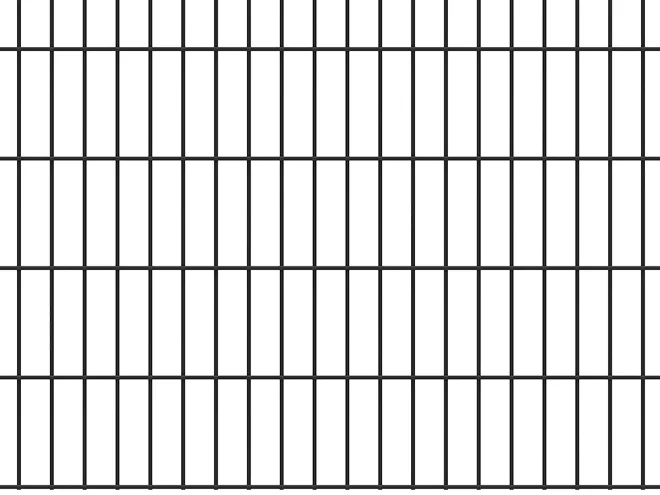

Gabion Panel

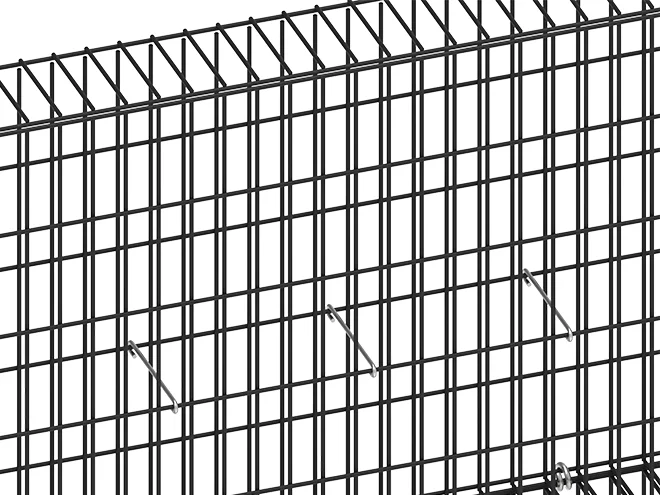

Metal Clip

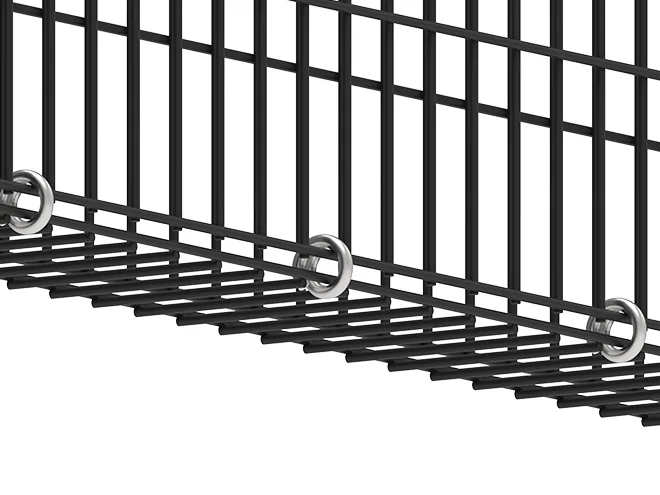

C Ring

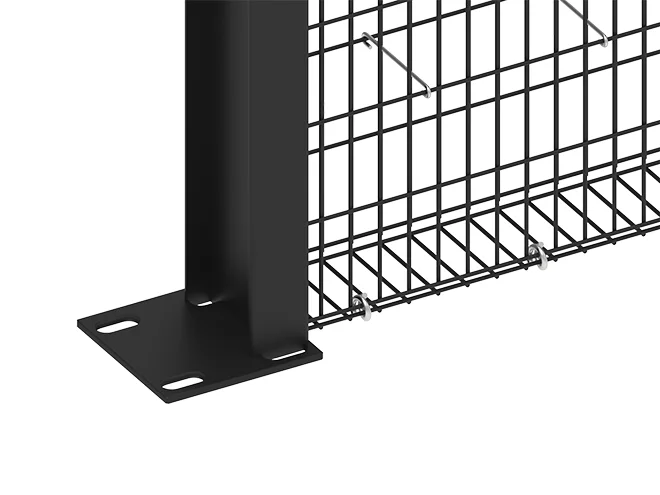

Base

QC & Package

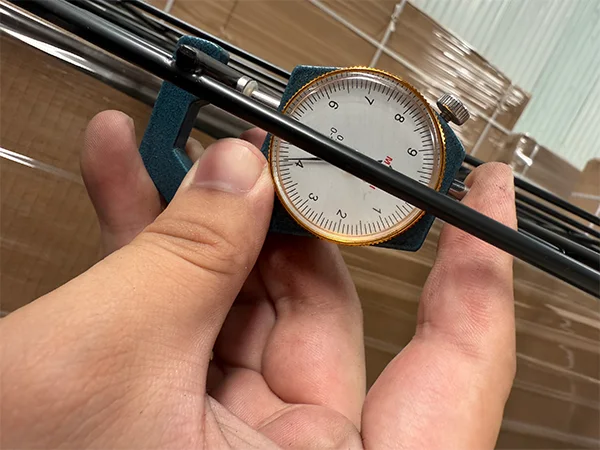

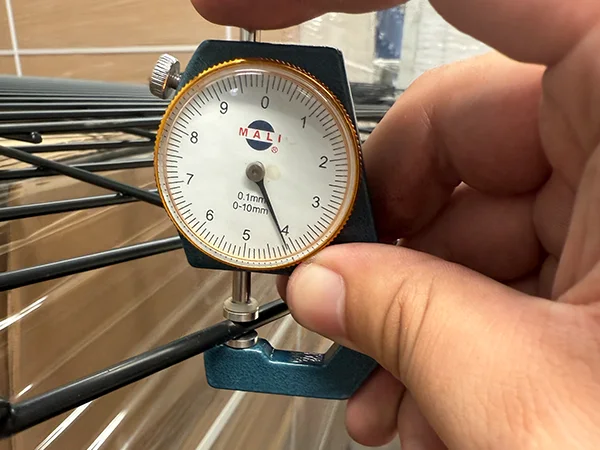

A QC worker is measuring the wire diameter of gabion wall

Wire Diameter Measurement

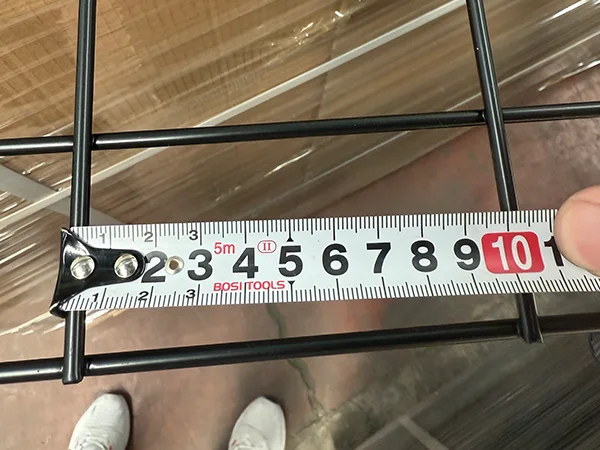

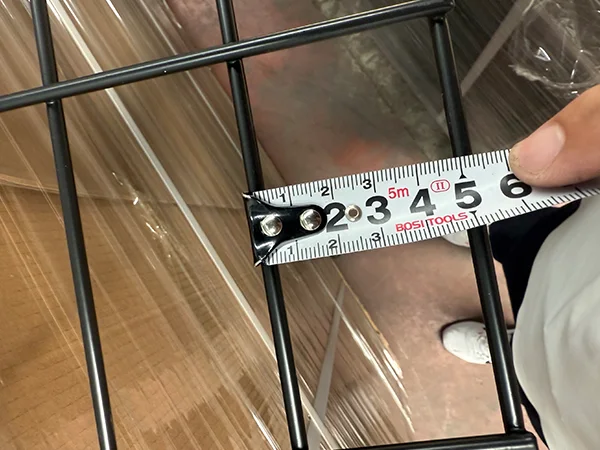

A QC worker is measuring the mesh size of gabion wall

Mesh Size Measurement

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

Residential and commercial landscaping
Garden boundary and decorative walls

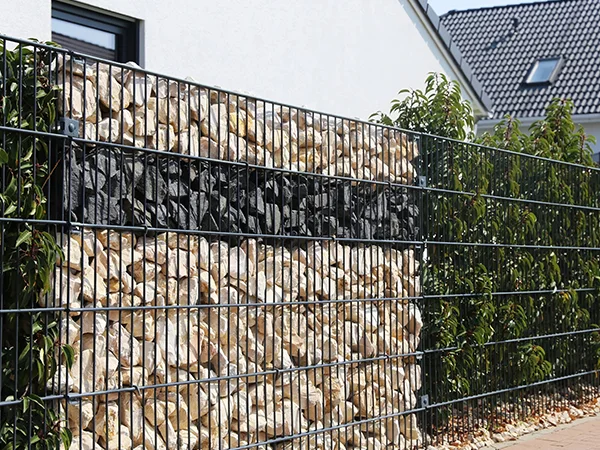

Acoustic or privacy walling
Infrastructure and highway projects

The gabion walls are installed in the garden.

The gabion walls are installed in the residence.

The gabion walls are installed as the residence wall.

The gabion walls are installed in the home yard.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

Step 1: Prepare the corresponding mesh panels.
Step 2: Place the posts in the appropriate positions.
Step 3: Fix the overlapping edges of adjacent mesh panels using C-clips. Position the C-clips to straddle the overlapping wires and press them tightly with pliers to ensure a secure and firm connection. Connect the front, back, top, bottom, and side panels, and fix the internal partition panels with reinforcement rods. Do not seal the top panel yet.
Step 4: After assembling the bottom gabion cage, fill it with stones.
Step 5: Use C-clips to secure and close the top panel.
Step 6: Repeat the above steps to install the upper layers.
