A line of galvanized chain link fence with single barb arm.

Flexible, Strong, and Always Reliable — Chain Link Fence Solutions

Chain link fence, also known as diamond mesh fence, is a cost-effective and versatile perimeter protection solution. Its woven steel wire mesh offers excellent visibility, ventilation, and durability, making it suitable for a wide range of applications — from residential yards to high-security industrial facilities. Available in galvanized or PVC-coated finishes, our chain link fences provide long-lasting rust resistance and low maintenance.

Catalog

RFQ

Overview
Production
Structure & Details
Application & Projects
Installation

PROFILES & OVERVIEW

Get a quick understanding of what makes this fence system ideal for site safety, including its specifications, standout features, and related solutions.

The black chain link fences are fastened to the post with lacing wire.

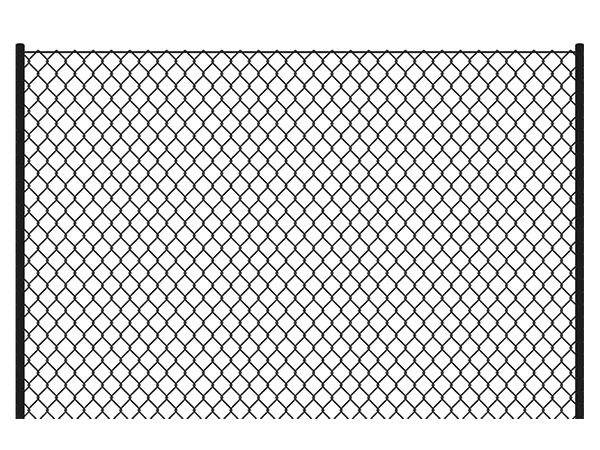

GI21 – Post + Fence

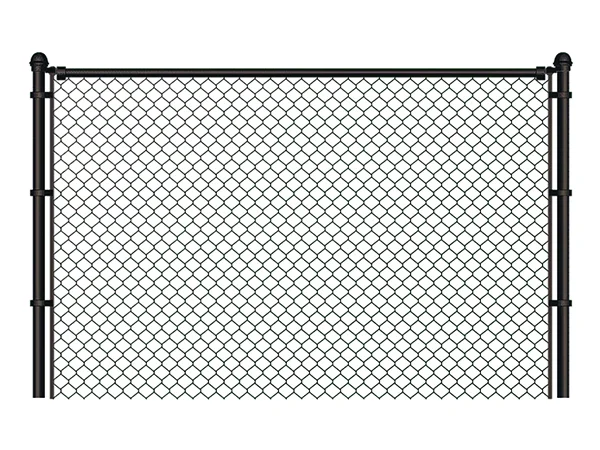

The black chain link fences are fastened to the post with fittings.

GI22 – Post + Rail + Fence

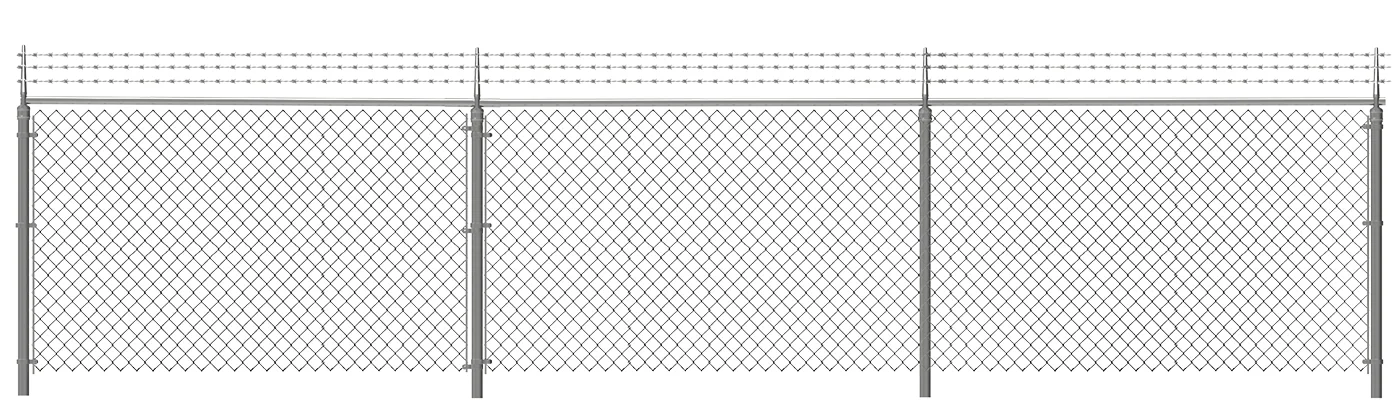

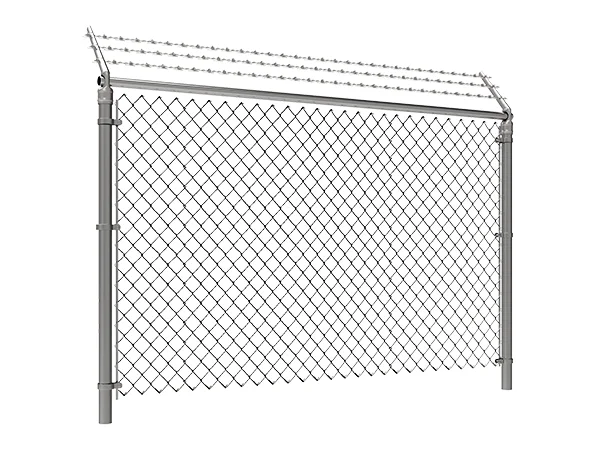

The Galvanized chain link fence with single barb arm and barbed wires.

GI23 – Fence + Single Arm

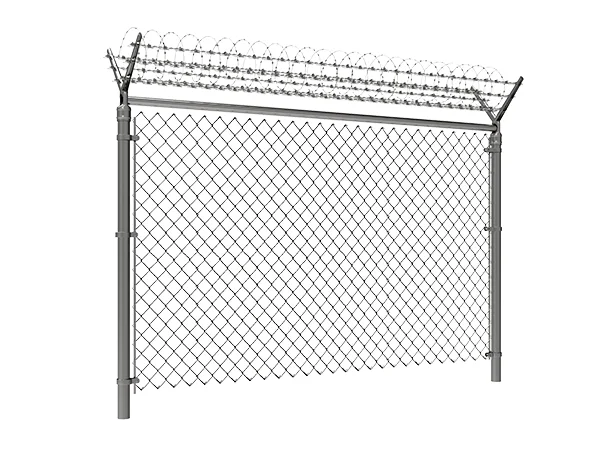

The Galvanized chain link fence with double barb arm and barbed wires.

GI24 – Fence + Double Arm

GI25 – Single Gate

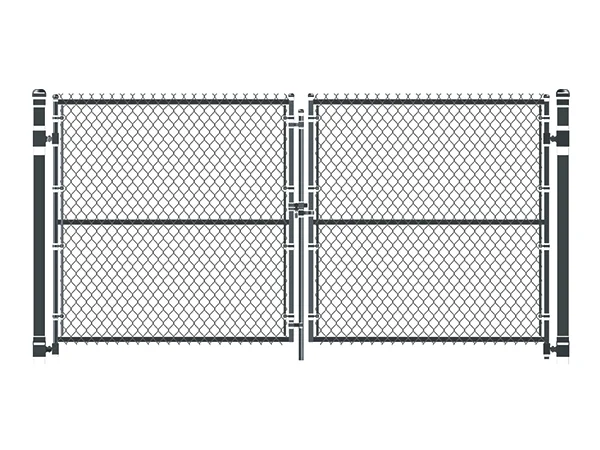

GI26 – Double Gate

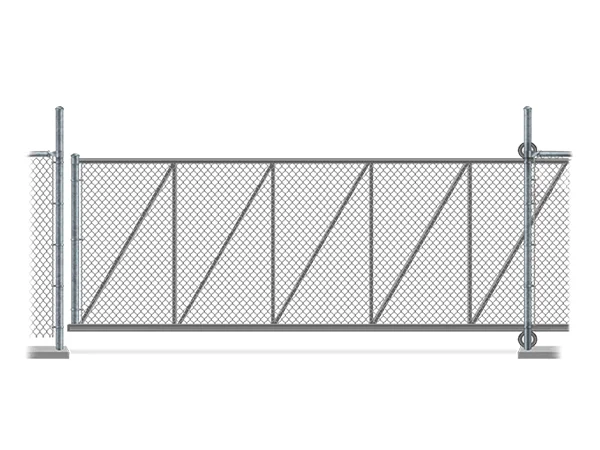

GI27 – Sliding Gate

GI21

GI22

GI23

GI24

GI25

GI26

GI27

Durable Structure – Made from high-tensile steel wire with strong weaving, ensuring stability and long service life.
Corrosion Resistance – Galvanized or PVC-coated for excellent rust protection in outdoor environments.
Good Visibility & Ventilation – Open mesh design allows airflow and light penetration without compromising security.
Flexible Applications – Can be installed on flat or sloped terrain, and easily customized in height and mesh size.
Cost-Effective – Affordable option with low maintenance requirements.

A Wire Diameter: 2.5 mm / 3.0 mm / 3.5 mm / 4.0 mm / 4.5 mm
B Mesh Size: 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 75 × 75 mm, 100 × 100 mm
C Roll Height: 1.2 m / 1.5 m / 1.8 m / 2.0 m / 2.4 m / 2.8 m / 3.0 m
D Roll Length: 9 m / 10 m / 15 m / 18 m / 20 m / 25 m / 30 m
E
Post:
- Round post size: ɸ40 mm, ɸ48 mm, ɸ60 mm, ɸ75 mm
- Round post thickness: 1.5 mm / 1.8 mm / 2.0 mm / 2.5 mm
- Angle iron size: 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 70 × 70 mm
- Angle iron thickness: 4.0 mm / 5.0 mm / 6.0 mm
F Rails: round pipes, ɸ32 mm, ɸ40 mm, ɸ48 mm
G Accessories: Barb arms, razor wires, barbed wires

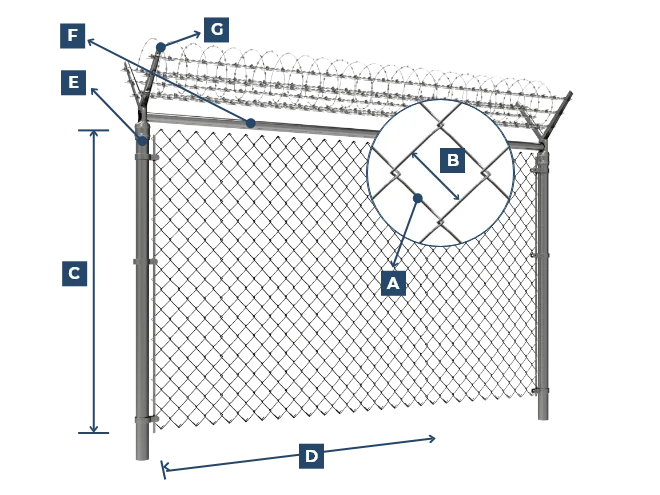

A dimension drawing of chain link fence.

Production

From raw material to finished product, every process is managed in our own factory with precision equipment and skilled teams.

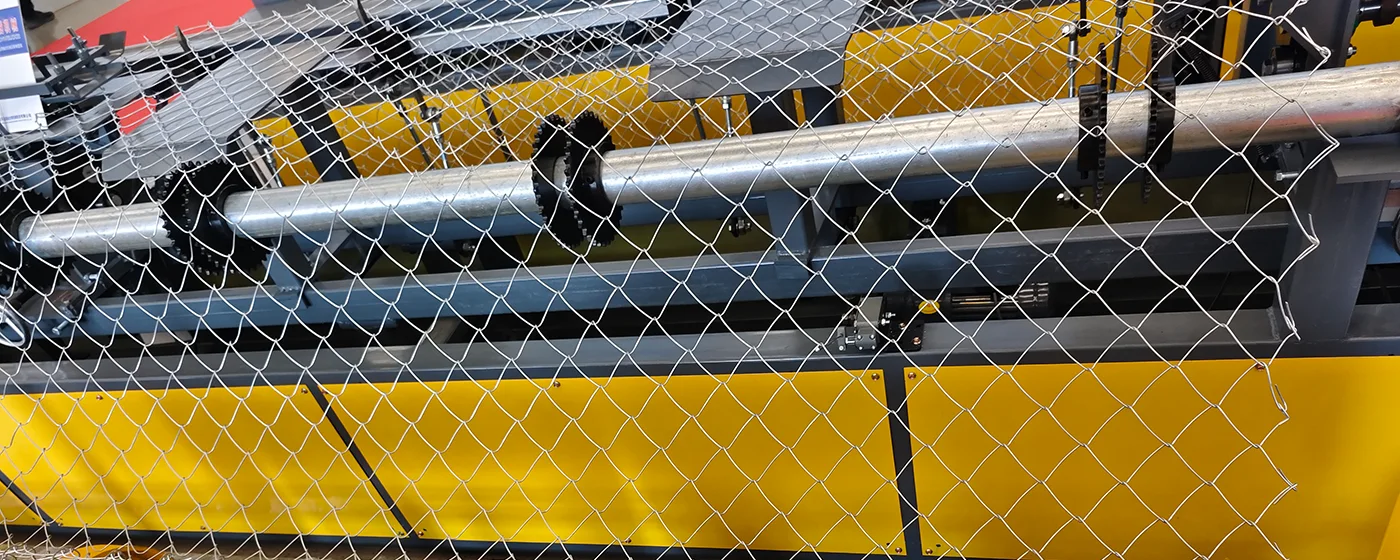

A chain link fence equipment is working.

Production Process

Raw Material – Steel Wires / PVC Coated Wires
Weaving
Edge Treatment (Twisted & Knuckle)
Rolling Up
Roll Tightening & Bundling
Package
Loading
Shipping

Twisted Chain Link Fence Production Processs

PVC Coated Chain Link Fence Production Process

STRUCTURE & DETAILS

Explore detailed structure designs and reinforced components that ensure safety and long-term durability. There are details of QC and package information as well.

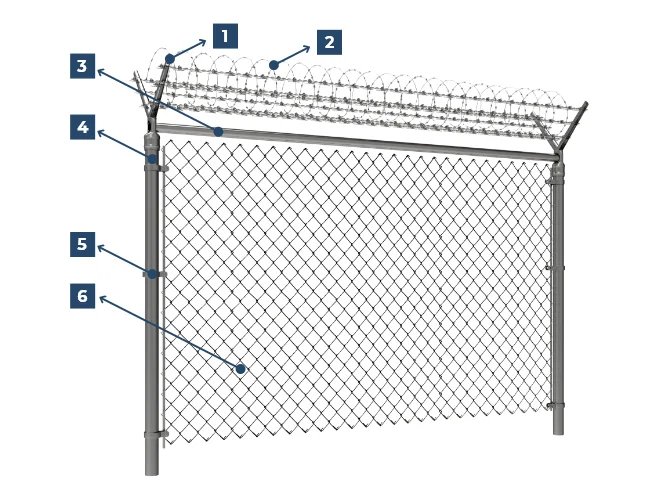

Structure

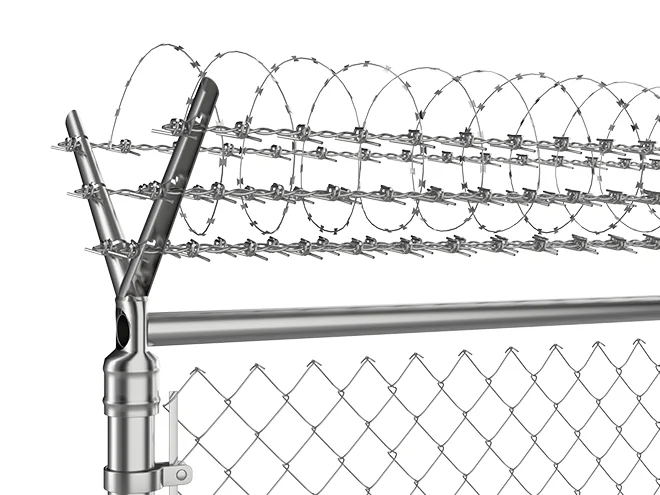

Barbed Arm

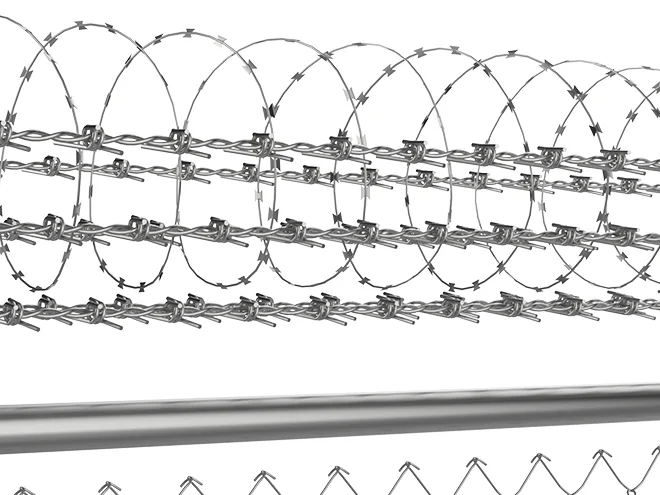

Razor Wire & Barbed Wire

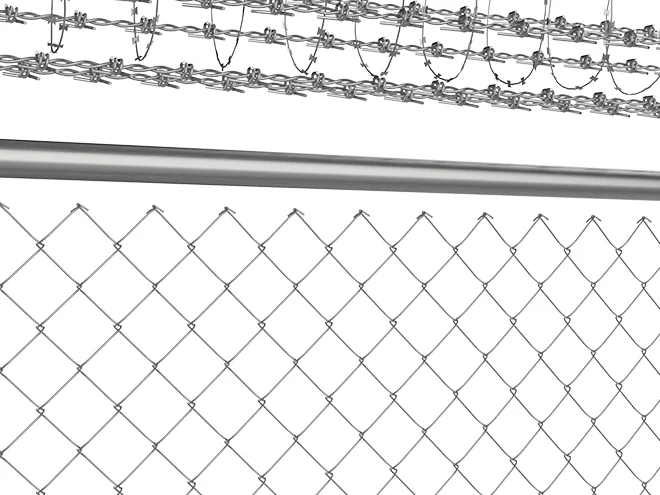

Rail

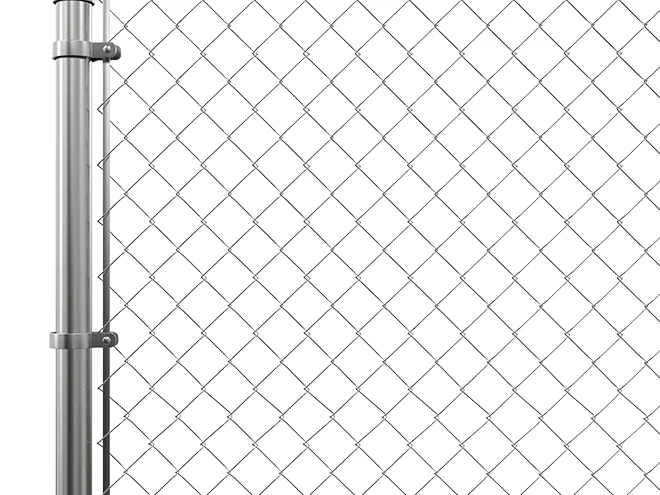

Post

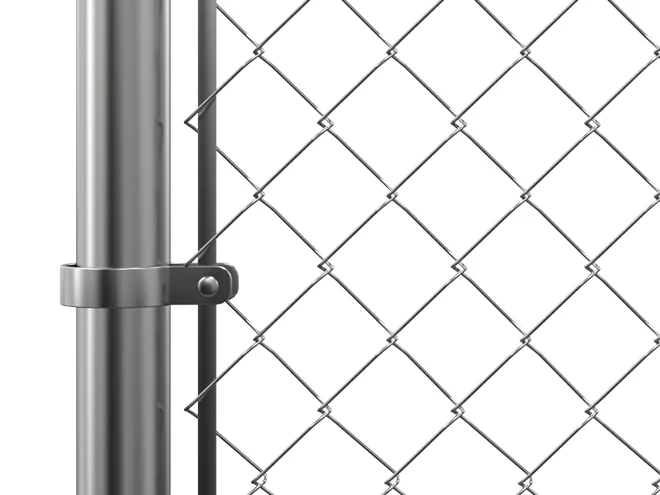

Connection Fittings

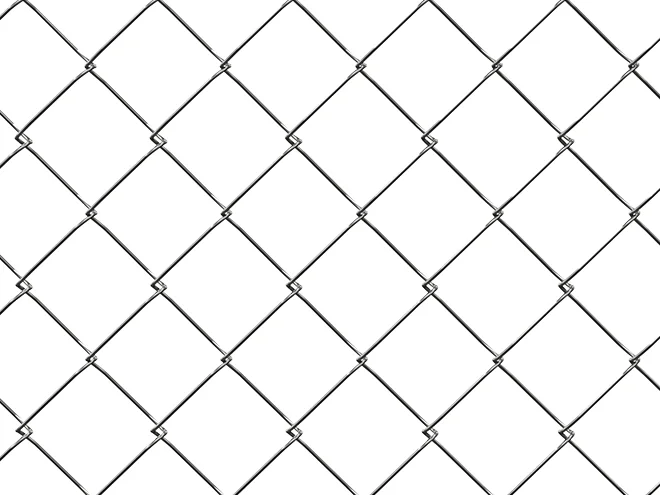

Fence Panel

Overview
Barbed Arm
Razor Wire & Barbed Wire
Rail
Post
Connection Fittings
Fence Panel
Galvanized Chain Link Fence Fittings

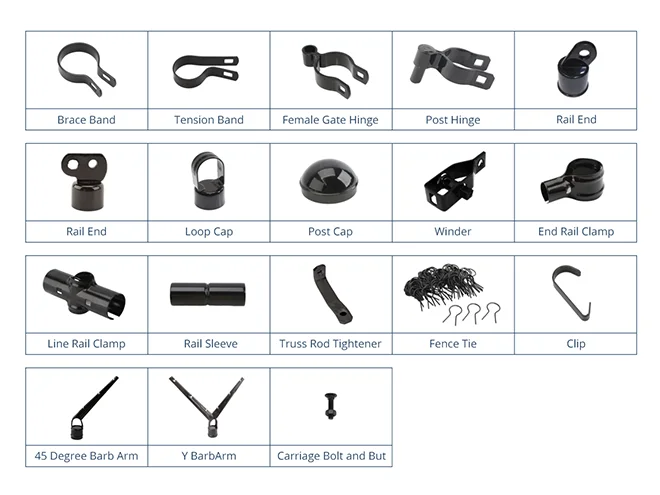

Powder Coating Chain Link Fence Fittings

QC & Package

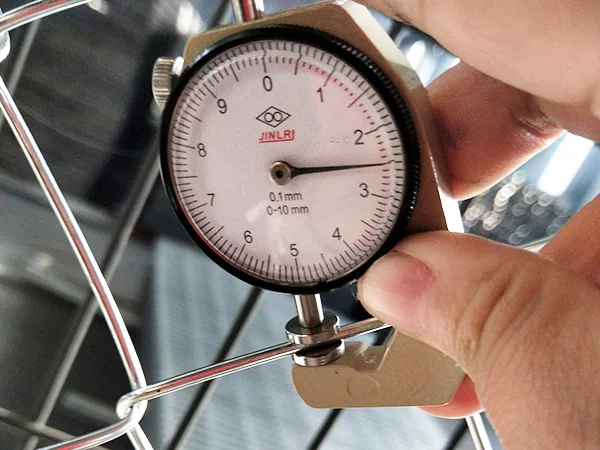

A QC worker is measuring the wire diameter of chain link fence.

Wire Diameter Measurement

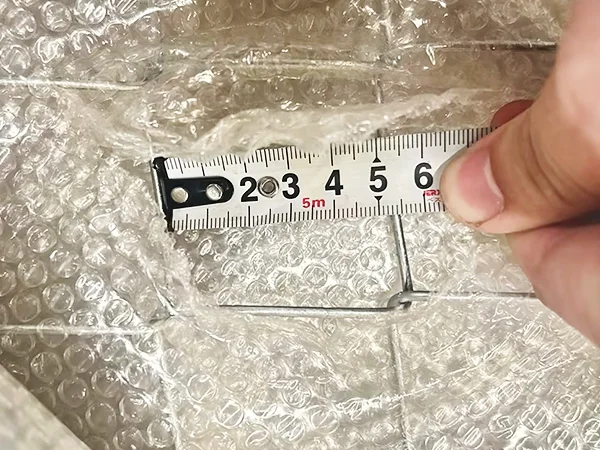

A QC worker is measuring the mesh size of chain link fence.

Mesh Size Measurement

A QC worker is measuring the width of chain link fence.

Width Measurement

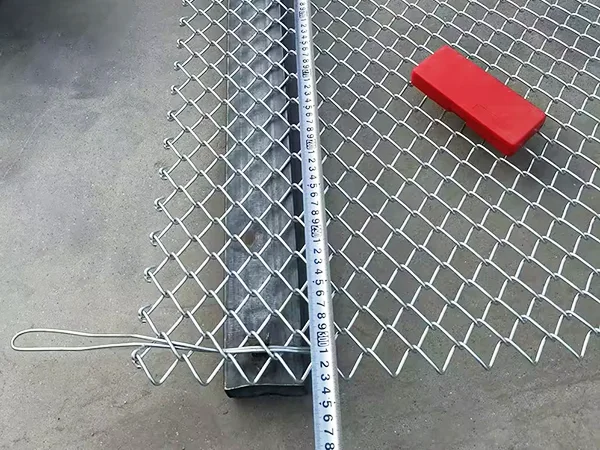

A QC worker is measuring the length of chain link fence.

Length Measurement

A QC worker is measuring the post size of chain link fence.

Post Size Measurement

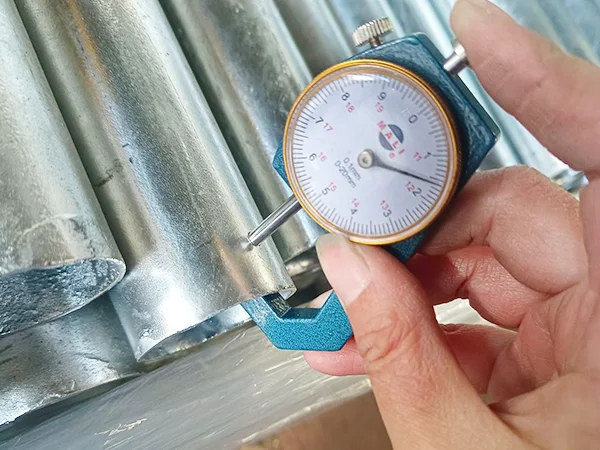

A QC worker is measuring the post thickness of chain link fence.

Post Thickness Measurement

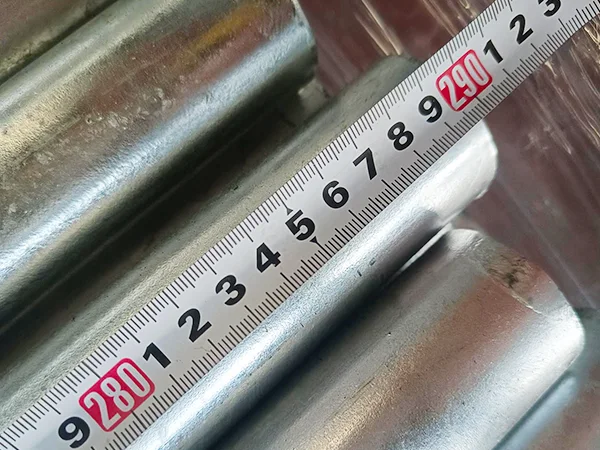

A QC worker is measuring the post length of chain link fence.

Post Length Measurement

Wooden pallets

Bundles

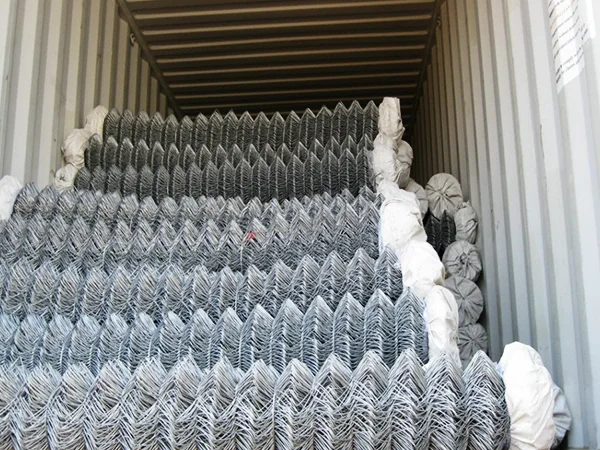

Several rolls of chain link fences in the container.

Bulk

Metal Pallets

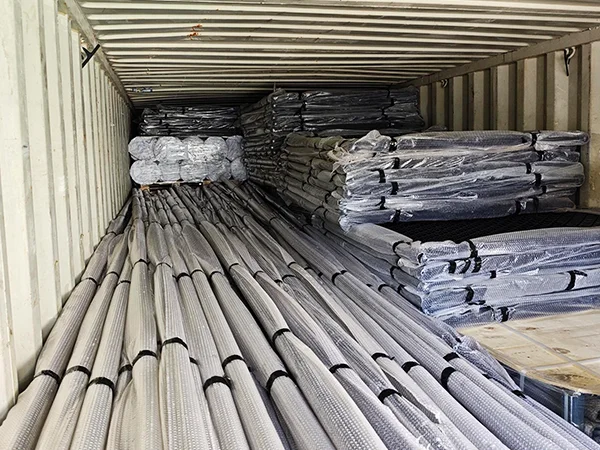

several chain link fence posts in the container.

Bulk

Bundle

Application & Projects

See how our fences are used in actual projects across the globe—your assurance of proven performance.

Industrial facility security
Highway and railway fencing
Residential yard and garden fencing
School and playground enclosures
Sports field perimeter fencing
Animal enclosures and farm use

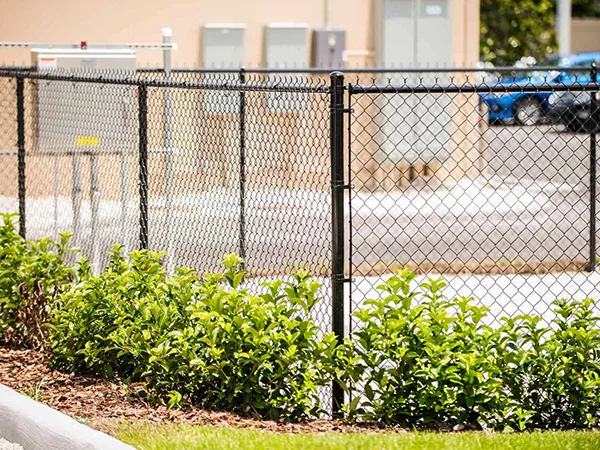

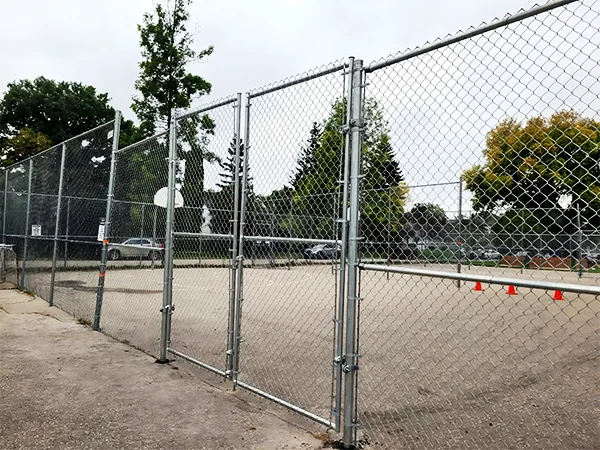

The chain link fences are installed in the factory.

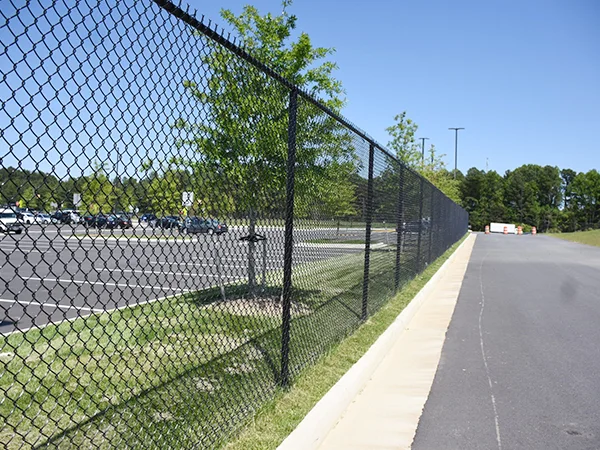

The chain link fences are installed in the park.

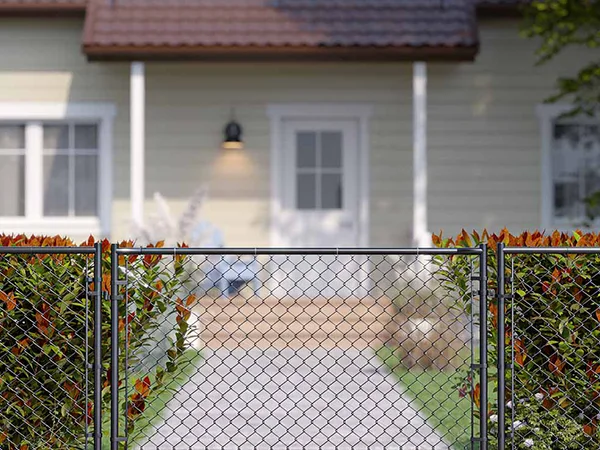

The chain link fences are installed in the residence.

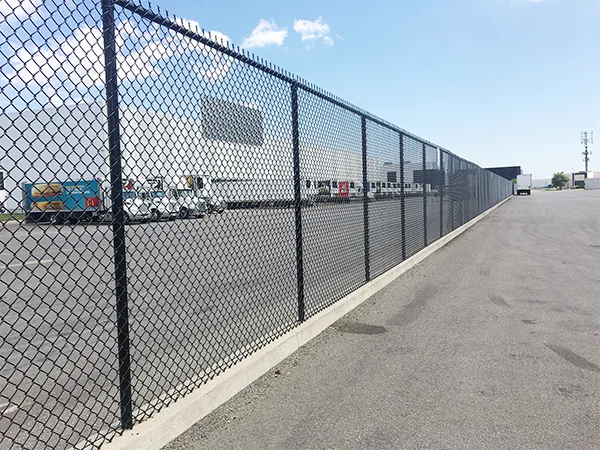

The chain link fences are installed in the industrial zone.

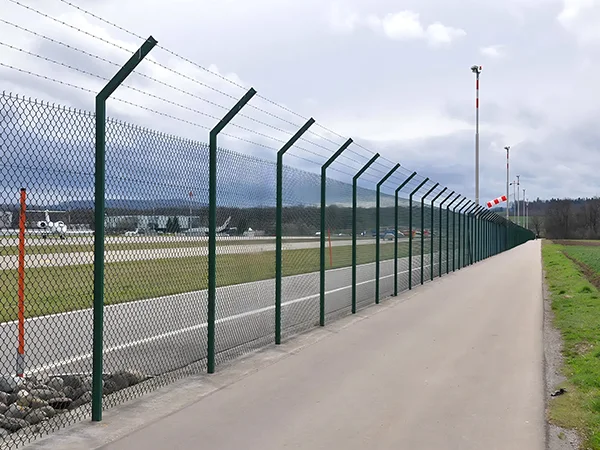

The chain link fences are installed in the airport.

The chain link fences are installed in the construction site.

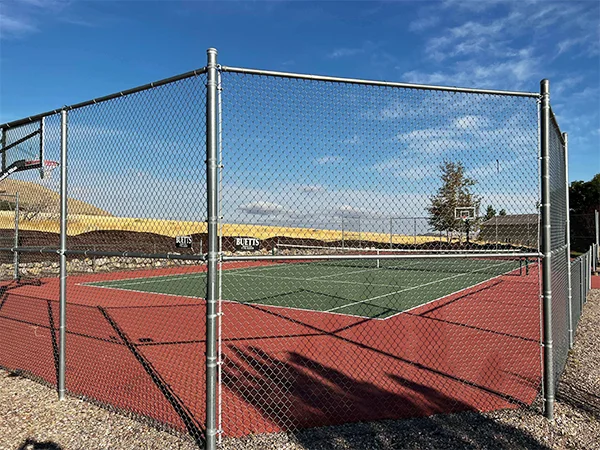

The chain link fences are installed in the gym.

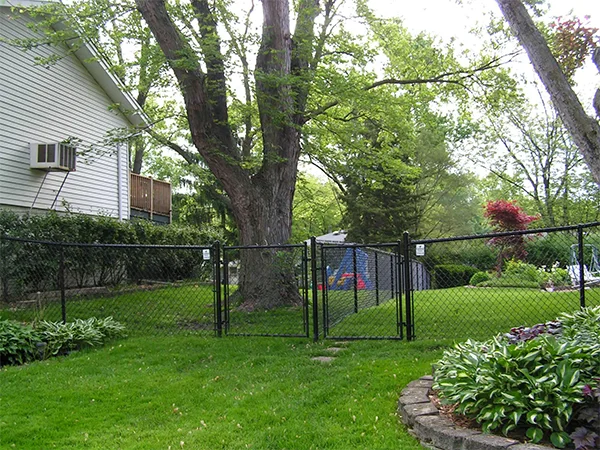

The chain link fences are installed in the yard.

Installation

Flexible assembly tailored to every design. And clear installation instructions and videos for quick and reliable setup on-site.

Chain link fence installation involves fixing posts into the ground, attaching tension wires, and stretching the woven mesh to maintain tension. The mesh is secured to the posts using binding wire, tension bars, and fittings. For sloped terrain, the flexible mesh structure adapts easily, ensuring a uniform and secure fit. Optional barbed wire or razor wire can be added on top for extra security.

Chain Link Fence With Barbed Wire Installation

Chain Link Fence With Razor Wire Installation
