2,000 m Twisted Mesh Chain Link Fencing System for a Power Station
Products
chain link fencing system
Application
U.S. power station project
Project Background
A U.S. engineering contractor secured a suburban power station with a high-security chain link fencing system. The project required a 2.25 m anti-climb fence with single-arm barbed wire, twisted mesh for added strength, clear visibility for surveillance, and a full black RAL 9005 finish for corrosion resistance and a professional appearance. The order included 2,000 linear meters of fencing and 10 double gates to protect the entire power plant compound.
Our Solution

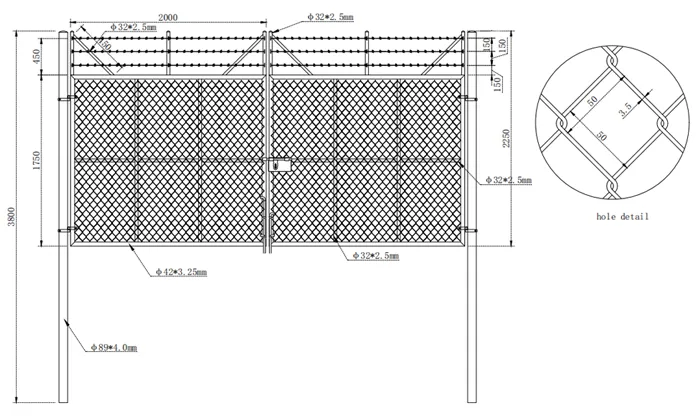

Product Specifications
- Chain Link Mesh – 2,000 m
- Height: 2.25 m
- Mesh Aperture: 50 × 50 mm
- Wire Diameter: 3.8 mm
- Weave Type: Twisted
- Surface: PVC coated, black RAL 9005
- Posts – Embedded Installation
- Line, corner, and end posts
- Galvanized tubes, powder coated black RAL 9005
- Embedded into concrete foundations
- Security Enhancements

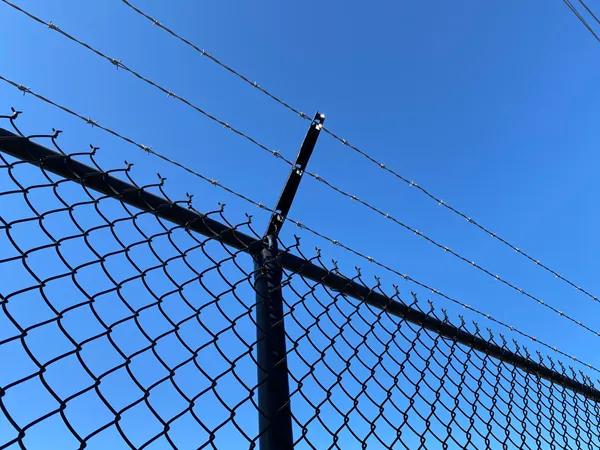

- 45° single arms mounted on top of posts
- Barbed wire installed for anti-climb protection
- Double Gates – 10 Sets
- Width: 4 m (vehicle access width)
- Height: Matching 2.25m fence line
- Construction: Heavy-duty frame with chain link infill
- Surface Treatment: Powder coated, black RAL 9005
- Hardware: Includes hinges, latches, and padlockable handles
Quality Control
Strict quality checks were conducted to meet U.S. industrial security standards:

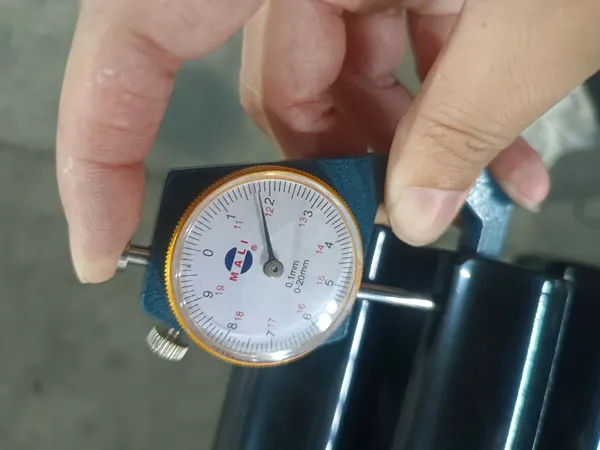

- Raw Materials: Checked 3.8 mm wire diameter, coating thickness, and RAL 9005 black color.

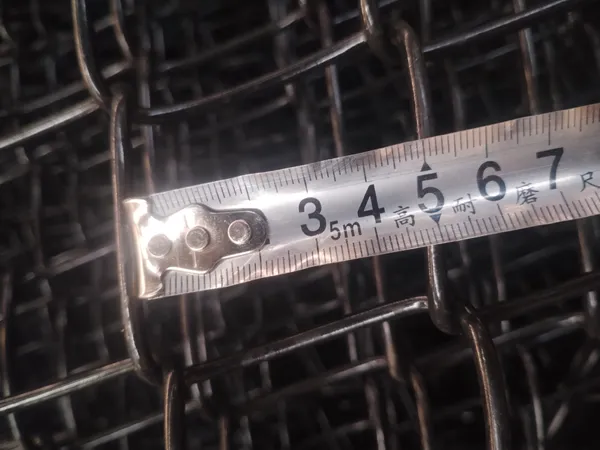

- Mesh & Weave: Verified twisted weave, consistent 50 × 50 mm aperture, and no loose wires.
- Coating: Conducted cross-hatch adhesion tests on mesh, posts, and gates.

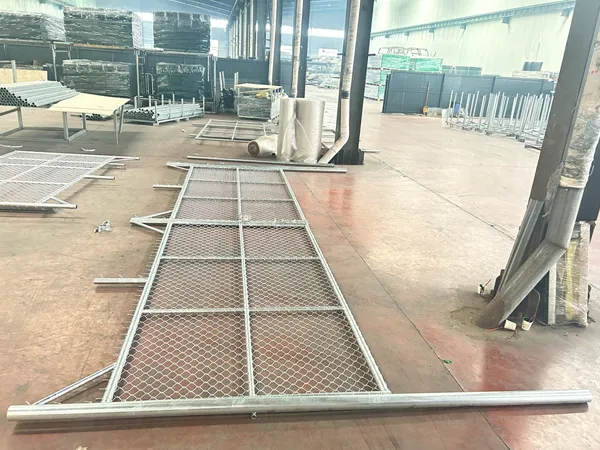

- Gate Function: Test-assembled each double gate to check swing, hinge alignment, and latching.

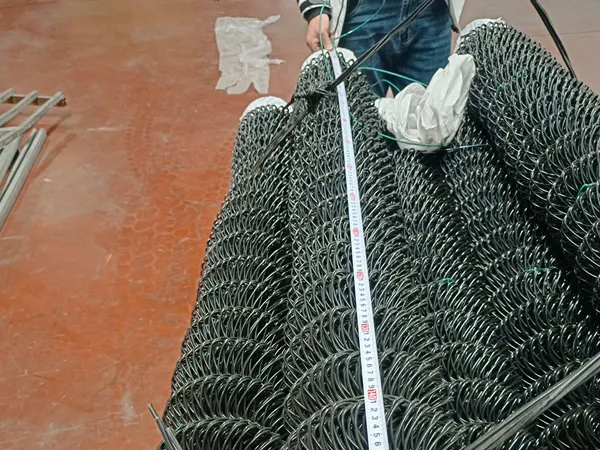

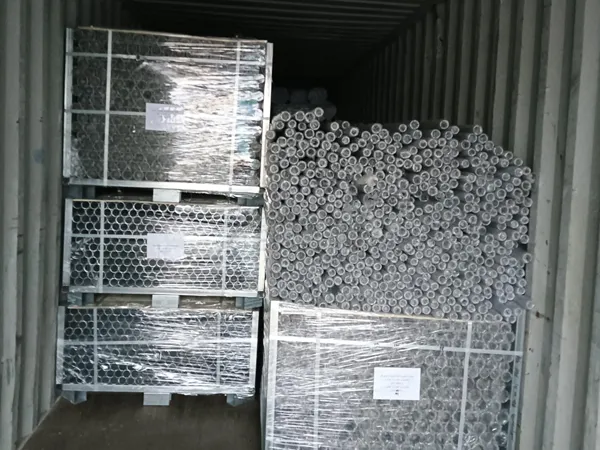

- Pre-shipment Audit: Inspected a random full-system mock-up before packing.

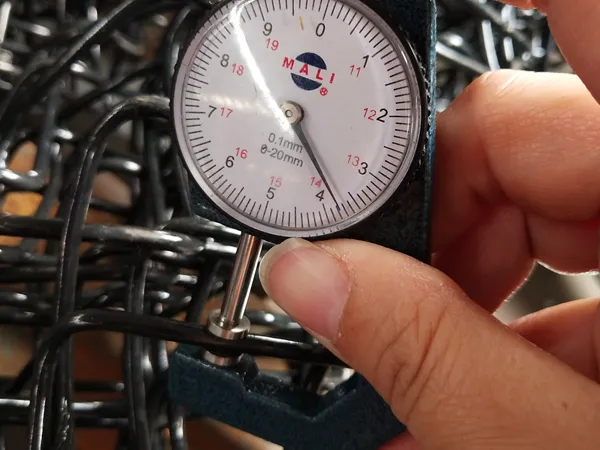

Wire diameter measurement
Project Execution Highlights
- High-Security Design: 3.8 mm twisted mesh with single arm and barbed wire formed a strong anti-climb and anti-cut barrier for critical infrastructure.
- Uniform Aesthetic: Full black RAL 9005 finish on mesh, posts, and gates created a professional, discreet look for industrial surroundings.
- Corrosion Protection: Zinc plus PVC/powder coating provided long-term outdoor durability.
- Embedded Installation: Concrete-buried posts improved stability against wind, impact, and forced entry.
- Vehicle Access Control: 10 heavy-duty double gates enabled secure access for maintenance and emergency vehicles.
- Turnkey Compatibility: Pre-matched mesh, posts, arms, barbed wire, and gates ensured smooth field installation.
Post-Installation Showcase
After installation, the black RAL 9005 fence system formed a secure, professional perimeter around the power station:

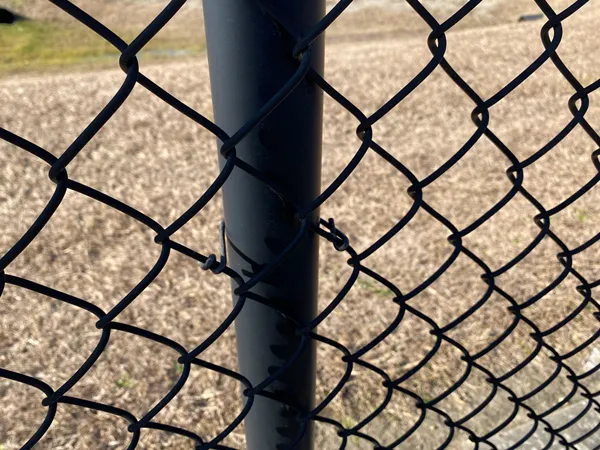

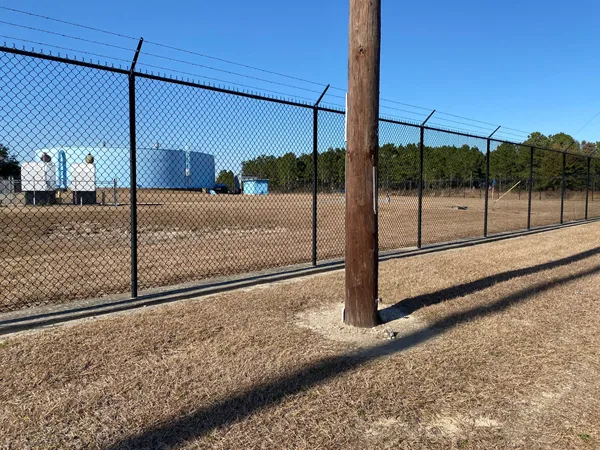

- Perimeter View: A continuous 2,000 m black fence line with concrete-embedded posts, single arms, and barbed wire.
- Anti-Climb Detail: Twisted 50 × 50 mm mesh reduced hand/foot holds, while barbed wire added strong deterrence.

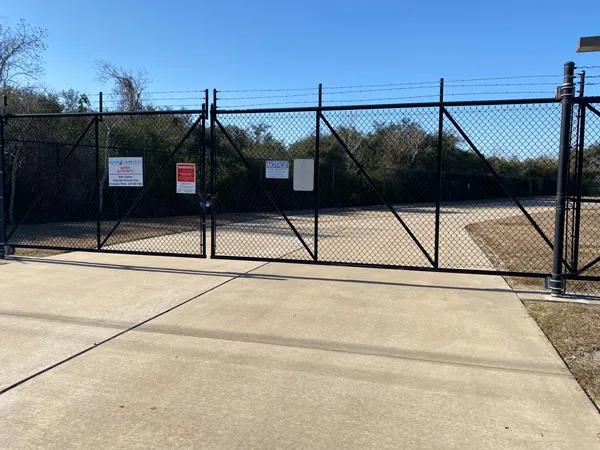

- Gate Integration: 10 double gates operated smoothly at vehicle entries, with padlockable latches and no sagging.
- Durability: After six months, no rust, coating damage, or loose mesh was reported, even after winter conditions.
Customer Feedback
"This fence system met our power station’s security needs perfectly. The 2.25 m height, barbed wire, and stronger twisted mesh provide reliable perimeter protection, while the all-black finish looks professional and discreet. The double gates still operate smoothly after months of daily truck use. Quality was consistent across all 2,000 meters, delivery was on time, and we plan to use the same system for our next substation project."
– Security Project Manager, U.S. Engineering Contractor
