Industrial Zone 3D Fence Project with Three Access Gates
Products
3D welded mesh fence + single gate + double gate + sliding gate
Application
Costa Rican industrial zone
PROJECT BACKGROUND
A Costa Rican distributor ordered 2,000 sets of 3D welded mesh fencing systems for a major industrial zone project. The solution included fencing panels, posts, single, double, and sliding gates, all finished in hot dipped galvanizing to provide reliable security, durable performance, and flexible access control in Costa Rica's tropical climate.
OUR SOLUTION
Product Specifications
The project included 2,000 sets of complete 3D welded mesh fencing systems with panels, posts, and three gate types.

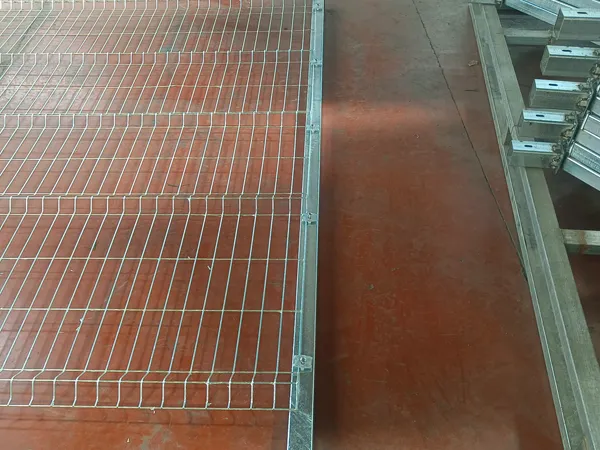

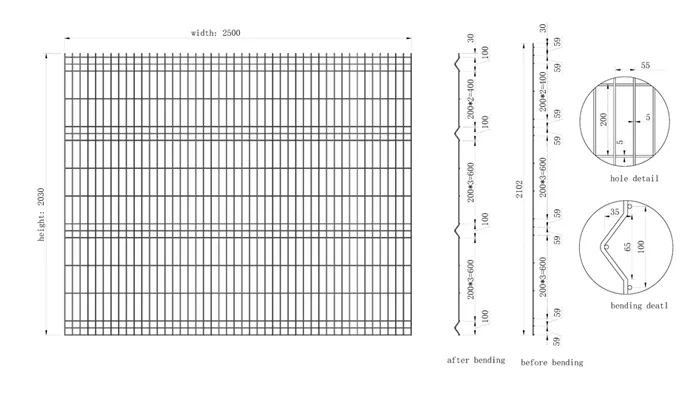

- Fence Panels
- Size: 2,030 × 2,500 mm
- Wire: 5.0 mm
- Mesh: 50 × 200 mm
- Four 3D bending lines

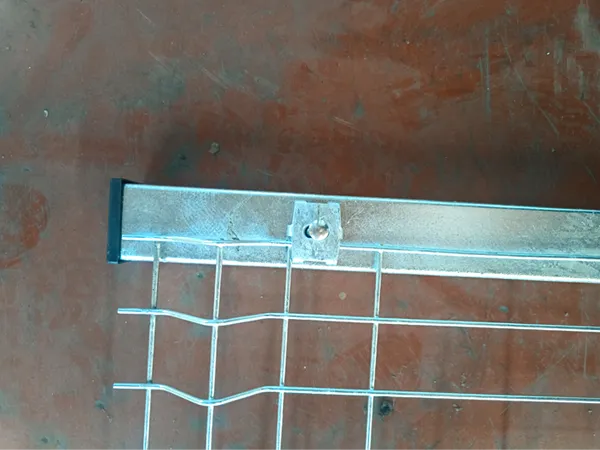

- Posts
- Size: 60 × 60 × 2.0 mm
- Length: 2.5 m
- Concrete embedded installation

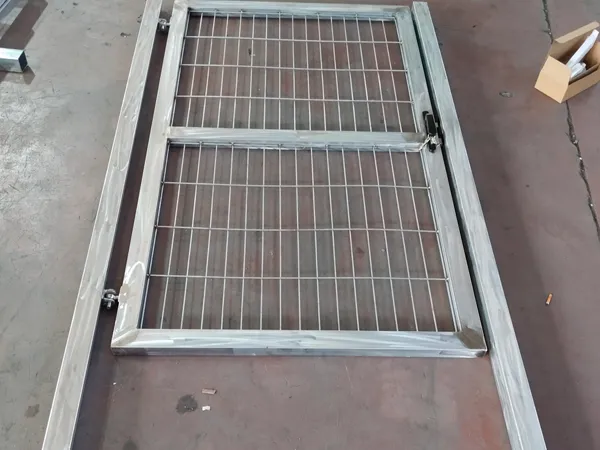

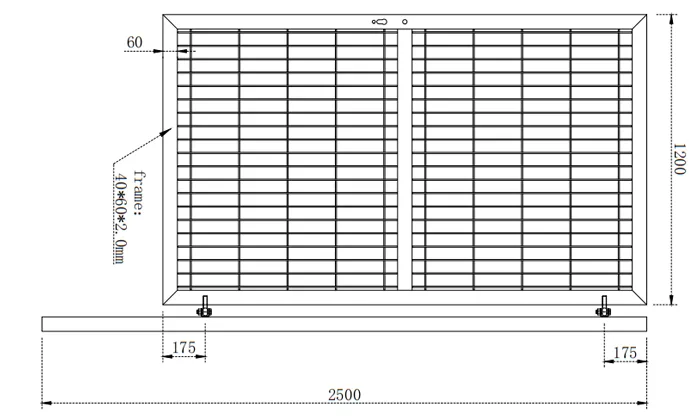

- Single Gate
- Size: 2,000 × 1,200 mm
- Frame: 40 × 60 × 2.0 mm
- Posts: 60 × 60 × 2.0 mm
- Complete gate hardware

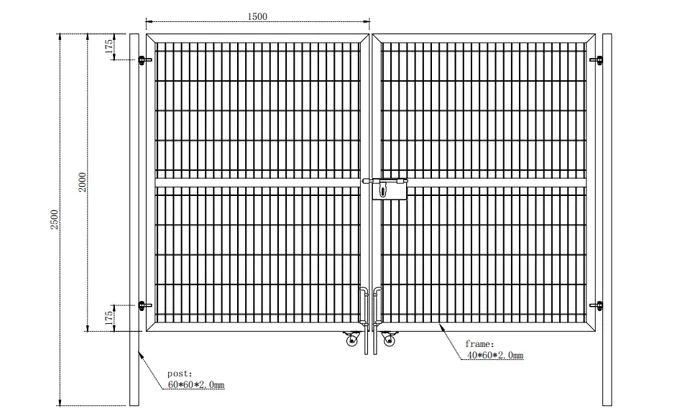

- Double Gate
- Size: 2,000 × 3,000 mm
- Frame: 40 × 60 × 2.0 mm
- Posts: 60 × 60 × 2.0 mm

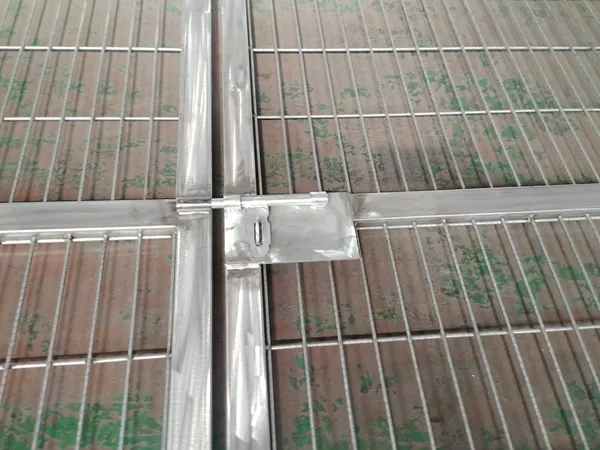

- Complete hinges, ground plug, latch and locking hardware

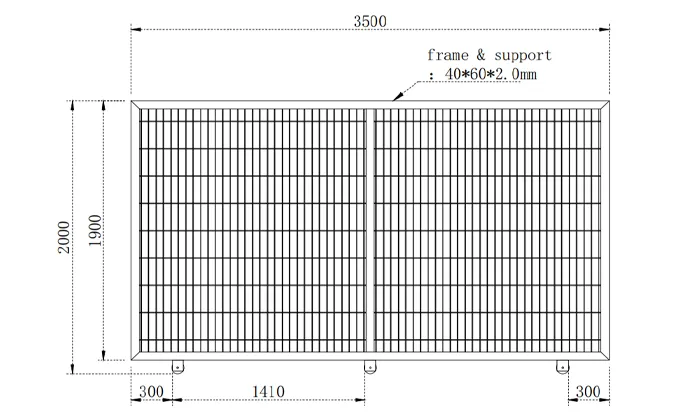

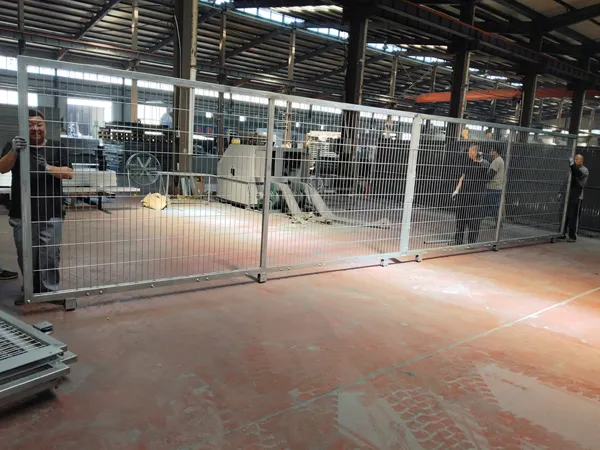

- Sliding Gate
- Size: 2,000 × 3,500 mm
- Frame: 40 × 60 × 2.0 mm
- Posts: 60 × 60 × 2.0 mm
- Horizontal sliding system for limited-clearance areas
- Surface Finish
- The panels, posts, and gates are all hot-dip galvanized, ensuring a uniform appearance and long-lasting durability.
QUALITY CONTROL
- Raw Material Verification: Wire diameter, mesh size, frame size, and post thickness checked
- 3D Bending & Weld Test: Four bending lines and weld strength verified
- Dimensional Accuracy: Panel size, mesh spacing, and post length checked
- Gate Function Test: Gate hardware, alignment, locking, and operation tested
- Sliding Gate Inspection: Tracks, rollers, and sliding mechanism checked

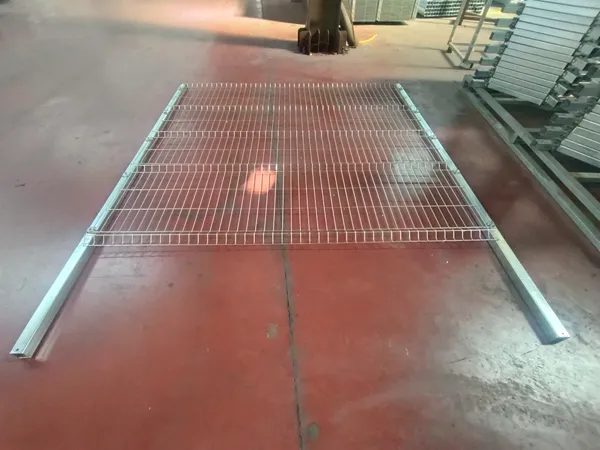

- Pre-shipment Audit: Random complete sets assembled for compatibility testing

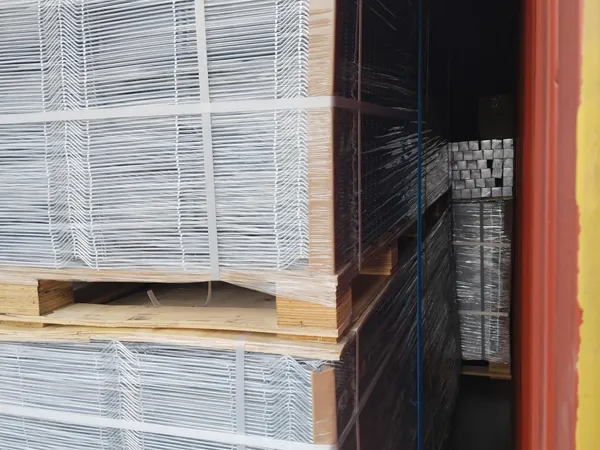

- Packaging Inspection: Steel-framed pallets, protective wrapping, and edge protection checked
PROJECT EXECUTION HIGHLIGHTS
Three Gate Types: Double gates for vehicles, single gates for personnel, and sliding gates for space-limited areas.
- 4-Bend 3D Profile: Four bending lines enhance panel rigidity and impact resistance.
- 50 × 200 mm Mesh: Provides intrusion resistance while maintaining CCTV visibility.
- 5.0 mm Wire: Heavy-duty wire improves impact resistance and structural durability.
- Sliding Gate Design: 2 × 3.5 m sliding gate saves space and ensures smooth access.
- Hot-Dip Galvanized Finish: Provides strong corrosion resistance in Costa Rica's humid climate.
- Complete Hardware Package: Gate shafts, plugs, hinges, ground plugs, and locks included.

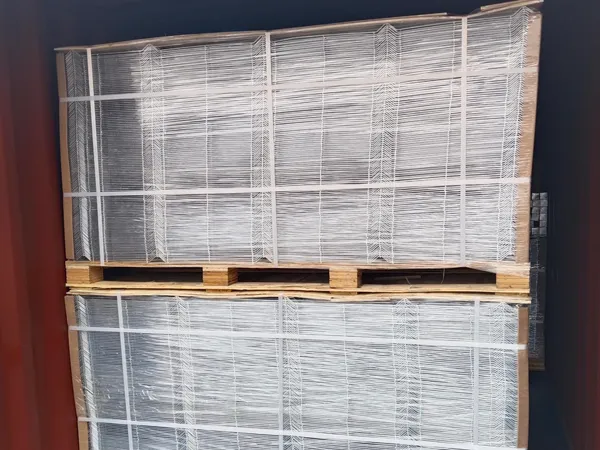

- 2,000-Set Production: Coordinated production and container loading ensured timely, damage-free delivery.

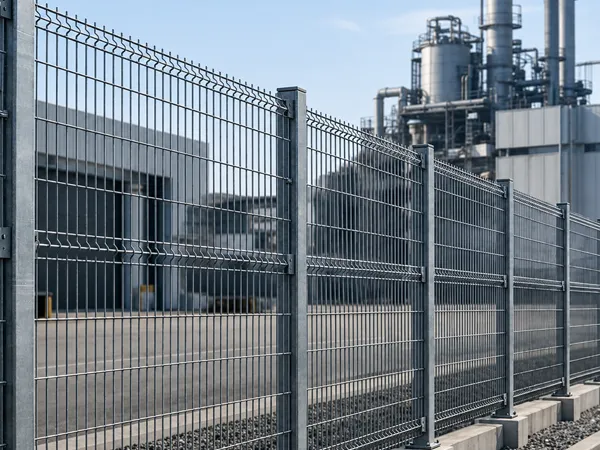

POST-INSTALLATION SHOWCASE
- Panel Stability: 4-bend 3D panels remained straight, firm, and free from sagging after installation.
- Vehicle Access: Double gates provided smooth and efficient access for vehicles.
- Personnel Access: Single gates offered secure and convenient entry for personnel.
- Space-Saving Access: Sliding gates operated smoothly without occupying driveway or loading space.
- Security Performance: 50 × 200 mm mesh provided effective perimeter protection while maintaining CCTV visibility.
- Weather Resistance: The galvanized finish maintained reliable protection under Costa Rica's humid and rainy climate.
- Site Efficiency: Multiple gate types improved traffic flow and overall access efficiency across the industrial park.
CUSTOMER FEEDBACK
"This 2,000-set order with three gate types was our most comprehensive fencing project to date. The 5.0 mm wire, four-bend panels, and consistent 50 × 200 mm mesh delivered excellent quality and rigidity. The single, double, and sliding gates provided flexible access, while all hardware fitted perfectly. Our client was highly satisfied and has already requested a quotation for the next phase."
– Procurement Director, Costa Rican Wholesale Distributor
