7018 sets of High-Security Fences for Congo Airport Perimeter Protection

Location

Congo

Date

August 20, 2025

Products

358 High-Security Fence + Gates

Application

Airport perimeter security

To enhance perimeter security at a major airport in Congo, the client required a robust fencing system that could prevent unauthorized access while withstanding tropical weather conditions. The solution needed to meet strict anti-climb and corrosion-resistance requirements, resulting in the production and delivery of 7,018 sets of 358 high-security fence panels and 10 sets of heavy-duty double gates.

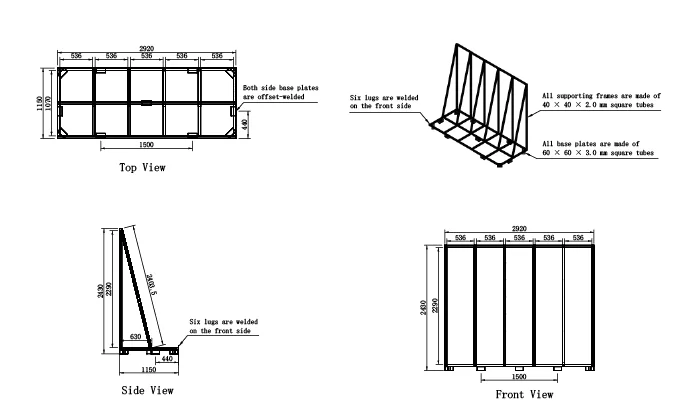

Metal Pallets Drawing

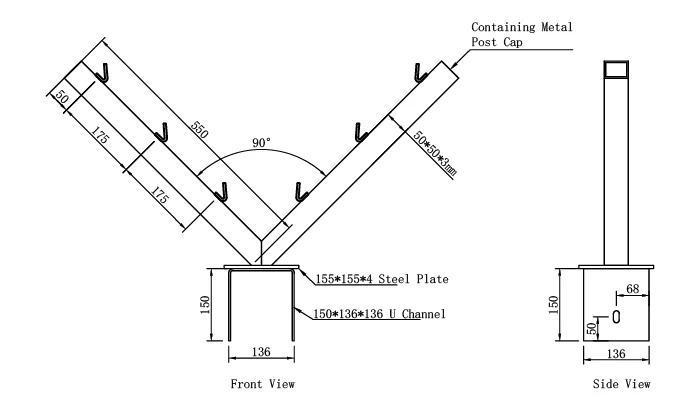

Barbed Arm Drawing

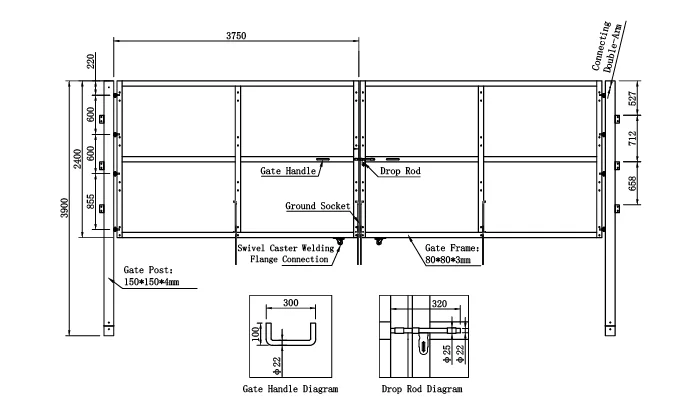

Fence Gate Drawing

Metal Pallets Drawing

Product Specifications

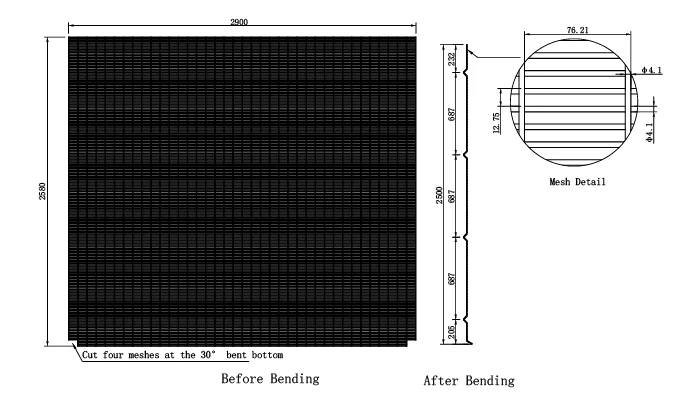

• 358 Fence Panels
  • Dimension: 2.5 m H × 2.9 m W
  • Material: High-tensile steel, 4.1 mm wire diameter
  • Mesh Size: 76.2 mm × 12.7 mm (anti-climb design)
  • Surface Treatment: 275 g/m² hot-dip galvanizing + powder coating
  • Reinforcement: Bending design for added strength
  • Security Feature: Barbed wire & razor barbed wire arms
  • Posts: Heavy-duty steel posts for structural stability
• Double Gates
  • Dimension: 2.4 m W × 7.5 m H
  • Reinforced frames with universal wheels for smooth operation
  • Finish: Same anti-corrosion treatment as fence panels
• Packaging
  • Vertical stacking for oversized panels to ensure safe shipping

To ensure top-tier performance, we implemented strict quality checks:

• Material Inspection: Verified wire thickness
• Welding & Fabrication Test: Ensured panel bending and post stability met security standards
• Coating Adhesion Test: Confirmed powder coating durability under salt spray testing
• Gate Functionality Check: Tested wheel movement and locking mechanisms

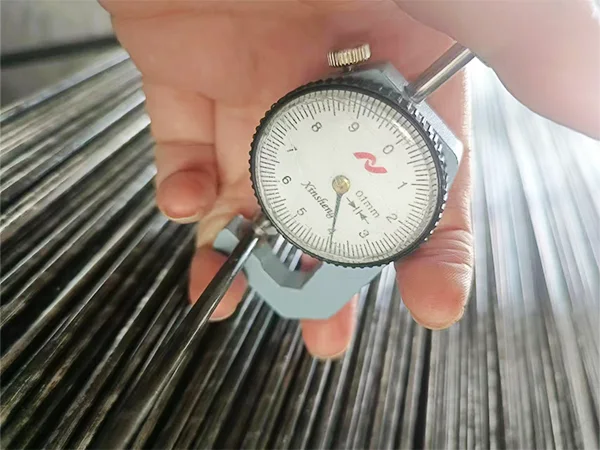

Wire Diameter Measurement

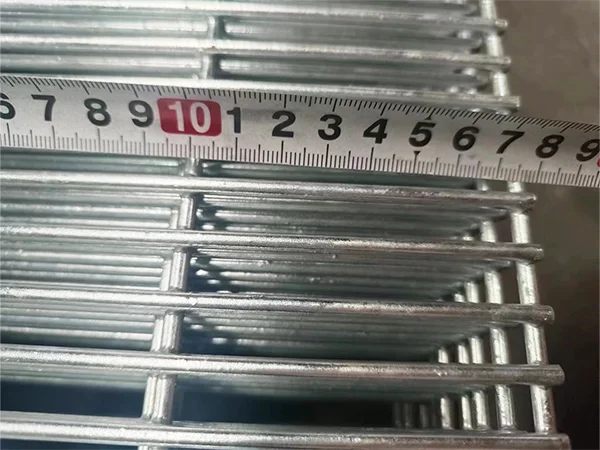

Mesh Size Measurement

Mesh Size Measurement

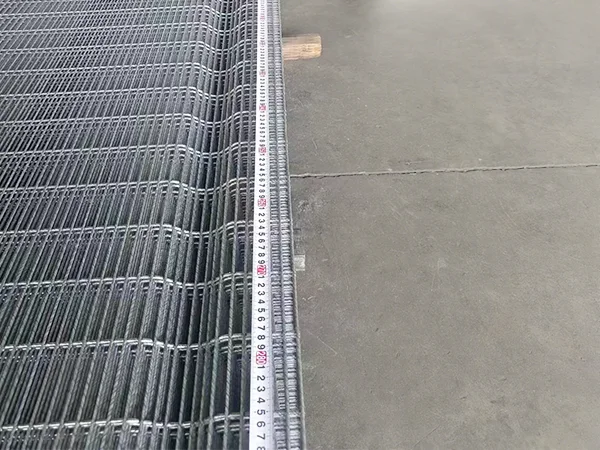

Width Measurement

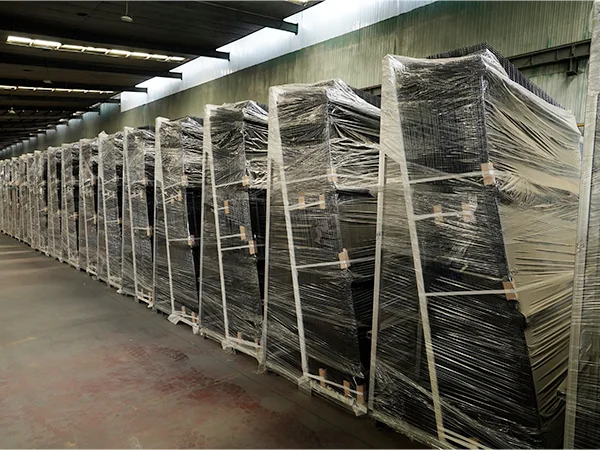

Metal Pallet Package

• High Security: Razor wire and anti-climbing design deter intruders effectively
• Extreme Durability: 275 g/m² galvanized + powder coating resists corrosion in tropical climates
• Heavy-Duty Gates: Smooth operation with reinforced wheels for large gate leaves
• Efficient Logistics: Vertical packaging minimized damage and optimized shipping

This project demonstrates our capability to deliver high-security, weather-resistant fencing solutions for critical infrastructure worldwide.

"The fencing system exceeded our expectations in both security and durability. The heavy-duty gates with wheels operate smoothly despite their size, and the anti-corrosion treatment ensures long-term performance. The vertical packaging also prevented transit damage. We highly recommend this solution for critical infrastructure protection."

— Congo Airport Security Project Team
