1,500 m Black Chain Link Fence with Double Gates for Canada Sports Parks
Products
Chain link fence + double gate
Application
Canadian public community sports parks
PROJECT BACKGROUND
A Canadian wholesale distributor ordered 1,500 meters of chain link fencing with double gates for public sports parks across Canada.
Designed for baseball, soccer, tennis, and basketball facilities, the fencing provides ball containment, spectator safety, and perimeter security.
The complete system includes mesh, rails, flat bars, round posts, gates, and hardware. Finished in black powder coating (RAL 9005), it offers durability, low maintenance, and resistance to Canada's varied climate.
OUR SOLUTION
Product Specifications
The 1,500-meter chain link fencing system includes mesh rolls, rails, flat bars, posts, and double gates for public sports parks.
- Chain Link Mesh Rolls
- Size: 2 × 20 m (H × L) per roll
- Wire Diameter: 2.5 mm
- Mesh Opening: 50 × 50 mm
- Finish: Black PVC coating, RAL 9005
- Rails
- Size: Ø32 × 1.5 mm, 3 m long
- Function: Top support and mesh tensioning
- Flat Bars
- Size: 15 × 3.8 mm, 2 m long
- Function: Mesh fixing and edge reinforcement
- Posts
- Size: Ø48 × 1.5 mm, 3 m long
- Installation: Buried in ground, without base plates

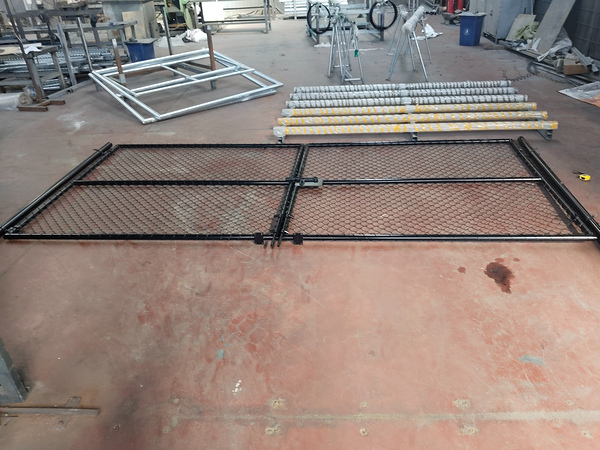

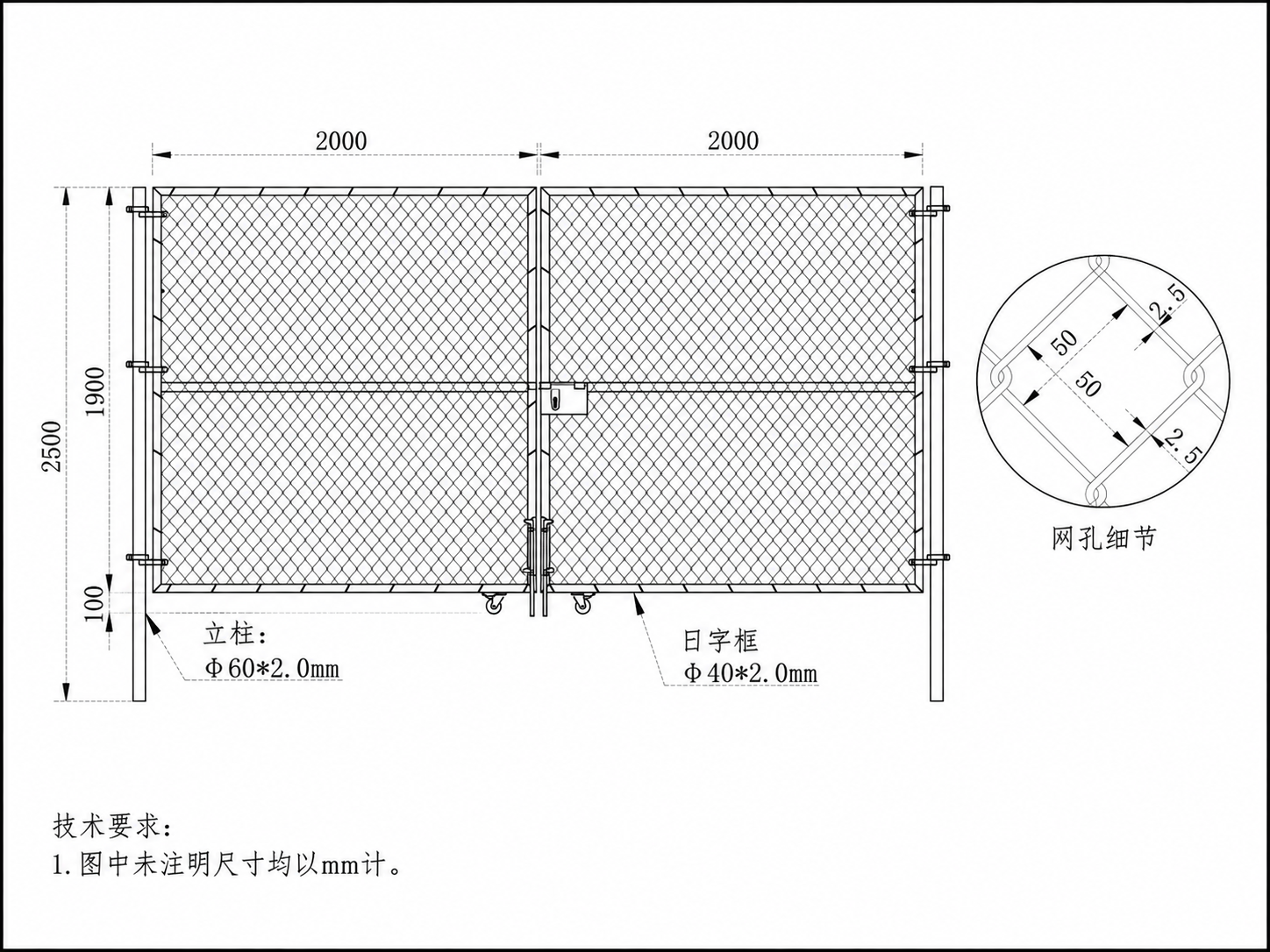

- Double Gates
- Size: 2 × 4 m (H × W)
- Mesh: Ø2.5 mm wire, 50 × 50 mm opening
- Frame: Ø40 × 2.0 mm round pipe
- Gate Posts: Ø60 × 2.0 mm, 2.5 m long

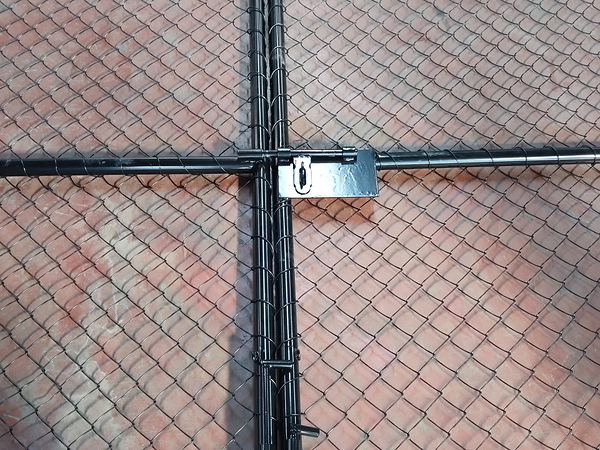

- Hardware: 6 sets of gate shafts, 1 gate plug set, 2 ground plug sets
- Finish: Black powder coating, RAL 9005
QUALITY CONTROL
Strict quality inspections were conducted throughout production to meet Canadian public park requirements.
- Raw Material Inspection: Verified wire diameter (2.5 mm), mesh opening (50 × 50 mm), rails (Ø32 × 1.5 mm), flat bars (15 × 3.8 mm), and posts (Ø48 × 1.5 mm).

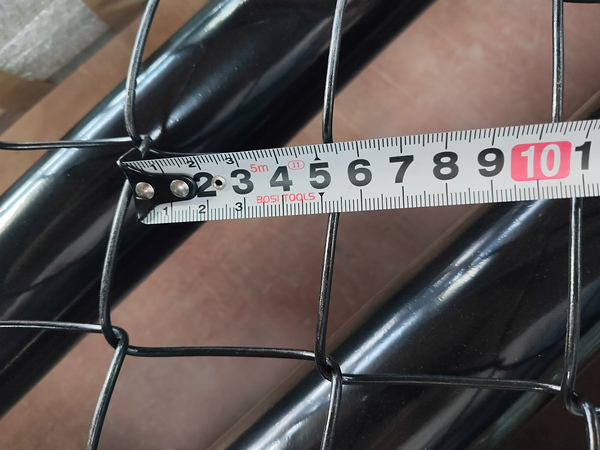

- Mesh Inspection: Checked diamond mesh consistency, wire straightness, and coating coverage.
- Weld Integrity: Conducted random gate frame weld shear tests and inspected weld consistency and penetration.

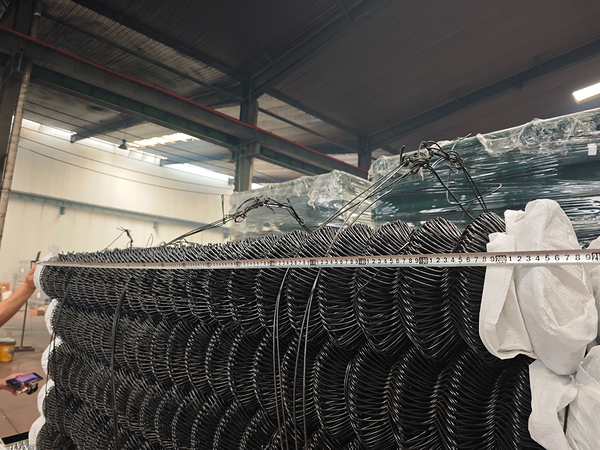

- Dimensional Accuracy: Verified mesh rolls (2 × 20 m), rails (3 m), flat bars (2 m), and posts (3 m).
- Coating Inspection: Performed cross-hatch adhesion tests and checked RAL 9005 color uniformity.
- Gate Function Test: Tested 6 gate shaft sets, 1 gate plug set, and 2 ground plug sets for alignment and secure operation.
- Pre-shipment Inspection: Conducted random trial assemblies to verify component compatibility, gate swing, and latch function.

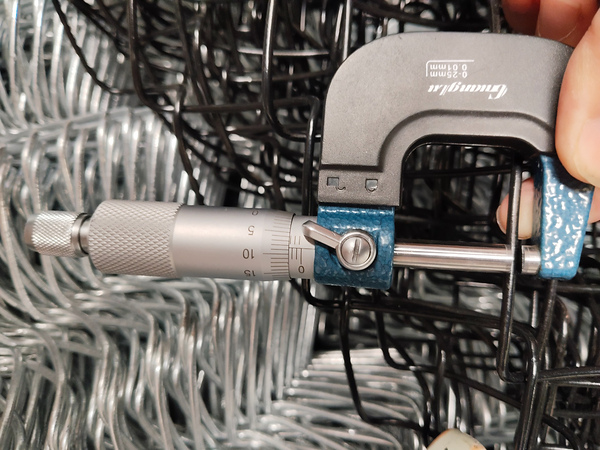

Wire diameter measurement
PROJECT EXECUTION HIGHLIGHTS
- Complete Chain Link System: Mesh rolls, rails, flat bars, posts, and gates supplied together, eliminating separate sourcing.
- Heavy-Duty Double Gate: The 4 m wide gate with Ø2.5 mm wire and Ø40 × 2.0 mm frame supports maintenance and emergency vehicle access.

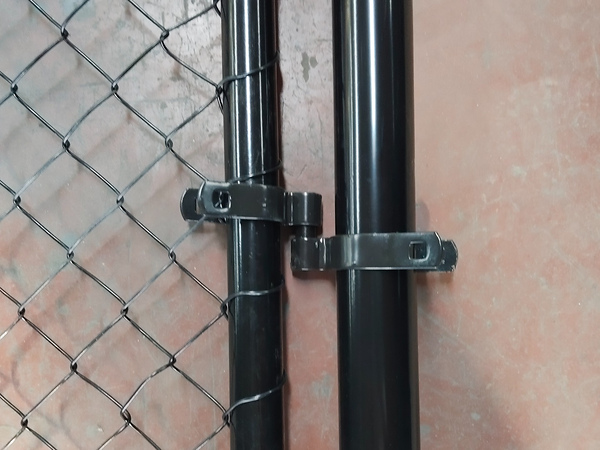

- Complete Gate Hardware: 6 gate shaft sets, 1 gate plug set, and 2 ground plug sets ensure smooth, secure operation.
- Durable Black RAL 9005 Finish: Provides a modern appearance and resistance to UV, rain, snow, and temperature changes.
- Buried Round Posts: Ø48 × 1.5 mm posts offer stable support without visible base plates, combining safety and aesthetics.
- 50 × 50 mm Diamond Mesh: Ensures effective ball containment while maintaining visibility for spectators and security monitoring.

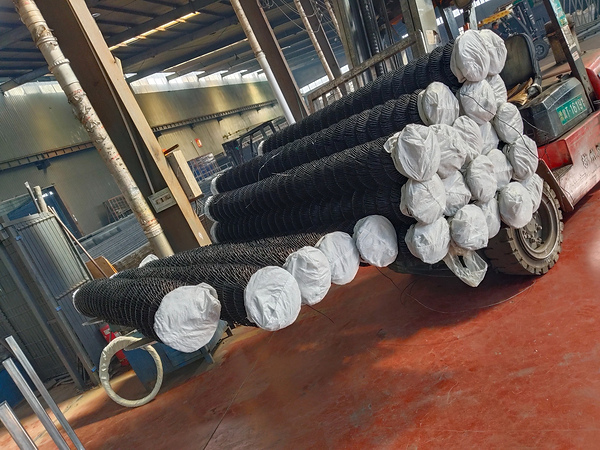

- 1,500 m Project Supply: Coordinated production and container logistics supported on-time, damage-free delivery.

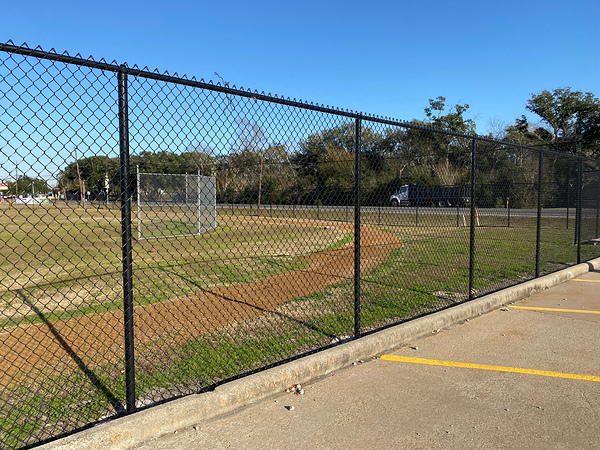

POST-INSTALLATION SHOWCASE
Following installation in Canadian public sports parks, the chain link fencing system delivered reliable performance:
- Modern Appearance: The RAL 9005 black finish and uniform mesh complemented park landscaping and sports facilities.
- Structural Stability: Ø2.5 mm mesh and Ø32 × 1.5 mm rails remained taut, while Ø48 × 1.5 mm posts secured in concrete provided stable support against wind and impact.
- Ball Containment & Safety: The 50 × 50 mm mesh effectively contained sports balls, protecting spectators and nearby property.
- Smooth Gate Operation: The 4 m double gates with Ø40 × 2.0 mm frames provided secure access for maintenance and emergency vehicles.
- Clean Installation: Buried posts eliminated visible base plates, while flat bars ensured neat mesh edges and a uniform fence line.
- Weather Resistance: The black coating resisted UV, rain, snow, and freeze-thaw cycles without fading, chipping, or rusting.
- Positive Community Feedback: Park managers and residents praised the secure, attractive appearance and minimal maintenance requirements.
CUSTOMER FEEDBACK
"The 1,500-meter chain link fencing system met our sports park clients' needs perfectly. The 2.05 mm wire and 50 × 50 mm mesh provided strength and visibility, while the reinforced double gates ensured durability and smooth operation. Complete hardware simplified installation, and the uniform RAL 9005 black finish performed well in Canada's varied climate. Municipal parks departments were highly satisfied with the security, appearance, and quality. We look forward to ordering again for future projects."
– Procurement Manager, Canadian Wholesale Distributor
