1,300 Sets of Triple-Rail Steel Tubular Fence for U.S. Community Pools

Location

America

Date

October 2, 2026

Products

Steel Tubular Fences

Application

American community pool

A U.S. wholesale distributor ordered 1,300 sets of steel tubular fences with single and double gates for community pool projects. Serving homeowners’ associations, municipal parks, and private community centres, the system provides safe, durable, and attractive perimeter fencing.

The 1.83 m (6 ft) panels exceed typical minimum height requirements. Complete with posts and hardware, the system features black RAL 9005 powder coating for resistance to chlorinated water, UV exposure, and weather.

The 1,300 sets include the following components for community pool safety and access:

• Fence Panels
  • Size: 1,830 × 2,440 mm (H × W)
  • Three horizontal rails: 40 × 40 × 1.2 mm
  • Square-tube pickets: 19 × 19 × 1.2 mm
  • Spear top for anti-climb protection and a classic appearance
  • Fully welded intersections for structural integrity
• Support Posts
  • Profile: 60 × 60 × 2.0 mm
  • Length: 2.4 m, with 570 mm embedment
  • Concrete-set installation without base plates
• Single Gate
  • Size: 1,830 × 900 mm (H × W)
  • Posts: 60 × 60 × 2.0 mm, 2.4 m long
  • Hardware: Gate plug, shafts, heavy-duty hinges, and self-latching lock
• Double Gate
  • Size: 1,830 × 3,000 mm (H × W)
  • Posts: 60 × 60 × 2.0 mm, 2.4 m long
  • Hardware: Gate plug, shafts, heavy-duty hinges, and ground plug
• Surface Treatment
  • Black RAL 9005 powder coating

Strict inspections were conducted throughout production to meet U.S. pool safety and fencing standards.

• Raw Materials: Verified rail (40 × 40 × 1.2 mm), picket (19 × 19 × 1.2 mm), and post (60 × 60 × 2.0 mm) dimensions.
• Weld Integrity: Sample weld shear tests and full weld inspections checked penetration and consistency to prevent displacement under load.
• Dimensions: Checked panel size (1.83 × 2.44 m), picket spacing, and post length (2.4 m) for adequate embedment.
• Coating: Tested cross-hatch adhesion and RAL 9005 colour uniformity under natural and artificial light.
• Gate Function: Tested plugs, shafts, hinges, and locks on both gate types for alignment, smooth operation, and secure fastening.
• Pre-shipment Assembly: Assembled random complete sets to verify component fit, gate swing, and latch function.
• Packaging: Packed all 1,300 sets on steel-framed pallets with protective wrapping and edge protectors for ocean freight.

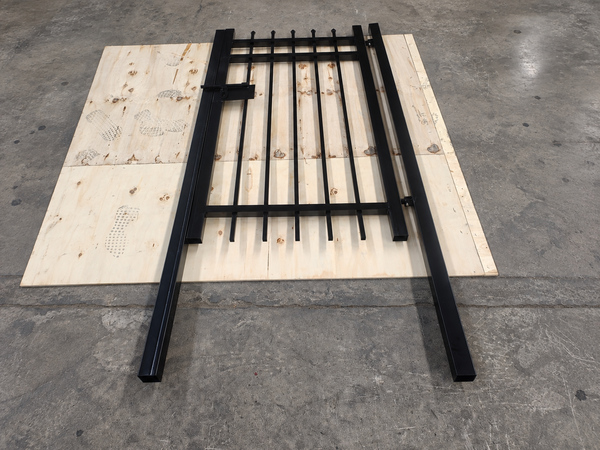

Single gate

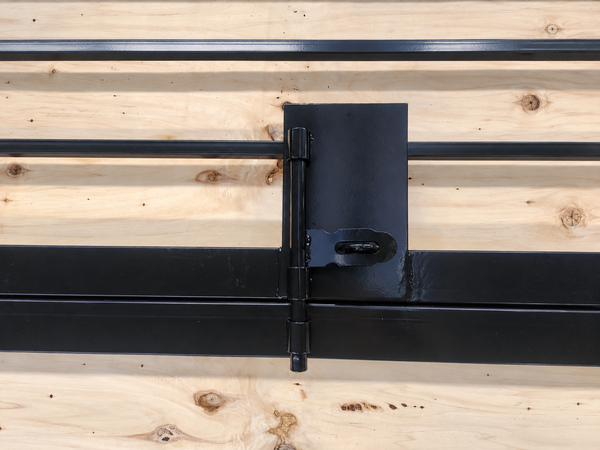

Gate plug of single gate

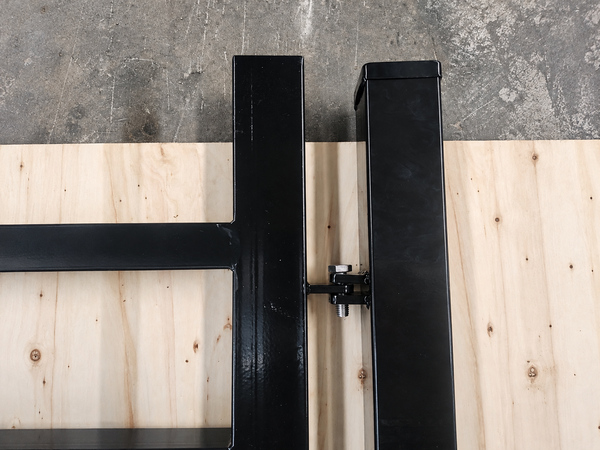

Gate shaft

Gate plug of double gate

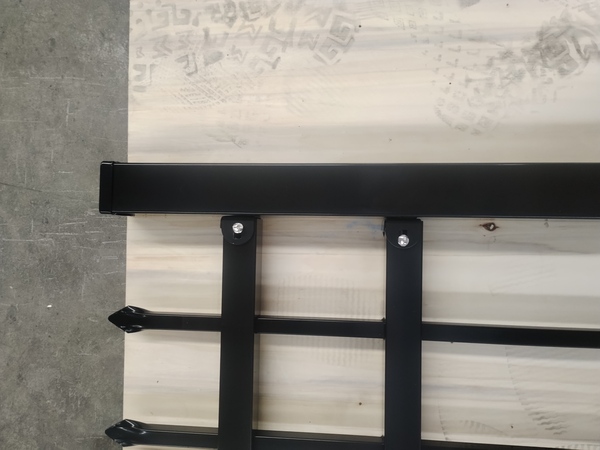

Clip detail

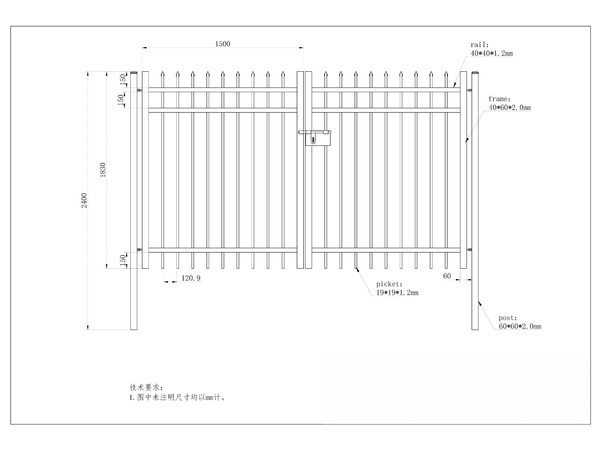

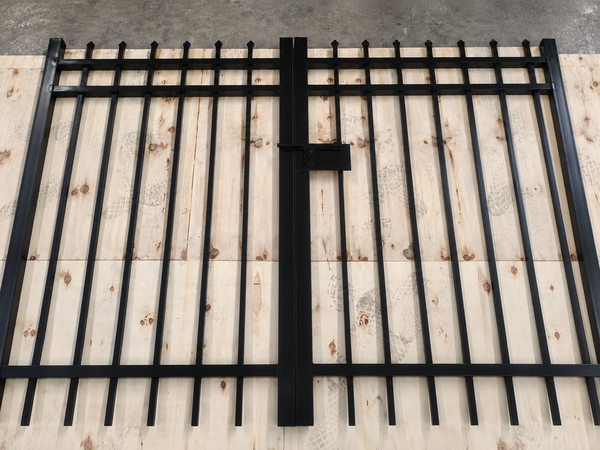

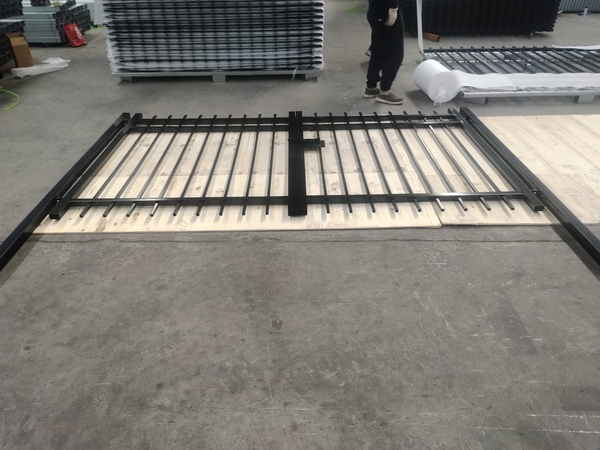

Double gate

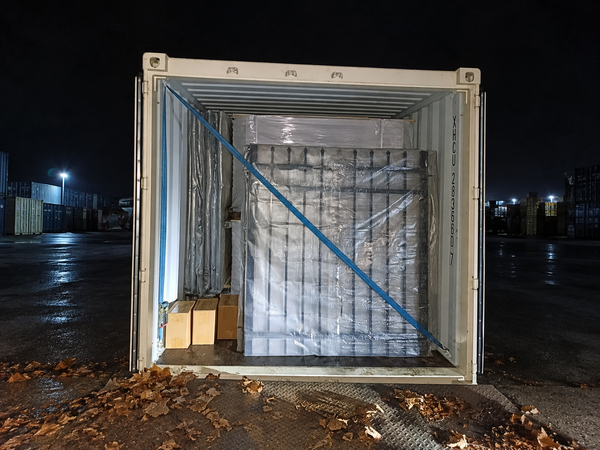

Load into container

• Triple-Rail Rigidity: Three 40 × 40 × 1.2 mm rails prevent sagging and keep pool fencing straight and secure.
• Spear-Top Security: Pointed tops deter climbing and enhance pool perimeter security.
• Heavy-Duty Posts: 60 × 60 × 2.0 mm posts stabilise the 1.83 m panels against wind and impact.
• Complete Gate Solution: Single gates (0.9 m) and double gates (3.0 m), with dedicated posts and hardware, provide controlled personnel, maintenance, and emergency access.
• Durable Black Finish: RAL 9005 powder coating complements pool architecture while resisting chlorinated water, UV exposure, and humidity.
• Weather Resistance: Withstands sun, rain, and temperature changes across U.S. climates, preserving appearance and structural integrity.
• Large-Order Delivery: Coordinated production and container logistics ensured timely, damage-free delivery of all 1,300 sets.

Following installation at U.S. community pools, the steel tubular fence system delivered strong performance:

• Visual Impact: The RAL 9005 black finish complemented pool decks, landscaping, and architecture, while spear tops added a classic, secure appearance.
• Structural Stability: Triple-rail panels with 19 × 19 × 1.2 mm pickets remained straight without sagging. Concrete-set 60 × 60 × 2.0 mm posts provided firm support.
• Safety & Security: The 1.83 m height and spear tops deterred climbing, while close picket spacing prevented child passage, meeting local pool safety requirements.
• Gate Performance: Self-latching 0.9 m single gates enabled convenient personnel access; smooth-operating 3.0 m double gates accommodated maintenance and emergency vehicles.
• Clean Installation: Buried posts eliminated visible base plates, creating a tidy fence line with vertical posts and seamless panel alignment.
• Durability: Powder coating resisted chlorinated water, UV, rain, and humidity without fading, chipping, or rusting.
• Community Feedback: Managers and residents praised the fence's appearance, security, minimal maintenance, and complementary black finish.

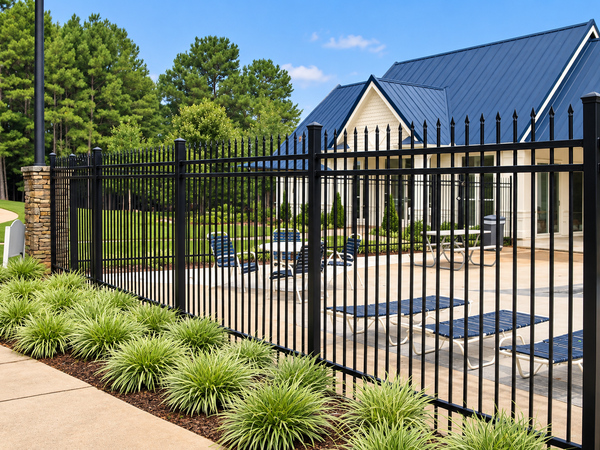

Installation effect

CUSTOMER FEEDBACK

"The 1,300-set steel tubular fence order met our community pool clients' needs. Triple rails ensured rigidity, spear tops added anti-climb security, and 60 × 60 × 2.0 mm posts provided stable support. The uniform RAL 9005 finish resisted pool chemicals and strong sun. Installation was trouble-free, and both gate types and their hardware worked smoothly. Homeowners' associations praised the safety and appearance. We will order again for future pool projects."
– Procurement Manager, U.S. Wholesale Distributor
