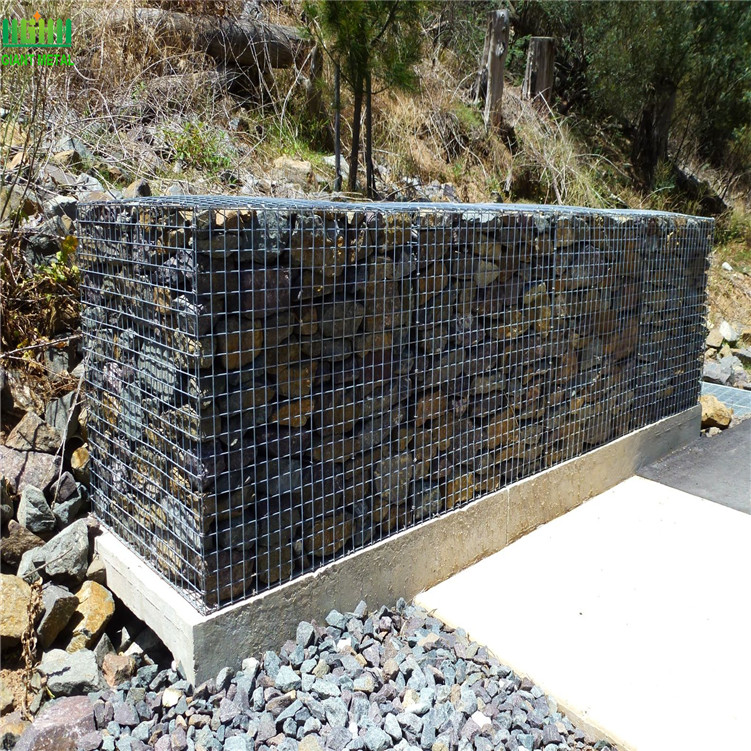

Welded Gabion is high quality steel mesh. They can be filled on site With hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements,various wire diameters and unit sizes are available for welded gabion boxes.
Advantage
1.Flexible structure to adapt to changes in the slope without being destroyed than the rigid structure with better security and stability.
2.anti-erosion ability, can withstand the maximum flow rate of up to 6m/s.
3.The structure has essentially permeable, and the natural role of groundwater filtering effect has a strong inclusive of the Water suspended matter and silt to be deposited to fill the crevice, which Is conducive to natural plant growth, and graduallyrestore the original some of the ecological environment.
Specification
| Mesh Opening | Wire Diameter | Nominal Dimensions |
| 40X40mm | 3.0mm 4.0mm 5.0mm | 1X1X0.5m 1X1X1m 2X1X1m 2X0.7X0.6m |
| 50X50mm | ||
| 60X60 | ||
| 75X75 | ||
| 80X80 | ||
| Special specifications can be customized according to customer requirements. | ||
