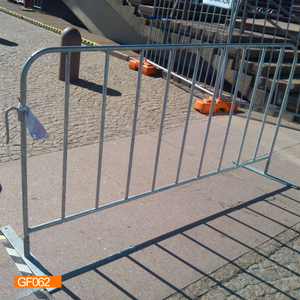

American Crowd Control Barrier

crowd control traffic barrier provides excellent stability.

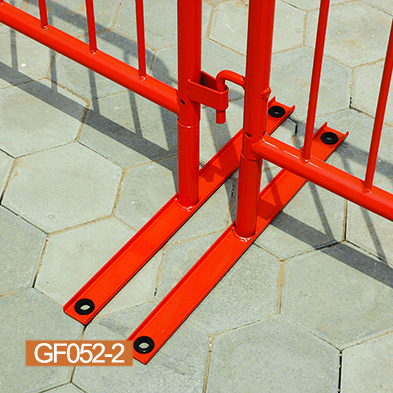

The interlocking hinge system makes installation quick and easy, and panels are designed with removable feet that can be taken off during stacking and storing.
  • American Crowd Control Barrier

  • Giant fence

  • GF052-57

  • Giant fence

  • ISO9001

  • L/C,T/T,DDU, DDP

Availability:
Quantity:

Product Description

Crowd control barriers are also called crowd control fencing ,removable barriers,barricade ,pedestrian barriers,portable fence etc.Our crowd control barrier has been designed for use with large crowds,with their bridge feet (to minimize the tripping hazard).They provide a quick and efficient barrier perfect for all situation where you need to devert or keep the public away from a designated area.

*Fully galvanised for extended life outdoors

*Interlocking lightweight tubular steel
*Low profile - removable feet minimise trip hazard and allow easy storage
*Designed for rapid deployment
*Extremely stable



Specifications

Panel Length

Panel Height

Frame tube

Inner tube

Inner tube distance

feet


6.5

7

7.5

8

8.5

36’’

40’’

47’’

60’’

Φ38x1.5mm

Φ38x1.8mm

Φ38x2mm

Φ12x1.2mm

Φ12x1.5mm

Φ16x1.5mm

110mm

120mm

150mm

Flat feet: 50x580x6 mm

Bridge feet:Length x Width: 67.5x50cm

V shape feet height:270mm




Surface treatment:  1. Hot-dipped galvanized wire and tube welded   2. PVC coated after galvanized wire and tube welded

3. Hot-dipped galvanized after black wire and tube welded


Packaging And Loading

Packing in wooden pallet or steel pallet. Easy for loading and unloading
