Square post fence
Giant fence
GF003
Giant fence
ISO9001
L/C,T/T,DDU, DDP
Availability: | |
---|---|
Quantity: | |
Product Description
3D Fence with Sqaure post is fixed all the panel with post by plastic or steel clamps. Due to its versatile appearance it can be used for a number of different premises, surrounding large areas without restricting the view.
This systems is ideal for basic demarcation. Mainly applied to public areas such as schools, parks, sports arenas and many other residential areas due to its rigidity and aesthetic appeal. It is the perfect deterrent for any commercial business wanting the extra security edge.
Application
Commercial grounds (Corporation, hotel, supermarket)
Private grounds (Courtyard, Villadom)
Public grounds (Park, zoo, train or bus station, lawn);
Road and transit (Highway, railway or road city transit);
3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc.
Specification
Panel Specifications
Line wire x Cross wire | Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm 6x5mm 6x6mm | 50X100mm 50X200mm 55X200mm 75X150mm 100X300mm
| 2m 2.2m 2.4m 2.5m 2.8m 3m | 830mm | 2 | Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 | 1.Hot-dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded |
1030mm | 2 | |||||
1230mm | 2 | |||||
1530mm | 3 | |||||
1830mm | 4 | |||||
2030mm | 4 | |||||
2230mm | 4 | |||||
2430mm | 4 |
Post specifications
Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| 40*40mm 50*50mm 60*60mm | 1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm | 830mm | 850mm | 1200mm | 1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
1030mm | 1050mm | 1400mm | ||||
1230mm | 1250mm | 1600mm | ||||
1530mm | 1550mm | 2000mm | ||||
1830mm | / | 2400mm | ||||
2030mm | / | 2500mm | ||||
2230mm | / | 2800mm | ||||
2430mm | / | 3000mm |

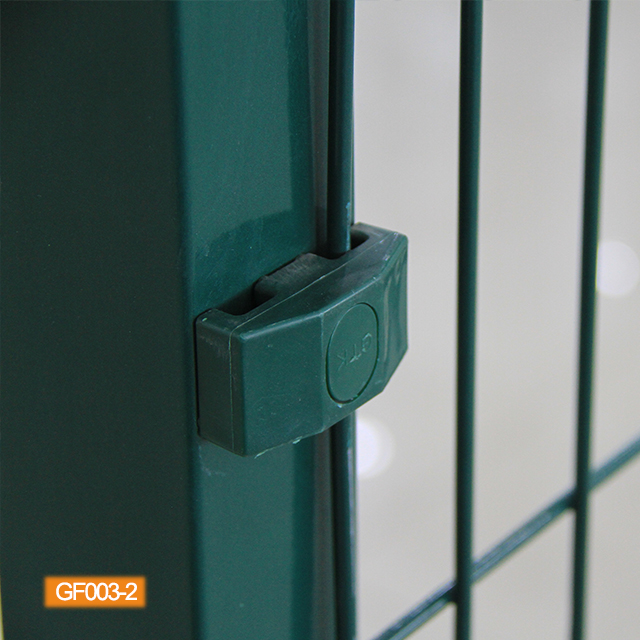

Square post clamps
Fittings
All kinds of fittings are available for suit the 3D fence with peach post
Packing
Packing is import for the products as the ship would be rough shaking during the sailing, which would make serious damage to the goods. Our panels are usually packing in wooden pallet . Posts are packing in bubble film with tape to fix it. All the clamps are packed into carbon boxes.
Also stell pallet and loading in bulk is available.
